TOWN CAR PCM CONNECTOR IDENTIFICATION

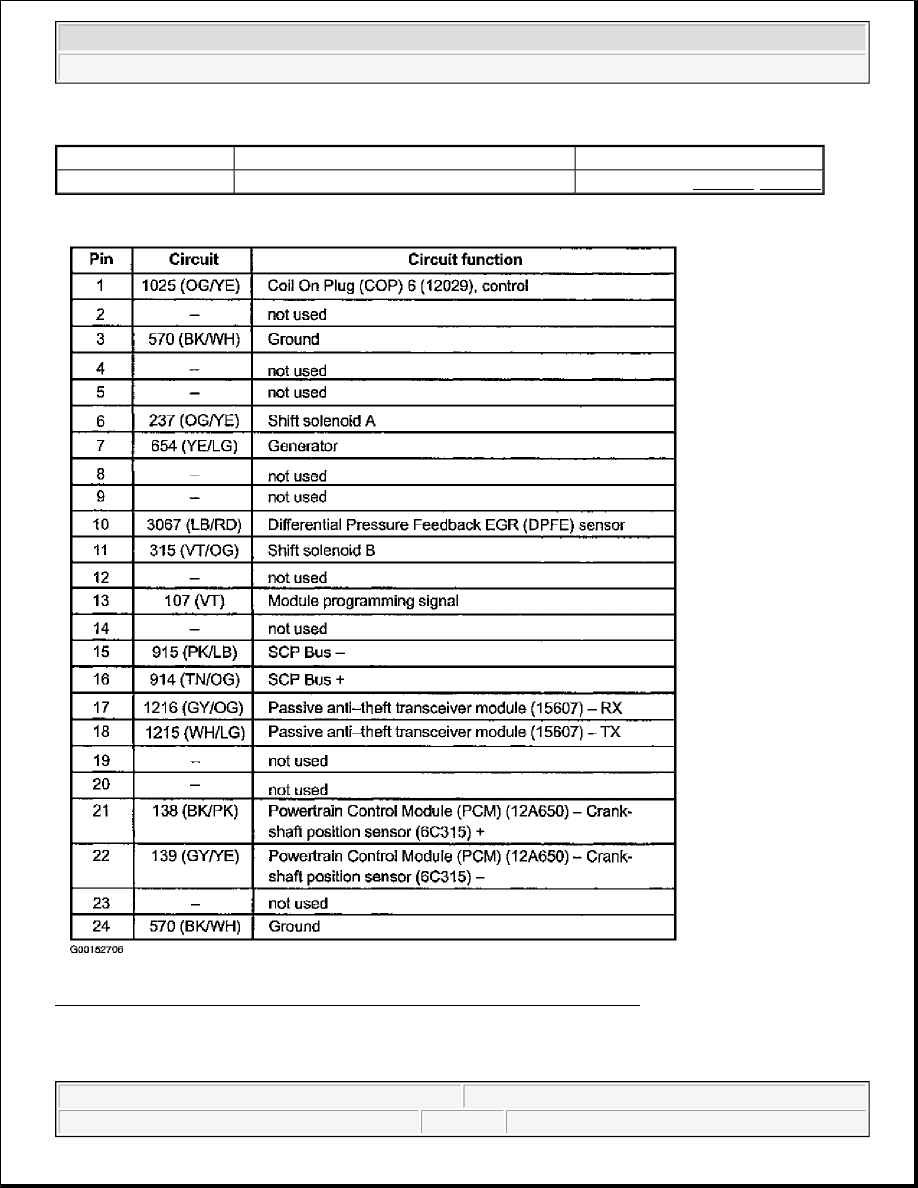

Fig. 154: Identifying PCM Connector Circuit Functions (1 Of 4 - Town Car)
Courtesy of FORD MOTOR CO.

Application

Terminal Identification

Circuit Function

Town Car



Fig. 154-Fig. 157



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 155: Identifying PCM Connector Circuit Functions (2 Of 4 - Town Car)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



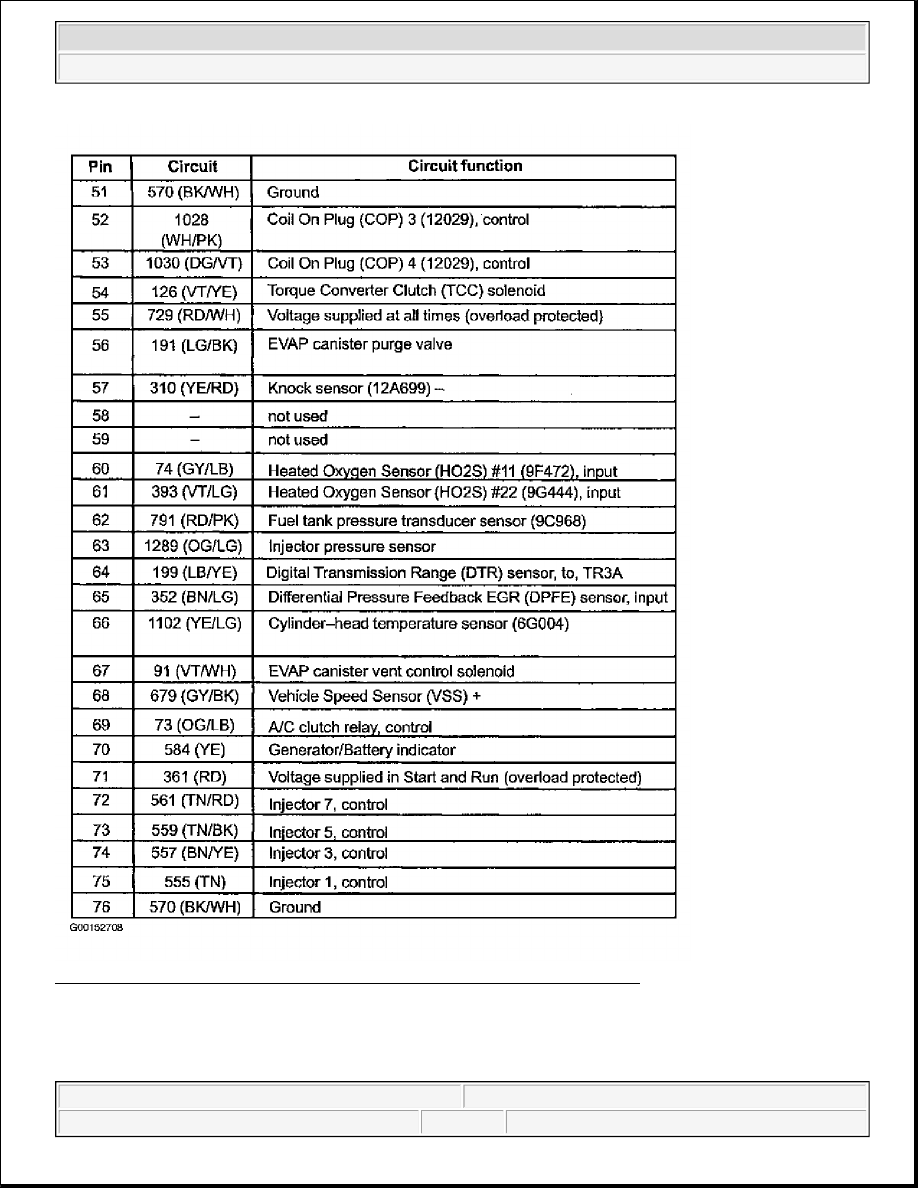

Fig. 156: Identifying PCM Connector Circuit Functions (3 Of 4 - Town Car)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

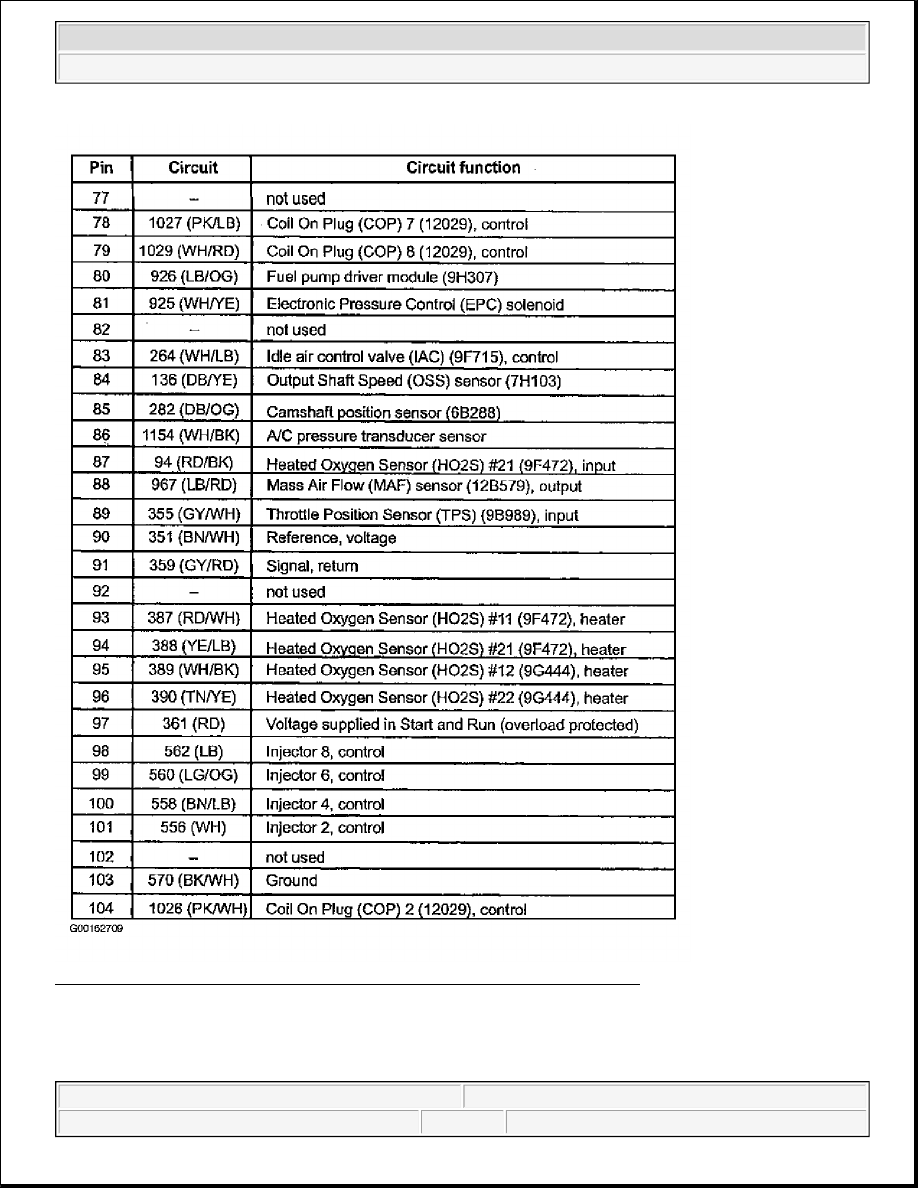

Fig. 157: Identifying PCM Connector Circuit Functions (4 Of 4 - Town Car)
Courtesy of FORD MOTOR CO.

ZX2



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
