Ford F150 Pickup. Instruction - part 1449

Fig. 134: Identifying PCM Connector Circuit Functions (1 Of 4 - Mustang)
Courtesy of FORD MOTOR CO.

Fig. 135: Identifying PCM Connector Circuit Functions (2 Of 4 - Mustang)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 136: Identifying PCM Connector Circuit Functions (3 Of 4 - Mustang)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



Fig. 137: Identifying PCM Connector Circuit Functions (4 Of 4 - Mustang)
Courtesy of FORD MOTOR CO.

RANGER



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

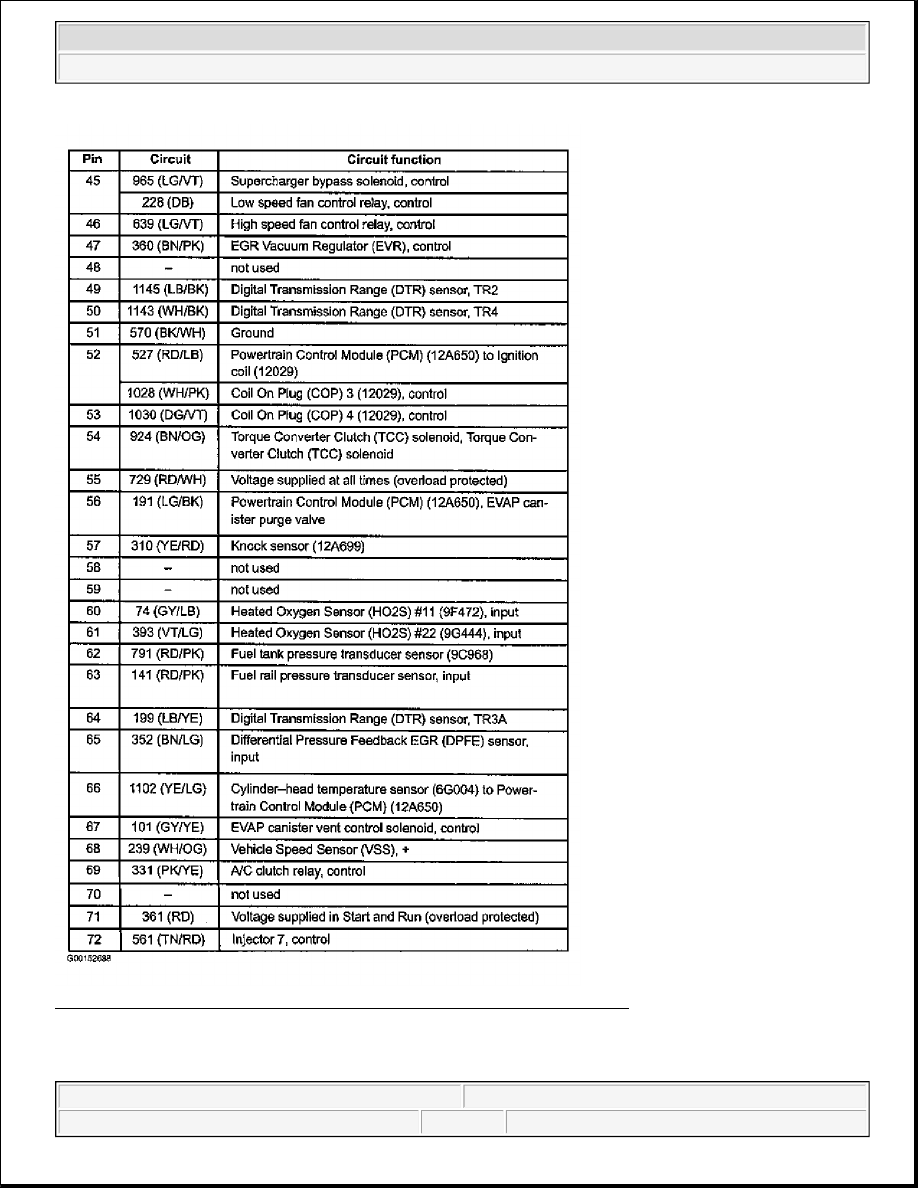

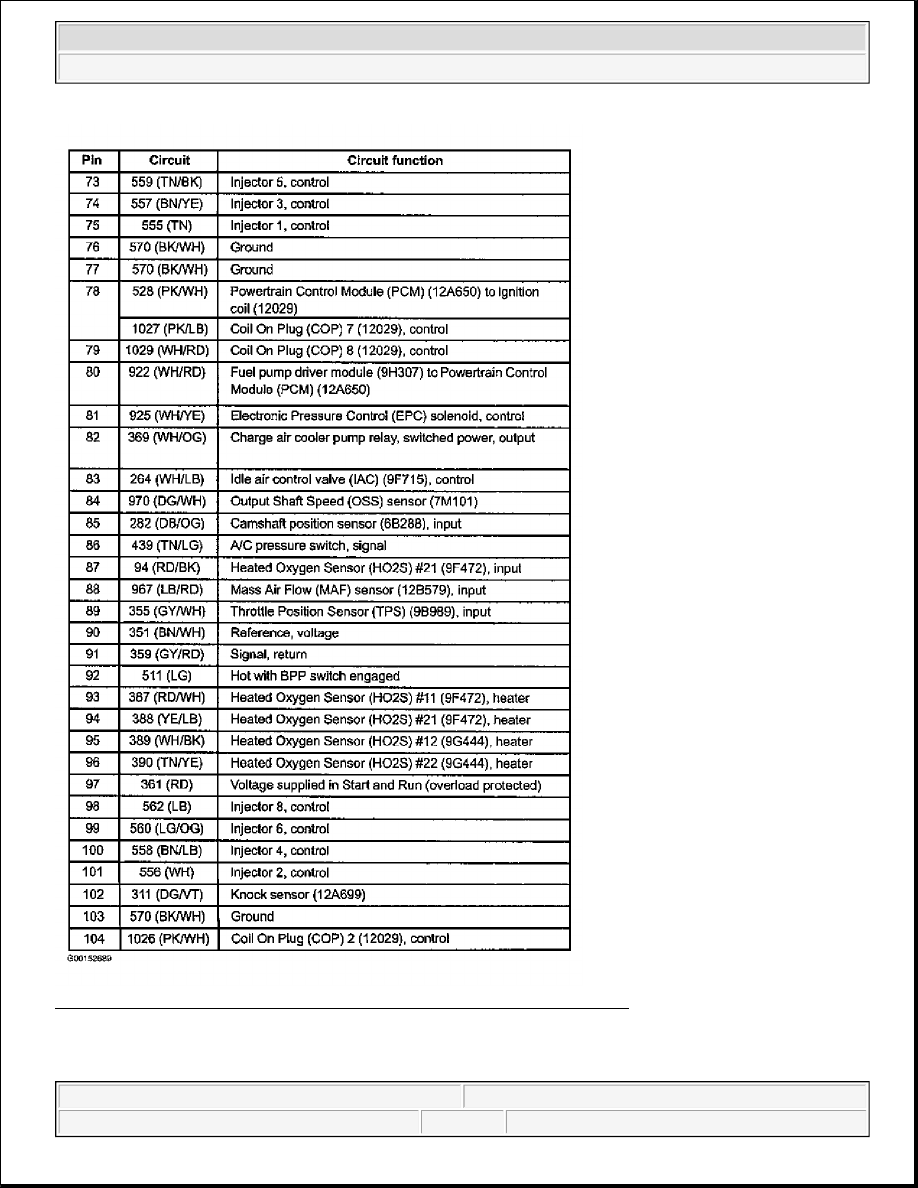

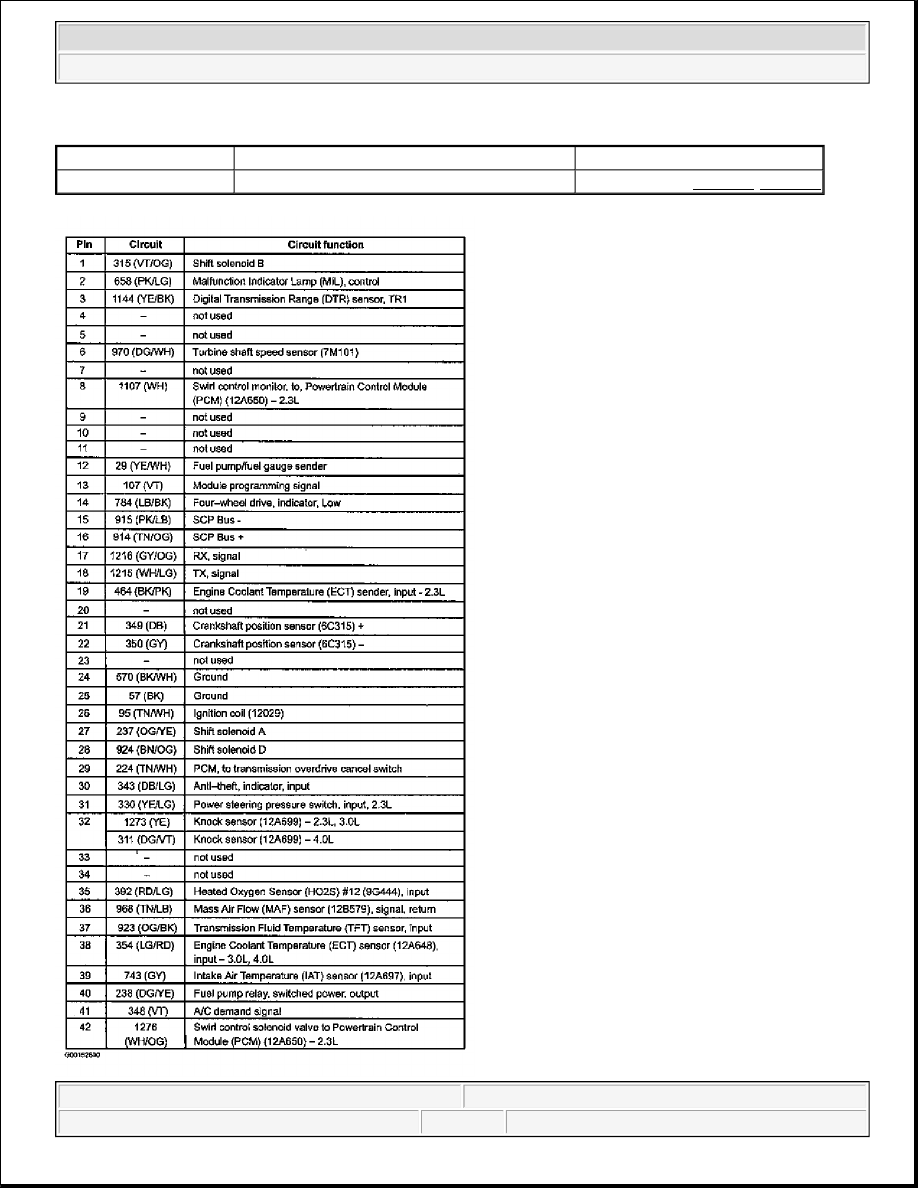

RANGER PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Ranger



Fig. 138-Fig. 140



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
