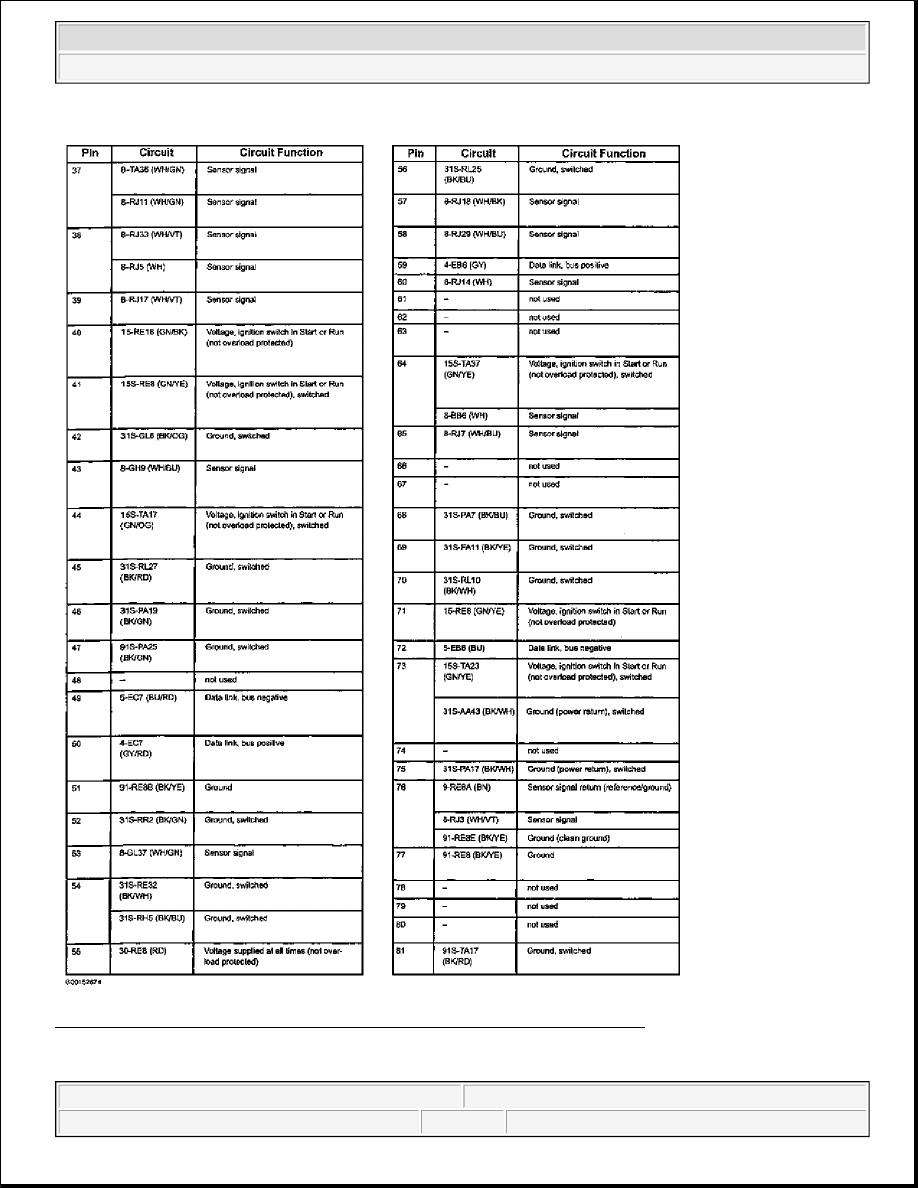

Fig. 115: Identifying PCM Connector Circuit Functions (2 Of 3 - Focus 2.0L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

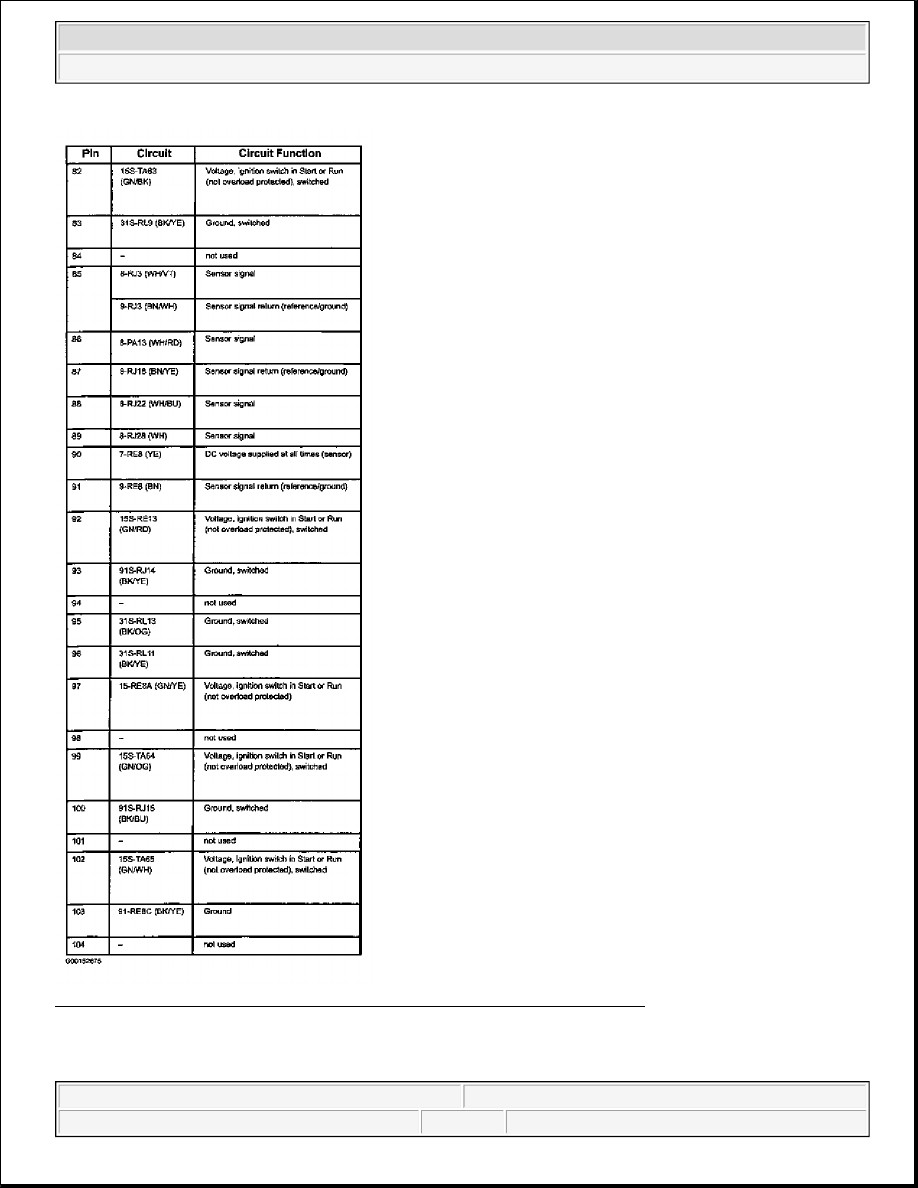

Fig. 116: Identifying PCM Connector Circuit Functions (3 Of 3 - Focus 2.0L)
Courtesy of FORD MOTOR CO.

FOCUS 2.3L



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline



FOCUS 2.3L PCM CONNECTOR IDENTIFICATION

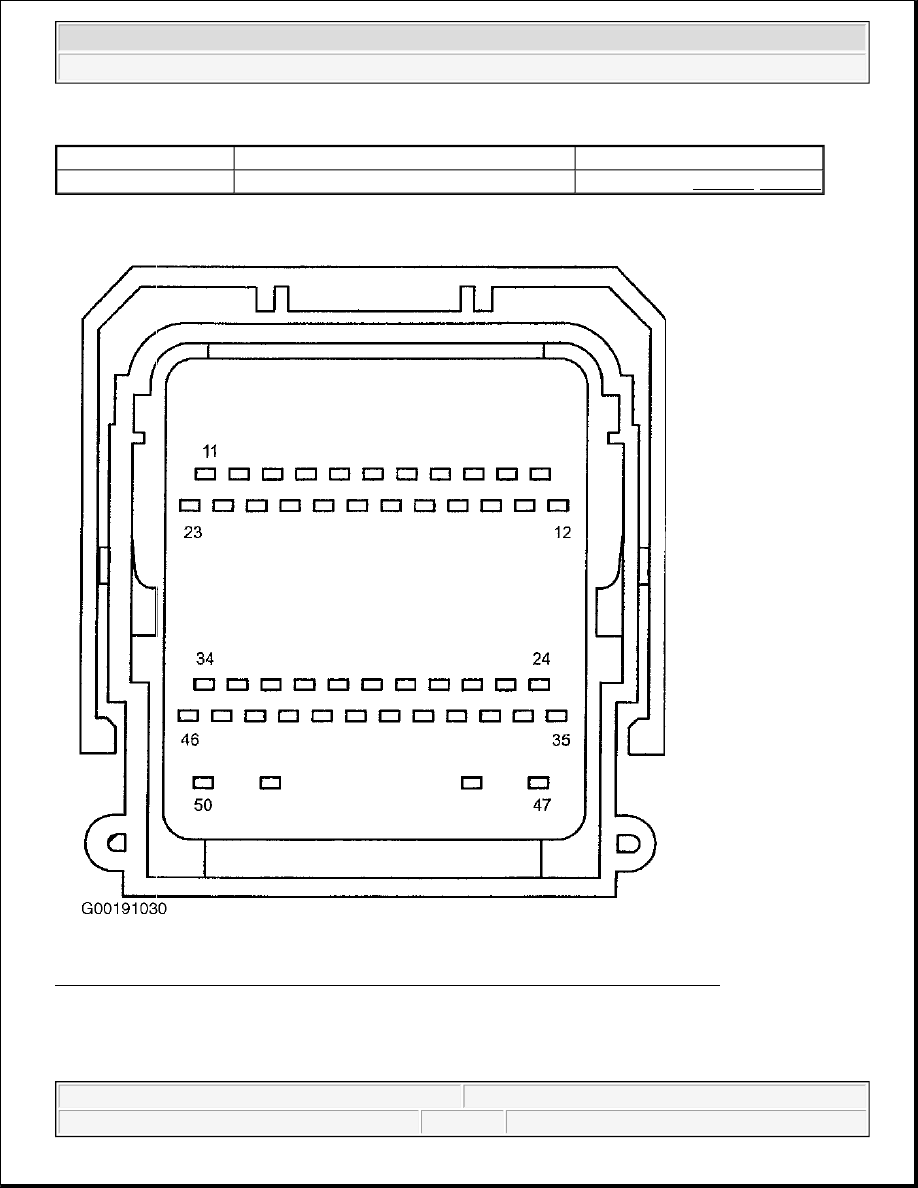

Fig. 117: Identifying PCM Connector C175B, C175E & C175T Terminals (Focus 2.3L)
Courtesy of FORD MOTOR CO.

Application

Terminal Identification

Circuit Function

Focus 2.3L



Fig. 118-Fig. 123



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

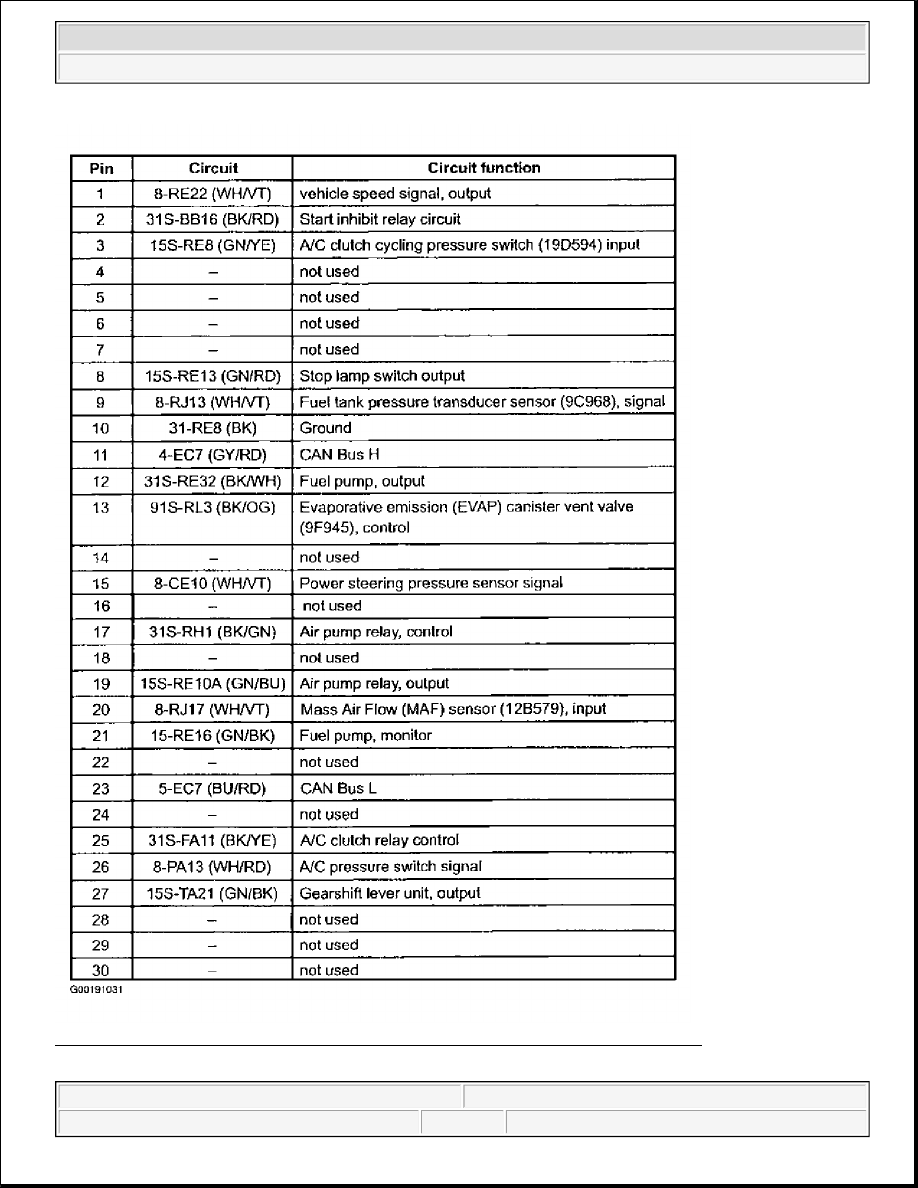

Fig. 118: Identifying PCM Connector C175B Circuit Functions (1 Of 2 - Focus 2.3L)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
