Ford F150 Pickup. Instruction - part 1440

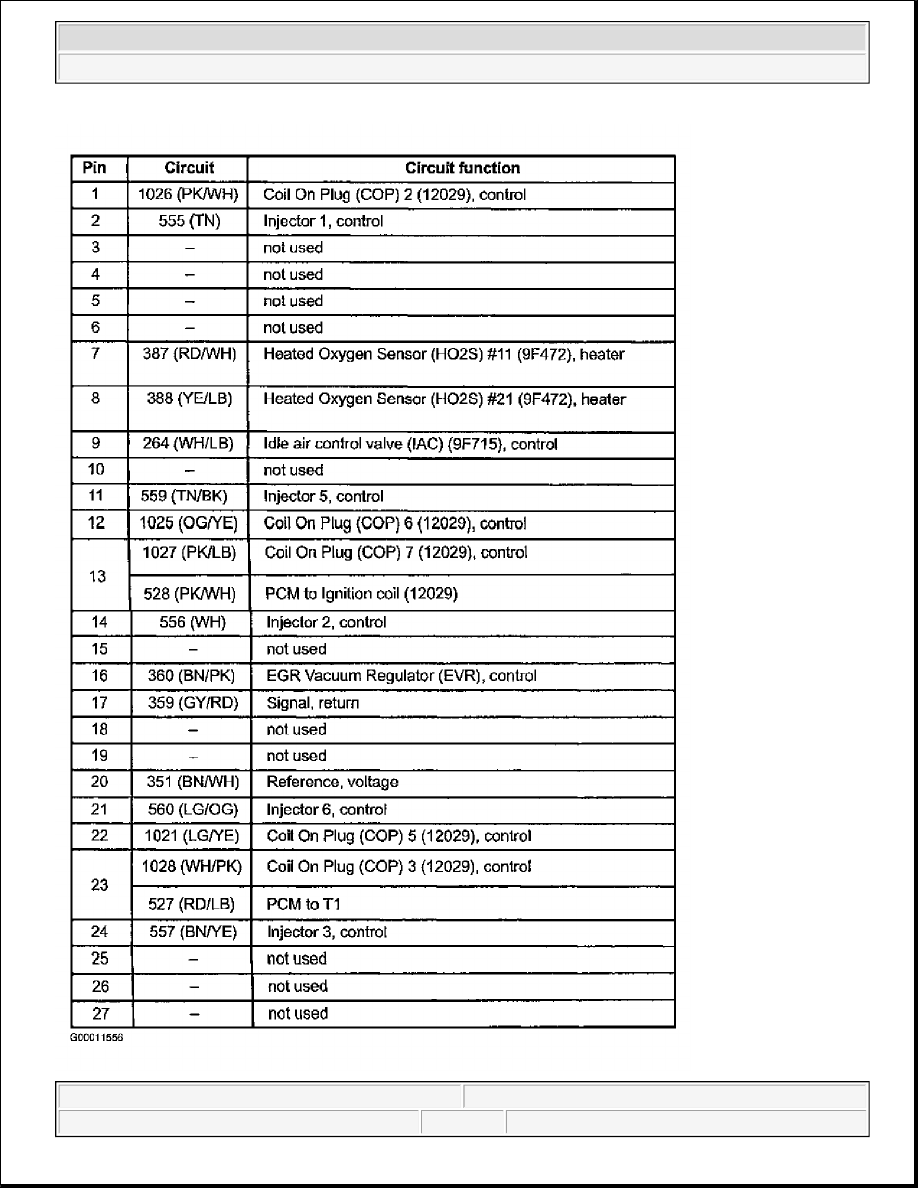

Fig. 98: Identifying PCM Connector C175A Circuit Function (2 Of 2 - Explorer & Mountaineer)
Courtesy of FORD MOTOR CO.

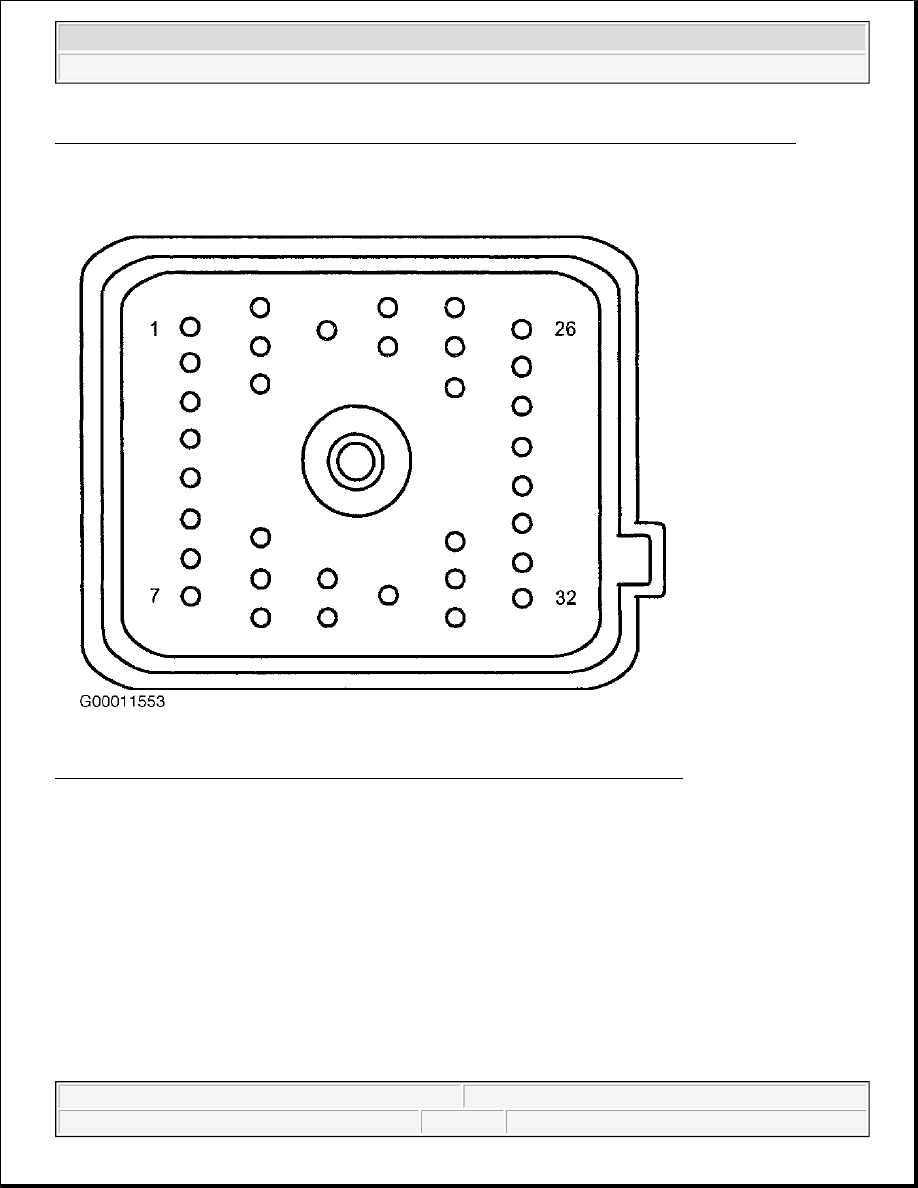

Fig. 99: Identifying PCM Connector C175B Terminals (Explorer & Mountaineer)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

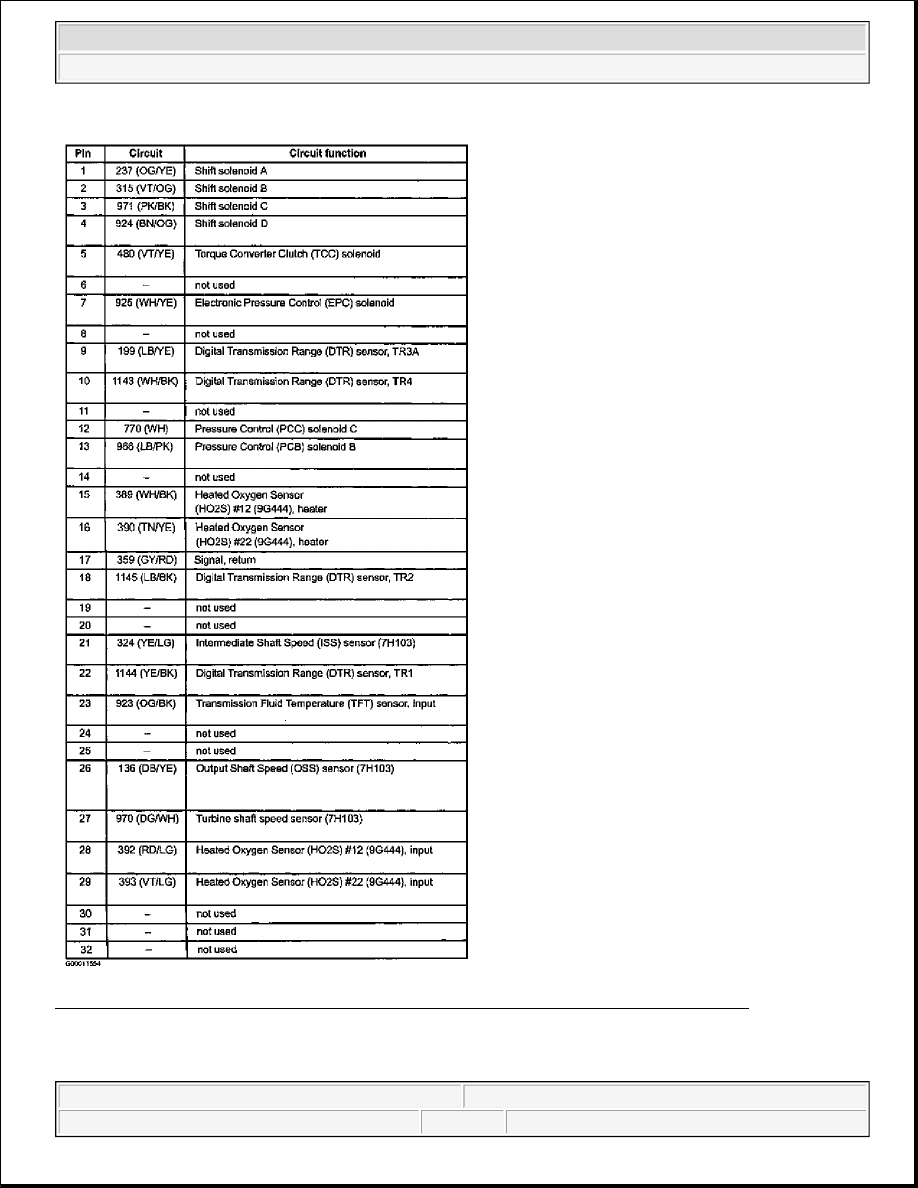

Fig. 100: Identifying PCM Connector C175B Circuit Functions (Explorer & Mountaineer)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

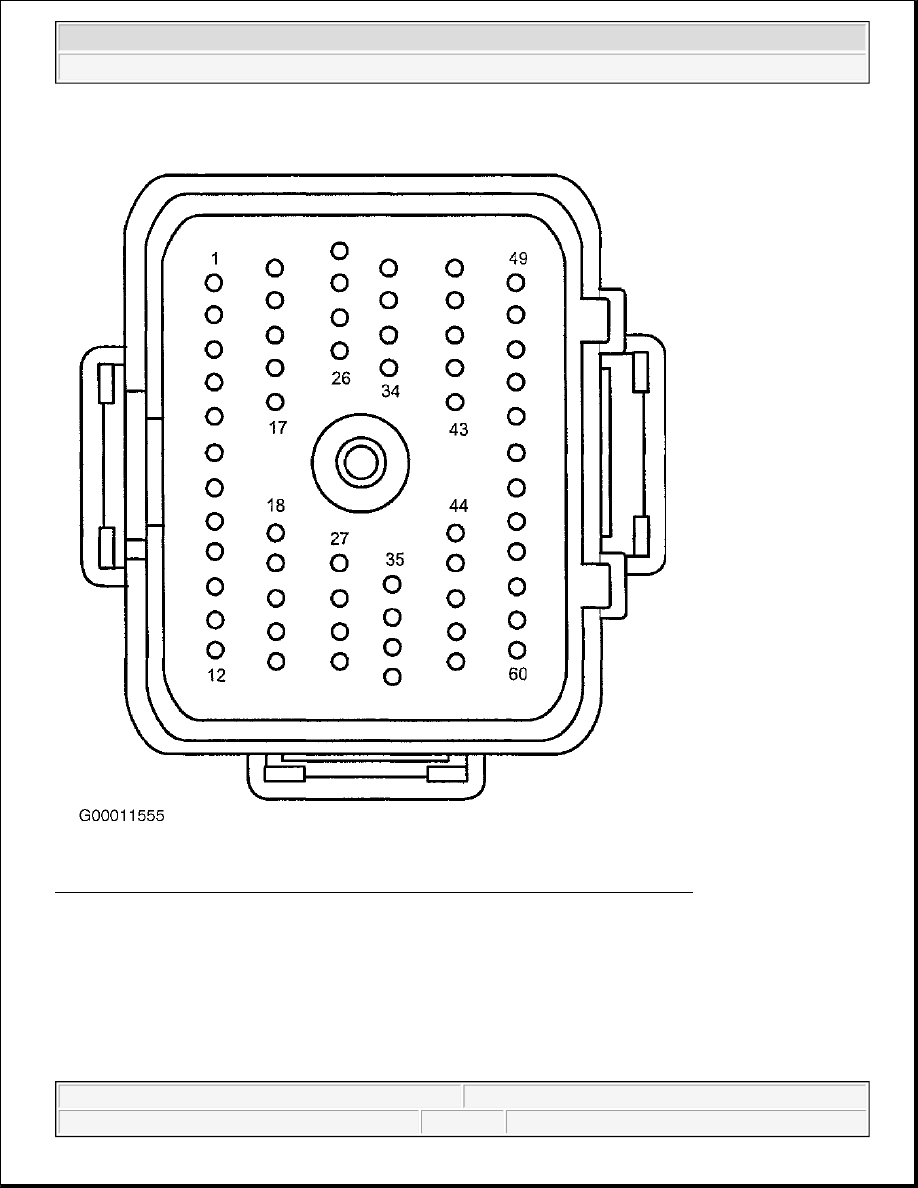

Fig. 101: Identifying PCM Connector C175C Terminals (Explorer & Mountaineer)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
