Fig. 67: Identifying PCM Connector C175T Terminals (Aviator)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

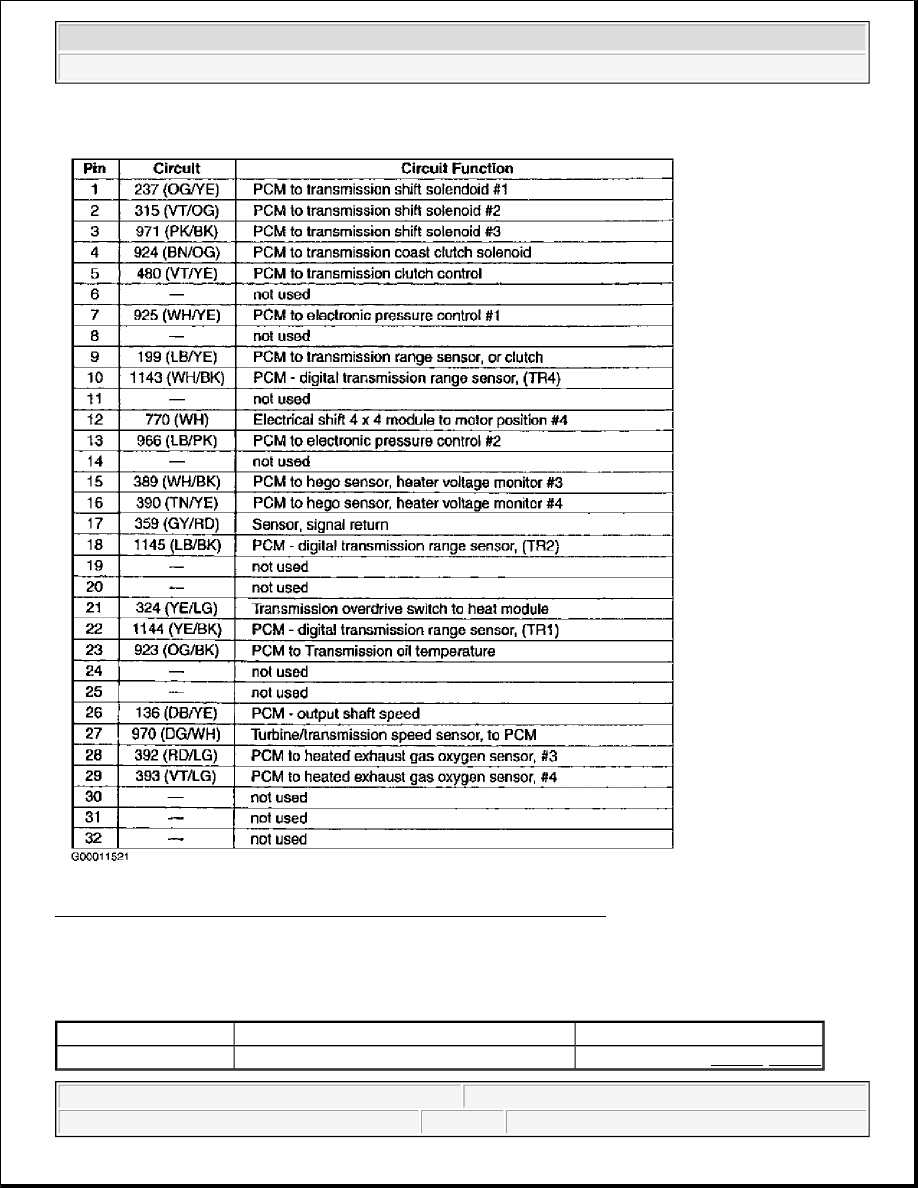

Fig. 68: Identifying PCM Connector C175T Circuit Functions (Aviator)
Courtesy of FORD MOTOR CO.

BLACKWOOD

BLACKWOOD PCM CONNECTOR IDENTIFICATION

Application

Terminal Identification

Circuit Function

Blackwood



Fig. 69-Fig. 71



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline

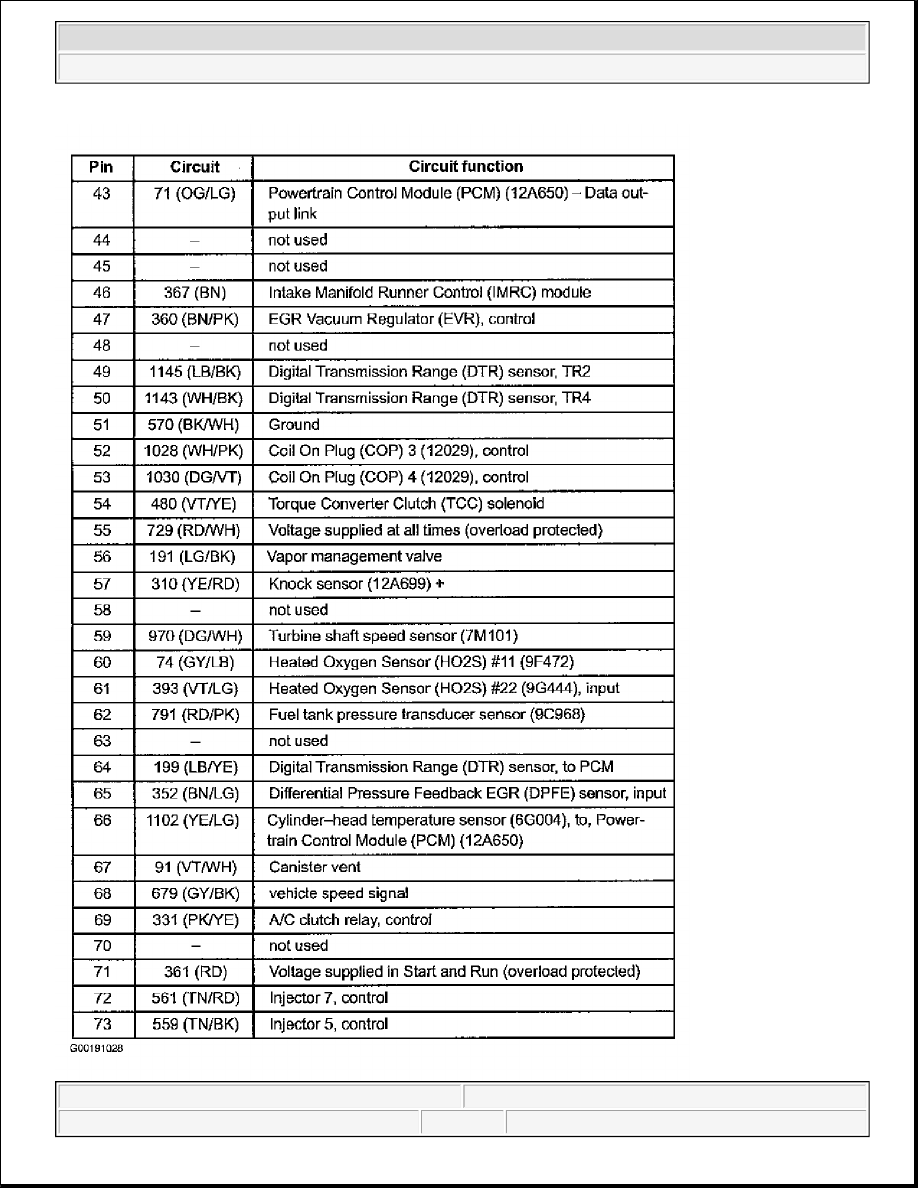

Fig. 69: Identifying PCM Connector Circuit Functions (1 Of 3 - Blackwood)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Self-Diagnostics - CNG, Flex-Fuel & Gasoline
