Ford F150 Pickup. Instruction - part 1310

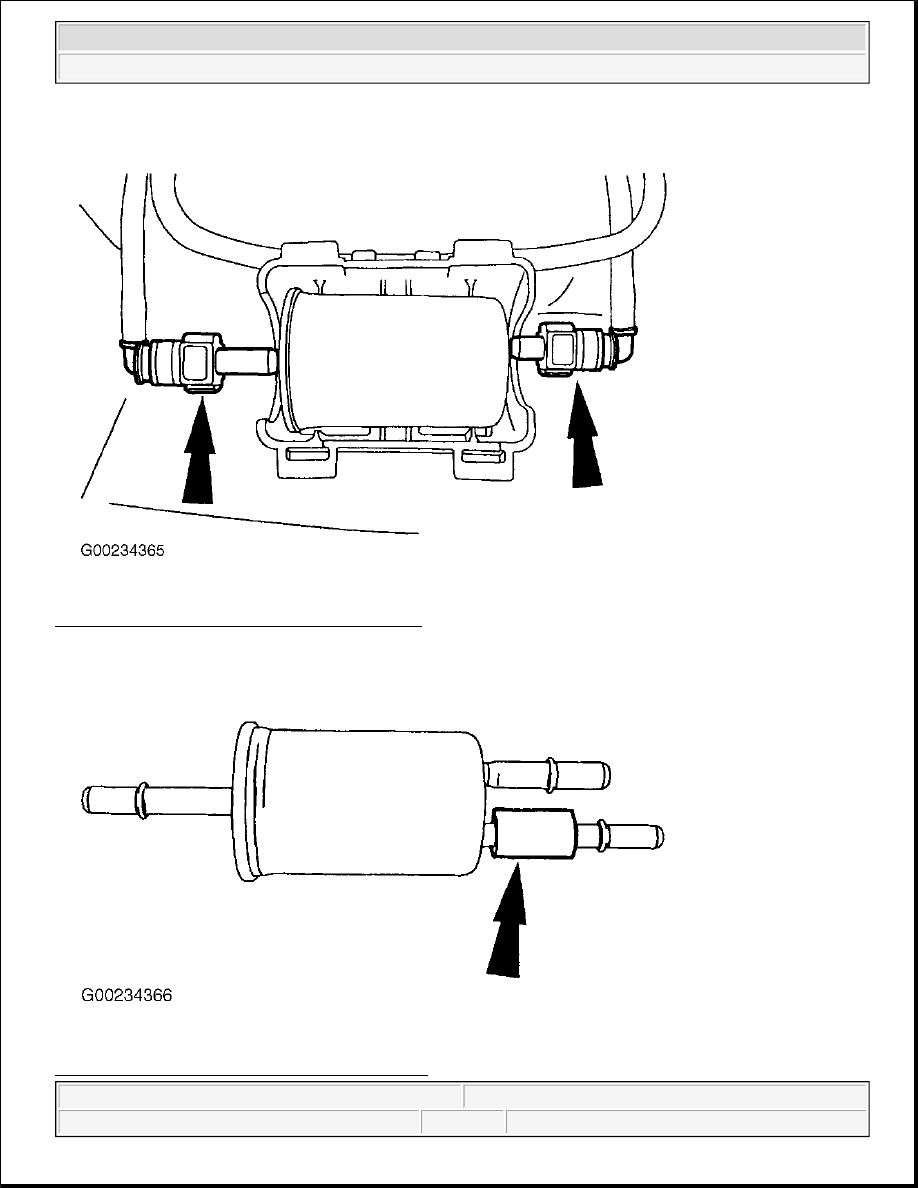

Fig. 103: Locating Fuel Filter Fittings (4.6L & 5.4L 2V)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Fig. 104: Locating Fuel Filter Fittings (5.4L 4V)
Courtesy of FORD MOTOR CO.

Fig. 105: Locating Fuel Filter Orientation Sleeve



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Courtesy of FORD MOTOR CO.

FUEL PRESSURE REGULATOR

Removal

Disconnect negative battery cable. Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE .
Remove vacuum hose from fuel pressure regulator (1). See Fig. 106 . Remove fuel pressure regulator clip (2).
Remove fuel pressure regulator (3). Remove and discard "O" rings.

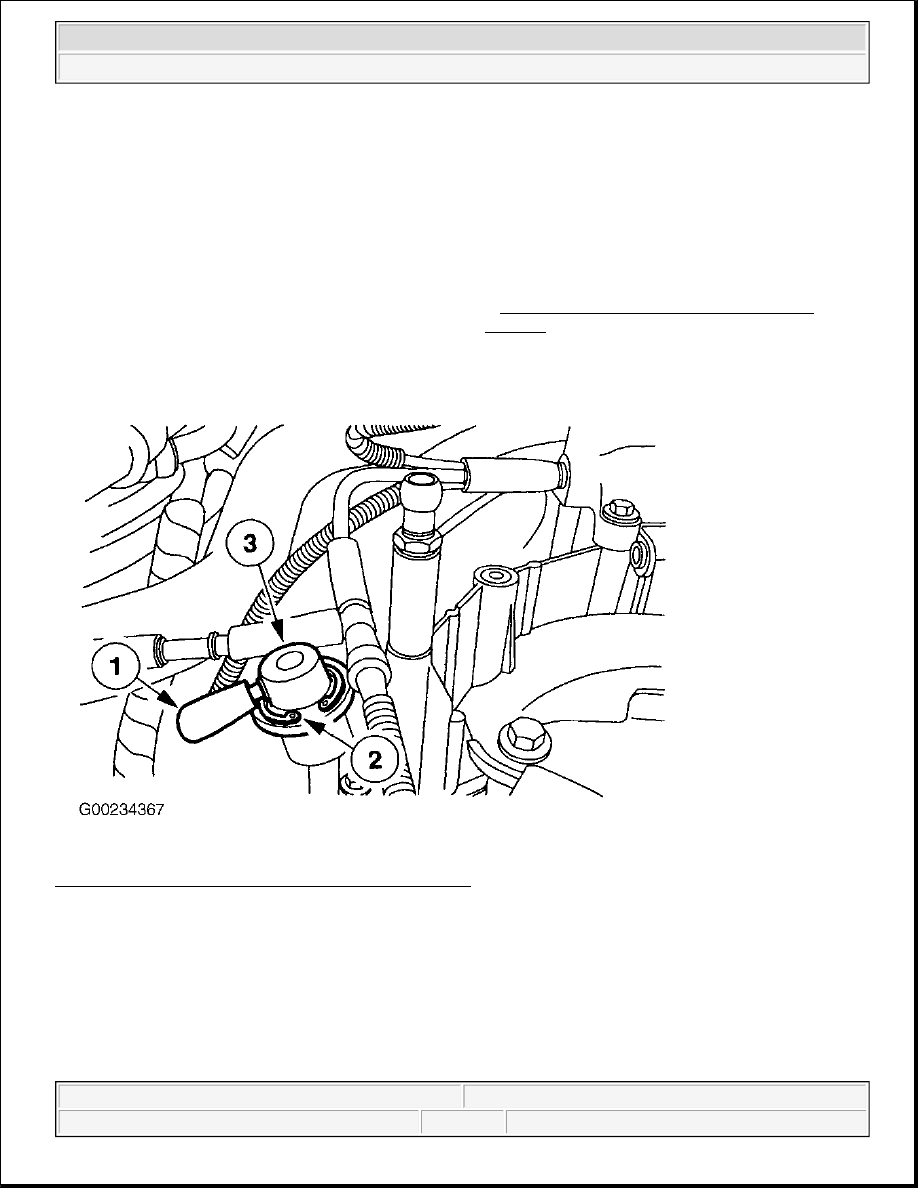

Fig. 106: Removing Fuel Pressure Regulator (Typical)
Courtesy of FORD MOTOR CO.

Installation

Lubricate NEW "O" rings with light oil. DO NOT use silicone grease. Ensure mating surfaces are clean and
dry. To complete installation, reverse removal procedure.

FUEL PUMP

NOTE:

Numbers in parenthesis refer to numbers in illustration.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - Blackwood, Expedition, F150 Pickup & Navigator - Gasoline



Removal & Installation (Blackwood & F150)

Remove fuel tank. See FUEL TANK . Clean the area around the fuel pump mounting flange. Remove bolts and
fuel pump tank unit. See Fig. 107 . Wipe seal area of tank clean. Position NEW seal onto pump mounting
flange. Position fuel pump in tank to original position. Install bolts. Install fuel tank. Tighten fasteners to
specification. See TORQUE SPECIFICATIONS .

Fig. 107: Locating Fuel Pump Tank Unit Bolts (Non-Supercharged Shown, Supercharged Similar)
Courtesy of FORD MOTOR CO.

Removal & Installation (Expedition & Navigator)

Remove fuel tank. See FUEL TANK . Disconnect the quick connect fittings from fuel pump. See FUEL LINE
CONNECTORS . Using special tool 310-075, remove lock ring and fuel pump tank unit. See Fig. 108 . Wipe
seal area of tank clean. Position NEW seal onto pump mounting flange (if necessary), using grease to hold it in
position. Position fuel pump in tank to original position. Install lock ring. DO NOT overtighten lock ring, as it
may leak. Install fuel tank. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
