Ford F150 Pickup. Instruction - part 1275

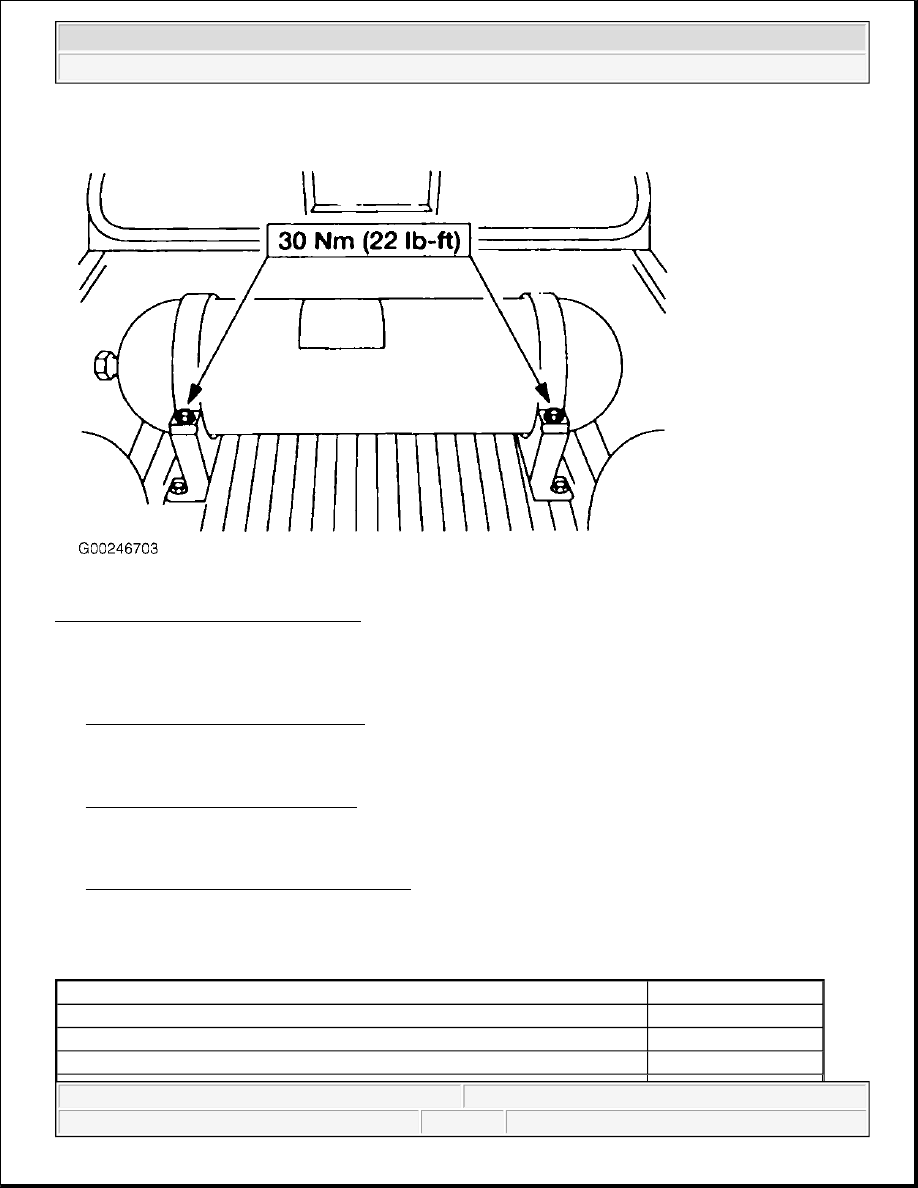

Fig. 47: Locating Fuel Tank Strap Bolts
Courtesy of FORD MOTOR CO.

FUEL TANK PRESSURE SENSOR

See FUEL TANK PRESSURE SENSOR under SENSORS & SWITCHES.

FUEL TANK SOLENOID VALVE

See FUEL TANK SOLENOID VALVE under RELAYS & SOLENOIDS.

FUEL TANK TEMPERATURE SENSOR

See FUEL TANK TEMPERATURE SENSOR under SENSORS & SWITCHES.

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

AFCM-To-Bracket Bolts

22 (30)

AFCM Bracket Bolts

22 (30)

CNG Fill Valve Nut

20 (27)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG



CNG Fuel Inlet-To-Fuel Pressure Regulator Fitting

35 (47)

CNG Fuel Line-To-Coalescer Fitting

32 (43)

CNG Fuel Line-To-Fill Valve Fitting

35 (47)

CNG Fuel Line-To-Solenoid Valve Fitting

35 (47)

CNG Fuel Outlet-To-Fuel Pressure Regulator Fitting

24 (32)

CNG Fuel Tank Bracket Bolt - Single Tank

22 (30)

CNG Fuel Tank Bracket Front Bolt - Dual Tanks

85 (115)

CNG Fuel Tank Bracket Rear Bolt - Dual Tanks

55 (75)

Coalescer/Fuel Filter Drain Plug

18 (25)

Coalescer/Fuel Filter Housing

30 (40)

Coalescer Mounting Bolt

20 (27)

EGR Valve Tube Nut

30 (40)

Fuel Pressure Regulator Bolt

10 (14)

Fuel Tank Pressure Sensor

41 (55)

Fuel Tank Shield Bolt

11 (15)

Fuel Tank Solenoid

200 (271)

Ground Strap Nut

18 (25)

Instruction Override Tool

30 (41)

Spark Plug

13 (18)

INCH Lbs. (N.m)

Accelerator Bracket Bolts

89 (10)

AFCM Connector Bolts

18 (2)

DPFE Bracket Bolt & Nut

89 (10)

Fuel Rail Bolt

89 (10)

Ignition Coil Bolt

53 (6)

Instruction Lockdown Jackscrew

80 (9)

Override Tool Jackscrew

71 (8)

Throttle Body Adapter Bolts

89 (10)



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/CNG



2003 ENGINE PERFORMANCE

Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/LPG

INTRODUCTION

The 5.4L engine is available with two bi-fuel options, Liquid Propane Gas (LPG) or Compressed Natural Gas
(CNG). The fuel control system on these engines is separate from the gasoline fuel system and has unique parts.
This article only covers removal and installation procedures for alternate fuel components on bi-fuel
gasoline/LPG vehicles. For removal and installation procedures for alternate fuel components on bi-fuel
gasoline/CNG vehicles, see REMOVAL & INSTALLATION - F150 PICKUP - BI-FUEL -
GASOLINE/CNG article. Procedures for systems and components that are the same as gasoline powered
models are not included in this article. See REMOVAL & INSTALLATION - BLACKWOOD,
EXPEDITION, F150 PICKUP & NAVIGATOR - GASOLINE article. Alternate fuel powered vehicles
utilize special fuel filler valve, fuel tanks, fuel pressure regulator, fuel lines, fuel rails and fuel injectors. See
Fig. 1 .



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/LPG





2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Removal & Installation - F150 Pickup - Bi-Fuel - Gasoline/LPG



Fig. 1: Locating LPG Injection Components
Courtesy of FORD MOTOR CO.

COMPONENT LOCATIONS

COMPONENT LOCATIONS
