Ford F150 Pickup. Instruction - part 124

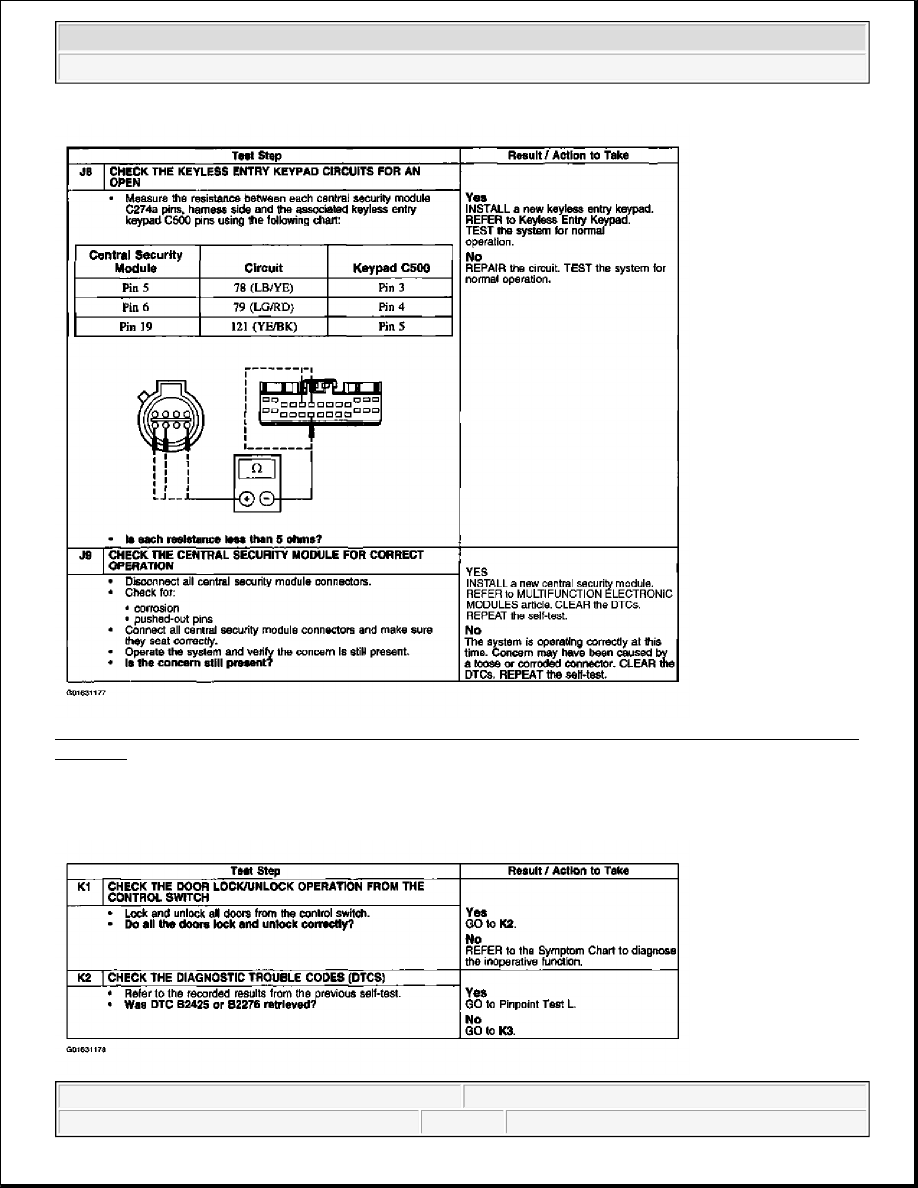

Fig. 49: Pinpoint Test J: Doors Do Not Lock/Unlock Using Keyless Entry Keypad - Using 6 Wire Keypad
(J8 & J9)
Courtesy of FORD MOTOR CO.

PINPOINT TEST K: DOORS DO NOT LOCK/UNLOCK USING KEYLESS ENTRY REMOTE TRANSMITTER



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Fig. 50: Pinpoint Test K: Doors Do Not Lock/Unlock Using Keyless Entry Remote Transmitter (K1 &
K2)
Courtesy of FORD MOTOR CO.

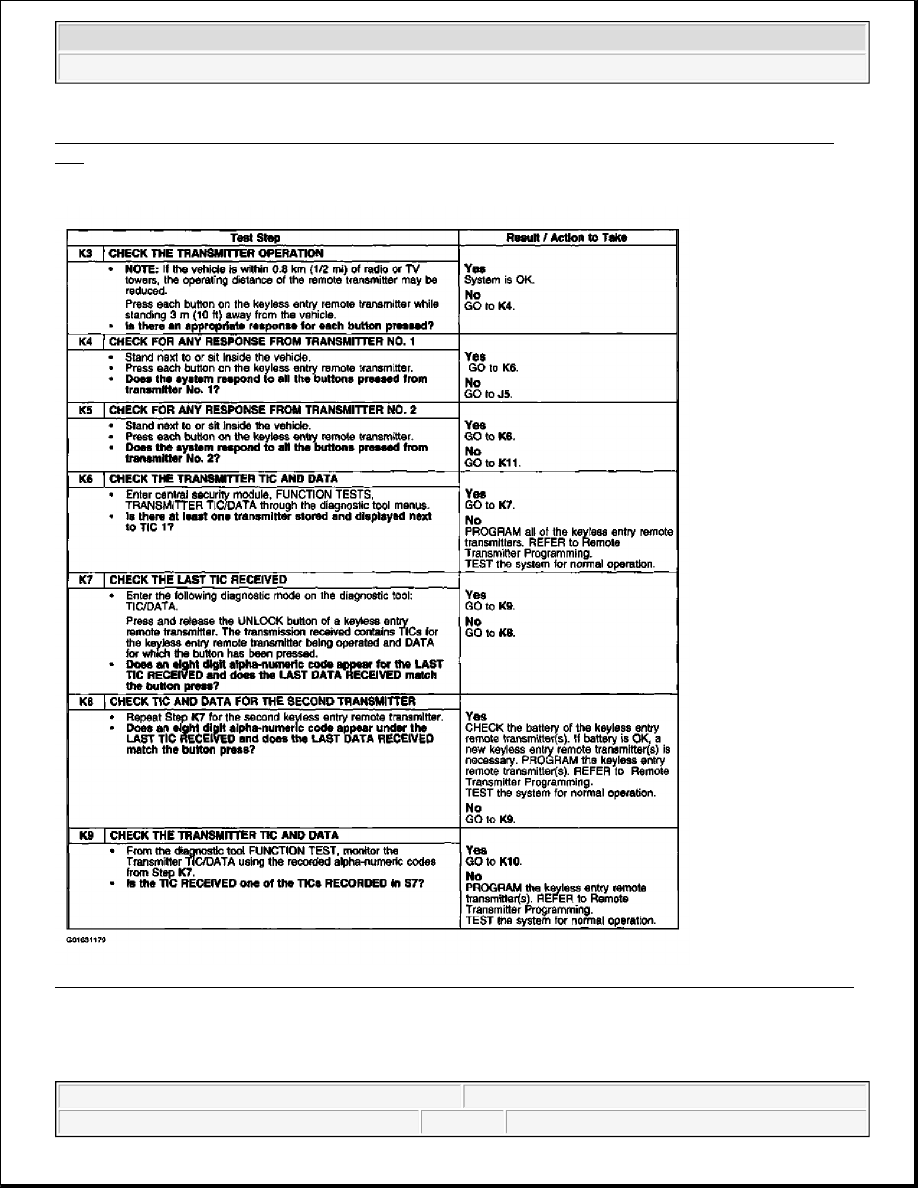

Fig. 51: Pinpoint Test K: Doors Do Not Lock/Unlock Using Keyless Entry Remote Transmitter (K3 -K9)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

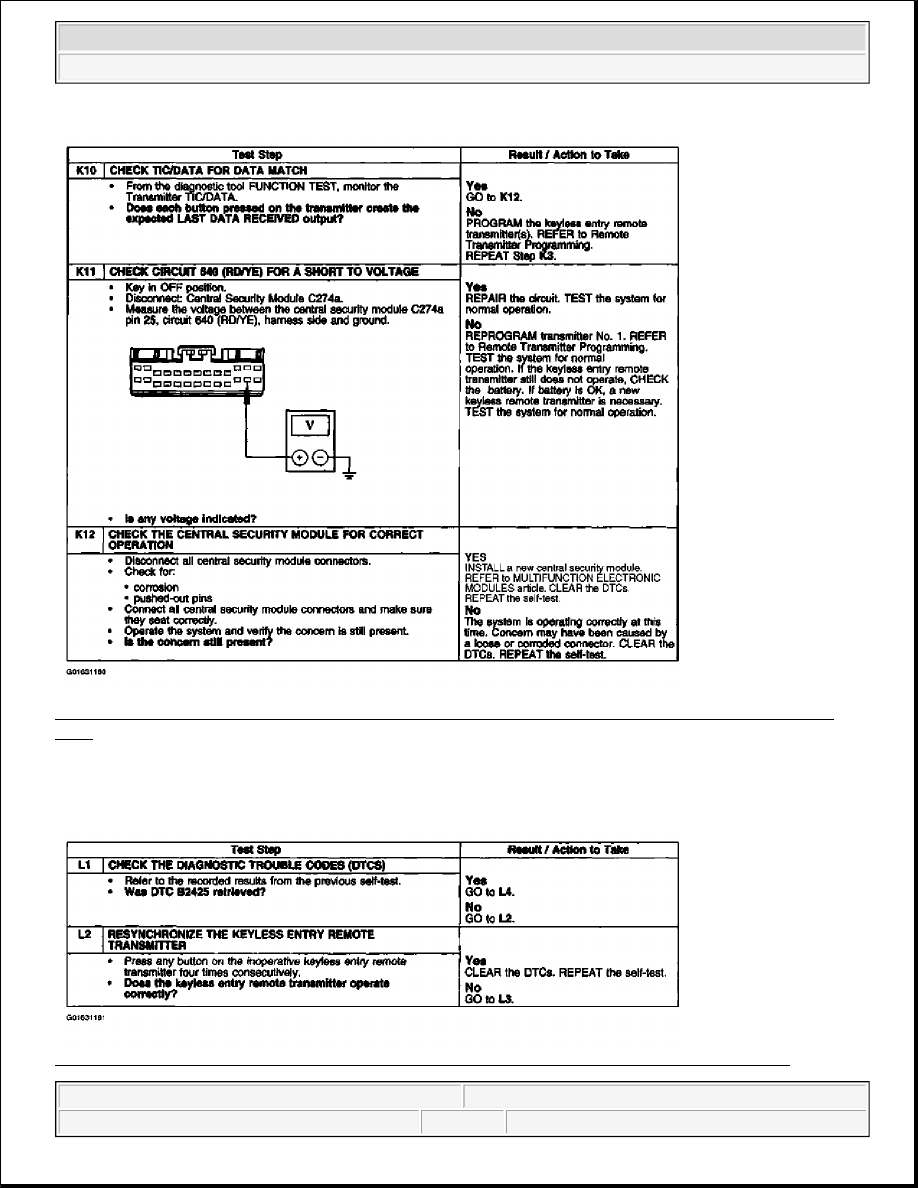

Fig. 52: Pinpoint Test K: Doors Do Not Lock/Unlock Using Keyless Entry Remote Transmitter (K10 -
K12)
Courtesy of FORD MOTOR CO.

PINPOINT TEST L: REMOTE KEYLESS ENTRY TRANSMITTER OUT OF SYNCHRONIZATION

Fig. 53: Pinpoint Test L: Remote Keyless Entry Transmitter Out Of Synchronization (L1 & L2)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Courtesy of FORD MOTOR CO.

Fig. 54: Pinpoint Test L: Remote Keyless Entry Transmitter Out Of Synchronization (L3 - L5)
Courtesy of FORD MOTOR CO.

PINPOINT TEST M: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup
