Ford F150 Pickup. Instruction - part 1235

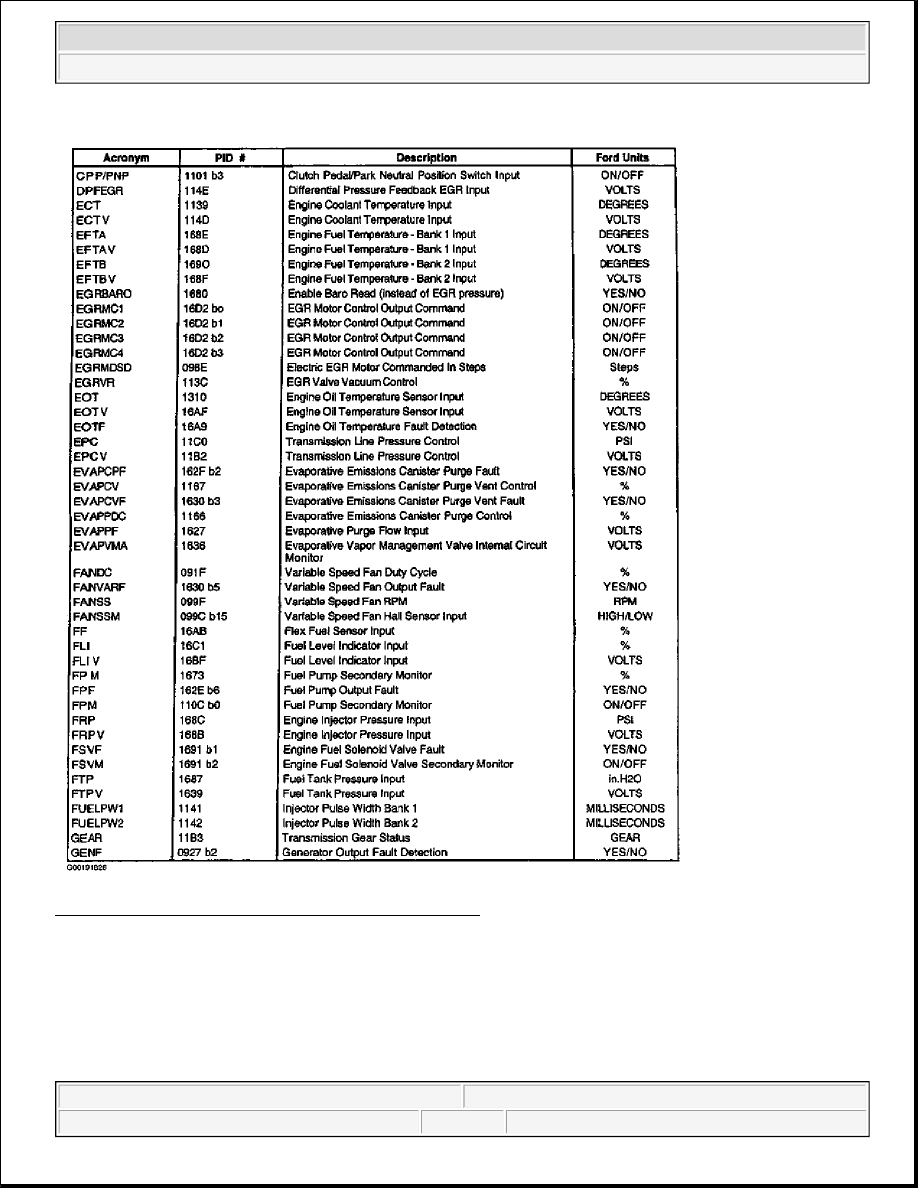

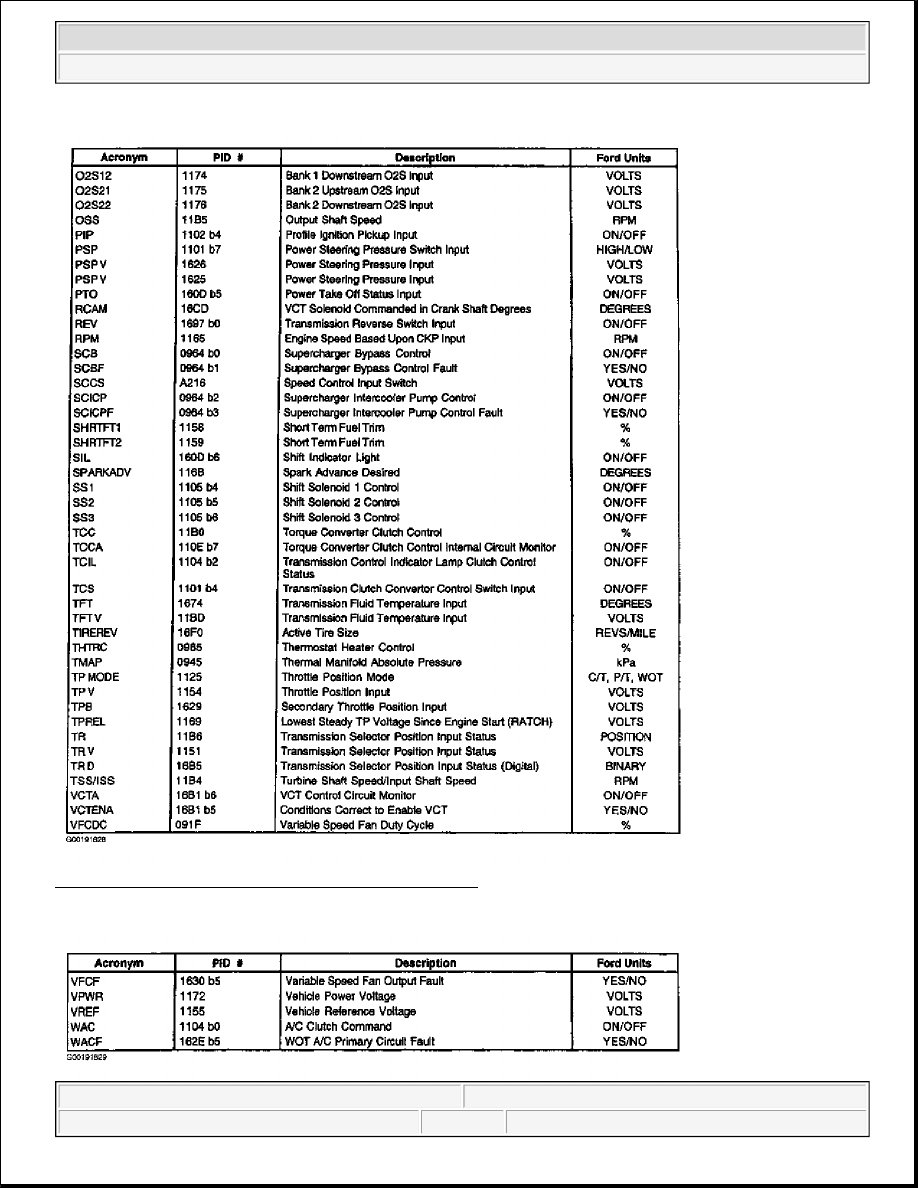

Fig. 8: Ford PID Definitions - 2 Of 5 (CPP/PNP-GENF)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 9: Ford PID Definitions - 3 Of 5 (GENFDC-O2S11)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 10: Ford PID Definitions - 4 Of 5 (O2S12-VFCDC)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG



Fig. 11: Ford PID Definitions - 5 Of 5 (VFCF-WACF)
Courtesy of FORD MOTOR CO.

PIN VOLTAGE/PID VALUE CHARTS

Notes To Typical Diagnostic Reference Value Charts

Refer to Fig. 12 to identify applicable supplemental information or values.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG
