Ford F150 Pickup. Instruction - part 1232

z

E = 5.4L V8 SOHC, EFI (Essex), Gas (Expedition and Navigator).

z

F = 7.3L V8, Turbo-Diesel.

z

H = 4.6L V8, DOHC, EFI.

z

K = 4.0L V6 SOHC, EFI, Flex-Fuel.

z

L = 5.4L V8, SOHC, EFI, Gas.

z

M = 5.4L V8, SOHC, Natural Gas.

z

R = 5.4L 4V V8, DOHC, EFI, Gas (Blackwood & Navigator Only).

z

S = 6.8L V10, SOHC, EFI, Gas.

z

T = 3.3L V6 SOHC, Gas.

z

U = 3.0L (OHV), V6 EFI.

z

V = 3.0L (OHV), V6 EFI, Flex-Fuel.

z

W = 4.6L (SOHC), V8 (Romeo) EFI, Gasoline.

z

X = 4.6L (SOHC), V8 EFI.

z

Z = 5.4L V8 (F150 Only), Or 6.8L V10, (F450-550 Only) Bi-Fuel.

z

1 = 3.0L (DOHC), V6 EFI.

z

2 = 4.2L V6, OHV, EFI, Gas.

z

3 = 5.4L V8 SOHC, Gas (Lightning - Supercharged).

z

4 = 3.8L (OHV), V6 EFI.

z

6 = 4.6L V8, SOHC, EFI, Gas.

Computer-Generated Check Digit - Position 5

The 9th number in VIN is the check digit code (0-9).

Model Year Code - Position 6

The 10th number in VIN is the model year code. Description is as follows:

z

Y = 2000

z

1 = 2001

z

2 = 2002

z

3 = 2003

Assembly Plant Code - Position 7

The 11th number in VIN is the assembly plant code. Description is as follows:

z

B = Oakville: Oakville, Ontario (Canada).

z

C = Ontario Truck: Oakville, Ontario (Canada).

z

D = Ohio Truck: Avon Lake, Ohio (USA).



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Ford Motor Co. - Introduction - Trucks



z

E = Kentucky Truck: Jefferson County, Kentucky (USA).

z

H = Lorain, Ohio (USA).

z

J = IMMSA (Monterrey, Mexico)

z

L = Michigan Truck: Wayne, Michigan (USA).

z

K = Kansas City: Claycomo, Missouri (USA).

z

M = Cuautitlan: Cuautitlan, (Mexico)

z

N = Norfolk: Norfolk, Virginia (USA).

z

P = Twin Cities: St. Paul, Minnesota (USA).

z

S = Allen Park: Allen Park, Michigan (USA).

z

T = Edison: Edison, New Jersey (USA).

z

U = Louisville, Kentucky (USA).

z

X = St. Thomas, Talbotville, Ontario (Canada).

z

Y = Wixom, Michigan (USA).

z

Z = St. Louis: Hazelwood, Missouri (USA).

z

0 = Detroit Chassis Plant: Detroit, Michigan (USA).

z

5 = Auto Alliance International (AAI), Flat Rock, Michigan (USA).

Production Sequence Number - Position 8

The 12th through 17th numbers in VIN are the production sequence number. This number is also used as the
vehicle serial and warranty number. Description is as follows:

z

A00001-E99999 = Ford Division.

z

J00001-L99999 = Lincoln/Mercury Division.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Ford Motor Co. - Introduction - Trucks



Fig. 1: Identifying Vehicle Identification Number
Courtesy of FORD MOTOR CO.

MODEL/YEAR VIN CODE APPLICATIONS

MODEL/YEAR VIN CODE APPLICATION

ENGINE CODE LOCATION

Engine code information label is located on engine. See Fig. 2 . On most engines, engine code information label
is located on valve cover or engine itself. On some engines, exact location of engine code information label is
not available. Emission calibration number label located on driver's door or door post pillar, as well as engine,
also identifies engine code number and revision number. Engine code and calibration number may be needed
when ordering parts.

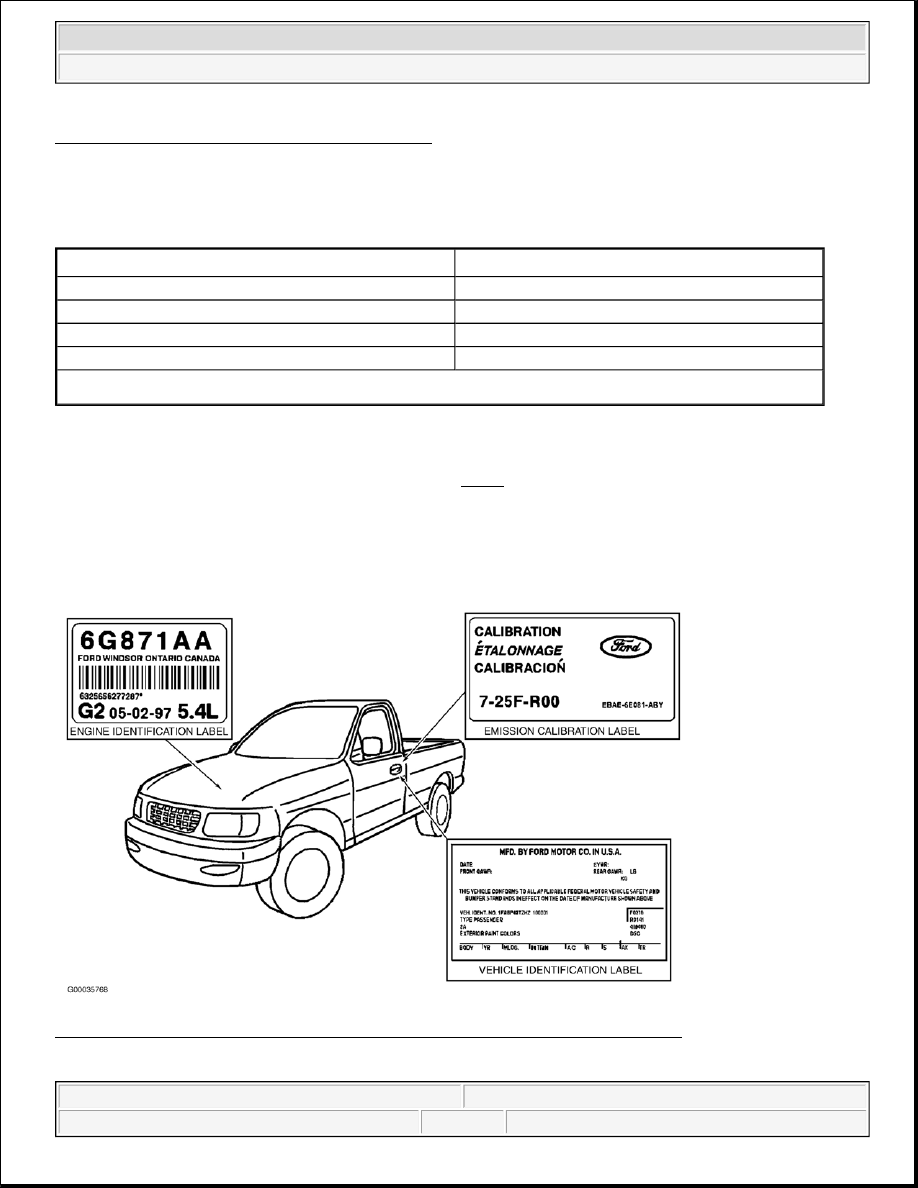

Fig. 2: Identifying Vehicle Labels ("F" Series Pickup Shown; Others Are Similar)
Courtesy of FORD MOTOR CO.

VIN Code

(1)

Model Year

Y

2000

1

2001

2

2002

3

2003

(1)

Model year may be identified by 10th character of VIN.



2003 Ford Pickup F150

2003 ENGINE PERFORMANCE Ford Motor Co. - Introduction - Trucks



2003 ENGINE PERFORMANCE

Pin Voltage/PID Value Charts - Econoline & Pickup - Gasoline & CNG

INTRODUCTION

Parameter Identification (PID) mode allows access to certain data values, analog and digital inputs and outputs,
calculated values, and system status information. There are 2 types of PID lists available. The first is a Ford
specific PID list that can be accessed by using New Generation Star (NGS) scan tool or Worldwide Diagnostic
System (WDS). The second is a Generic OBD-II PID list. This is a standard set of PIDs that all manufacturer's
scan tools can access. Generic PIDs are located at the end of each PIN VOLTAGE/PID VALUES chart.

PIN VOLTAGE/PID VALUES charts are used for diagnosing intermittent symptoms and faults that are unable
to be resolved during self-diagnostics. Pin tests ensure the Powertrain Control Module (PCM) is receiving and
transmitting proper voltage and other signals. If diagnosing a symptom, see appropriate symptom in
SYMPTOM TESTING under TEST PROCEDURES.

PID values are continuously updated when accessing PIDs from a specific PID list. Before performing tests,
ensure mechanical conditions have been inspected and self-diagnostics has been attempted. Technical Service
Bulletins (TSBs) may also be helpful in correcting a hard to diagnose problem.

TEST EQUIPMENT

In order to read Parameter Identification (PID) values, a New Generation Star (007-00500 ) scan tool,
Worldwide Diagnostic System (WDS) or other OBD-II compliant scan tool is required. A DVOM, 104-pin
Breakout Box (014-00950 ) and appropriate adapter cable are used to check PCM pin values. If a breakout box
is not available, PCM pin values can be checked by backprobing PCM connector.

TEST PROCEDURES

PIN VOLTAGE TESTING

Access PCM connector. See POWERTRAIN CONTROL MODULE LOCATIONS . If a breakout box is
available, disconnect negative battery terminal. Connect breakout box to PCM harness connector and PCM.
Reconnect negative battery cable. Take desired measurements between ground pin and specified pin on
breakout box. If breakout box is not available, take desired measurements between ground pin and specified pin
at PCM connector (backprobe PCM connector). See appropriate illustration in PIN VOLTAGE/PID VALUE

NOTE:

Article includes Cutaway, RV Cutaway and F450-550 Super Duty information.

CAUTION: When battery is disconnected, vehicle computer and memory systems

may lose memory data. Driveability problems may exist until computer
systems have completed a relearn cycle. See COMPUTER RELEARN
PROCEDURES article in GENERAL INFORMATION before disconnecting
battery.
