Ford F150 Pickup. Instruction - part 1213

Fig. 101: Installing Fuel Tank Temperature Sensor
Courtesy of FORD MOTOR CO.

1. Follow the removal procedure in reverse order.

FUEL TANK PRESSURE SENSOR

Removal

1. Perform the pressure relief - fuel line venting procedure. Refer to FUEL SYSTEM PRESSURE

RELEASE .

2. Disconnect the battery ground cable.

3. Raise and support the vehicle.

4. Remove the fuel tank pressure sensor.

1. Disconnect the fuel tank pressure sensor electrical connector.

2. Remove the fuel tank pressure sensor.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

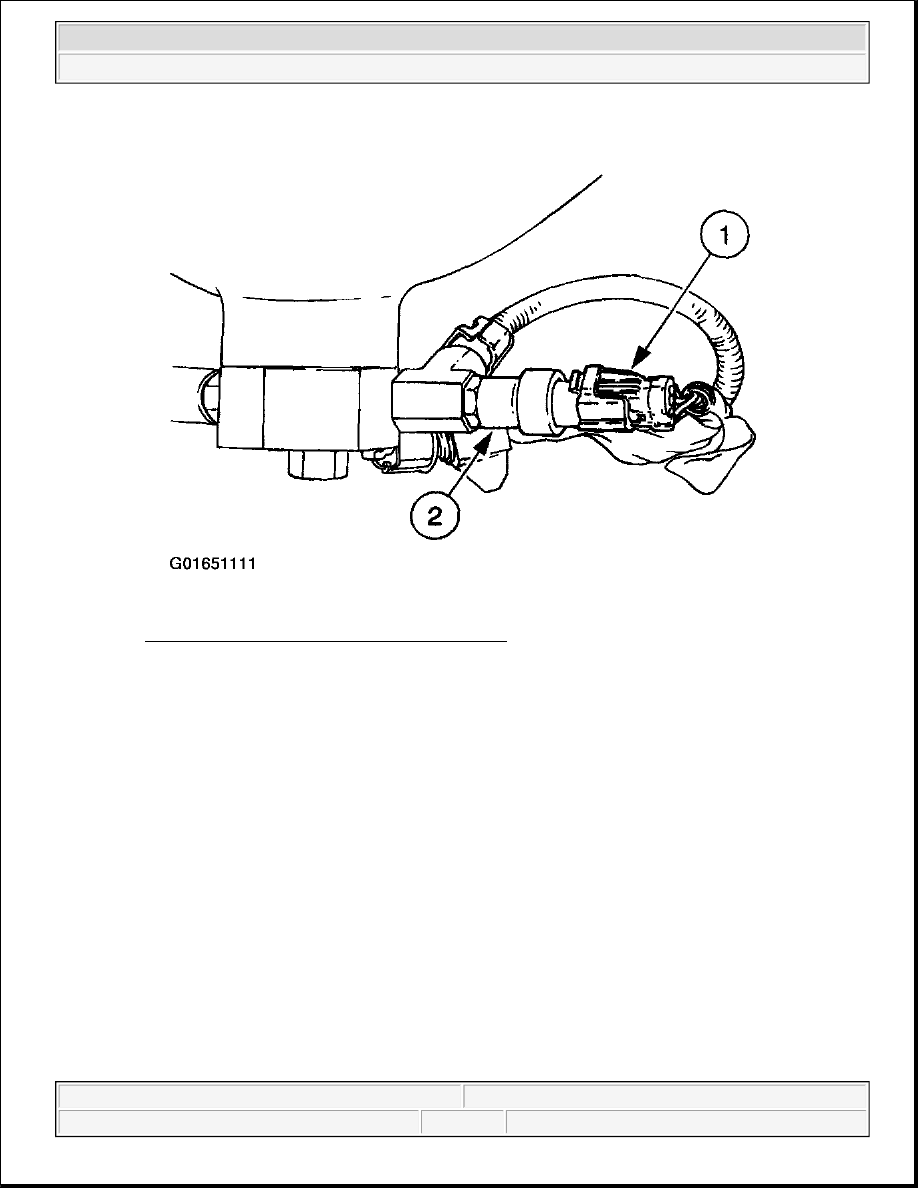

Fig. 102: Removing Fuel Tank Pressure Sensor
Courtesy of FORD MOTOR CO.

Installation

NOTE:

When the battery is disconnected and reconnected, some abnormal drive
symptoms may occur while the vehicle relearns its adaptive strategy. The
vehicle may need to be driven 16 km (10 mi) or more to learn the strategy.

NOTE:

Replace the fuel tank pressure sensor and spacer O-ring seals.

NOTE:

Lubricate the fuel tank pressure sensor and spacer O-ring seals with
Super Premium 5W3O engine oil meeting Ford specification WSS-M2C153-
F or equivalent prior to installation, to help seal and ease the installation.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup

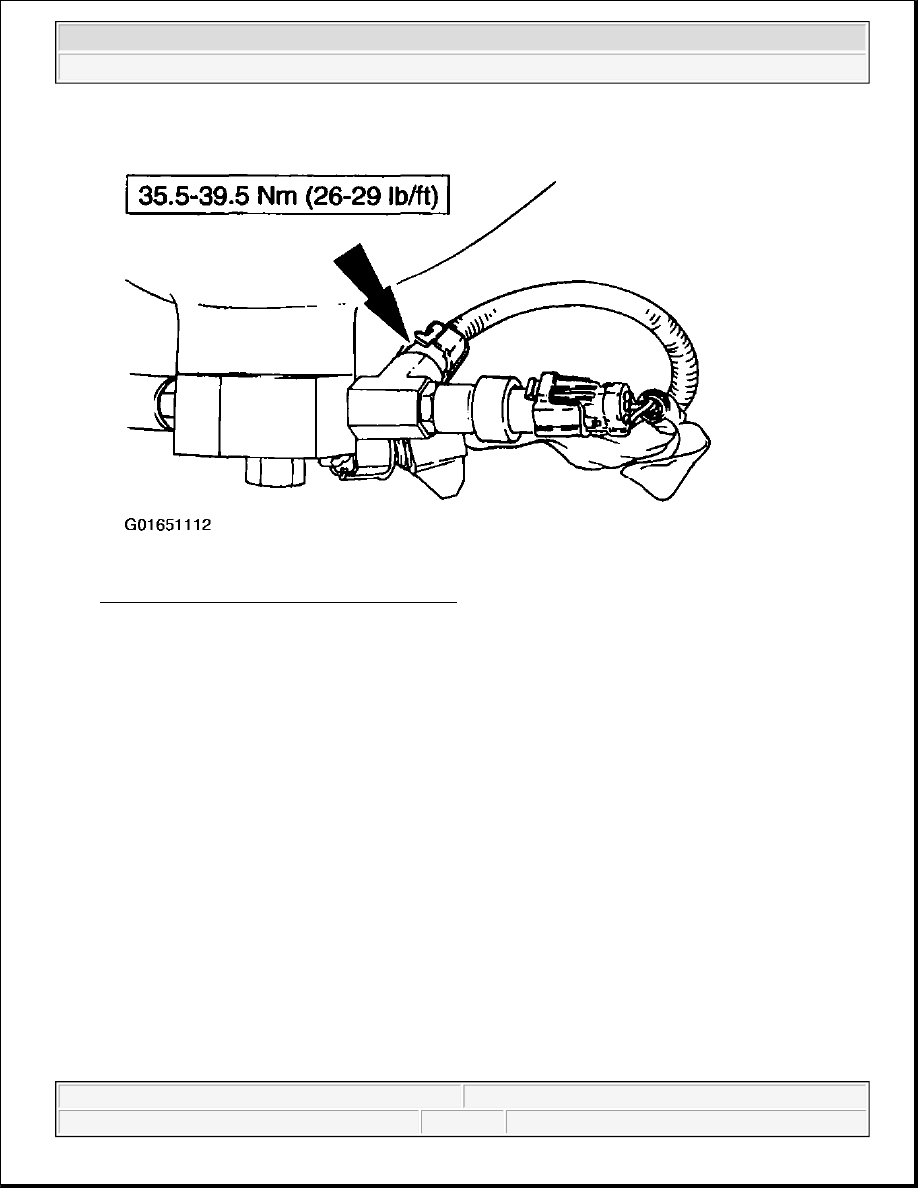

Fig. 103: Installing Fuel Tank Pressure Sensor
Courtesy of FORD MOTOR CO.

1. Follow the removal procedure in reverse order.



2003 Ford Pickup F150

2003 ENGINE Fuel Tank And Lines-Natural Gas - F150 Pickup



2003 ENGINE PERFORMANCE

Service & Adjustment Specifications - Excursion & Pickup

INTRODUCTION

Use this article to find specifications related to servicing and on-vehicle adjustments. Use this article as a quick
reference when you are familiar with proper adjustment procedures but need a specification.

CAPACITIES

COOLING SYSTEM CAPACITIES

CRANKCASE CAPACITIES

Application

Qts. (L)

Excursion

5.4L

26.4 (25.0)

6.0L Diesel

27.5 (26.0)

6.8L

28.5 (27.0)

7.3L Diesel

32.75 (31.0)

F150 Pickup

4.2L

17.3 (16.4)

4.6L

19.4 (18.4)

5.4L

19.4 (18.4)

F250-550 Pickup

5.4L

26.4 (25.0)

6.0L Diesel

27.5 (26.0)

6.8L

28.5 (27.0)

7.3L Diesel

32.75 (31.0)

Application

(1)

 Qts. (L)

4.2L

6.0 (5.7)

4.6L

6.0 (5.7)

5.4L

6.0 (5.7)

6.0L

15.0 (14.2L)

6.8L

6.0 (5.7)

7.3L

(2)

 15.0 (14.2)

(1)

Add 1/2 qt. if equipped with oil cooler.

(2)

With oil filter change.

CAUTION: DO NOT use transmission fluid that indicates a dual use; such as Mercon

and Mercon V in a transmission which requires Mercon. Mercon V is a
