Ford F150 Pickup. Instruction - part 1161

Fig. 37: Identifying Fuel Tank Solenoid Instruction Lockdown Valve
Courtesy of FORD MOTOR CO.

15. Install the Instruction Override Tool into the fuel tank solenoid of the tank to be vented.

16. Turn in the override tool jackscrew until fuel flows.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup



Fig. 38: Tightening Override Tool Jackscrew
Courtesy of FORD MOTOR CO.

17. Vent the fuel tank until the fuel flow stops.

18. Remove the override tool from the fuel tank solenoid valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup



Fig. 39: Identifying Fuel Tank Solenoid Valve
Courtesy of FORD MOTOR CO.

19. Install the fuel tank solenoid instruction lockdown valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup

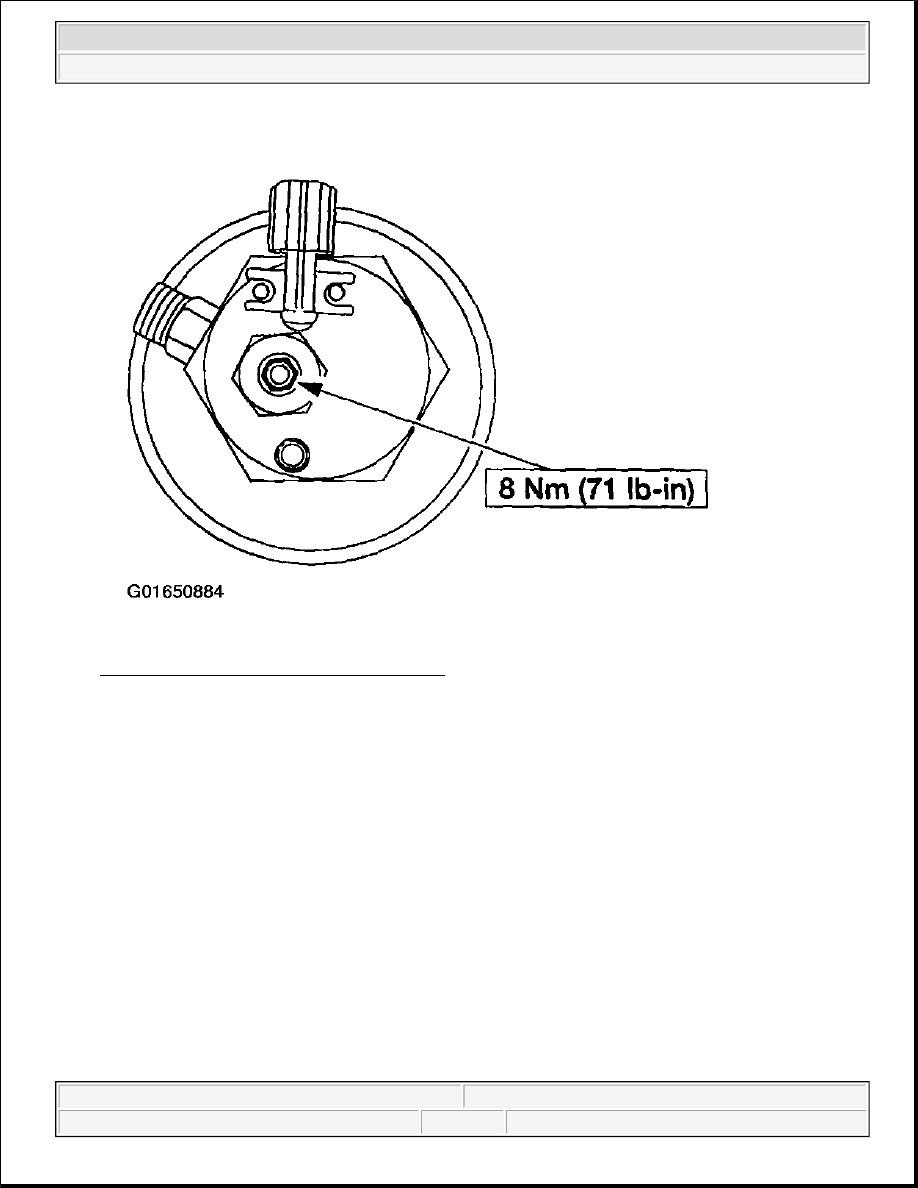

Fig. 40: Installing Fuel Tank Solenoid Instruction Lockdown Valve
Courtesy of FORD MOTOR CO.

20. Turn in the instruction lockdown valve jackscrew on the fuel tank solenoid valve.



2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System - General Information - Natural Gas - F150 Pickup
