Ford F150 Pickup. Instruction - part 115

Fig. 5: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

4. If the concern is not visually evident, determine the symptom and proceed to Symptom Chart .

Symptom Chart

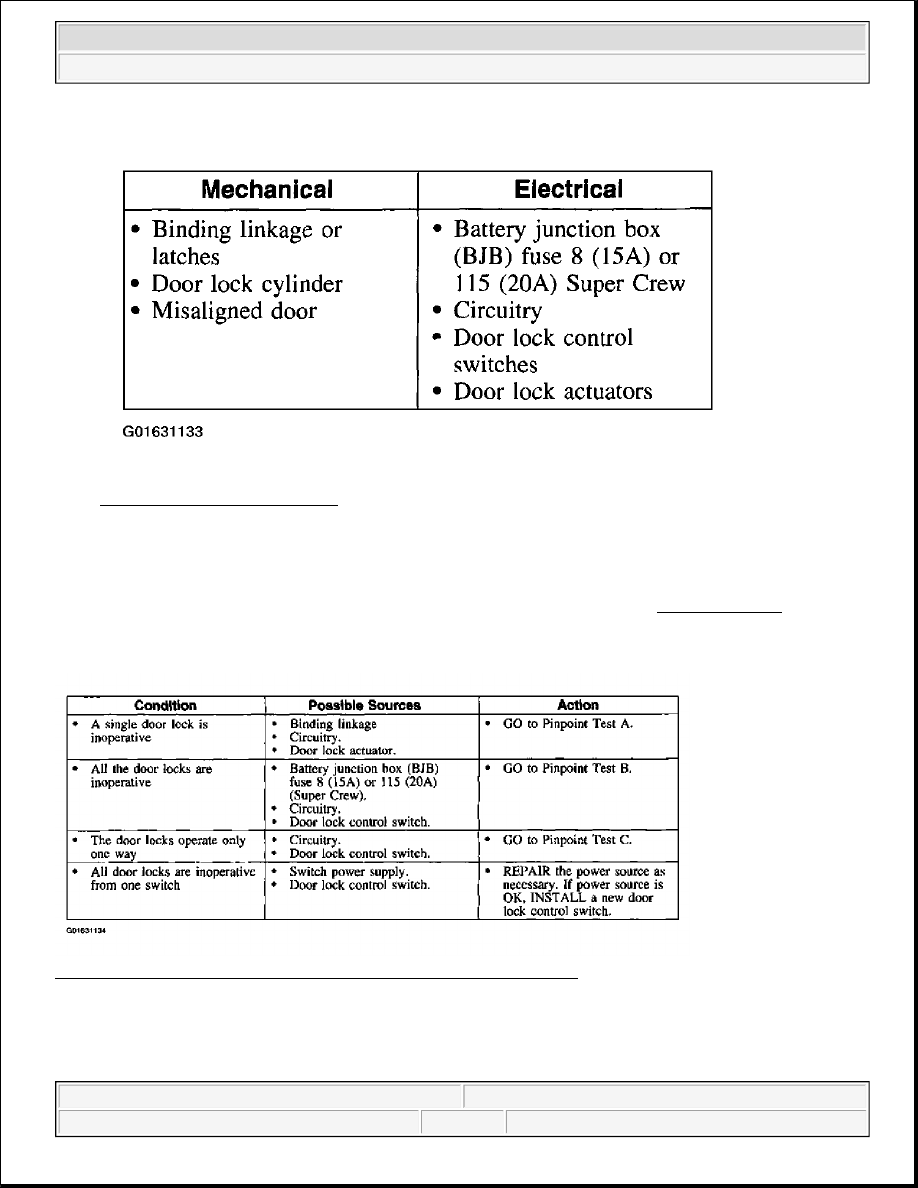

Fig. 6: Handles, Locks, Latches And Entry Systems Symptom Chart
Courtesy of FORD MOTOR CO.

Pinpoint Tests

PINPOINT TEST A: A SINGLE DOOR LOCK IS INOPERATIVE



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup

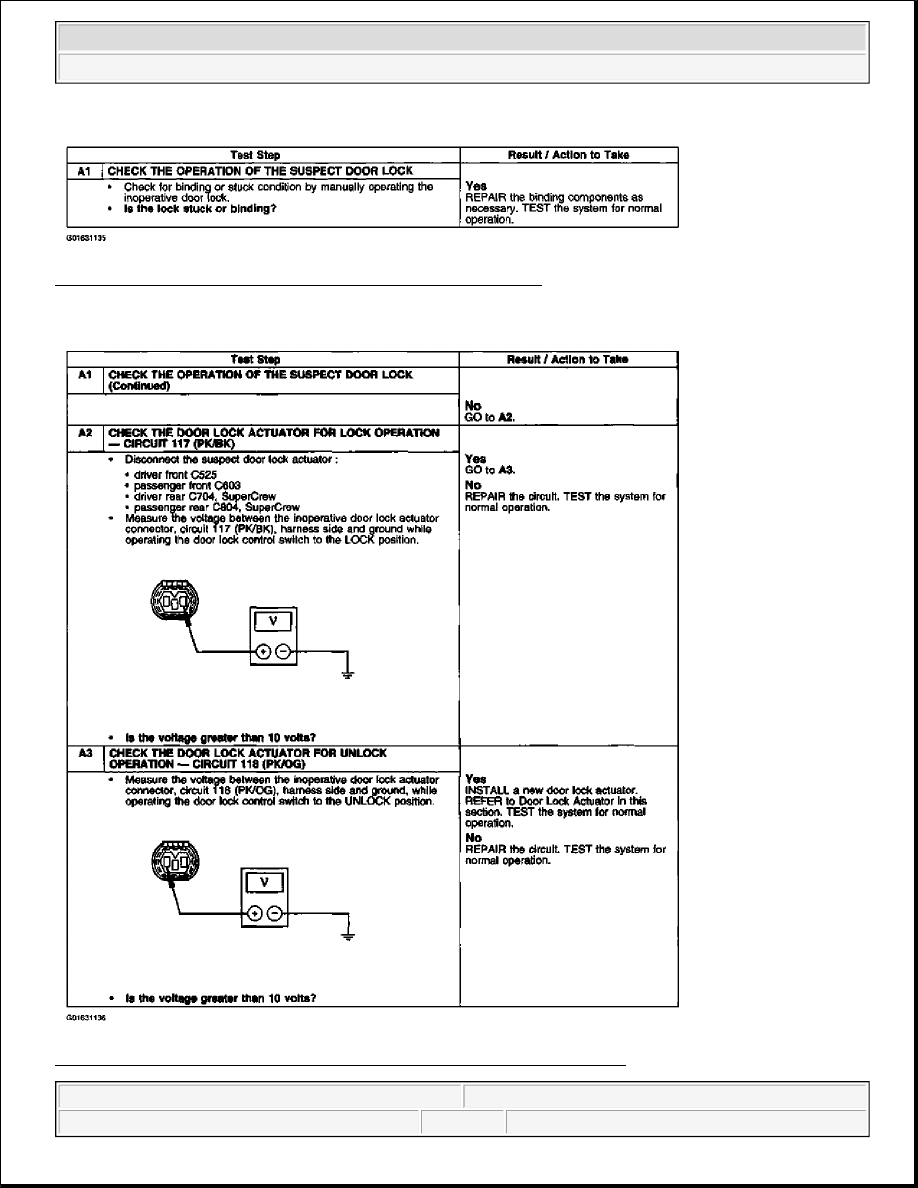

Fig. 7: Pinpoint Test A: A Single Door Lock Is Inoperative (A1)
Courtesy of FORD MOTOR CO.

Fig. 8: Pinpoint Test A: A Single Door Lock Is Inoperative (A1 Cont. - A3)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Courtesy of FORD MOTOR CO.

PINPOINT TEST B: ALL DOOR LOCKS ARE INOPERATIVE

Fig. 9: Pinpoint Test B: All Door Locks Are Inoperative (B1 - B3)



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup



Courtesy of FORD MOTOR CO.

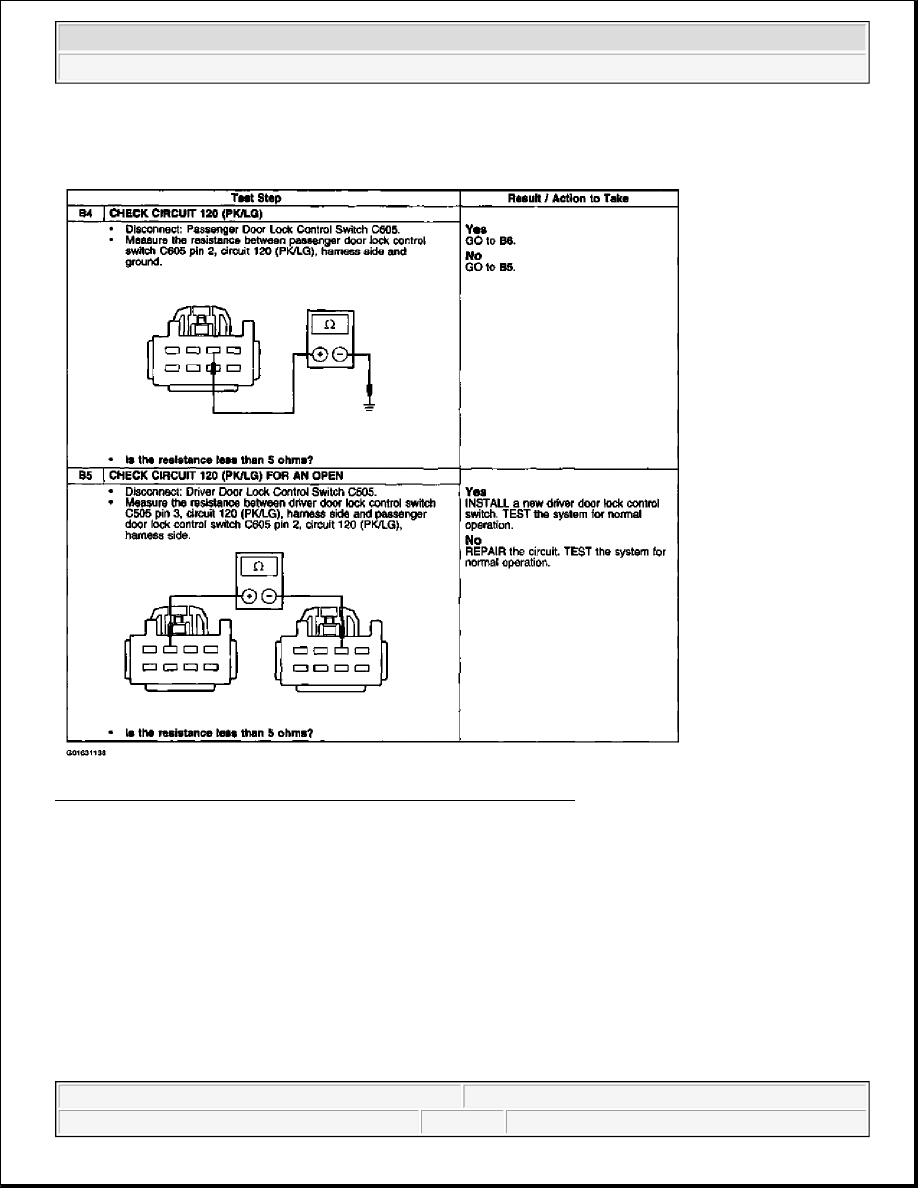

Fig. 10: Pinpoint Test B: All Door Locks Are Inoperative (B4 & B5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Handles, Locks, Latches and Entry Systems - F150 Pickup
