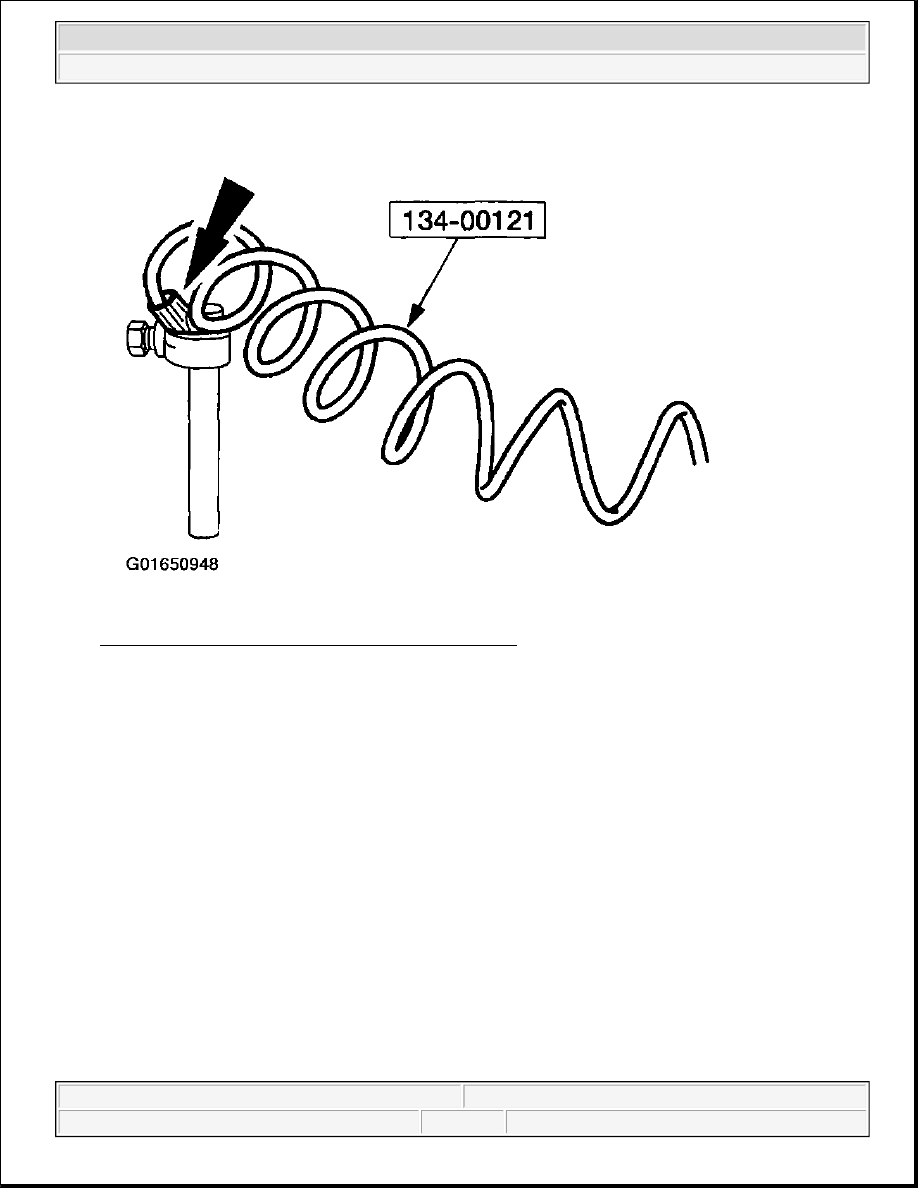

Fig. 40: Connecting Grounding Cable To Ground Rod
Courtesy of FORD MOTOR CO.

7. Connect the Fuel Filler Neck Venting Kit to the Venting Hose Assembly and Adapter.

2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

Fig. 41: Connecting Fuel Filler Neck Venting Kit To Venting Hose Assembly And Adapter
Courtesy of FORD MOTOR CO.

8. Connect the Fuel Venting Kit to the Fuel Filler Neck Venting Kit.

2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

Fig. 42: Connecting Fuel Venting Kit To Fuel Filler Neck Venting Kit
Courtesy of FORD MOTOR CO.

9. Connect the Venting Hose Assembly to the vent stack.

2003 Ford Pickup F150

2003 GENERAL INFORMATION Fuel System-General Information-Bi-Fuel - F150 Pickup

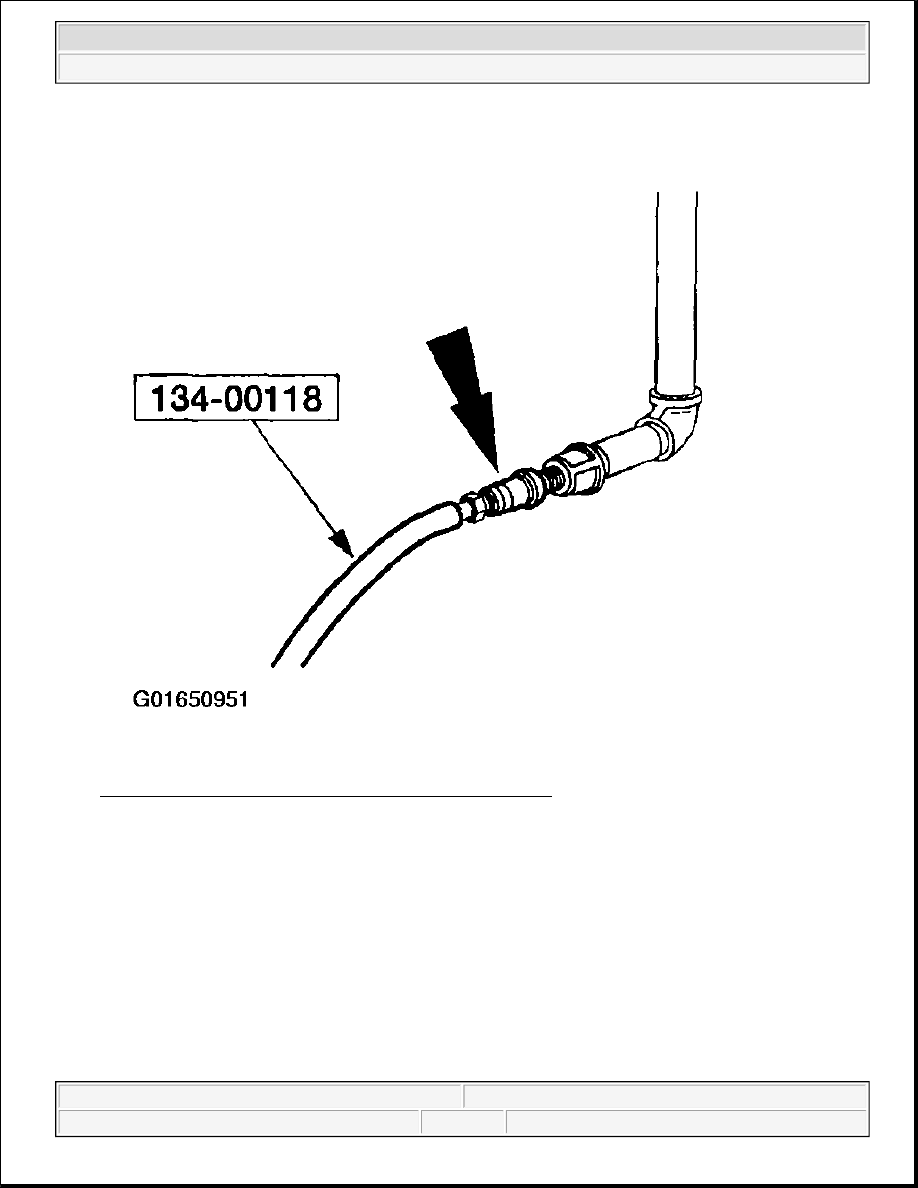

Fig. 43: Connecting Venting Hose Assembly To Vent Stack
Courtesy of FORD MOTOR CO.

10. Remove the instruction lockdown valve from the fuel tank solenoid valve of the fuel tank to be vented.
