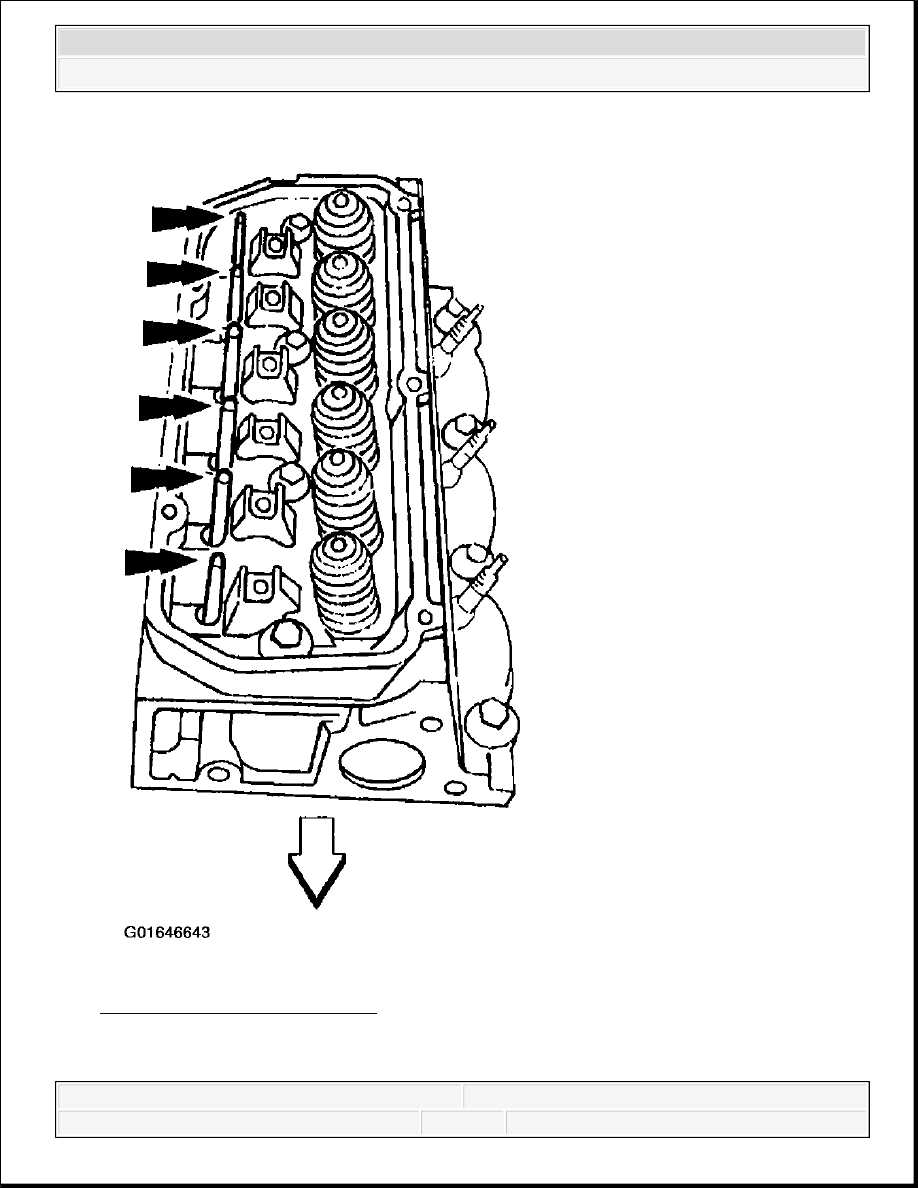

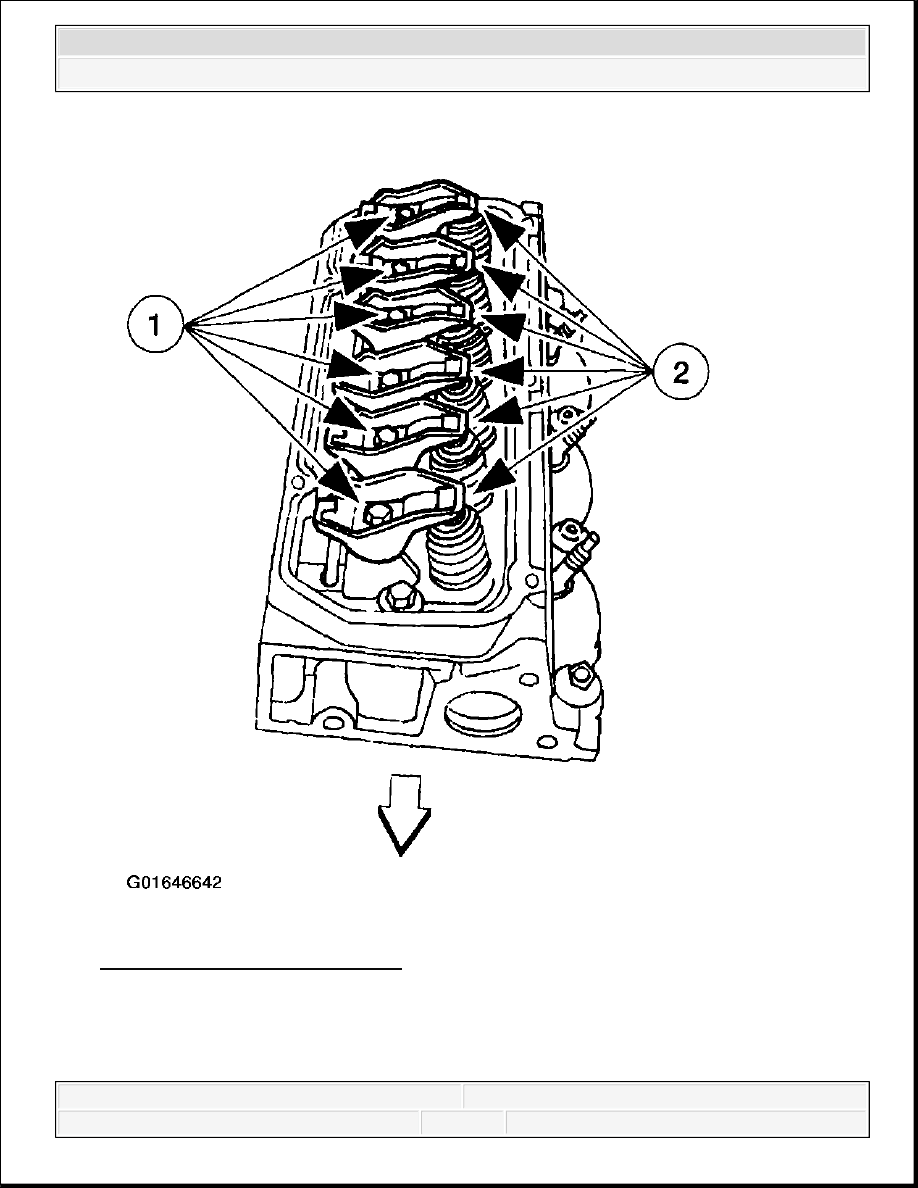

Stage 1: Tighten the bolts to 5 Nm (44 lb-in). Stage 2: Tighten the bolts to 35 Nm (26 lb-ft). VALVE TAPPET Material Fig. 129: Material Specification Removal 1. Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD . 2. Remove the valve cover. For additional information, refer to VALVE COVER RH and VALVE COVER LH . 3. Remove the rocker arms. 1. Remove the bolts. 2. Remove the rocker arms. CAUTION: If removing more than one valve tappet, mark the components removed for correct location.
2003 Ford Pickup F150 2003 ENGINE Engine - 4.2L - F150 Pickup
|
