5. Remove the water pump bolts.

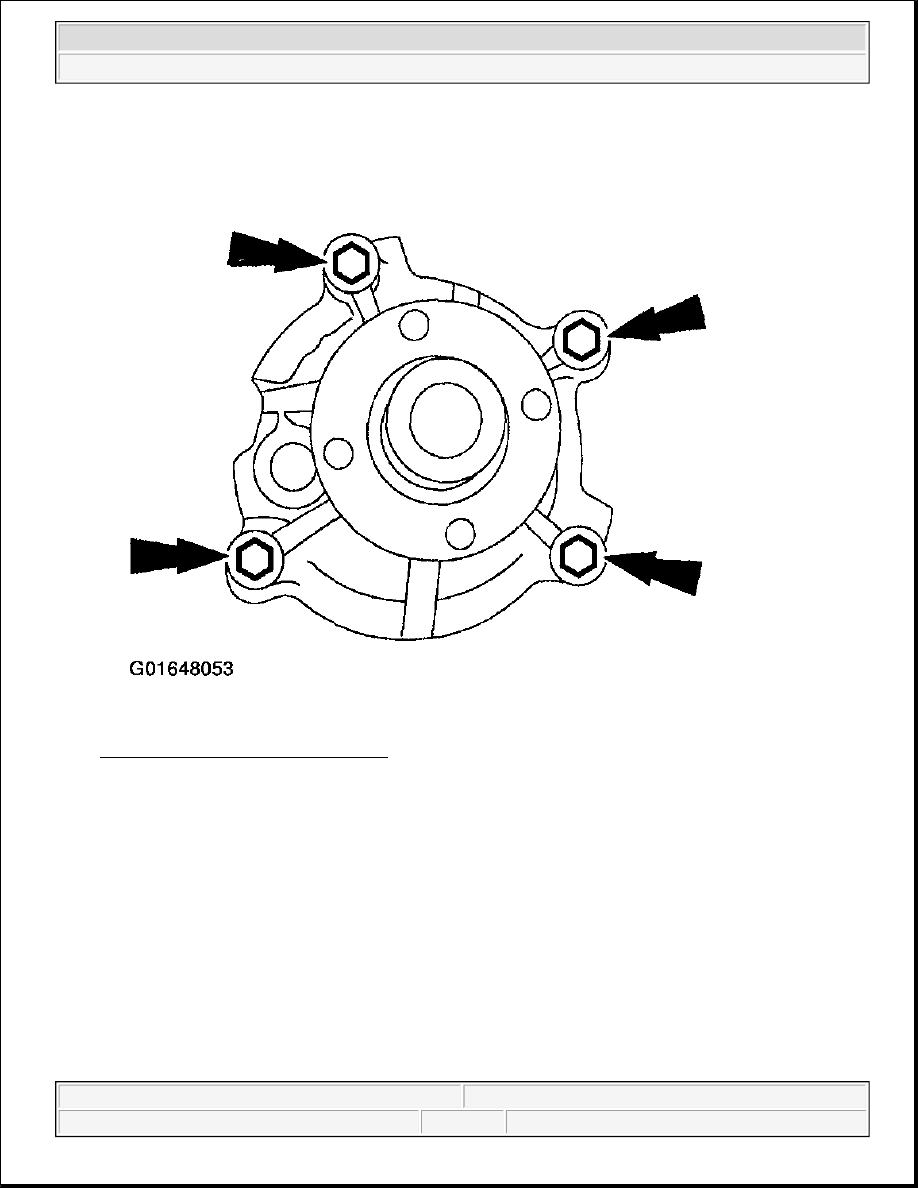

Fig. 31: Removing Water Pump Bolts
Courtesy of FORD MOTOR CO.

6. Remove the (A) water pump from the (B) cylinder block (6010).

z

Clean and inspect the mating surfaces.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



Fig. 32: Removing Water Pump From Cylinder Block
Courtesy of FORD MOTOR CO.

Installation

CAUTION: Some vehicle cooling systems are filled with Motorcraft Premium

Engine Coolant VC-4-A (in Oregon VC-5, in Canada CXC-10) or
equivalent meeting Ford specification ESE-M97B44-A (Green color).
Others are filled with Motorcraft Premium Gold Engine Coolant VC-7-
A or equivalent meeting Ford specification WSS-M97B51-A1 (Yellow
color). Always fill the cooling system with the same coolant that is
present in the system. Do not mix coolant types.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup

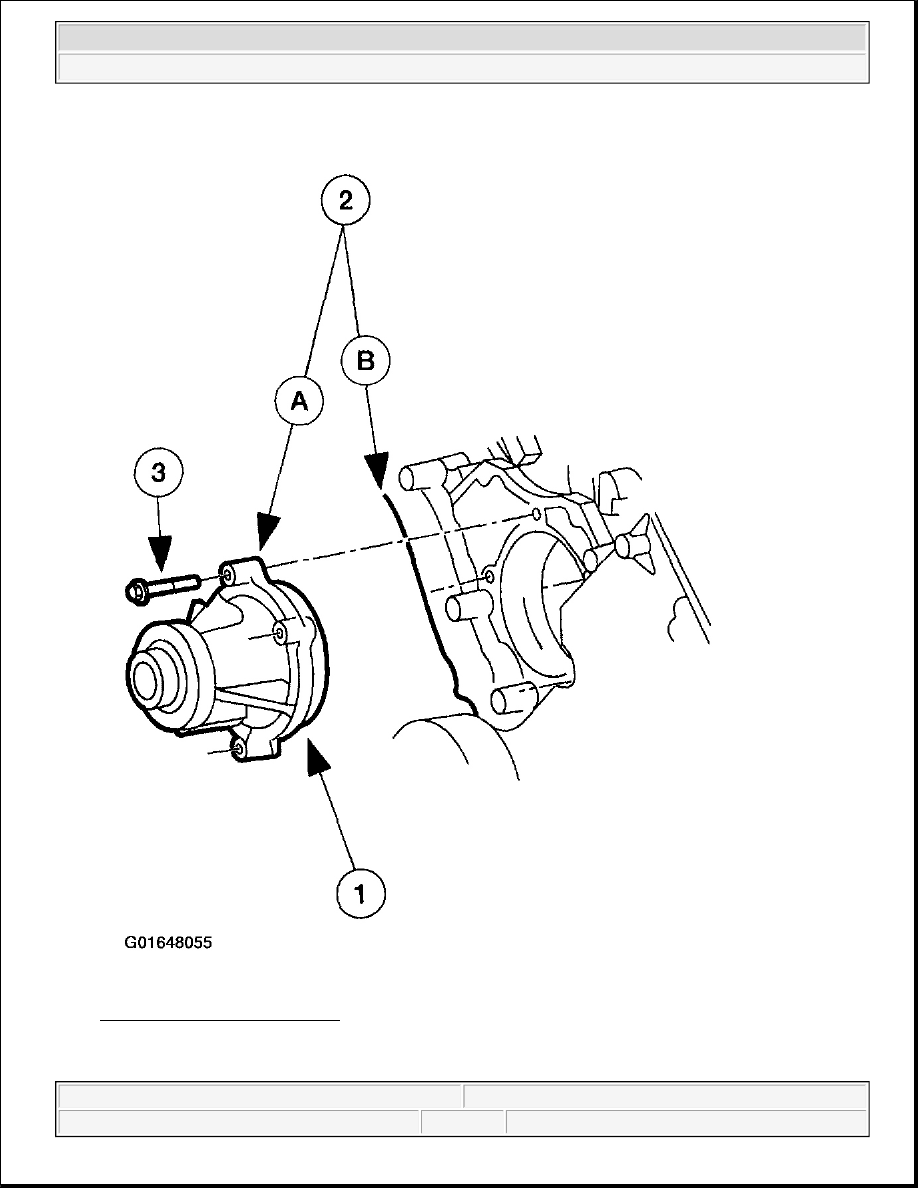

Fig. 33: Installing Water Pump
Courtesy of FORD MOTOR CO.

1. Install the water pump.



2003 Ford Pickup F150

2003 ENGINE Engine Cooling - F150 Pickup



1. Lubricate with engine coolant and install the O-ring seal.

2. Position the (A) water pump on the (B) engine.

3. Loosely install the bolts.

2. Tighten the bolts in the sequence shown.

Fig. 34: Identifying Water Pump Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.

3. Position the (A) water pump pulley on the (B) water pump and loosely install the bolts.
