Ford F150 Pickup. Instruction - part 46

Fig. 4: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before

proceeding to the next step.

4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart .

Symptom Chart

Fig. 5: Lamp Symptom Chart
Courtesy of FORD MOTOR CO.

Pinpoint Tests

PINPOINT TEST A: DAYTIME RUNNING LAMPS ARE INOPERATIVE

Fig. 6: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup

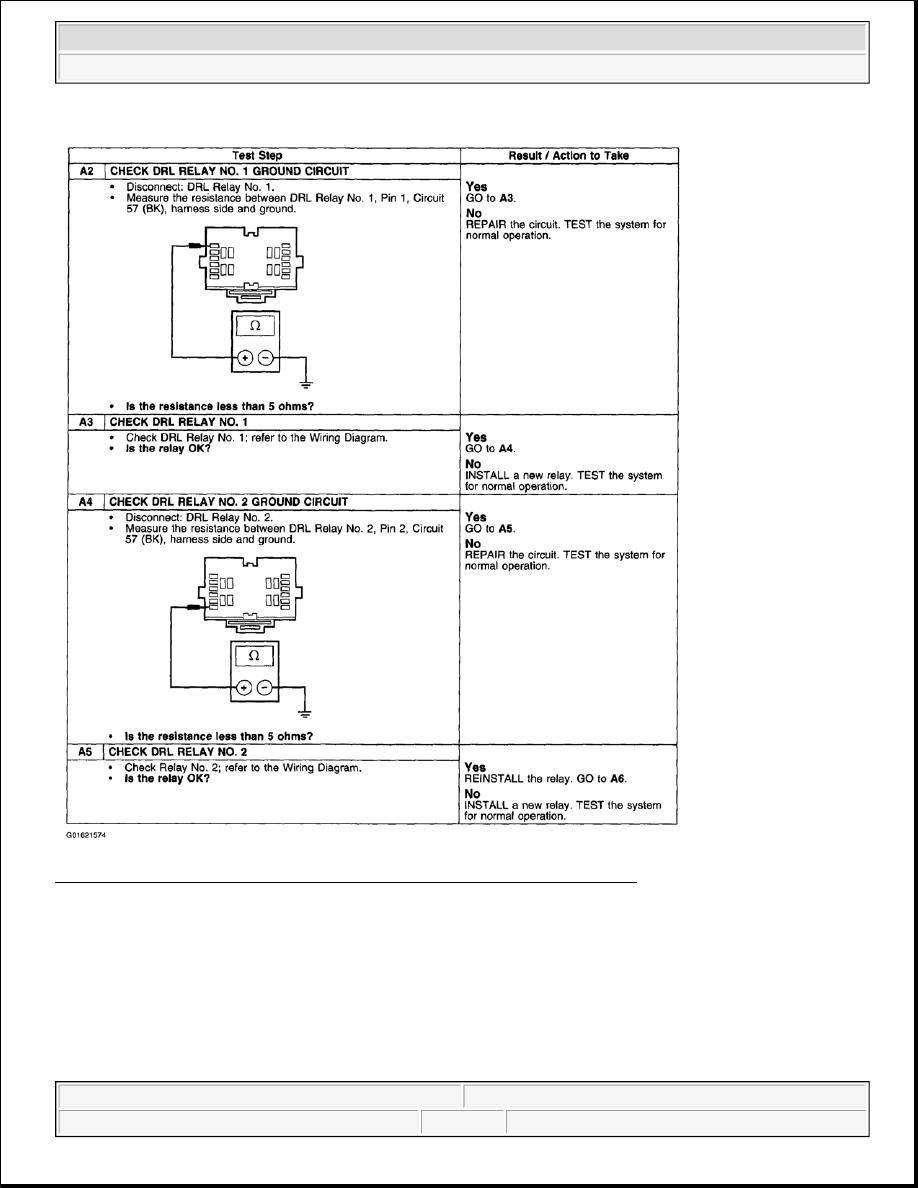

Fig. 7: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A2 - A5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup

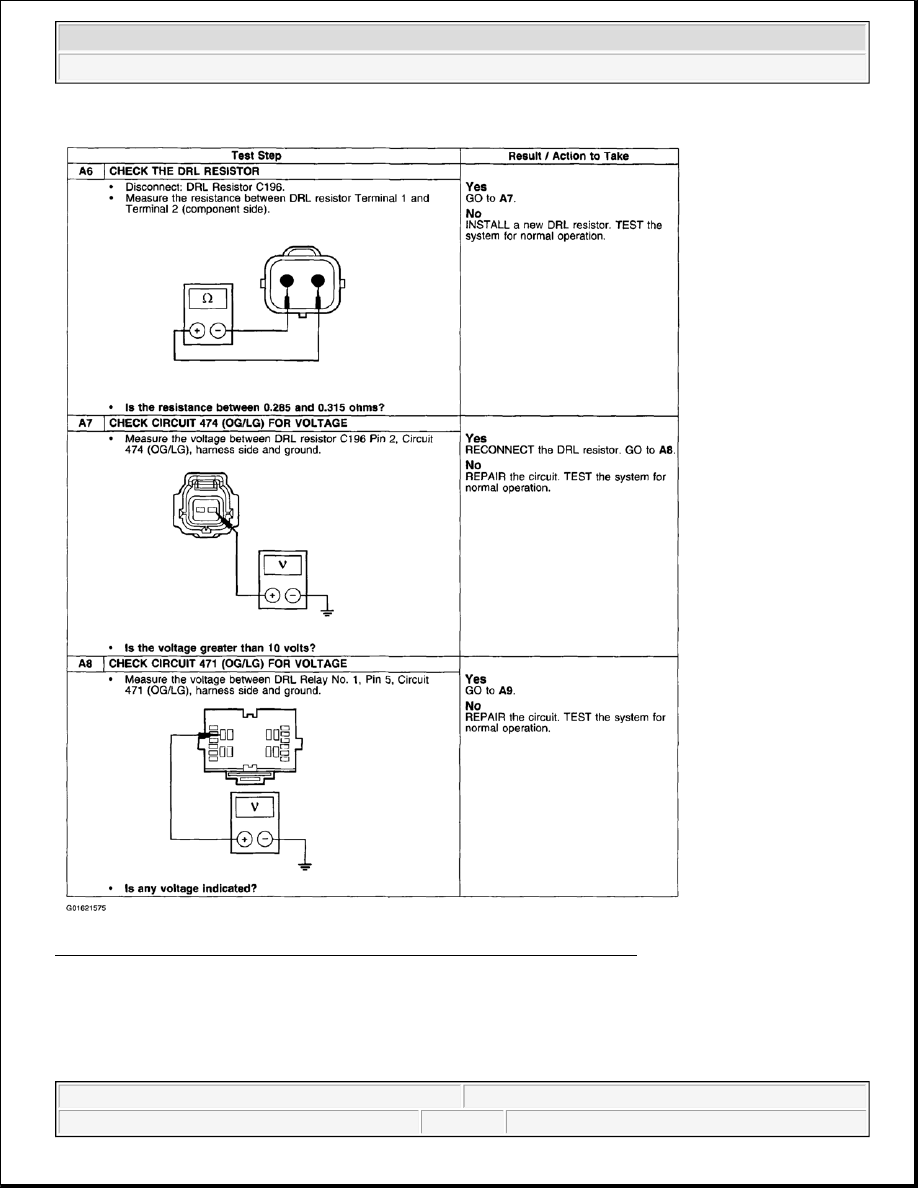

Fig. 8: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A6 - A8)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup



Fig. 9: Pinpoint Test A: Daytime Running Lamps Are Inoperative (A9 - A11)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: DAYTIME RUNNING LAMPS ARE ON WITH IGNITION SWITCH OFF



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Daytime Running Lamps - F150 Pickup
