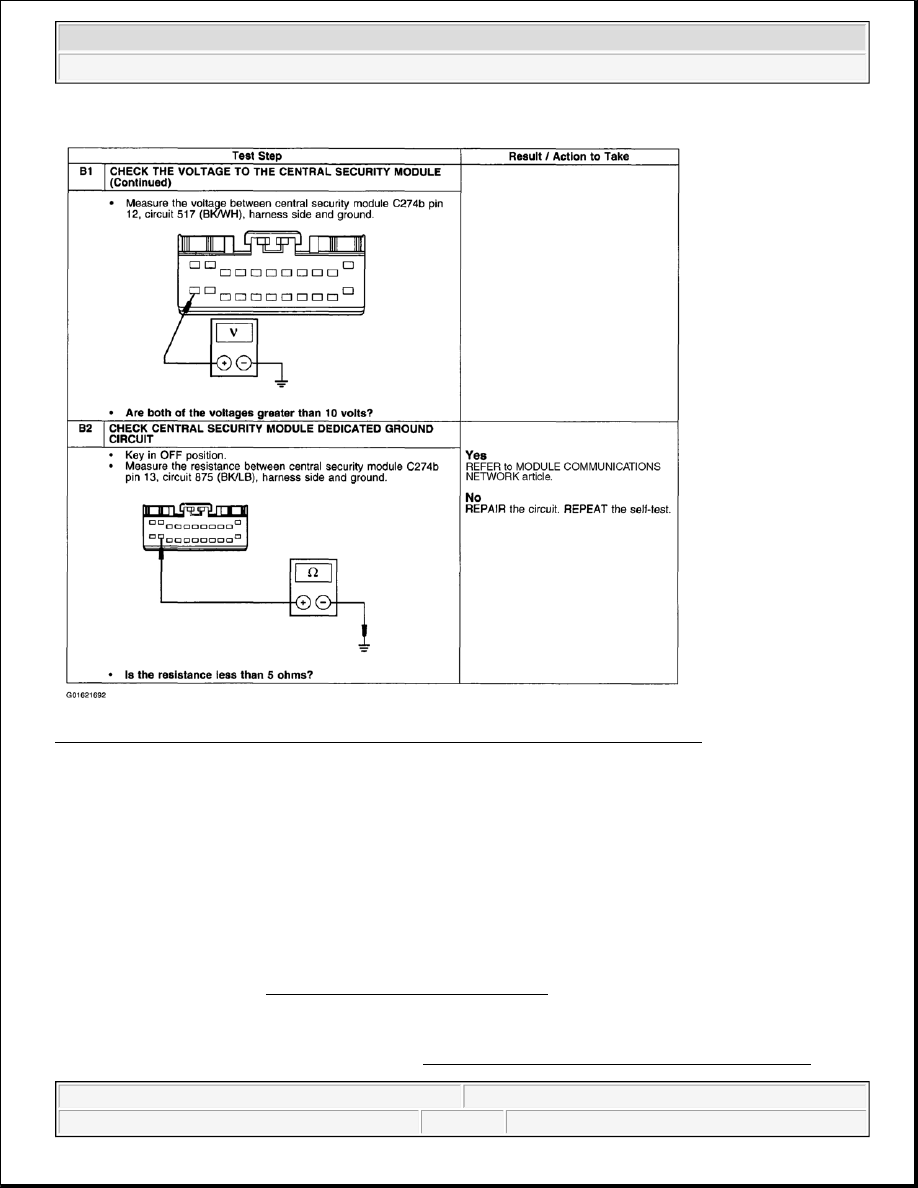

Fig. 10: Pinpoint Test B: No Communication With Central Security Module (B1-B2)
Courtesy of FORD MOTOR CO.

REMOVAL AND INSTALLATION

MODULE-GENERIC ELECTRONIC (GEM)/CENTRAL TIMER (CTM)

Removal

1. Disconnect the battery ground cable.

2. Remove the steering column cover. Refer to INSTRUMENT PANEL -- STEERING COLUMN

CAUTION: Prior to removal of the GEM, it is necessary to upload module

configuration information to a diagnostic tool. This information
needs to be downloaded into the new module once installed. Refer to
MODULE CONFIGURATION-F150 .



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



COVER .

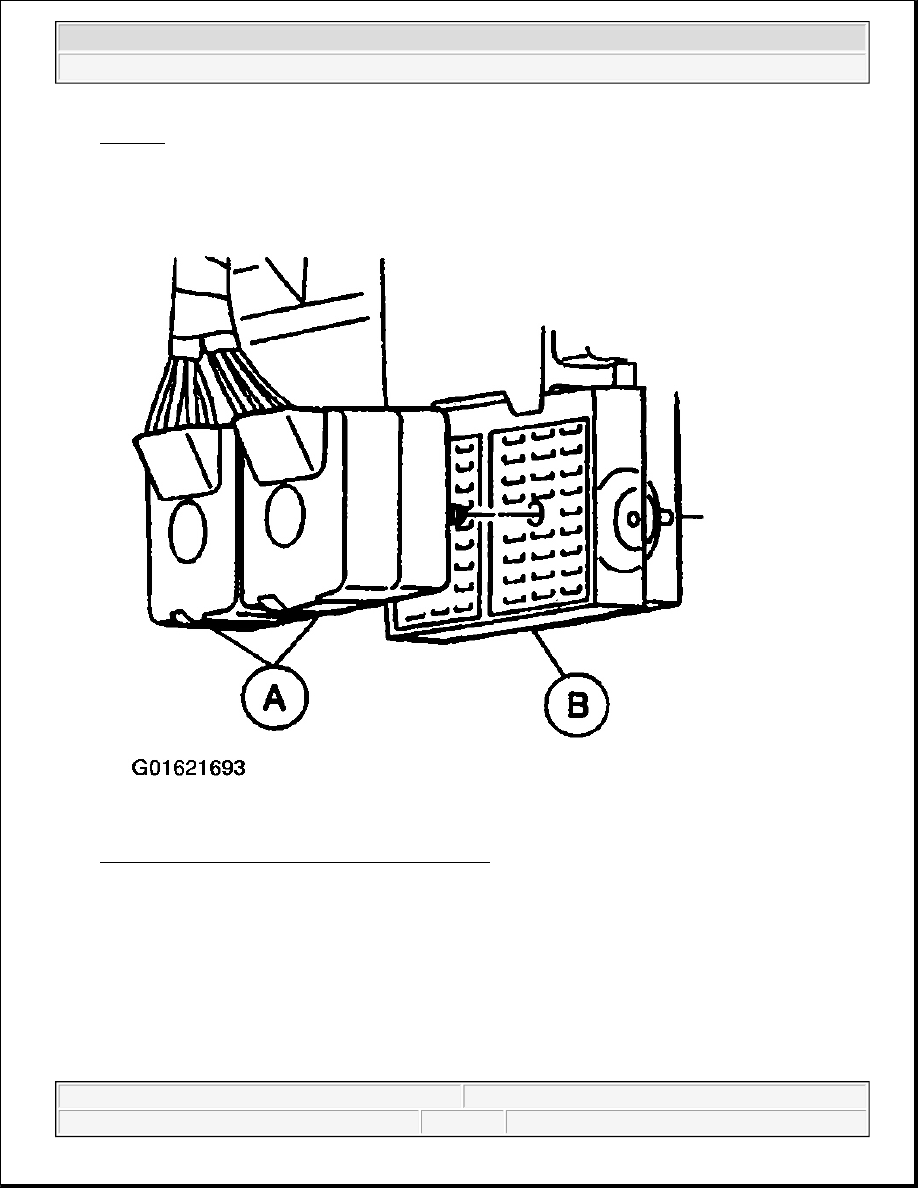

3. Remove the (A) bulkhead electrical connectors from the (B) instrument panel fuse junction panel.

Fig. 11: Removing Bulkhead Electrical Connectors
Courtesy of FORD MOTOR CO.

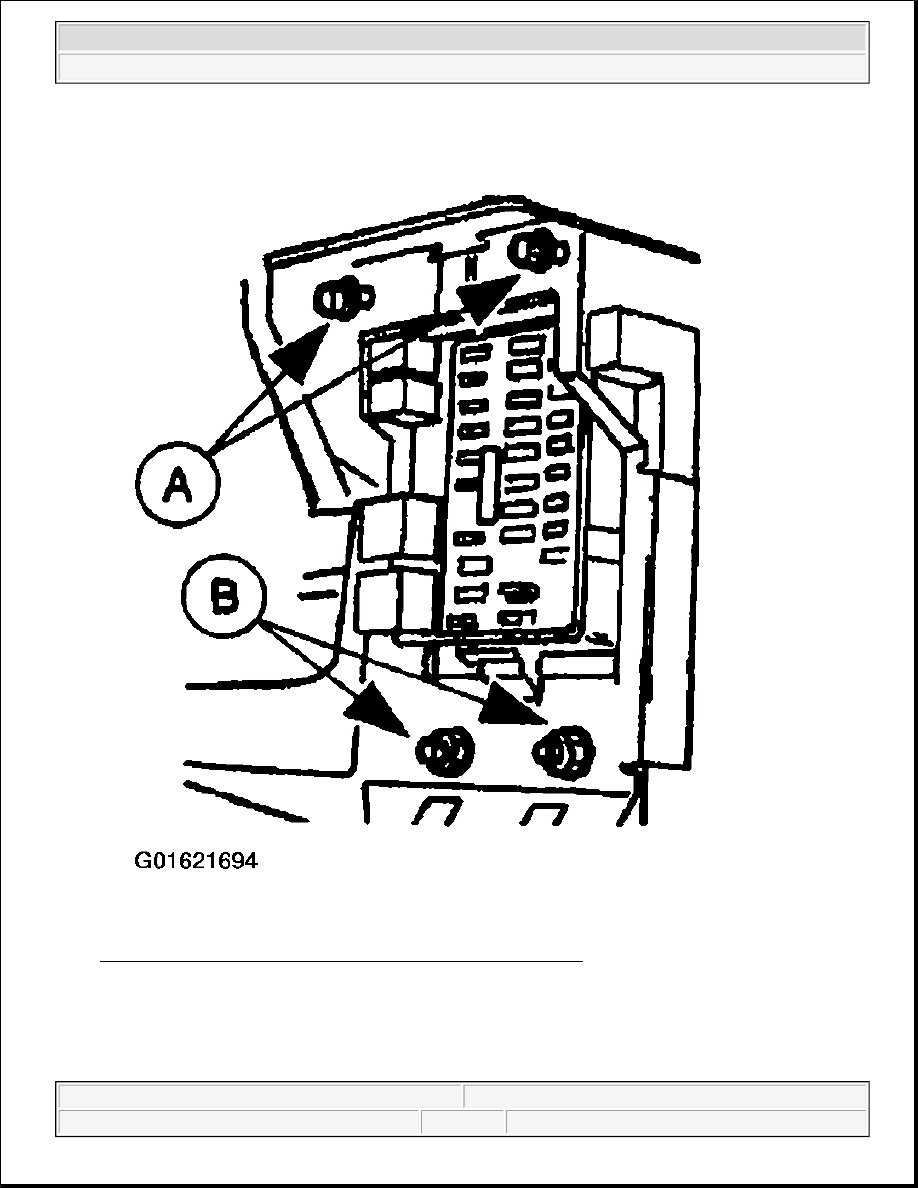

4. Remove the (A) instrument panel fuse junction panel bolts and remove the (B) interior fuse junction panel

nuts.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



Fig. 12: Removing Instrument Panel Fuse Junction Panel Bolts
Courtesy of FORD MOTOR CO.

5. Disconnect the (A) GEM/CTM electrical connectors from the (B) GEM/CTM.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Multifunction Electronic Module - F150 Pickup



Fig. 13: Disconnect (A) GEM/CTM Electrical Connectors
Courtesy of FORD MOTOR CO.

6. Remove the screws and the GEM/CTM.
