The As-Built Data Center maintains a record of the vehicle configuration in a database. The vehicle VIN is
required to obtain this information. The As-Built Data Center records the applicable module configurations
stored in each module before the vehicle leaves the factory. The As-Built Data Center will always reflect the
original build of the vehicle as it left the factory. Only contact the As-Built Data Center when directed to do so
by the diagnostic tool.

Inspection and Verification

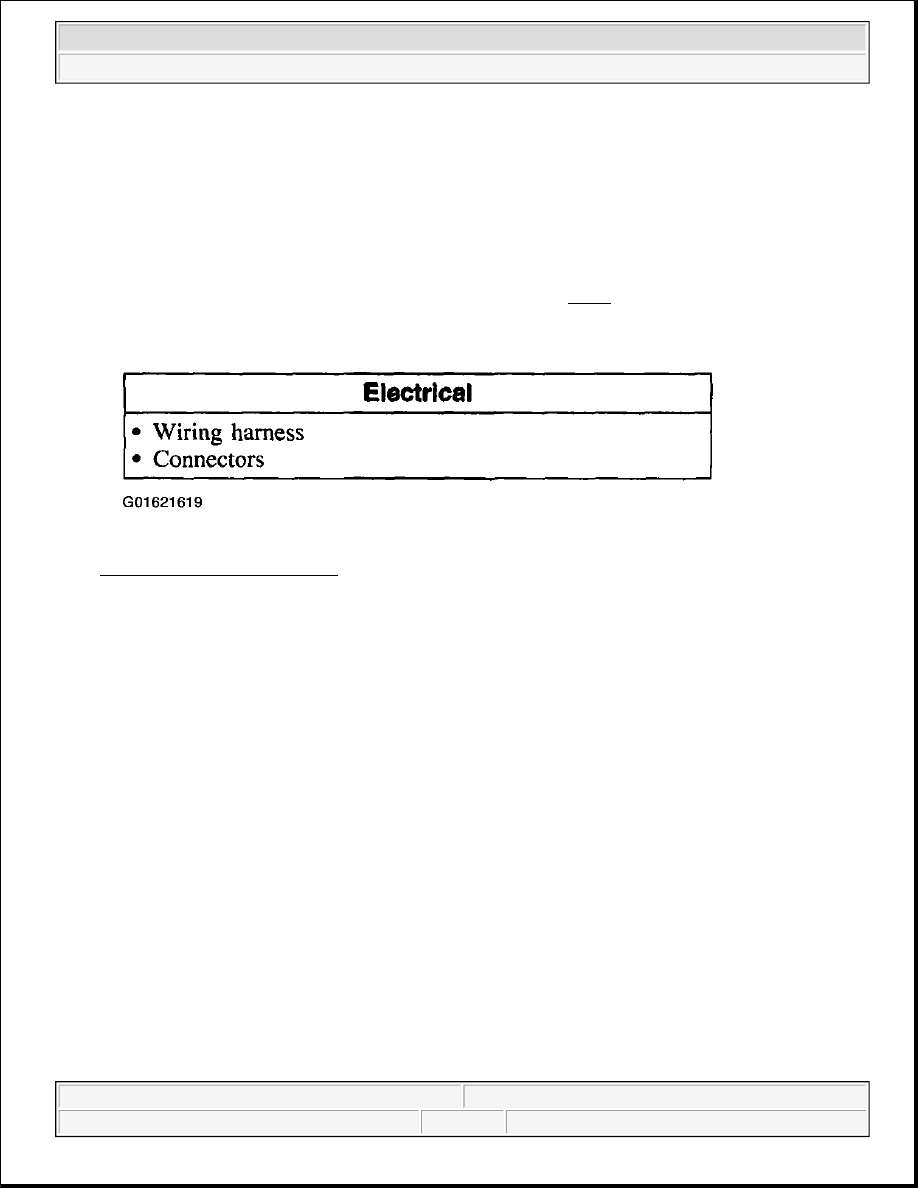

1. Visually inspect for obvious signs of electrical damage. Refer to Fig. 2 :

Fig. 2: Visual Inspection Chart
Courtesy of FORD MOTOR CO.

Configurable Modules

The vehicle contains the following modules that are configurable:

z

generic electronic module (GEM) central timer module (CTM)

z

central security module

Programmable Parameters Index



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Module Configuration - F150 Pickup



Fig. 3: Programmable Parameters Index Table
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Module Configuration - F150 Pickup



2003 ACCESSORIES AND BODY, CAB

Audio - F150 Pickup

SPECIFICATIONS

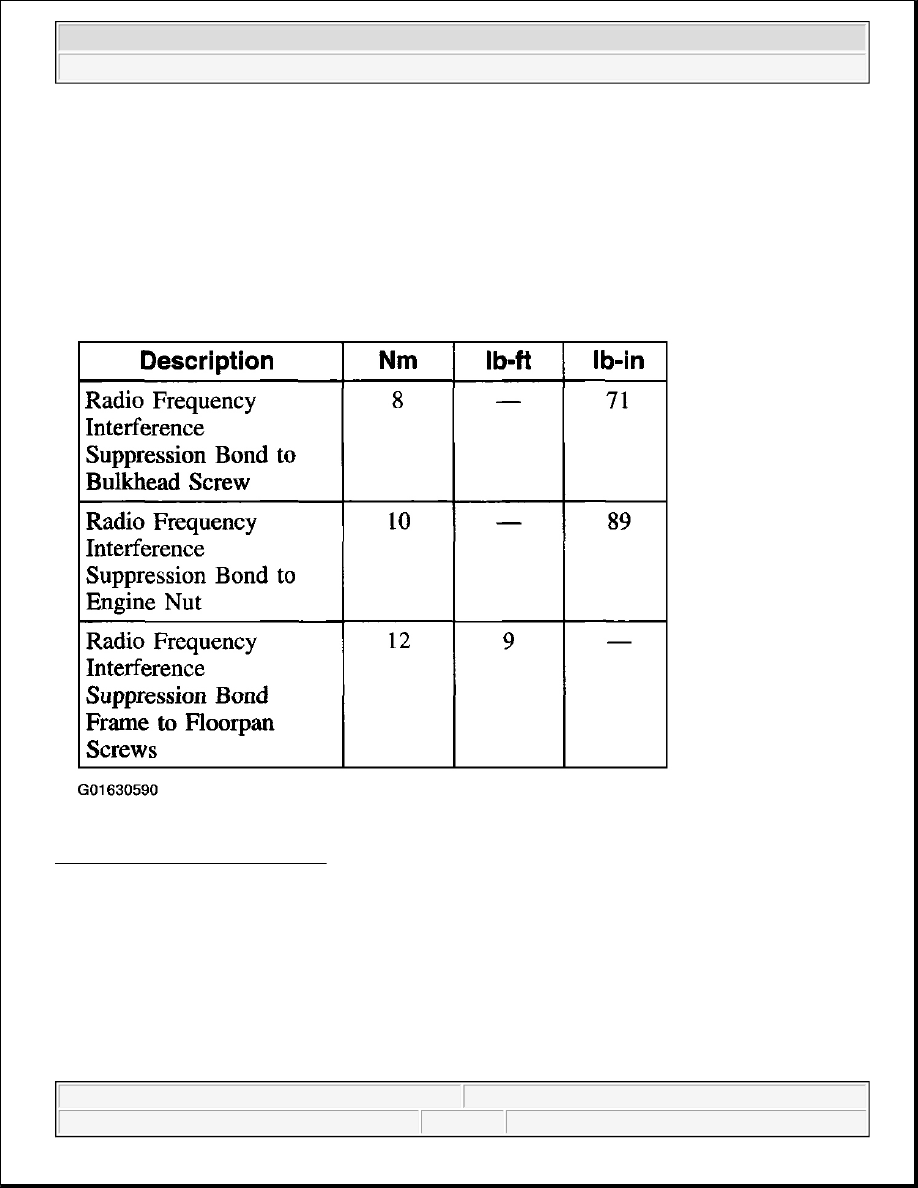

TORQUE SPECIFICATIONS

Fig. 1: Torque Specifications Chart
Courtesy of FORD MOTOR CO.

DESCRIPTION AND OPERATION

AUDIO SYSTEM

The audio system consists of:

z

M100ULC-AM/FM radio (18K810)

z

M100CMD-AM/FM cassette radio



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Audio - F150 Pickup





2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Audio - F150 Pickup



z

P100i-Premium AM/FM cassette

z

P100iD-AM/FM cassette/compact disc (18C869) (F250 only)

Radio Frequency Interference Suppression Equipment

Fig. 2: Locating Radio Frequency Interference Suppression Equipment
Courtesy of FORD MOTOR CO.
