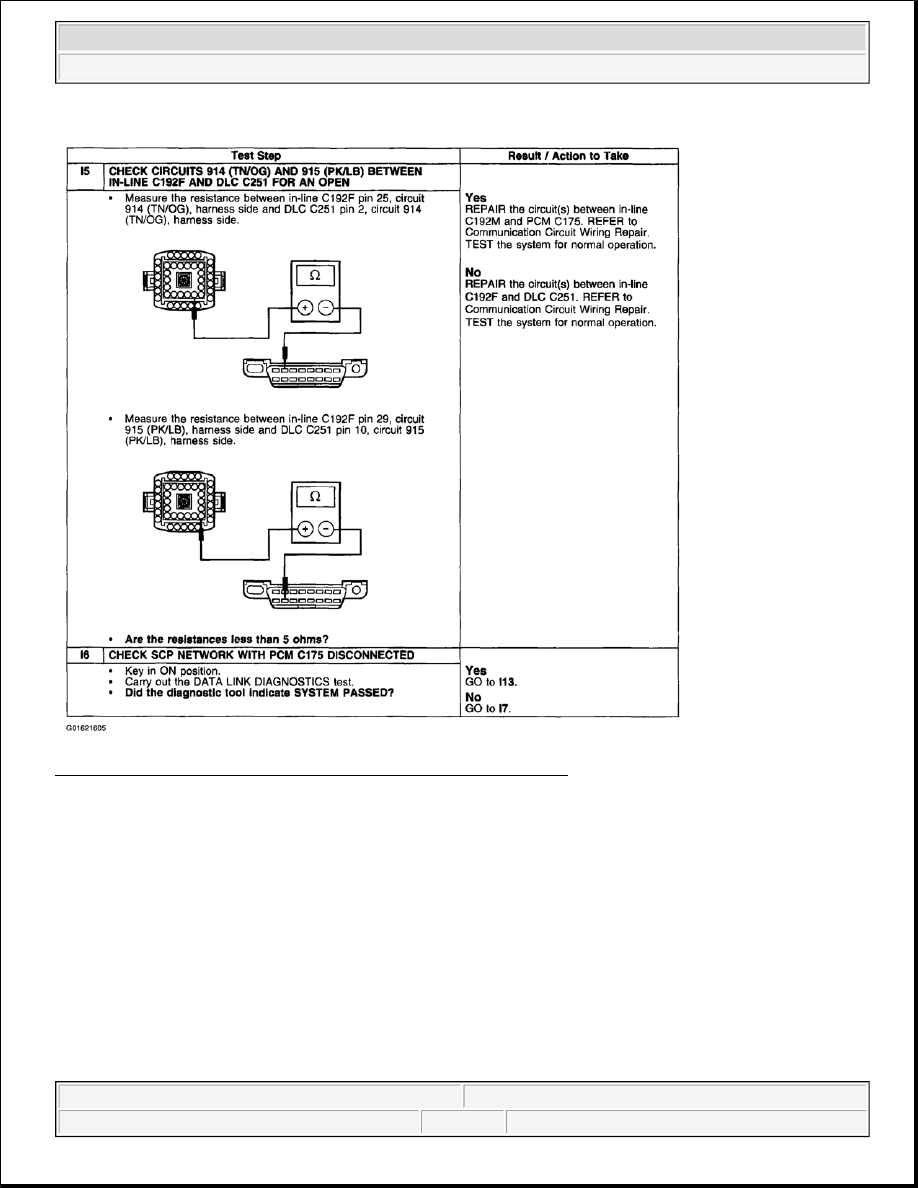

Fig. 28: Pinpoint Test I: No Standard Corporate Protocol (I5 & I6)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

Fig. 29: Pinpoint Test I: No Standard Corporate Protocol (I7 & I8)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

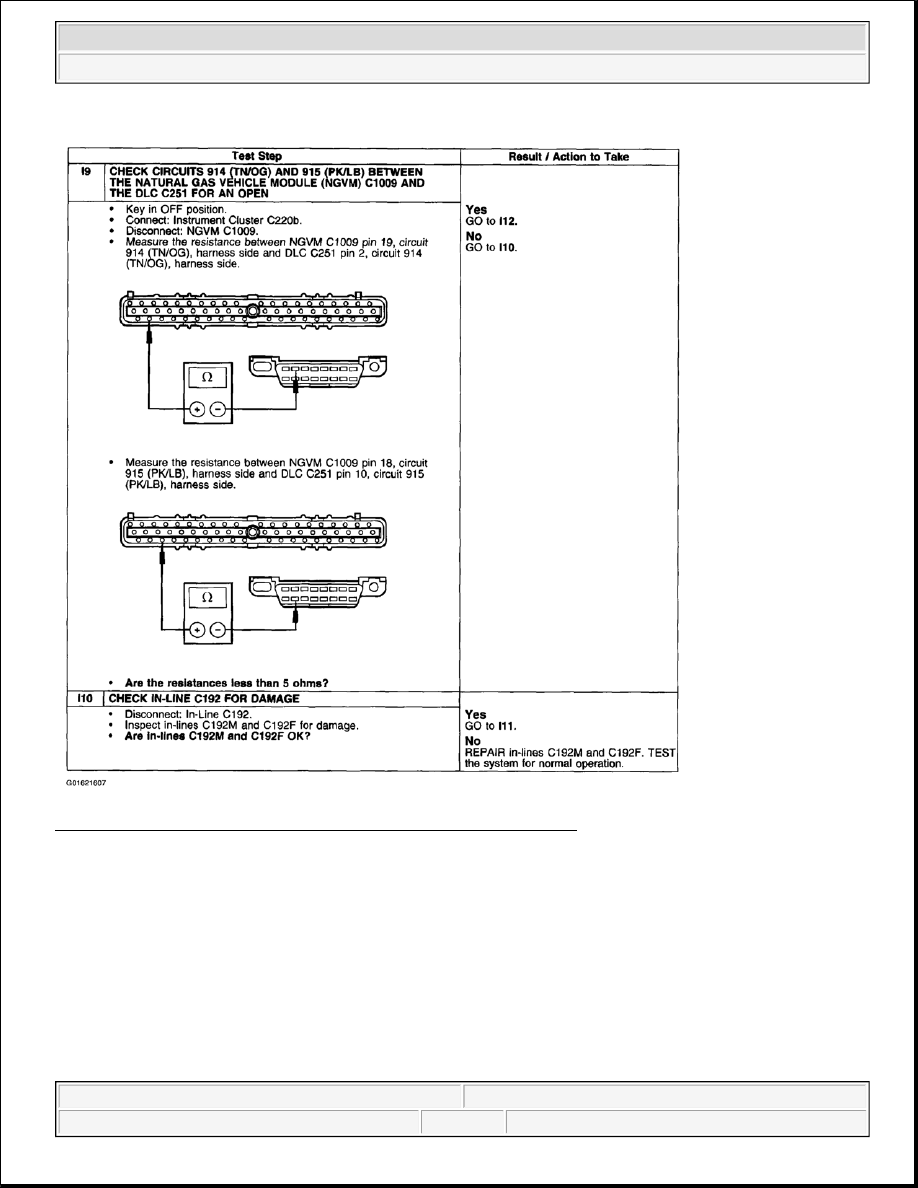

Fig. 30: Pinpoint Test I: No Standard Corporate Protocol (I9 & I10)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup

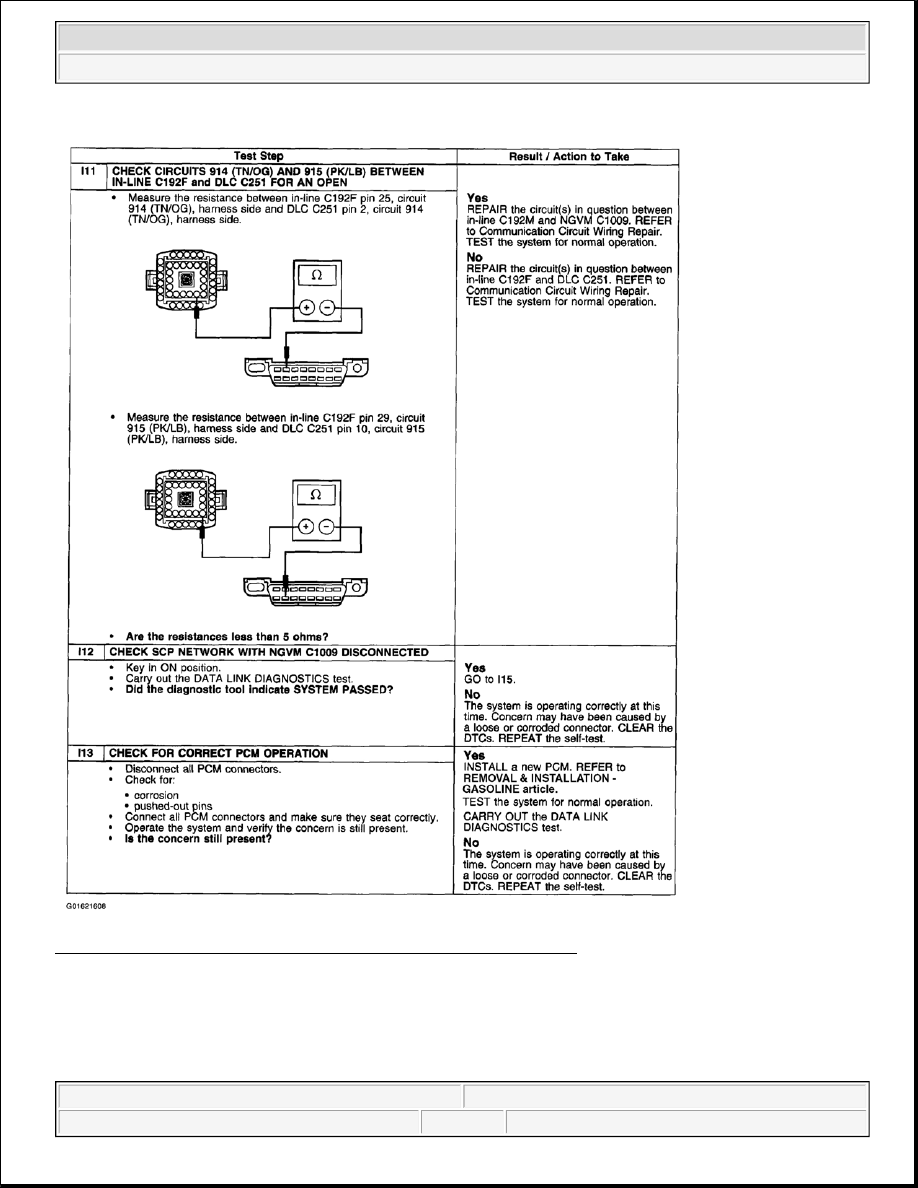

Fig. 31: Pinpoint Test I: No Standard Corporate Protocol (I11 - I13)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Module Communications Network - F150 Pickup
