Dongfeng EQ1030T47D-820. Manual - part 41

Heater

BF-19

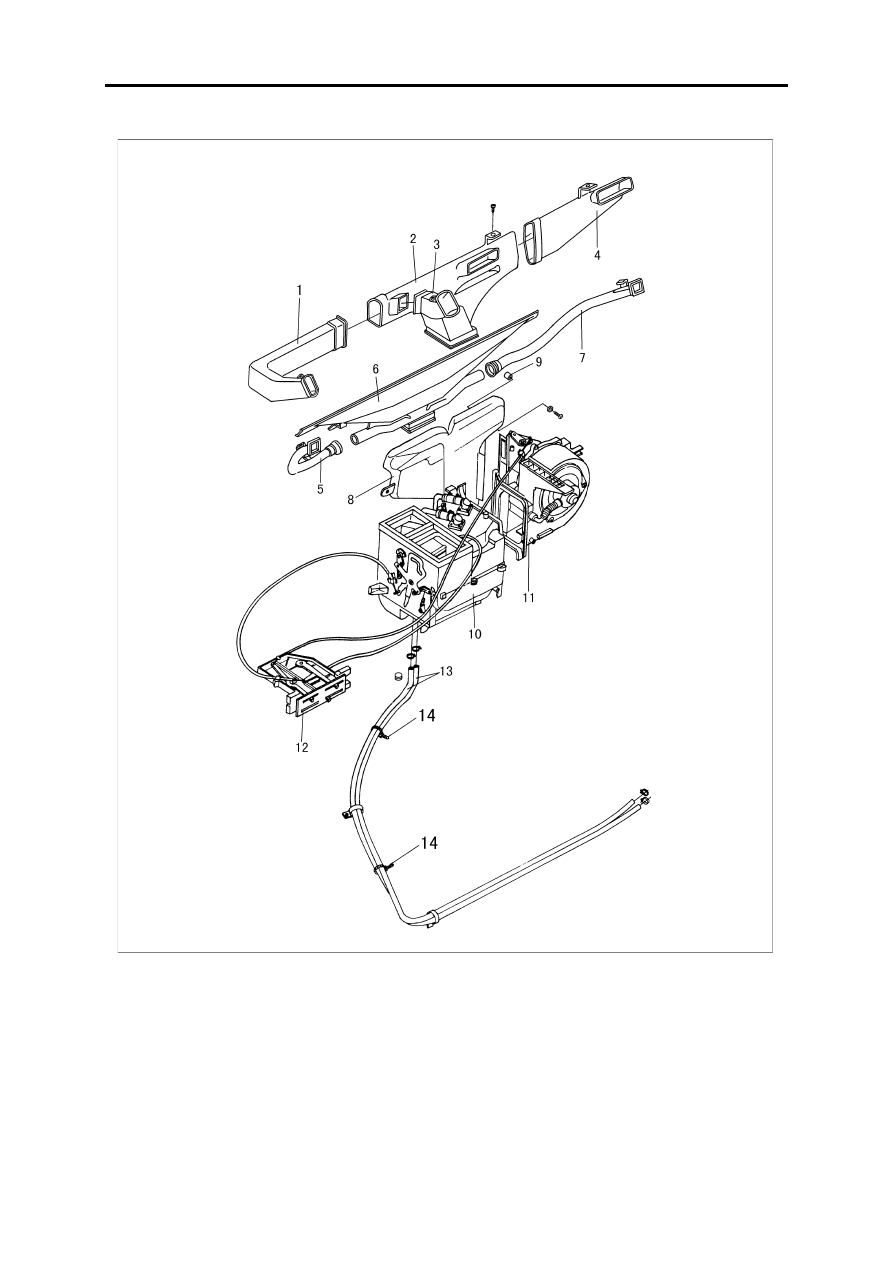

Air Heater Parts Structure

1.

Left air pipe

2.

Air duct assembly

3.

Middle air pipe

4.

Right air pipe assembly

5.

Defrosting pipe assembly, left door

6.

Defrosting nozzle assembly

7.

Defrosting pipe assembly, right door

8.

Air inlet duct assembly

9.

Plastic nut assembly

10.

Heater assembly

11.

Blower assembly

12.

Heater control mechanismassembly

13.

Water inlet & outlet pipe

14.

Nylon strap

Heater

BF-20

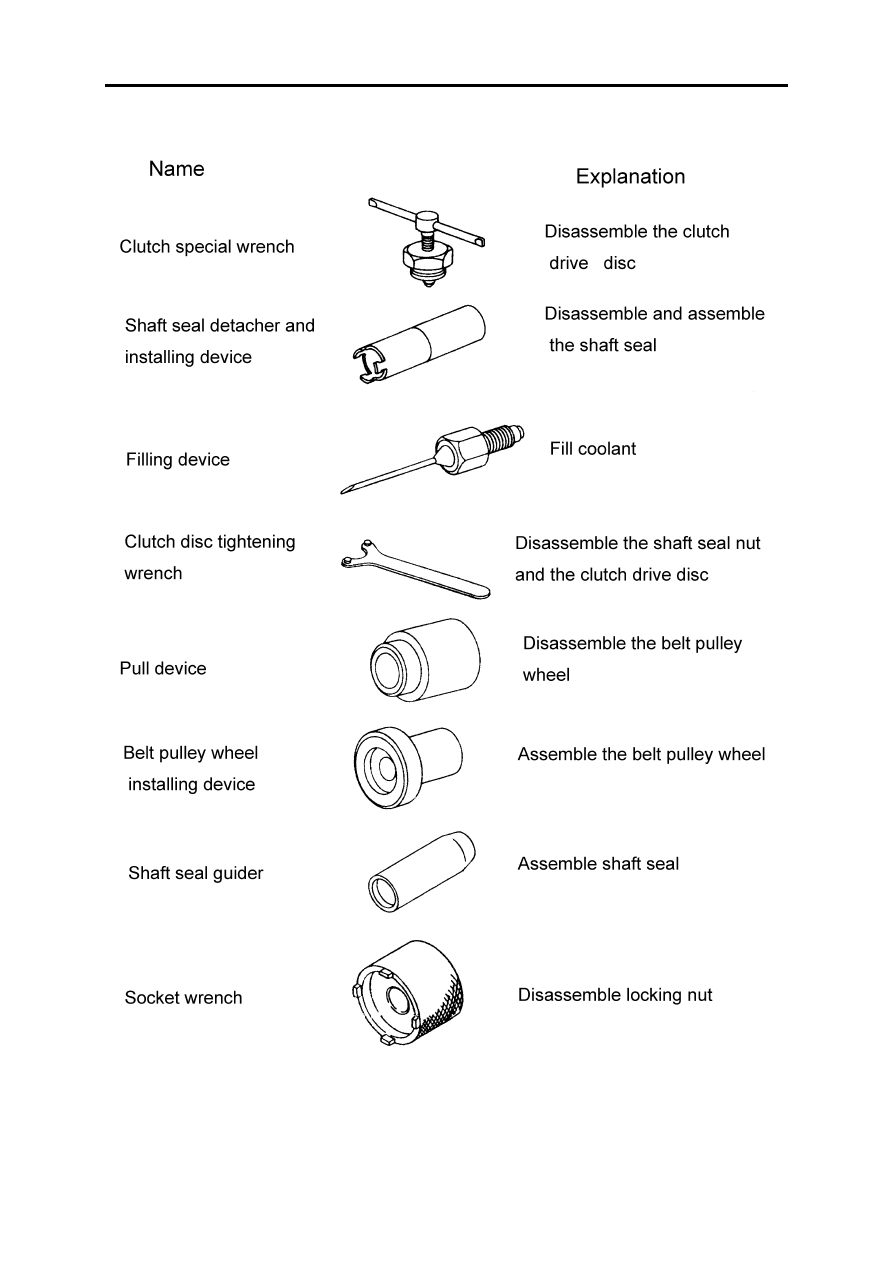

Special Service Tool

As for the operating method please see the tool service manual for detail.

Electric System

EL

TOC

Harness Connector

..................................................................................... EL-1

Standard Relay

............................................................................................ EL-1

Fuse Wire and Fusible Link

..................................................................... EL-2

Battery

........................................................................................................... EL-2

Charging System

......................................................................................... EL-4

Starting System

........................................................................................... EL-5

Combined Switches

.................................................................................... EL-6

Front Head Lights

....................................................................................... EL-6

Combined Instrument Panel

..................................................................... EL-7

Windshield Washer and Wiper

................................................................ EL-8

Radio Cassette and Antenna

................................................................... EL-10

Electric System

EL-1

Electric System

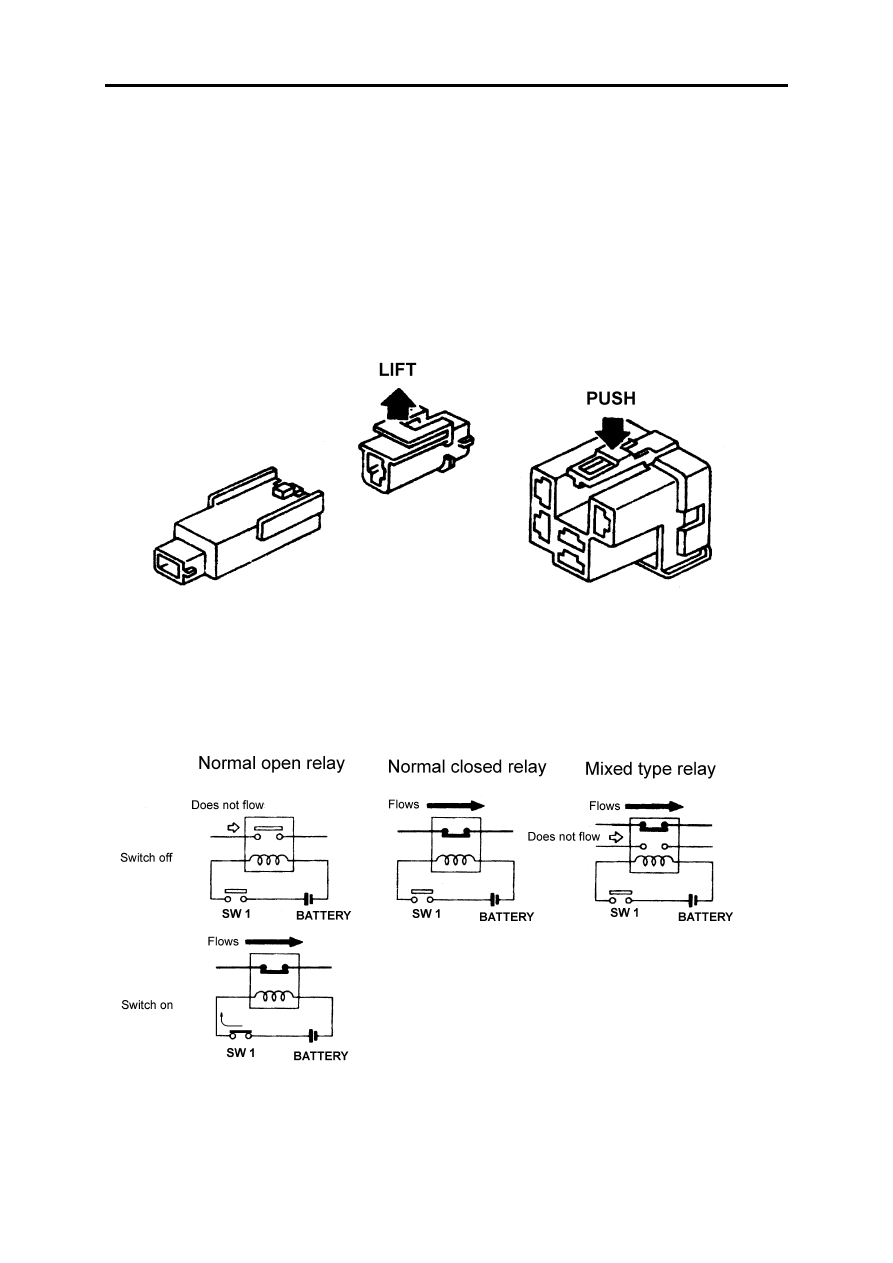

Harness Connector

All the terminals have been improved, which could prevent from loosening and disconnection.

Terminals could be loosened by pressing and pulling lock parts.

Note:
Don't pull electric wire while disconnecting terminals.
Example:

Standard Relay

Relay can be divided into three types:open, close and mixed.
