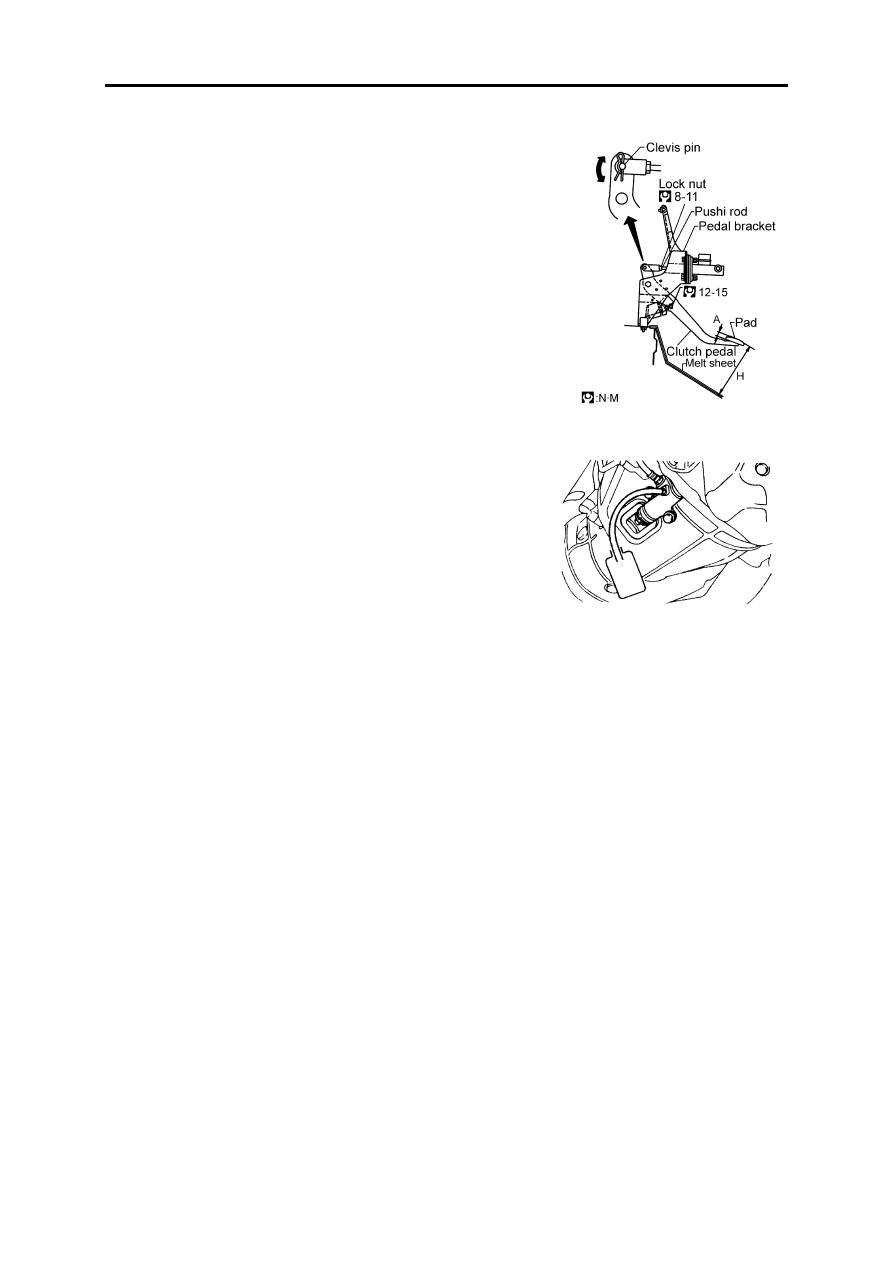

Clutch CL-3 Adjusting Clutch Pedal 1.Adjust the pedal height by means the spacing screw. Height of the clutch pedal H: 160~170mm 2.Adjust the clutch pedal free play by master cylinder push rod: Loose the locking nut when adjusting, turn the master cylinder push rod, Pedal free play A: 30~50mm Bleeding Procedure Bleed air according to the following procedure: Carefully monitor fluid levlel at master clinder during bleeding operation. 1.Fill in reservior with rocommended brake fluid. 2.Connect a transparent plastic tube to air bleeder valve. 3.Fully depress clutch pedal several times. 4.With clutch pedal depressed, open bleeder valve to release air. 5.Tighten the bleed valve. 6.Repeat steps 3 and 5 above until brake fluid flows from air bleeder valve |
