Dongfeng DFA1101GZ5AD6J-907. Manual - part 64

Electric and Instrument

EL-12

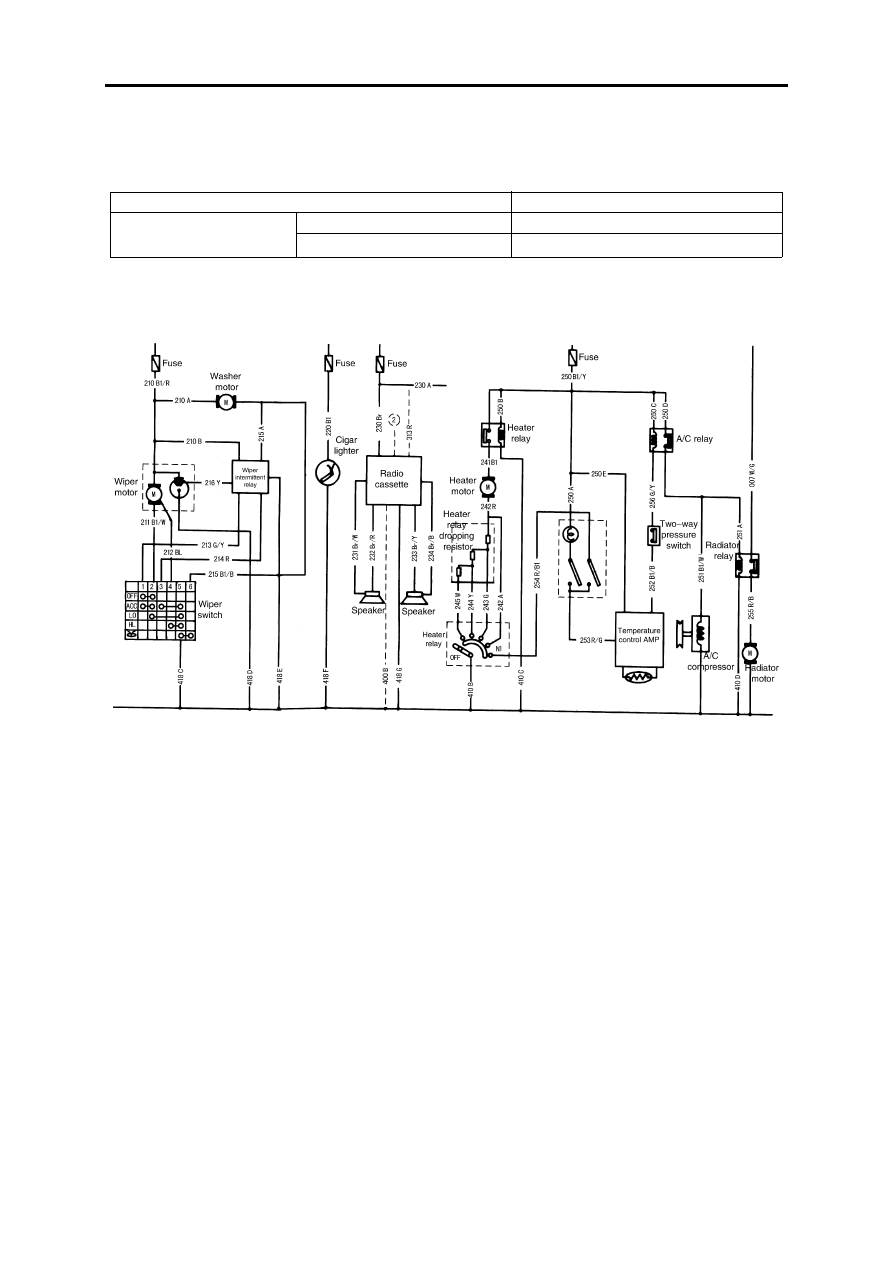

Accessories

Wiper motor

Power

50

Revolution

Low speed

40

High speed

60 ± 6

 －2
 ＋3

Electric and Instrument

EL-13

Horn

Horn

Press the horn button, the normal-open contact of the horn relay is connected and make the electric horn

work.

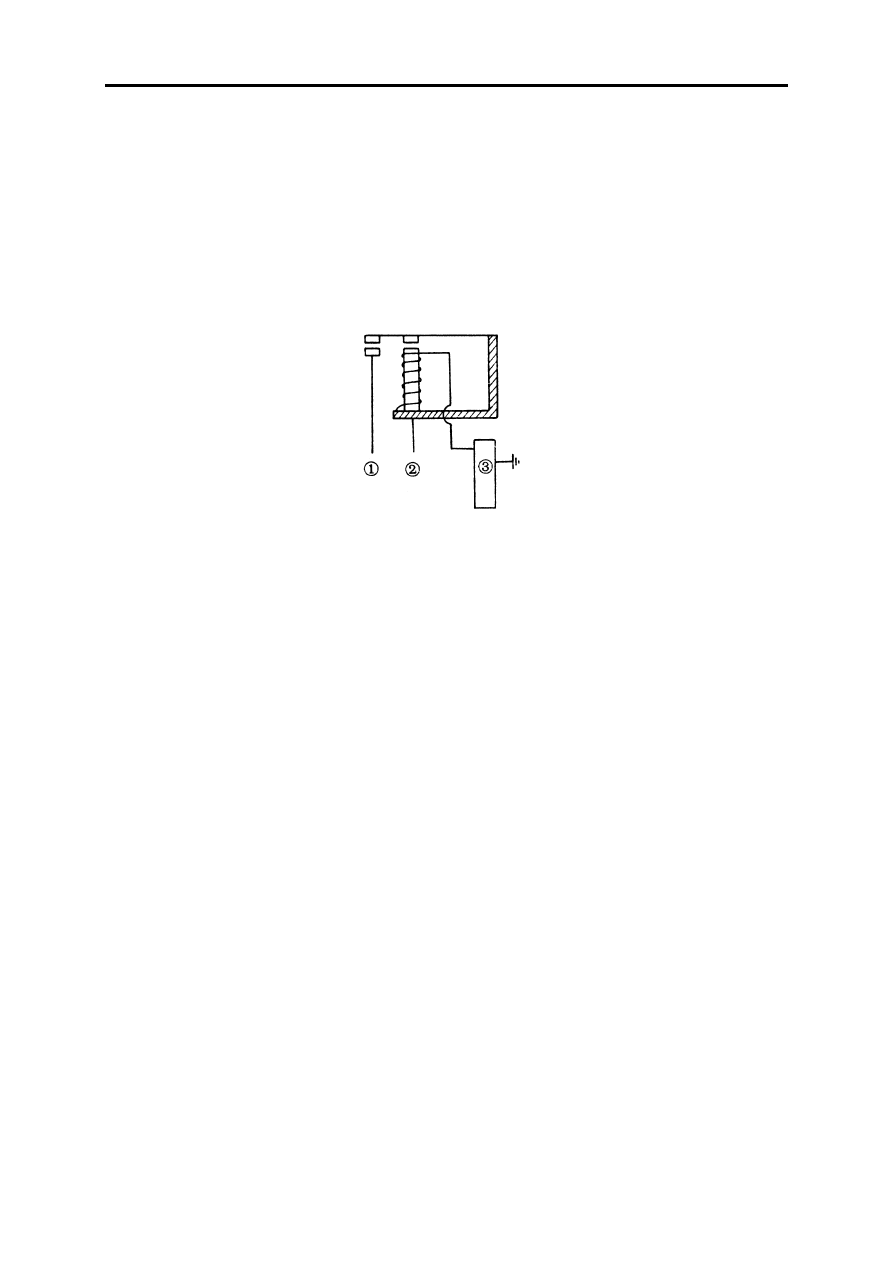

Horn relay

Decrease the current flowing through horn button via an iron core with high resistance so as to prevent the

horn button from burning out.

1.To horn
2.To power supply
3.To horn button

Electric and Instrument

EL-14

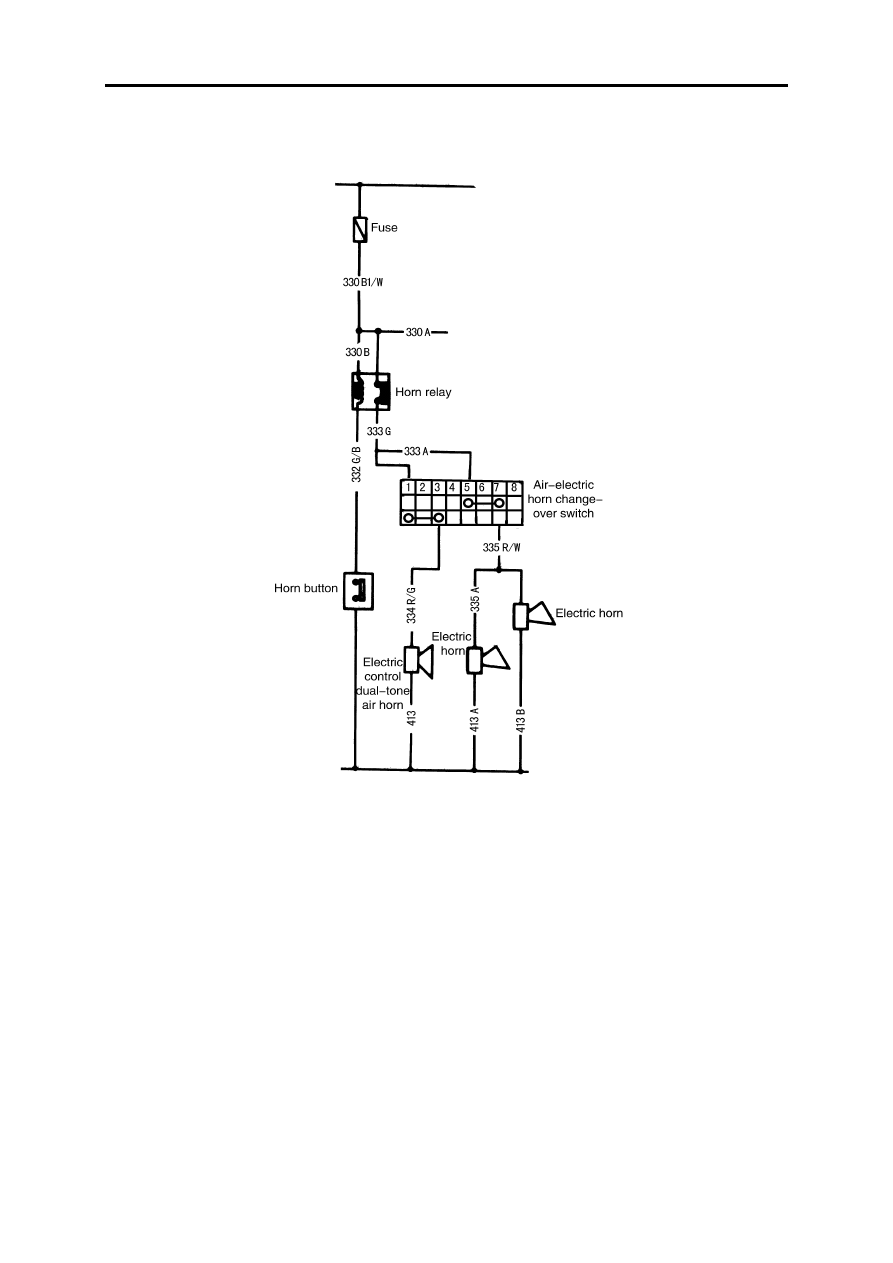

Electric wiring diagram

Electric and Instrument

EL-15

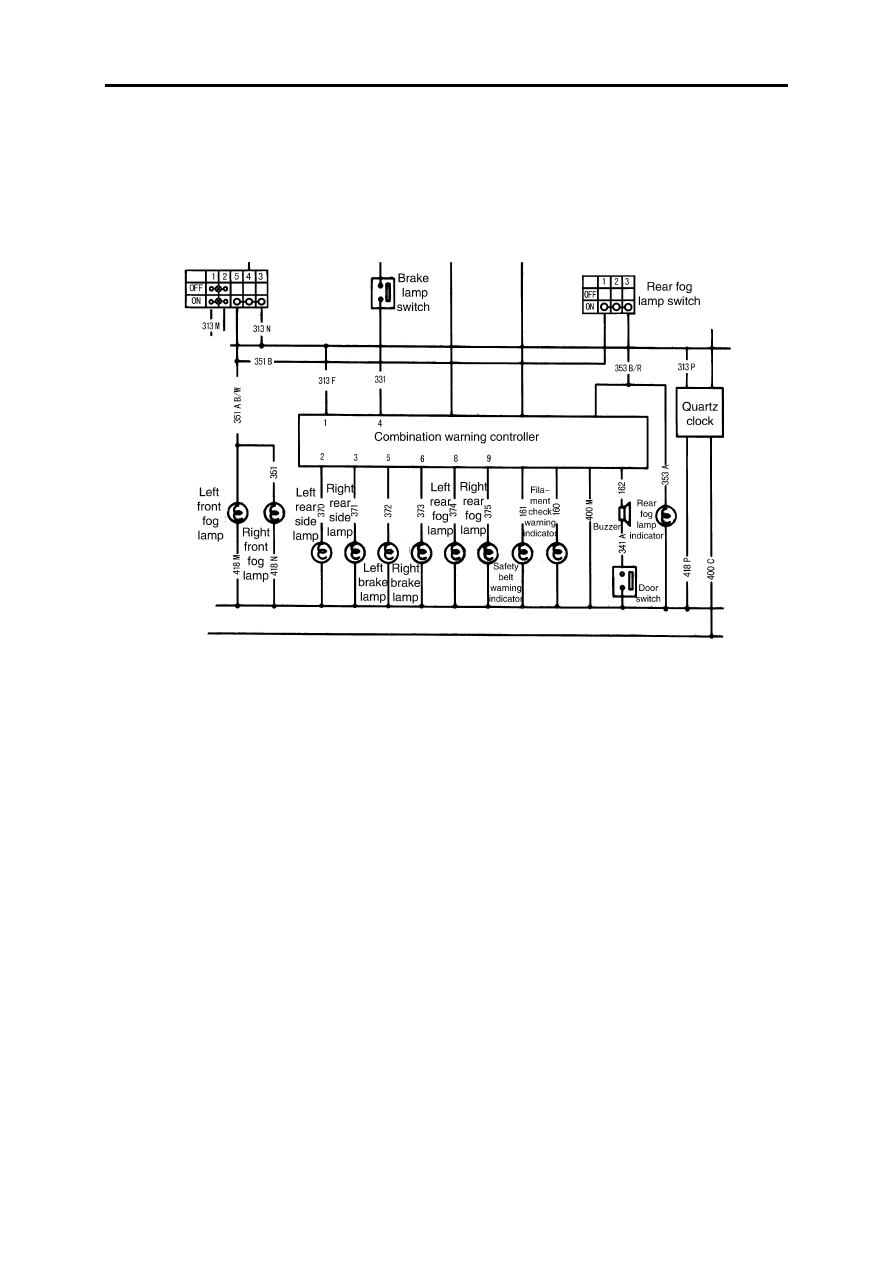

Fog Lamps

Double rocker switch in parallel is used as a fog switch. That is because when the front lamps go on, the tail

lamps, license lamp, instrument and quartz clock illuminators should be all lighted simultaneously, while the
foglamp is not included, but when the foglamp goes on, the front lamps, tail lamps, license lamp, instrument and
quartz clock illuminator should be all lighted.
