Dongfeng DFA1101GZ5AD6J-907. Manual - part 7

Construction and Operation

 3—13

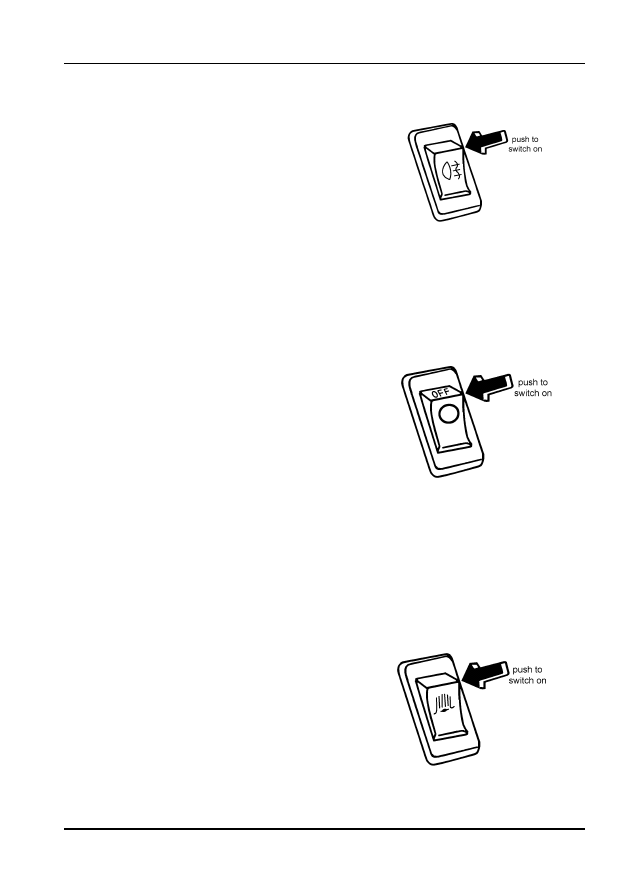

8.Rear Fog Lamp Switch

In the condition that the front fog

light is on, switch on this and the rear
fog lights come on, while switch off, the
rear fog lights will be off.

Power Switch

The rocker switch is used to control

the electromagnetic power switch in the
circuit system. Set the switch to the ON
position to turn-on the vehicle circuit
system,  and  set  it  to  the  OFF  position
to cut-off the circuit system. The circuit
should be switched off to protect other
electrical equipments in case the circuit
system is checked or repaired.

Note:
Don't turn off the power switch when the

engine is running.

Exhaust Brake Switch

It is used to control the exhaust

brake.

Construction and Operation

3—14



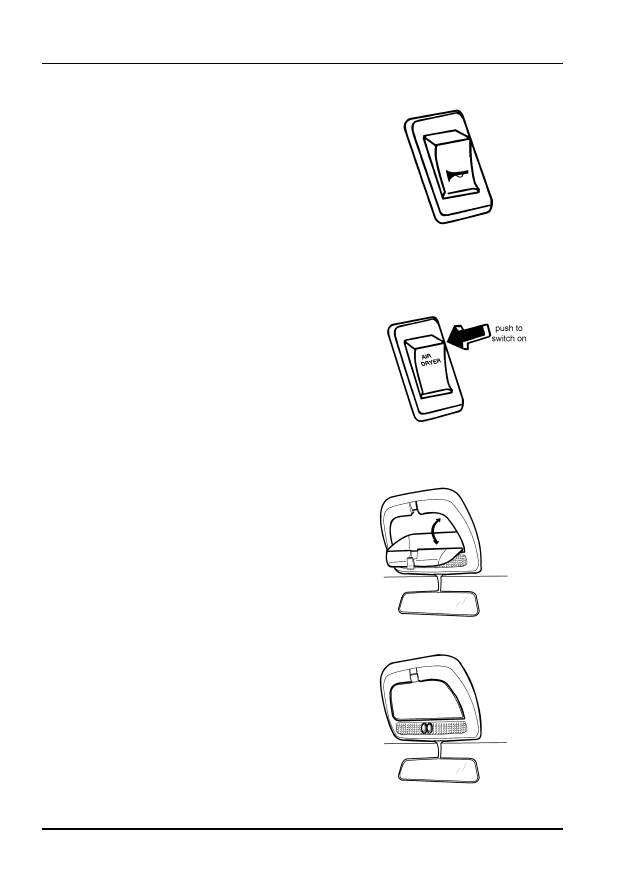

Air Horn and Electric Horn Shift

Switch

Choose the air horn or electric horn

as you need.

Air Drier Switch

During raining or snowing days,

switch  on  the  air  drier  to  dry  the  air  in
the brake system to assure the vehicle
brake performance.

Dome Lamp and Glove Box

There  are  one  glove  box  and  two

lamps  on  the  inner  front  of  the  cab.  If
you want to use the glove box, just pull
down the lid.

As for two dome lamps, press the

left button they will lighten no matter the
door is open or not; press the right but-
ton they will lighten if any of the door is
opened.

Construction and Operation

 3—15

Cab Skylight

When you want to introduce some

fresh air into the cab, just push up the
switch of the skylight.

Air Conditioning System

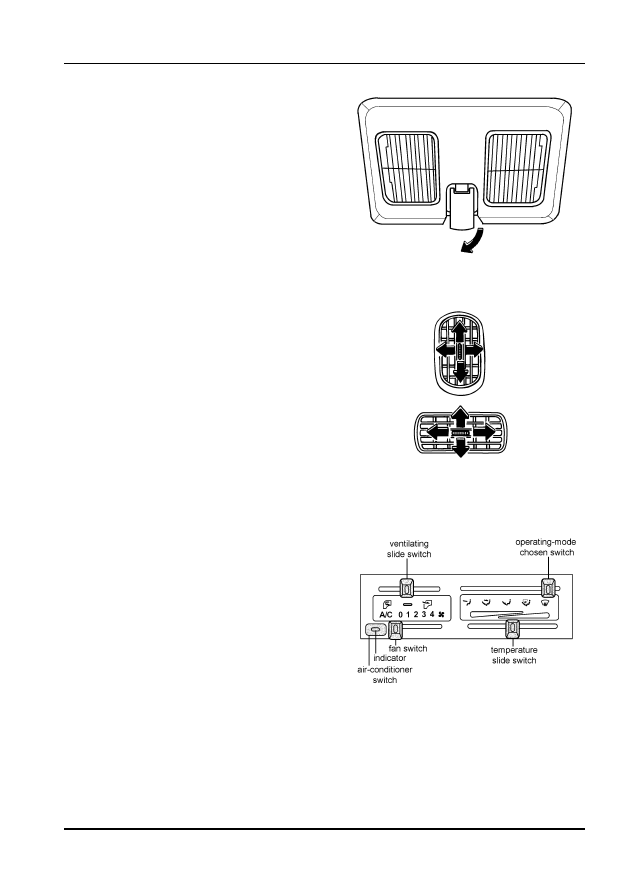

1.Ventilator

Turn the central  roller  to  change

the direction of the airflow.

2.Air-conditioner

Air-conditioner switch
When the air-conditioner is





needed, press this switch and the
indicator light goes on which means the
connection of power supply.

Fan switch
There are five speeds provided,

from 0 to 4. At 0 position, the fan stops,
and the wind will become even stronger
from 1 to 4 speed successively.

Temperature slide switch
It is used to adjust the inside

temperature. Move the slide switch
from left to right and the temperature
will be adjusted from low to hight.

Construction and Operation

3—16



Ventilating slide switch

-- introducing external air

--circulating internal air

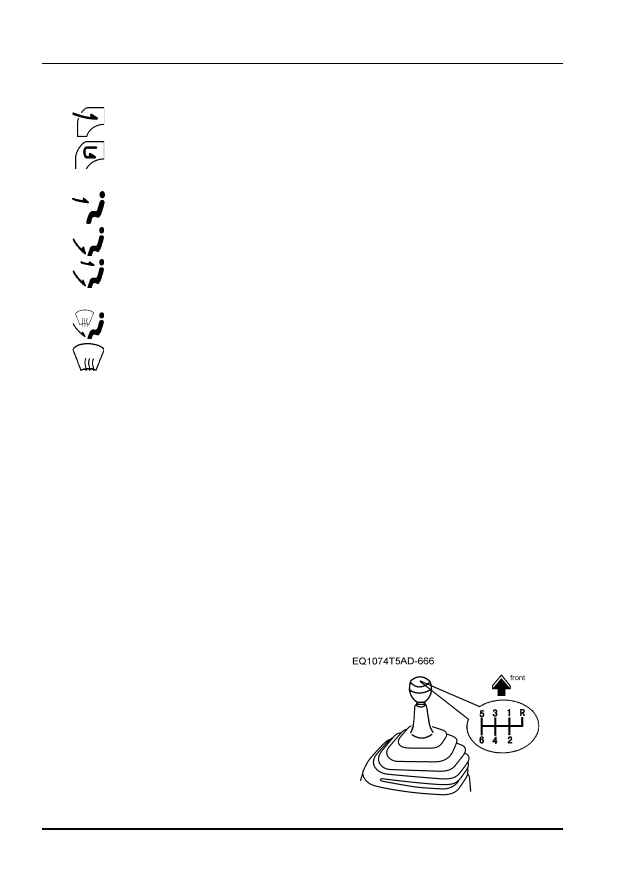

Operating-mode chosen switch

--blowing to your head

--blowing to your feet

--blowing both to your head

and feet

--inside heating and defogging

--inside defogging

Note:
The warm air is heated by the cooling liquid

of the engine. Its temperature  depends on  the
temperature of the cooling liquid.

Please do not  use  the heating  device too

long when the engine is stop or idle, otherwise it
will  wear  out  the  battery  and  influence  the
normal driving.

Do not forget to reduce the transmission

speed and raise the engine revolution during
low speed running, or climbing the long slope, to
reduce the engine load.

You have to wait for 2-3 minutes  before

you restart the air-conditioner to extend the
sevice life of the compressor.

You also have to operate the air-











conditioner for 10 or more minutes every month
even in winter to extend its service life.

Levers, Steering Wheel and

Accessories

1.Transmission gear shift lever

When  shifting  gears,  be  sure  to

fully  trample down  the  clutch  pedal.
