BULB SPECIFICATION CHART

Replacement bulbs are specified in the chart
below. Headlamp bulbs must be marked with
an authorized D.O.T. marking for North

America to make sure they have the proper
lamp performance, light brightness, light
pattern, and safe visibility. The correct bulbs
will not damage the lamp assembly or void
the lamp assembly warranty and will provide
quality bulb illumination time.

Exterior Lamps

Power (Watt)

Specification

Lamp

LED

Front parking lamp.

LED

Front side marker lamp.

LED

Front direction indicator.

LED

Daytime running lamps.

LED

Front signature lamp.

HID

D3S

High-intensity discharge headlamps.

LED

Side direction indicator.

LED

Rear side marker lamp.

LED

Brake and rear lamp.

LED

Central high mounted brake lamp.

LED

Rear direction indicator.

407

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Power (Watt)

Specification

Lamp

LED

Reversing lamps.

LED

License plate lamp.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

LED

Interior lamp.

LED

Luggage compartment lamp.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

408

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Capacities and Specifications

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

WARNING: Driving while distracted

against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Radio Frequencies and Reception
Factors

AM and FM frequencies are established by
the Federal Communications Commission
(FCC) and the Canadian Radio and
Telecommunications Commission (CRTC).
Those frequencies are:
•

AM: 530-1710 kHz

•

FM: 87.9-107.9 MHz

Note: Listening to loud audio for long
periods of time could damage your hearing.

Radio Reception Factors

The further you travel from an AM or FM station, the weaker the signal and the weaker the reception.

Distance and strength

Hills, mountains, tall buildings, bridges, tunnels, freeway overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.

Terrain

When you pass a ground-based broadcast repeating tower, a stronger signal may overtake a weaker one and
result in the audio system muting.

Station overload

409

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Audio System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CD and CD Player Information

Note: CD units play commercially pressed
4.7 in (12 cm) audio compact discs only. Due
to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in the
vehicle’s CD player.

Note: Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD to
become jammed. You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs. Ask an
authorized dealer for more information.

Note: Do not use any irregularly shaped
discs or discs with a scratch protection film
attached.

Always handle discs by their edges only.
Clean the disc with an approved CD cleaner
only. Wipe it from the center of the disc
toward the edge. Do not clean in a circular
motion.

Do not expose discs to direct sunlight or heat
sources for extended periods.

MP3 and WMA Track and Folder
Structure

Audio systems capable of recognizing and
playing MP3 and WMA individual tracks and
folder structures work as follows:
•

There are two different modes for MP3
and WMA disc playback: MP3 and WMA
track mode (system default) and MP3 and
WMA folder mode.

•

MP3 and WMA track mode ignores any
folder structure on the MP3 and WMA
disc. The player numbers each MP3 and
WMA track on the disc (noted by the MP3
or WMA file extension) from T001 to a
maximum of T255. The maximum number
of playable MP3 and WMA files may be
less depending on the structure of the
CD and exact model of radio present.

•

MP3 and WMA folder mode represents
a folder structure consisting of one level
of folders. The CD player numbers all
MP3 and WMA tracks on the disc (noted
by the MP3 or WMA file extension) and
all folders containing MP3 and WMA files,
from F001 (folder) T001 (track) to F253
T255.

•

Creating discs with only one level of
folders helps with navigation through the
disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how the
system reads the structures you create. While
various files may be present (files with
extensions other than MP3 and WMA), only
files with the MP3 and WMA extension are
played; other files are ignored by the system.
This enables you to use the same MP3 and
WMA disc for a variety of tasks on your work
computer, home computer and your
in-vehicle system.

410

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Audio System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In track mode, the system displays and plays
the structure as if it were only one level deep
(all MP3 and WMA files play, regardless of
being in a specific folder). In folder mode,
the system only plays the MP3 and WMA files
in the current folder.

AUDIO UNIT

WARNING: Driving while distracted

Note: The touchscreen system controls most
of the audio features.

Note: Some features, such as satellite radio,
may not be available in your location. Check
with an authorized dealer.

411

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Audio System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

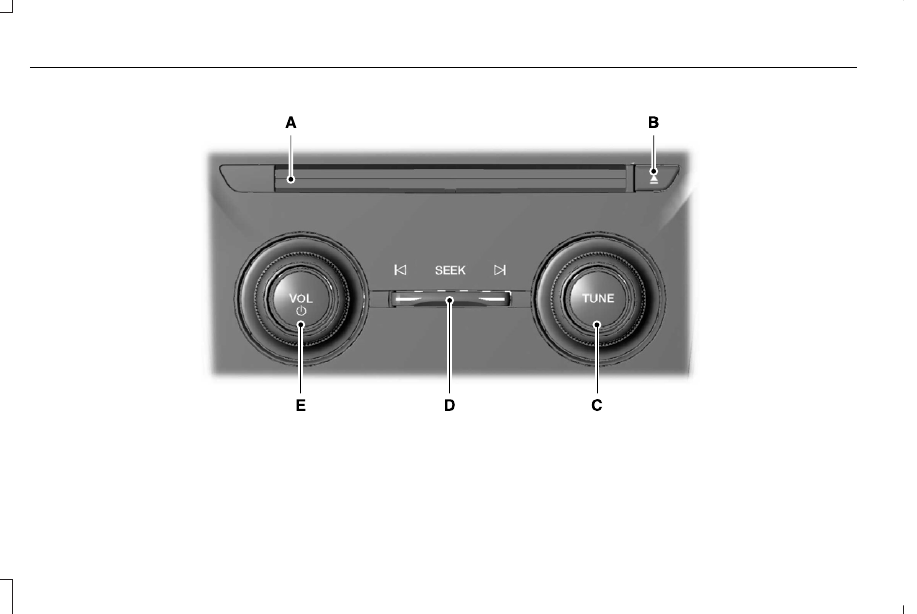

Tune.

Seek, fast forward and reverse.

Vol and power.

Tune

In radio mode, turn to search through the
radio frequency band. In satellite radio mode,
turn to find the previous or next available
satellite radio station.

Seek, Fast Forward and Reverse

In radio mode, select a frequency band and
press either button. The system stops at the
first station it finds in that direction. In CD
mode, press to select the next or previous
track. Press and hold to move quickly
forward or backward through the current
track. In satellite radio mode, press to select
the next or previous satellite radio station. If
you select a specific category (such as jazz,
rock or news), press to find the next or
previous station in the category you select.

Volume and Power

Turn to adjust the volume. Press to switch
the system on and off.

USB PORT

WARNING: Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

E201595

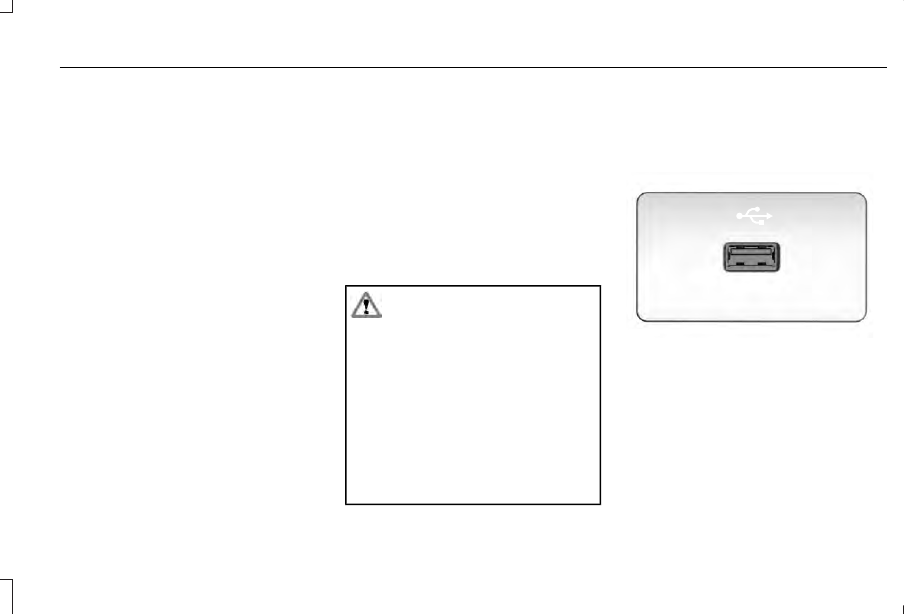

The USB port allows you to plug in media
playing devices, memory sticks and charge
devices, if supported.

413

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Audio System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MEDIA HUB

WARNING: Driving while distracted

The media hub may be on the instrument
panel or center console.

The media hub may contain one or more of
the following inputs:

See USB Port (page 413).

See Audio Unit (page 411).

414

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Audio System

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GENERAL INFORMATION

WARNING: Driving while distracted

Getting to Know Your System

The SYNC 3 system allows you to interact
with a variety of features using the
touchscreen and voice commands. By
integrating with your Bluetooth enabled
phone, the touchscreen provides easy
interaction with audio, multimedia, climate
control, navigation, and your phone's SYNC
3 compatible apps.

Using the Touchscreen

To operate the touchscreen, you can simply
touch the item or option that you want to
select. The button changes color when you
select it.

The SYNC 3 layout allows you to quickly
select the feature you wish to use.

415

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Action and Description

Menu Item

Item

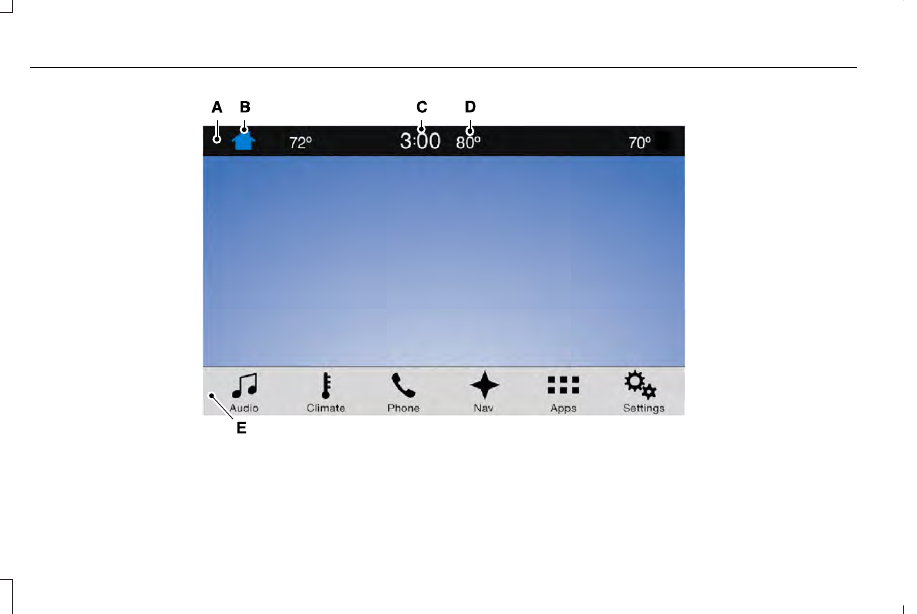

This bar displays icons and messages pertaining to current system activities including climate
settings, voice commands and phone functions such as text messages.

Status Bar

This button is available on the main screens. Pressing it takes you to the home screen view.

Home

This shows the current time. You can set the clock manually or have it controlled by the vehicle's
GPS location. See Settings (page 481).

Clock

This displays the current outside temperature.

Outside Temperature

You can touch any of the buttons on this bar to select a feature.

Feature Bar

The touchscreen allows you quick access to
all of your comfort, navigation,
communication and entertainment options.
Using the status and feature bar you can
quickly select the feature you want to use.

Note: Your system is equipped with a feature
that allows you to access and control audio
features for 10 minutes after you switch the
ignition off (and no doors open).

The Status Bar

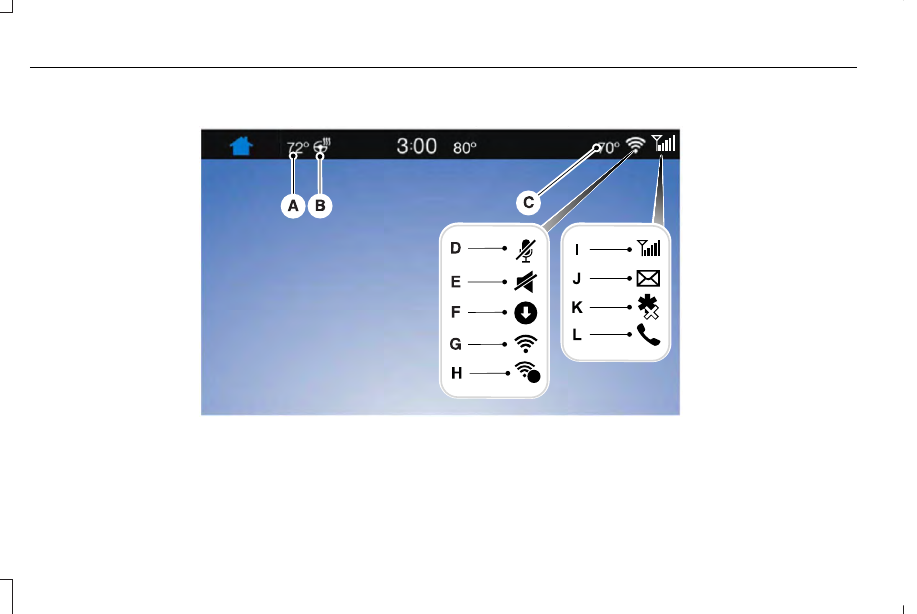

Additional icons also display in the status bar
depending on market, vehicle options and
current operation. If a feature is not active,
the icon does not display. Certain icons may
move to the left or right depending on what
options are active.

417

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Description

Item

Callout

This shows the temperature the driver selects through the climate control system.

Driver Temperature

When you activate the heated steering wheel option on the touch screen, this icon
displays. It only displays when there is not a physical button for the heated steering
wheel.

Heated steering wheel

(If equipped)

When the passenger's temperature has been adjusted and is no longer linked to the
driver's temperature, it displays here. If Dual is turned off and the temperatures are
linked, the passenger's temperature does not display.

Passenger Temperature

This icon displays when your phone's microphone is muted. A caller cannot hear you.

Microphone Mute

This icon displays when the audio system is muted.

Mute

This icon appears when SYNC 3 receives a software update. Pressing the icon shows
more details about the new software.

Download

This icon appears if a Wi-Fi network is connected.

Wi-Fi

An available Wi-Fi network is within range.

Wi-Fi in Range

This icon displays the phone signal strength and the roaming signal strength.

Signal Strength

This icon displays when you receive a text message on your phone.

Text Message

This icon displays when 911 Assist is set to off and your phone is connected to SYNC.

911 Assist Off

This icon displays when a phone call is active.

In-Call

419

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Messages may also appear in the status bar
to provide you with notifications. You can

select the message to view the associated
feature.

Feature Bar

Functions

Feature Bar Item

Allows you to control the media playing in your vehicle. You can
control all audio features including AM, FM and satellite radio, CDs,
and media streaming over a Bluetooth device or through a USB
connection.

Audio

Allows you to adjust the temperature, fan speed and airflow within
the vehicle.

Climate

Allows you to make calls, receive calls, and access the phonebook
of your connected device.

Phone

Allows you to see your vehicle's location on a virtual road map, get
driving directions to your destination and find points of interest along
your route.

Navigation

(If equipped)

420

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Functions

Feature Bar Item

Connect and control SYNC 3 compatible apps running on your iphone
or android device. Also, access built-in additional features such as
SiriusXM Traffic and Travel Link (if equipped).

Apps

If your vehicle is a hybrid, plug-in hybrid, or electric this is also where
your settings and power information is located.

You can customize your system with various settings for the touch-
screen display, feature preferences, and how you want to interact
with your vehicle.

Settings

Cleaning the Touchscreen

You can remove fingerprints with a dry,
clean, soft cloth.

If dirt or fingerprints are still on the screen,
apply a small amount of alcohol to the cloth
and try to clean it again.

Note: Do not use detergent or any type of
solvent to clean the touchscreen.

Note: Do not pour or spray alcohol onto the
touchscreen.

Using Voice Recognition

Using voice commands allows you to keep
your hands on the wheel and focus on what
is in front of you. The system provides
feedback through audible tones, prompts,
questions and spoken confirmations
depending on the situation and the chosen
level of interaction (voice settings).

The system also asks short questions
(confirmation prompts) when it is not sure of
your request or when there are multiple
possible responses to your request.

When using voice commands, words and
icons may appear in the status bar indicating
the status of the voice command session.
See Using Voice Recognition (page 432).

Accessing and Adjusting Modes
Through Your Vehicle Information
Display

(If Equipped)

Depending on your vehicle and selected
options you may be able to control some of
the SYNC 3 features on your information
display.

You can make the following adjustments
using the information display SYNC 3 screen:

421

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Information

Option

Information for current audio playing.

Audio

Select source.

View current road and speed limit (if information is available).

Navigation

View current route, next turn, time to your destination (depending on cluster level), distance to destination (depending on
cluster level), and ability to cancel route.

If you do not have an active navigation route programed, the compass is shown.

If you are not on a call, a call can be made by selecting: *

Phone

Missed calls

Outgoing calls

Incoming calls

All calls

Quick dial

If you are on a call, the call information is displayed on the information display.

If you are receiving a call, you can accept it by selecting OK on the right-hand steering wheel controls.

* Depending on your vehicle options, all of these choices may not display.

Use the OK and arrow buttons on the right
side of your steering wheel to scroll through
the available modes.

The selection menu expands and different
options appear.
•

Press the up and down arrows to scroll
through the modes.

•

Press the right arrow to enter the mode,
use the left arrow to exit the mode.

•

Press the up and down arrows to make
adjustments within the chosen mode.

•

Press OK to confirm your selection.

422

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

SYNC™ 3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Lincoln Nautilus (2019 year). Manual - part 26
