REPORTING SAFETY DEFECTS
(U.S. ONLY)

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National
Highway Traffic Safety Administration
(NHTSA) in addition to notifying Ford
Motor Company.

If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
Ford Motor Company.

To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue, Southeast

Washington, D.C. 20590

You can also obtain other information
about motor vehicle safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-automobiles.html (French)

Website

1–800–333–0510

Phone

295

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Customer Assistance

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

296

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Customer Assistance

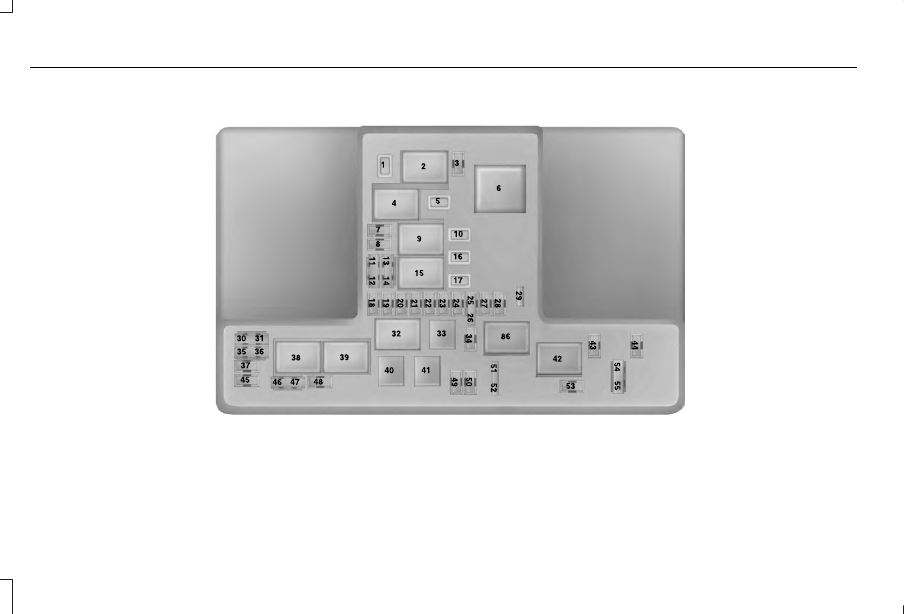

FUSE SPECIFICATION CHART

Power Distribution Box

WARNING: Always disconnect the

battery before servicing high current fuses.

WARNING: To reduce risk of

electrical shock, always replace the cover
to the power distribution box before
reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses that
protect your vehicle's main electrical systems
from overloads.

If you disconnect or reconnect the battery,
some features need to be reset.  See
Changing the 12V Battery (page 329).

297

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

E190797

298

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Second row power seat.

30A

1

1

Starter relay.

—

2

Rear wiper.

15A

2

3

Rain sensor
Rear wash relay coil.

Blower motor relay.

—

4

Power point 3 - console bin.

20A

1

5

Not used.

—

6

Powertrain control module - vehicle power 1.

20A

2

7

Powertrain control module - vehicle power 2.

20A

2

8

Powertrain control module relay.

—

9

Power point 5-main bin.

20A

1

10

Powertrain control module - vehicle power 4.

15A

3

11

Powertrain control module - vehicle power 3.

15A

3

12

299

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

—

13

Not used.

—

14

Run-start relay.

—

15

Power point 2 - back of console.

20A

1

16

Power point 4 - luggage compartment.

20A

1

17

Not used (spare).

20A

2

18

Run-start electronic power assist steering.

10A

2

19

Run/start lighting.

10A

2

20

Not used (spare).

15A

2

21

Air conditioner clutch solenoid.

10A

2

22

Front split view camera.

15A

2

23

Rear view camera.
360 camera module.
Blind spot information system.
Voltage quality module (start/stop).

300

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

10A

2

24

Run-start anti-lock brake system.

10A

3

25

Run-start powertrain control module.

10A

3

26

Not used (spare).

5A

2

27

Rear washer pump.

10A

2

28

Not used (spare).

5A

2

29

Not used.

—

30

Not used.

—

31

Electronic fan 1 relay.

—

32

A/C clutch relay.

—

33

Glove box release.

15A

2

34

Not used.

—

35

Not used.

—

36

301

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Transfer case cooling fan.

10A

2

37

Electronic fan 2 relay.

—

38

Electronic fan 3 relay.

—

39

Horn relay.

—

40

Not used.

—

41

Fuel pump relay.

—

42

Right high beam and stop lamp.

15A

2

43

Not used (spare).

20A

2

44

Not used.

—

45

Not used.

—

46

Not used.

—

47

Left high beam and stop lamp.

15A

2

48

Not used.

—

49

Horn.

20A

2

50

302

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

—

51

Not used.

—

52

Massaging seats.

10A

2

53

Brake on off switch.

10A

3

54

Alternator A-line.

10A

3

55

Not used.

—

86

1

 M case fuse.

2

 Micro 2 fuse.

3

 Micro 3 fuse.

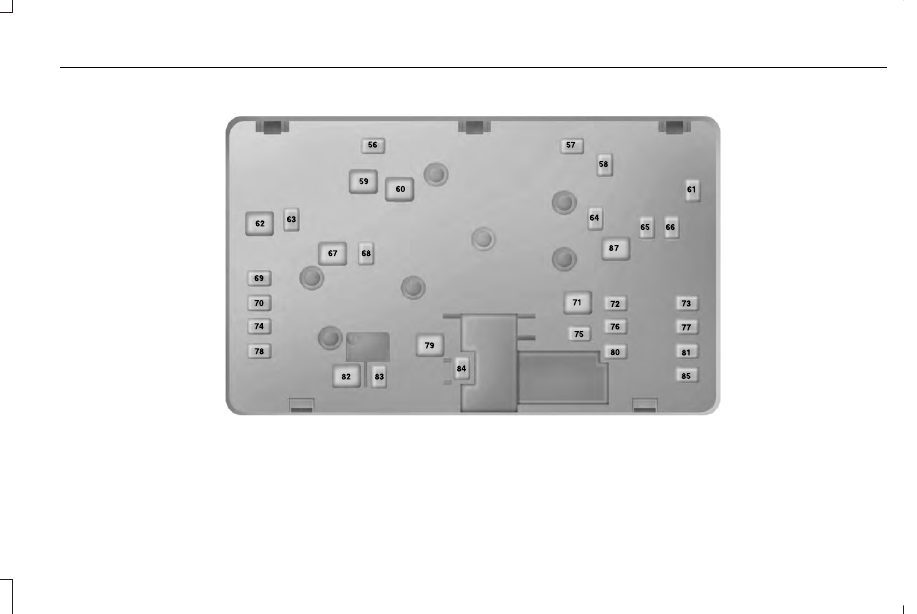

Power Distribution Box - Bottom

There are fuses on the bottom of the fuse
box. To access the bottom of the fuse box,
do the following:

303

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

E145983

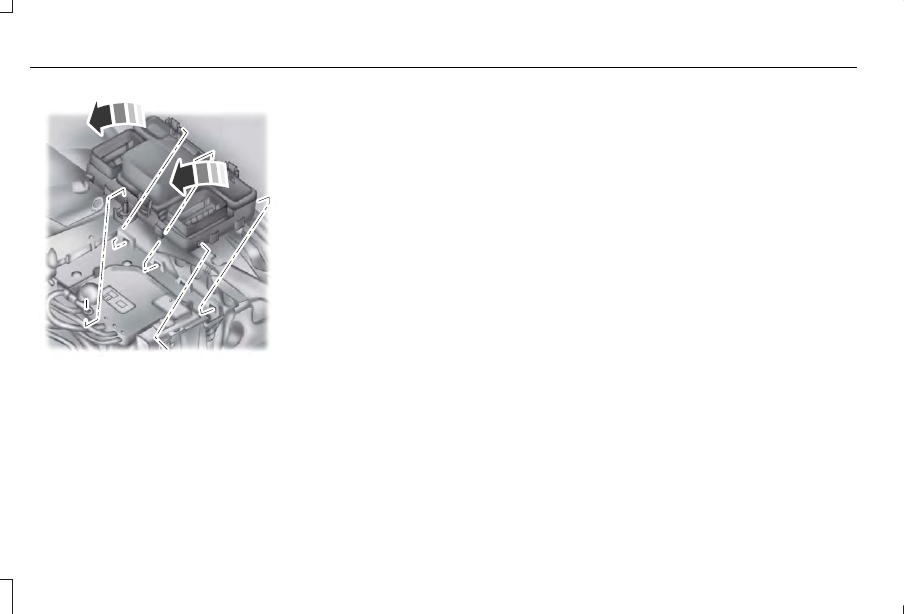

1. Release the two latches on both sides of

the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center of

the engine compartment.

4. Pivot the outermost side of the fuse box

to access the bottom side.

304

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

E190798

305

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

—

56

Not used (spare).

20A

1

57

Fuel pump feed.

30A

1

58

Electronic fan 3.

40A

2

59

Electronic fan 1.

40A

2

60

Not used.

—

61

Body control module 1.

50A

2

62

Electronic fan 2.

25A

1

63

Not used (spare).

20A

1

64

Front heated seat.

20A

1

65

Heated wiper park.

15A

1

66

Body control module 2.

50A

2

67

306

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

–

71

Not used (spare).

20A

1

72

Rear heated seats.

20A

1

73

Driver seat module.

30A

1

74

Wiper motor.

25A

1

75

Power liftgate module.

30A

1

76

Climate control seat module.

30A

1

77

Trailer tow.

40A

1

78

Blower motor.

40A

2

79

307

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

25A

1

80

110 volt inverter.

40A

1

81

Not used.

–

82

Not used (spare).

20A

1

83

Starter solenoid.

30A

1

84

Not used (spare).

30A

1

85

Anti-lock brake system pump.

60A

2

87

1

M case fuse.

2

J case fuse.

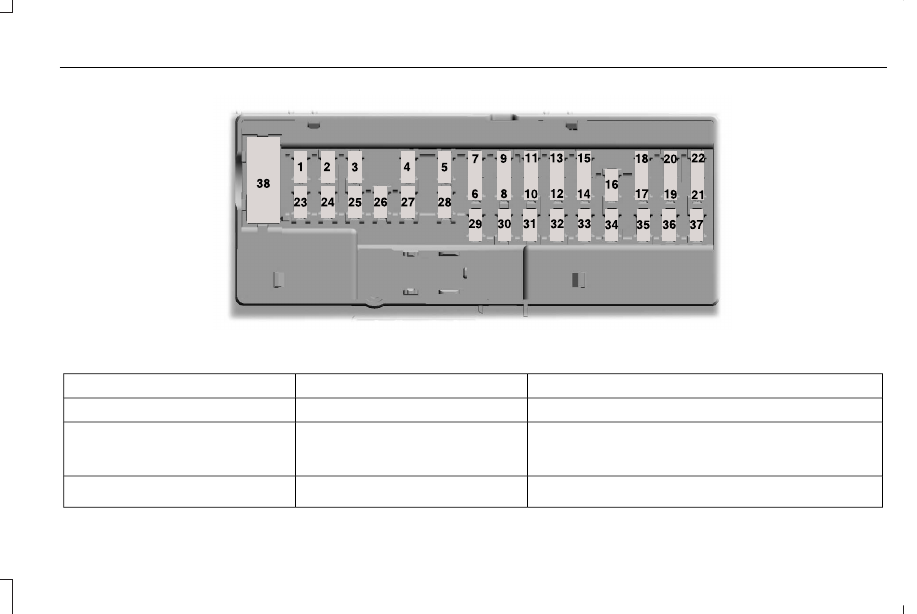

Passenger Compartment Fuse Panel

The fuse panel is under the instrument panel
to the left of the steering column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

308

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

E145984

Protected Components

Fuse Rating

Fuse or Relay Number

Not used.

–

1

Memory seats.

7.5A

1

2

Lumbar.
Wireless accessory charging.

Driver door unlock.

20A

1

3

309

Nautilus (CD9) Canada/United States of America, enUSA, Edition date: 201806, Third-Printing-

Fuses

Protected Components

Fuse Rating

Fuse or Relay Number

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

USB charger.

10A

2

6

Not used (spare).

10A

2

7

Security horn relay.

10A

2

8

Rear seat entertainment system module.

10A

2

9

Keypad.

5A

2

10

Power liftgate module.
Hands free liftgate module.
Embedded Modem.

Combined sensing module.

5A

2

11

Electronic control panel.

7.5A

2

12

Gearshift module.

Cluster.

7.5A

2

13

Steering column control module.
Smart datalink connector (gateway) module.

310
