1. Look behind the seating position where you plan to

install the child restraint to find the tether anchorage.
You may need to move the seat forward to provide
better access to the tether anchorage. If there is no top
tether anchorage for that seating position, move the
child restraint to another position in the vehicle if one is
available.

2. Route the tether strap to provide the most direct path for

the strap between the anchor and the child seat. If your
vehicle is equipped with adjustable rear head restraints,

raise the head restraint, and where possible, route the
tether strap under the head restraint and between the
two posts. If not possible, lower the head restraint and
pass the tether strap around the outboard side of the
head restraint.

3. Attach the tether strap hook of the child restraint to the

top tether anchorage as shown in the diagram.

4. Remove slack in the tether strap according to the child

restraint manufacturer’s instructions.

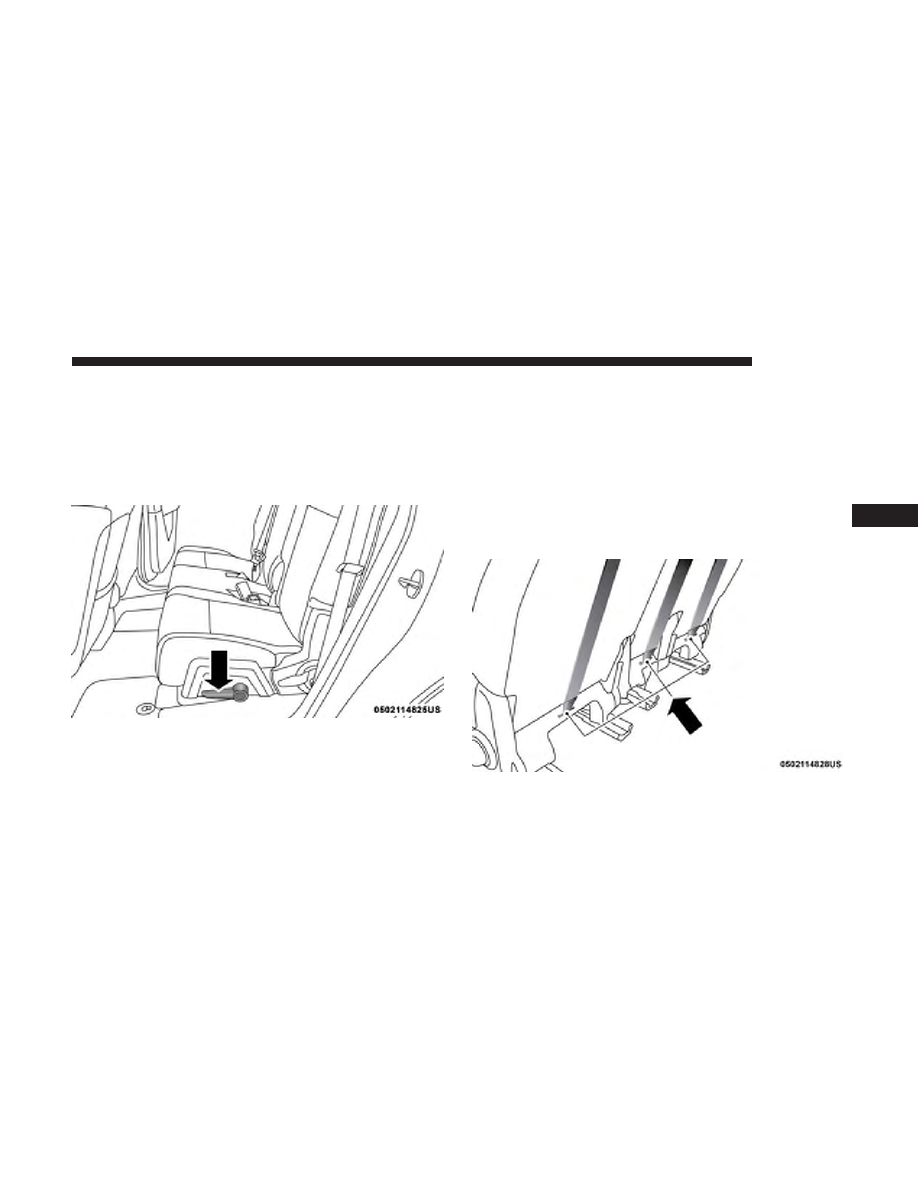

Seat Track Release Lever

Rear Seat Tether Strap Mounting (Second Row 60/40)

SAFETY

221

WARNING!

• An incorrectly anchored tether strap could lead to

increased head motion and possible injury to the
child. Use only the anchorage position directly be-
hind the child seat to secure a child restraint top
tether strap.

• If your vehicle is equipped with a split rear seat,

make sure the tether strap does not slip into the
opening between the seatbacks as you remove slack
in the strap.

Transporting Pets

Air Bags deploying in the front seat could harm your pet.
An unrestrained pet will be thrown about and possibly
injured, or injure a passenger during panic braking or in a
collision.

Pets should be restrained in the rear seat (if equipped) in
pet harnesses or pet carriers that are secured by seat belts.

SAFETY TIPS

Transporting Passengers

NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.

WARNING!

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

• It is extremely dangerous to ride in a cargo area,

inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.

• Do not allow people to ride in any area of your

vehicle that is not equipped with seats and seat belts.

• Be sure everyone in your vehicle is in a seat and

using a seat belt properly.

222

SAFETY

Exhaust Gas

WARNING!

Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can even-
tually poison you. To avoid breathing (CO), follow
these safety tips:
• Do not run the engine in a closed garage or in

confined areas any longer than needed to move your
vehicle in or out of the area.

• If you are required to drive with the trunk/liftgate/

rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is set
at high speed. DO NOT use the recirculation mode.

• If it is necessary to sit in a parked vehicle with the

engine running, adjust your heating or cooling con-
trols to force outside air into the vehicle. Set the
blower at high speed.

The best protection against carbon monoxide entry into the
vehicle body is a properly maintained engine exhaust
system.

Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the complete
exhaust system and adjacent body areas for broken, dam-
aged, deteriorated, or mispositioned parts. Open seams or
loose connections could permit exhaust fumes to seep into
the passenger compartment. In addition, inspect the ex-
haust system each time the vehicle is raised for lubrication
or oil change. Replace as required.

Safety Checks You Should Make Inside The Vehicle

Seat Belts

Inspect the seat belt system periodically, checking for cuts,
frays, and loose parts. Damaged parts must be replaced
immediately. Do not disassemble or modify the system.

Front seat belt assemblies must be replaced after a collision.
Rear seat belt assemblies must be replaced after a collision
if they have been damaged (i.e., bent retractor, torn web-
bing, etc.). If there is any question regarding seat belt or
retractor condition, replace the seat belt.

SAFETY

223

Air Bag Warning Light

The Air Bag warning light

will turn on for four to

eight seconds as a bulb check when the ignition switch
is first turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while driving,
have the system inspected at an authorized dealer as
soon as possible. After the bulb check, this light will
illuminate with a single chime when a fault with the Air
Bag System has been detected. It will stay on until the
fault is removed. If the light comes on intermittently or
remains on while driving, have an authorized dealer
service the vehicle immediately.

Refer to “Occupant Restraint Systems” in “Safety” for
further information.

Defroster

Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See an autho-
rized dealer for service if your defroster is inoperable.

Floor Mat Safety Information

Always use floor mats designed to fit your vehicle. Only
use a floor mat that does not interfere with the operation of
the accelerator, brake or clutch pedals. Only use a floor mat
that is securely attached using the floor mat fasteners so it
cannot slip out of position and interfere with the accelera-
tor, brake or clutch pedals or impair safe operation of your
vehicle in other ways.

WARNING!

An improperly attached, damaged, folded, or stacked
floor mat, or damaged floor mat fasteners may cause
your floor mat to interfere with the accelerator, brake,
or clutch pedals and cause a loss of vehicle control. To
prevent SERIOUS INJURY or DEATH:
• ALWAYS securely attach

your floor mat using the

floor mat fasteners. DO NOT install your floor mat
upside down or turn your floor mat over. Lightly pull
to confirm mat is secured using the floor mat fasten-
ers on a regular basis.

(Continued)

224

SAFETY

WARNING! (Continued)

• ALWAYS REMOVE THE EXISTING FLOOR MAT

FROM THE VEHICLE

before installing any other

floor mat. NEVER install or stack an additional floor
mat on top of an existing floor mat.

• ONLY install floor mats designed to fit your vehicle.

NEVER install a floor mat that cannot be properly
attached and secured to your vehicle. If a floor mat
needs to be replaced, only use a FCA approved floor
mat for the specific make, model, and year of your
vehicle.

• ONLY use the driver’s side floor mat on the driver’s

side floor area. To check for interference, with the
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.

• ONLY use the passenger’s side floor mat on the

passenger’s side floor area.

(Continued)

WARNING! (Continued)

• ALWAYS make sure objects cannot fall or slide into

the driver’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.

• NEVER place any objects under the floor mat (e.g.,

towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.

• If the vehicle carpet has been removed and re-

installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.

• It is recommended to only use mild soap and water

to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.

SAFETY

225

Periodic Safety Checks You Should Make Outside
The Vehicle

Tires

Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel nuts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.

Lights

Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.

Door Latches

Check for proper closing, latching, and locking.

Fluid Leaks

Check area under the vehicle after overnight parking for
fuel, coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.

226

SAFETY

STARTING THE ENGINE

Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.

WARNING!

• When exiting the vehicle, always make sure the

ignition is in “OFF” mode, remove the key fob from
the vehicle and lock the vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.

• Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave
the ignition (of a vehicle equipped with Keyless
Enter-N-Go) in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.

(Continued)

WARNING! (Continued)

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

Automatic Transmission

The gear selector must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.

CAUTION!

Damage to the transmission may occur if the following
precautions are not observed:
• Do not shift from REVERSE, PARK, or NEUTRAL

into any forward gear when the engine is above idle
speed.

• Shift into PARK only after the vehicle has come to a

complete stop.

• Shift into or out of REVERSE only after the vehicle

has come to a complete stop and the engine is at idle
speed.

• Before shifting into any gear, make sure your foot is

firmly on the brake pedal.

STARTING AND OPERATING

229

Normal Starting

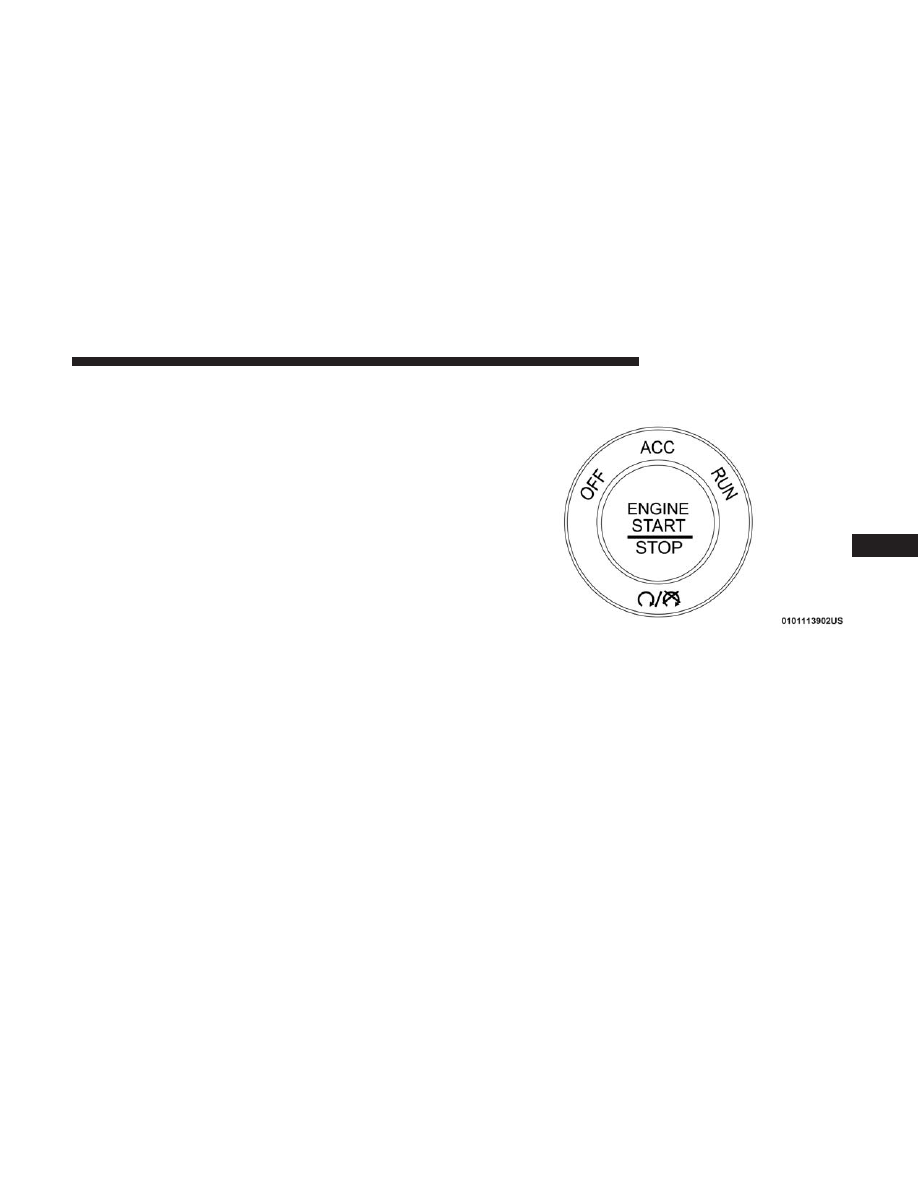

To Turn On The Engine Using The ENGINE START/
STOP Button

1. The transmission must be in PARK.

2. Press and hold the brake pedal while pushing the

ENGINE START/STOP button once.

3. The system takes over and attempts to start the vehicle.

If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.

4. If you wish to stop the cranking of the engine prior to

the engine starting, push the button again.

NOTE:

Normal starting of either a cold or a warm engine

is obtained without pumping or pressing the accelerator
pedal.

To Turn Off The Engine Using ENGINE START/STOP
Button

1. Place the gear selector in PARK, then push and release

the ENGINE START/STOP button.

2. The ignition will return to the OFF mode.

3. If the gear selector is not in PARK, the ENGINE START/

STOP button must be held for two seconds or three short
pushes in a row with the vehicle speed above 5 mph
(8 km/h) before the engine will shut off. The ignition
will remain in the ACC mode until the gear selector is in
PARK and the button is pushed twice to the OFF mode.
If the gear selector is not in PARK and the ENGINE
START/STOP button is pushed once, the instrument
cluster will display a “Vehicle Not In Park” message and
the engine will remain running. Never leave a vehicle
out of the PARK position, or it could roll.

NOTE:

If the gear selector is in NEUTRAL, push and

release the ENGINE START/STOP button with the vehicle
speed below 5 mph (8 km/h) before the engine will shut
off, and the ignition will remain in the ACC position. The
system will automatically time out and the ignition will
cycle to the OFF mode after 30 minutes of inactivity if the
ignition is left in the ACC or RUN (engine not running)
mode and the transmission is in PARK.

230

STARTING AND OPERATING

ENGINE START/STOP Button Functions — With Driv-
er’s Foot OFF The Brake Pedal (In PARK Or NEUTRAL
Position)

The ENGINE START/STOP button operates similar to an
ignition switch. It has three modes: OFF, ACC, and RUN.
To change the ignition modes without starting the vehicle
and use the accessories, follow these directions:

1. Start with the ignition in the OFF mode.

2. Push the ENGINE START/STOP button once to place

the ignition to the ACC mode.

3. Push the ENGINE START/STOP button a second time

to place the ignition to the RUN mode.

4. Push the ENGINE START/STOP button a third time to

return the ignition to the OFF mode.

Keyless Enter-N-Go — Ignition

This feature allows the driver to operate the ignition switch
with the push of a button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the passenger
compartment.

Cold Weather Operation (Below –22°F Or −30°C)

To ensure reliable starting at these temperatures, use of an
externally powered electric engine block heater (available
from your authorized dealer) is recommended.

Keyless Push Button Ignition

STARTING AND OPERATING

231

If Engine Fails To Start

If the engine fails to start after you have followed the

⬙Normal Starting⬙ or ⬙Extreme Cold Weather⬙ procedure it
may be flooded. Push the accelerator pedal all the way to
the floor and hold it there. Crank the engine for no more
than 15 seconds. This should clear any excess fuel in case
the engine is flooded. Leave the ignition key in the RUN
position, release the accelerator pedal and repeat the “Nor-
mal Starting” procedure.

WARNING!

• Never pour fuel or other flammable liquid into the

throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.

• Do not attempt to push or tow your vehicle to get it

started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.

(Continued)

WARNING! (Continued)

• If the vehicle has a discharged battery, booster cables

may be used to obtain a start from a booster battery
or the battery in another vehicle. This type of start
can be dangerous if done improperly. Refer to “Jump
Starting Procedure” in “In Case Of Emergency” for
further information.

CAUTION!

To prevent damage to the starter, do not continuously
crank the engine for more than 25 seconds at a time.
Wait 60 seconds before trying again.

After Starting

The idle speed is controlled automatically, and it will
decrease as the engine warms up.

ENGINE BLOCK HEATER — IF EQUIPPED

The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a grounded,
three-wire extension cord.

232

STARTING AND OPERATING

The engine block heater must be plugged in at least one
hour to have an adequate effect on the engine.

The engine block heater cord is bundled under the hood
between the headlight assembly and the Totally Integrated
Power Module (Fuse Box) on the driver’s side of the
vehicle.

WARNING!

Remember to disconnect the engine block heater cord
before driving. Damage to the 110-115 Volt electrical
cord could cause electrocution.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km). After
the initial 60 miles (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.

The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil changes
should be consistent with anticipated climate conditions
under which vehicle operations will occur. For the recom-
mended viscosity and quality grades, refer to “Fluids And
Lubricants” in “Technical Specifications”.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.

NOTE:

A new engine may consume some oil during its

first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and not
interpreted as a problem. Please check your oil level with
the engine oil indicator often during the break in period.
Add oil as required.

STARTING AND OPERATING

233

PARKING BRAKE

Before exiting the vehicle, make sure that the parking brake
is fully applied. Also, be certain to leave the transmission in
PARK.

The foot operated parking brake is located below the lower
left corner of the instrument panel. To apply the park
brake, firmly push the park brake pedal fully. To release the
parking brake, press the park brake pedal a second time
and let your foot up as you feel the brake disengage.

When the parking brake is applied with the ignition switch
ON, the “Brake Warning Light” in the instrument cluster
will illuminate.

NOTE:
• When the parking brake is applied and the transmission

is placed in gear, the “Brake Warning Light” will flash. If
vehicle speed is detected, a chime will sound to alert the
driver. Fully release the parking brake before attempting
to move the vehicle.

• This light only shows that the parking brake is applied.

It does not show the degree of brake application.

When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. For vehicles equipped
with an automatic transmission, apply the parking brake
before placing the gear selector in PARK, otherwise the
load on the transmission locking mechanism may make it
difficult to move the gear selector out of PARK. The
parking brake should always be applied whenever the
driver is not in the vehicle.

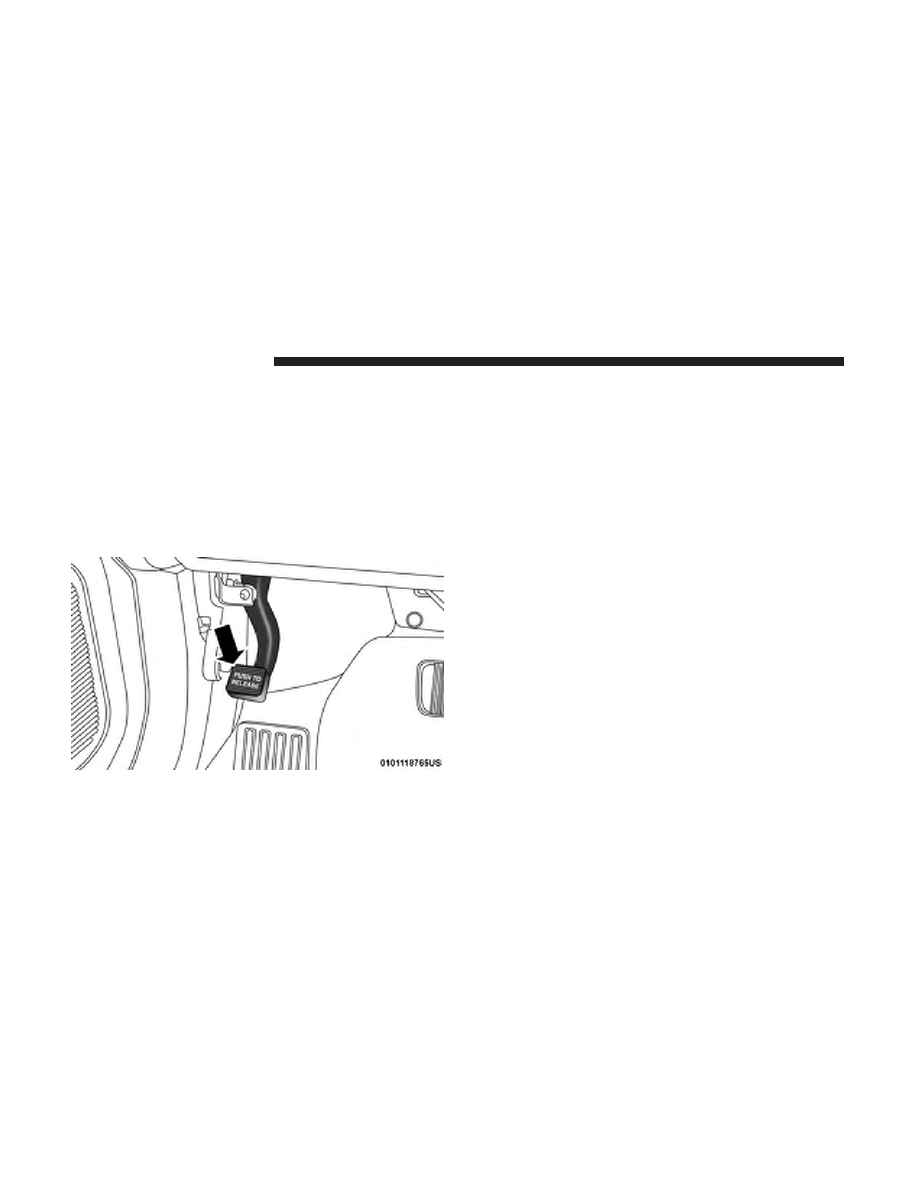

Parking Brake

234

STARTING AND OPERATING

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake fully
when parked to guard against vehicle movement and
possible injury or damage.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Leaving unattended
children in a vehicle is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector. Do not leave the key fob in or near the
vehicle, or in a location accessible to children, and do
not leave the ignition of a vehicle equipped with
Keyless Enter-N-Go in the ACC or ON/RUN mode. A
child could operate power windows, other controls,
or move the vehicle.

• Be sure the parking brake is fully disengaged before

driving; failure to do so can lead to brake failure and
a collision.

(Continued)

WARNING! (Continued)

• Always fully apply the parking brake when leaving

your vehicle or it may roll and cause damage or
injury. Also, be certain to leave the transmission in
PARK. Failure to do so may cause the vehicle to roll
and cause damage or injury.

CAUTION!

If the “Brake Warning Light” remains on with the
parking brake released, a brake system malfunction is
indicated. Have the brake system serviced by an au-
thorized dealer immediately.

STARTING AND OPERATING

235

AUTOMATIC TRANSMISSION

WARNING!

• It is dangerous to shift out of PARK or NEUTRAL if

the engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and your foot is firmly
pressing the brake pedal.

• Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles, you
should never exit a vehicle while the engine is
running. Before exiting a vehicle, always come to a
complete stop, then apply the parking brake, shift
the transmission into PARK, and turn the ignition
OFF. When the ignition is in the OFF mode, the
transmission is locked in PARK, securing the vehicle
against unwanted movement.

• When exiting the vehicle, always make sure the

ignition is in the OFF mode, remove the key fob from
the vehicle, and lock the vehicle.

(Continued)

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the trans-
mission gear selector.

• Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave
the ignition in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.

CAUTION!

Damage to the transmission may occur if the following
precautions are not observed:

• Shift into or out of PARK or REVERSE only after the

vehicle has come to a complete stop.

• Do not shift between PARK, REVERSE, NEUTRAL,

or DRIVE when the engine is above idle speed.

• Before shifting into any gear, make sure your foot is

firmly pressing the brake pedal.

236

STARTING AND OPERATING

Dodge Journey (2019 year). Manual - part 14
