HAZARD WARNING FLASHERS

The Hazard Warning flasher switch is located in the lower
center area of the instrument panel.

Push the switch to turn on the Hazard Warning
flasher. When the switch is activated, all direc-
tional turn signals will flash on and off to warn
oncoming traffic of an emergency. Push the

switch a second time to turn off the Hazard Warning
flashers.

This is an emergency warning system and it should not be
used when the vehicle is in motion. Use it when your
vehicle is disabled and it is creating a safety hazard for
other motorists.

When you must leave the vehicle to seek assistance, the
Hazard Warning flashers will continue to operate even
though the ignition is placed in the OFF position.

NOTE:

With extended use, the Hazard Warning flashers

may wear down your battery.

286

IN CASE OF EMERGENCY

BULB REPLACEMENT

Replacement Bulbs

Interior Bulbs

Bulb Number

Center & Rear Dome Lamp

578

Center & Rear Reading Lamps

578

Front Door Courtesy Lamp

578

Front Header Reading Lamps – If Equipped

578

Instrument Cluster Lamps

PC74

Liftgate Lamp(s)

578

Overhead Console Reading Lamps

PC579

Removable Console Lamp – If Equipped

194

Visor Vanity Lamps

6501966

NOTE:

For lighted switches, see an authorized dealer for

replacement instructions.

IN CASE OF EMERGENCY

287

Exterior Bulbs

Bulb Number

Headlamp

H11LL

Fog Lamp – If Equipped

PSX24W

Front Side Marker, Park/Turn Signal

3757A or PY27/7W

Rear Tail, Stop, Turn Signal Lamp

LED (Serviced at authorized dealer)

Center High-Mounted Stop Lamp

LED (Serviced at authorized dealer)

Backup Lamp

3157

License

168

NOTE:

All of the interior bulbs are glass wedge base or

glass cartridge types. Aluminum base bulbs are not ap-
proved and should not be used for replacement.

Replacing Exterior Bulbs

Headlamps

1. Raise the hood to access the rear of the headlamp

housing.

2. Slide the red lock tab rearward on the connector, then

depress the tab and remove the connector from the bulb.

3. Twist the headlamp bulb and pull the bulb from the

headlamp housing.

4. Install the new headlamp bulb and twist until locked

into the headlamp housing.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.

5. Connect the wiring connector to bulb and slide red lock

tab forward.

288

IN CASE OF EMERGENCY

Front Park/Turn Signal Lamps

1. Raise the hood to access the rear of the headlamp

housing.

2. Twist the turn signal socket and remove from the

headlamp housing, then pull the bulb out.

3. Push the new bulb into the socket and reinstall the socket

by twisting until locked into the headlamp housing.

Fog Lamps

NOTE:

Access to the fog lamp bulb is from the rear of the

fascia. On the left rear side of the fascia, remove the push
pin and lower the hinged access door on the air dam.

1. From behind the bumper fascia, or the access panel on

the air dam, squeeze the two tabs on the side of the bulb
socket and pull straight out from the fog lamp.

CAUTION!

Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.

2. Disconnect the wire harness from the bulb.

3. Reconnect the wiring harness to the new bulb and

reinstall by inserting the new bulb straight into the fog
lamp until it locks into place.

Rear Tail, Stop, Turn Signal, Side Marker And
Backup Lamps

1. Raise the liftgate.

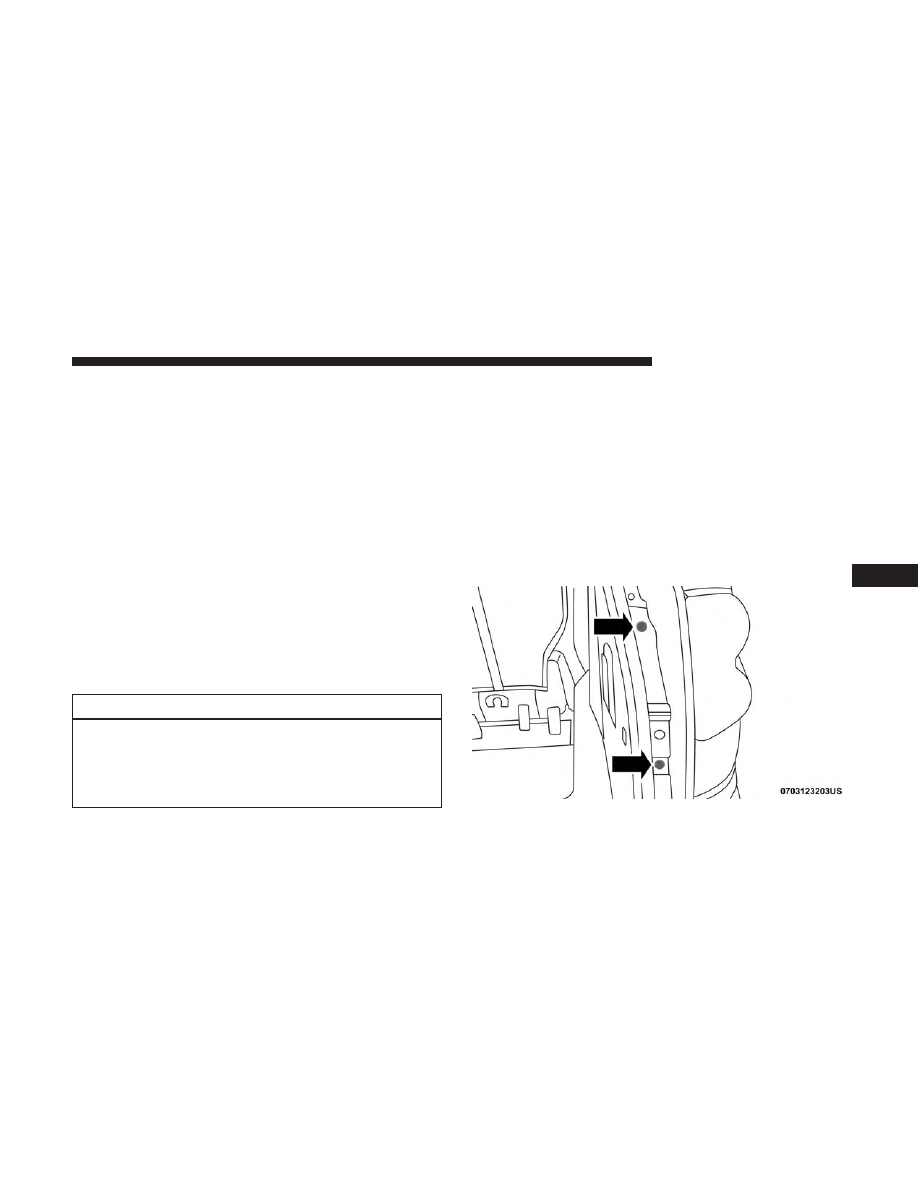

2. Remove the tail lamp assembly by removing the two

screws from the inboard side. Use a fiber stick or similar
tool to gently pry the light on the outboard side to
disengage the two ball studs.

Tail Lamp Assembly Screws

IN CASE OF EMERGENCY

289

NOTE:

• If a screwdriver is used, make sure a soft material is

placed between the vehicle body and tool so not to
scratch the paint.

• The PRY location is best closest to the studs while

dislodging them separately.

3. Twist the socket and remove from the lamp assembly.

4. Pull the bulb to remove it from the socket.

5. Replace the bulb, reinstall the socket, and reattach the

lamp assembly.

Center High-Mounted Stop Lamp (CHMSL)

The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly.
See your authorized dealer.

License Lamp

The license plate lamp is located under the tailgate light
bar and above the license plate.

1. Using a small screwdriver, press inward the locking tab

on the outboard side of the lamp assembly and pull
down on the lamp assembly for removal.

2. Twist and remove the socket from the lamp assembly

and pull the bulb out to remove.

3. Push the bulb into the socket, twist the socket into the

lamp assembly and reinstall the lamp assembly into
place ensuring the locking tab is secure.

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Do not
place a fuse inside a circuit breaker cavity or vice
versa. Failure to use proper fuses may result in
serious personal injury, fire and/or property damage.

• Before replacing a fuse, make sure that the ignition is

off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

(Continued)

290

IN CASE OF EMERGENCY

WARNING! (Continued)

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, transmission system) or steering
system blows, contact an authorized dealer.

General Information

The fuses protect electrical systems against excessive cur-
rent.

When a device does not work, you must check the fuse
element inside the blade fuse for a break/melt.

Also, please be aware that when using power outlets for
extended periods of time with the engine off may result in
vehicle battery discharge.

Blade Fuses

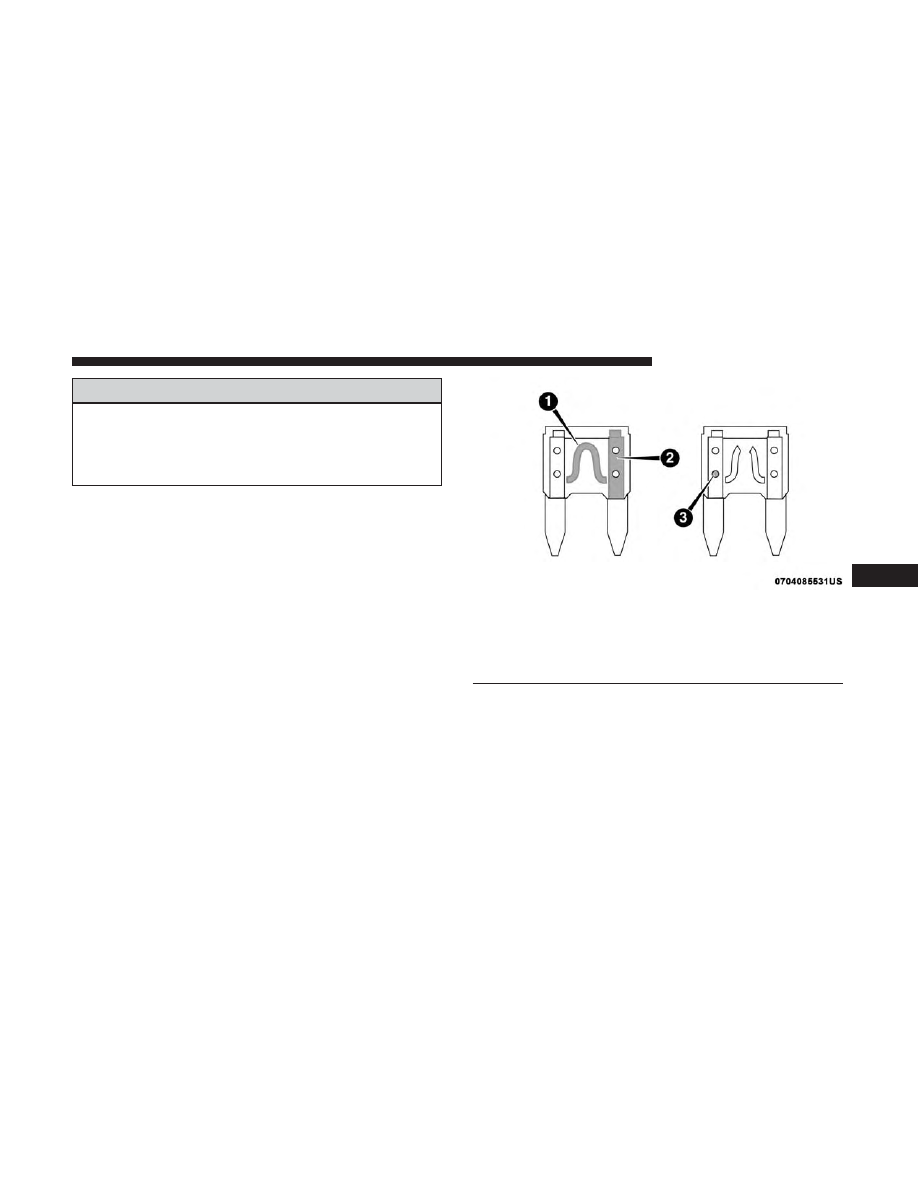

1 — Fuse Element
2 — Blade Fuse with a good/functional fuse element.
3 — Blade fuse with a NOT functional / BAD fuse element (blown
fuse).

IN CASE OF EMERGENCY

291

Totally Integrated Power Module (Fuses)

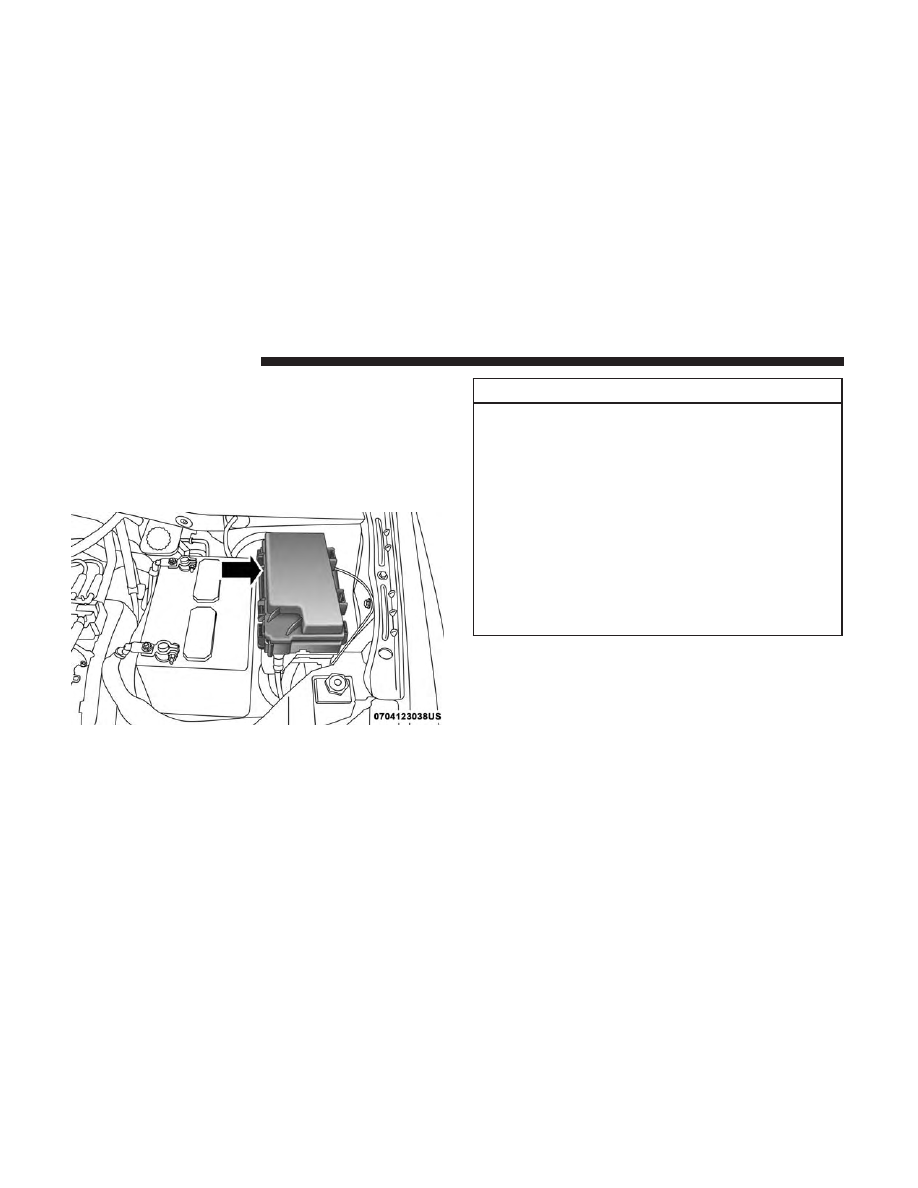

The Totally Integrated Power Module is located in the
engine compartment near the battery. Refer to the appli-
cable “Engine Compartment” illustration in this section.
This center contains cartridge fuses and mini-fuses. A label
that identifies each component may be printed or em-
bossed on the inside of the cover.

CAUTION!

• When installing the Totally Integrated Power Mod-

ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.

• When replacing a blown fuse, it is important to use

only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If a
properly rated fuse continues to blow, it indicates a
problem in the circuit that must be corrected.

Totally Integrated Power Module

292

IN CASE OF EMERGENCY

The numbers inside the TIPM cover correspond to the
following table.

Cavity

Cartridge Fuse

Mini-Fuse

Description

40 Amp Green

–

Power Folding Seat

30 Amp Pink

–

Power Liftgate Module

30 Amp Pink

–

Rear Door Module

25 Amp Clear

–

Driver Door Node

25 Amp Clear

–

Passenger Door Node

40 Amp Green

–

Antilock Brakes Pump/Stability Control Sys-

tem

30 Amp Pink

–

Antilock Brakes Valve/Stability Control Sys-

tem

40 Amp Green

–

Power Memory Seat – If Equipped

–

Not Used

J10

30 Amp Pink

–

Headlamp Wash/Manifold Tuning Valve – If

Equipped

J11

30 Amp Pink

–

Power Sliding Door Module/Anti–Theft

Module – If Equipped

J12

30 Amp Pink

–

HVAC Rear Blower, Radiator Fan Motor

J13

60 Amp Yellow

–

Ignition Off Draw (IOD) – Main

J14

40 Amp Green

–

Rear Window Defogger

IN CASE OF EMERGENCY

293

Cavity

Cartridge Fuse

Mini-Fuse

Description

J15

40 Amp Green

–

Front Blower

J17

40 Amp Green

–

Starter Solenoid

J18

20 Amp Blue

–

Powertrain Control Module Trans Range

J19

60 Amp Yellow

–

Radiator Fan

J20

30 Amp Pink

–

Front Wiper LO/HI

J21

20 Amp Blue

–

Front/Rear Washer

J22

25 Amp Clear

–

Sunroof Module

–

15 Amp Blue

Rear Center Brake Lamp/Brake Switch

–

20 Amp Yellow

Front Fog Lamps

–

20 Amp Yellow

Vacuum Pump Motor

–

25 Amp Clear

Inverter

–

20 Amp Yellow

Power Outlet #1 (ACC), Rain Sensor, Cigar

Lighter (Instrument Panel or with Console

Rear)

–

20 Amp Yellow

Power Outlet #2 (BATT/ACC SELECT) –

Center Seat or with Console Rear

–

20 Amp Yellow

Front Heated Seat — If Equipped

–

20 Amp Yellow

Rear Heated Seat — If Equipped

294

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Mini-Fuse

Description

M10

–

15 Amp Blue

Ignition Off Draw — Video System, Satellite

Radio, DVD, Hands-Free Module, Universal

Garage Door Opener, Vanity Lamp, Stream-

ing Video Module — If Equipped

M11

–

10 Amp Red

Climate Control System

M12

–

30 Amp Green

Amplifier/Radio

M13

–

20 Amp Yellow

Instrument Cluster, SIREN, Clock Module,

Multifunction Control Switch – If Equipped

M14

–

20 Amp Yellow

Trailer Tow — If Equipped

M15

–

20 Amp Yellow

Rear View Mirror, Instrument Cluster, Multi-
function Control Switch, Tire Pressure Moni-

tor

M16

–

10 Amp Red

Airbag Module/Occupant Classification

Module

M17

–

15 Amp Blue

Left Tail/License/Park Lamp, Running

Lamps

M18

–

15 Amp Blue

Right Tail/Park/Run Lamp

M19

–

25 Amp Clear

Powertrain

M20

–

15 Amp Blue

Instrument Cluster Interior Light, Switch

Bank, Steering Column Module, Switch

Steering Wheel

IN CASE OF EMERGENCY

295

Cavity

Cartridge Fuse

Mini-Fuse

Description

M21

–

20 Amp Yellow

Powertrain

M22

–

10 Amp Red

Horn

M23

–

10 Amp Red

Horn

M24

–

25 Amp Clear

Rear Wiper

M25

–

20 Amp Yellow

Fuel Pump

M26

–

10 Amp Red

Power Mirror Switch, Driver Window Switch

M27

–

10 Amp Red

Wireless Control Module, Keyless Entry

Module

M28

–

10 Amp Red

Powertrain, Transmission Control Module

M29

–

10 Amp Red

Occupant Classification Module

M30

–

15 Amp Blue

Diagnostic Feed

M31

–

20 Amp Yellow

Back-Up Lamps

M32

–

10 Amp Red

Airbag Module, THATCHUM — If

Equipped

M33

–

10 Amp Red

Powertrain

M34

–

10 Amp Red

Park Assist, Heater Climate Control Module,

Headlamp Wash, Compass, Rear Camera,

Door Lamps, Flashlight, Relay Diesel Cabin

Heater

M35

–

10 Amp Red

Heated Mirrors

296

IN CASE OF EMERGENCY

Cavity

Cartridge Fuse

Mini-Fuse

Description

M36

–

20 Amp Yellow

Power Outlet #3 (Instrument Panel Or With

Console Center)

M37

–

10 Amp Red

Antilock Brakes, Stability Control, Stop

Lamp, Fuel Pump

M38

–

25 Amp Clear

Door Lock/Unlock Motors, Liftgate Lock/

Unlock Motors

The power windows are fused by a 25 Amp circuit breaker
located in the Totally Integrated Power Module.

JACKING AND TIRE CHANGING

WARNING!

• Do not attempt to change a tire on the side of the

vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.

(Continued)

WARNING! (Continued)

• Being under a jacked-up vehicle is dangerous. The

vehicle could slip off the jack and fall on you. You
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.

• Never start or run the engine while the vehicle is on

a jack.

• The jack is designed to be used as a tool for changing

tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.

IN CASE OF EMERGENCY

297

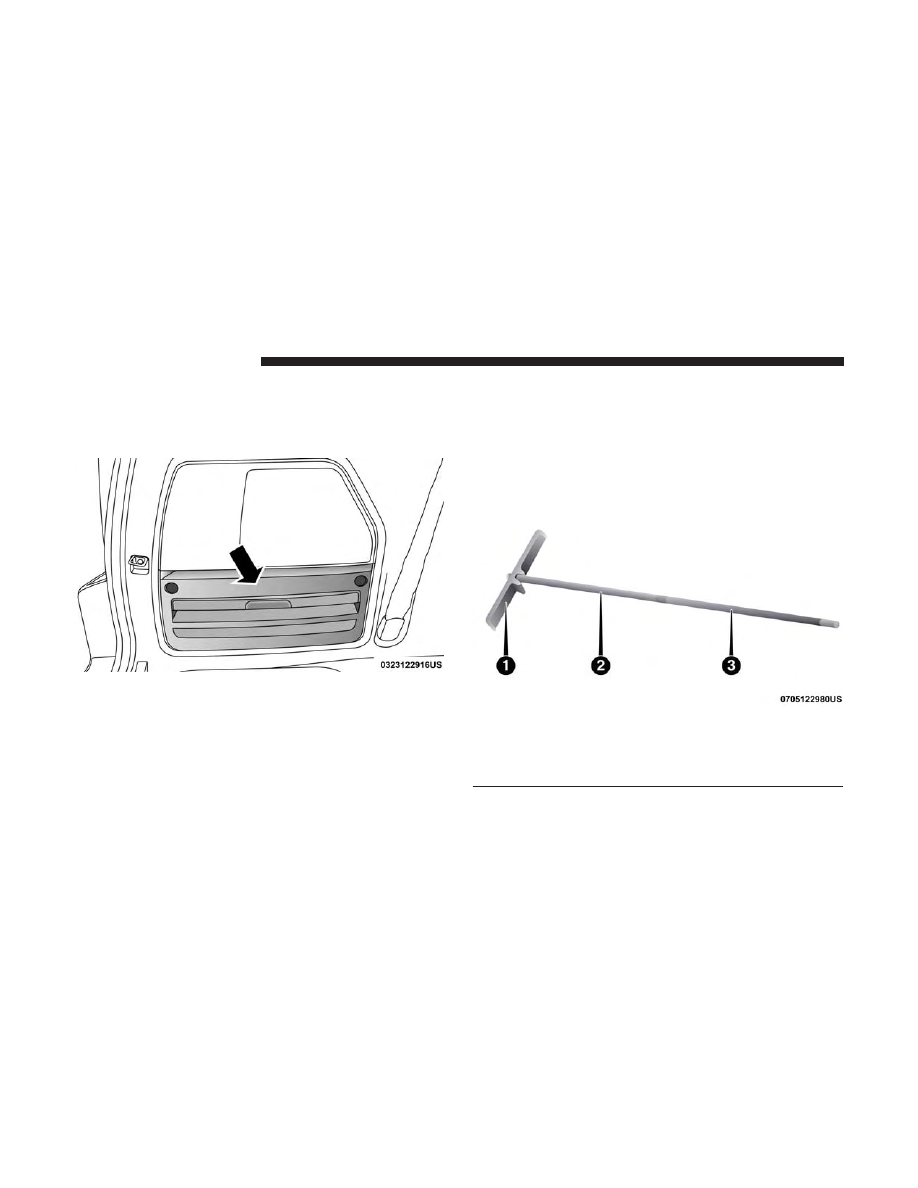

Jack Location

If equipped, the jack, jack handle and winch handle tools
are stowed behind the rear left side trim panel in the rear
cargo area. Turn the two cover latches to release the cover.

Spare Tire Tools

The tool pouch contains three pieces and can be assembled
into a spare tire hook; to remove the compact spare
tire/cover assembly from under the vehicle, or a Winch
T-handle; to raise/lower the compact spare tire/cover
assembly.

Jack And Tool Location

Assembled T-handle

1 — Spare Tire Hook/T-handle
2 — Extension 1
3 — Extension 2

298

IN CASE OF EMERGENCY

To Access Spare Tire Winch Drive Nut

To access the spare tire winch drive nut and lower the spare
tire, you will need to refer to one of the following center
console configurations.

Super Console

For vehicles equipped with the Super Console, the spare
tire winch assembly drive nut is located beneath the
console.

1. Pull the lower drawer out from the rear of the floor

console to gain clear access to the tire winch drive nut.

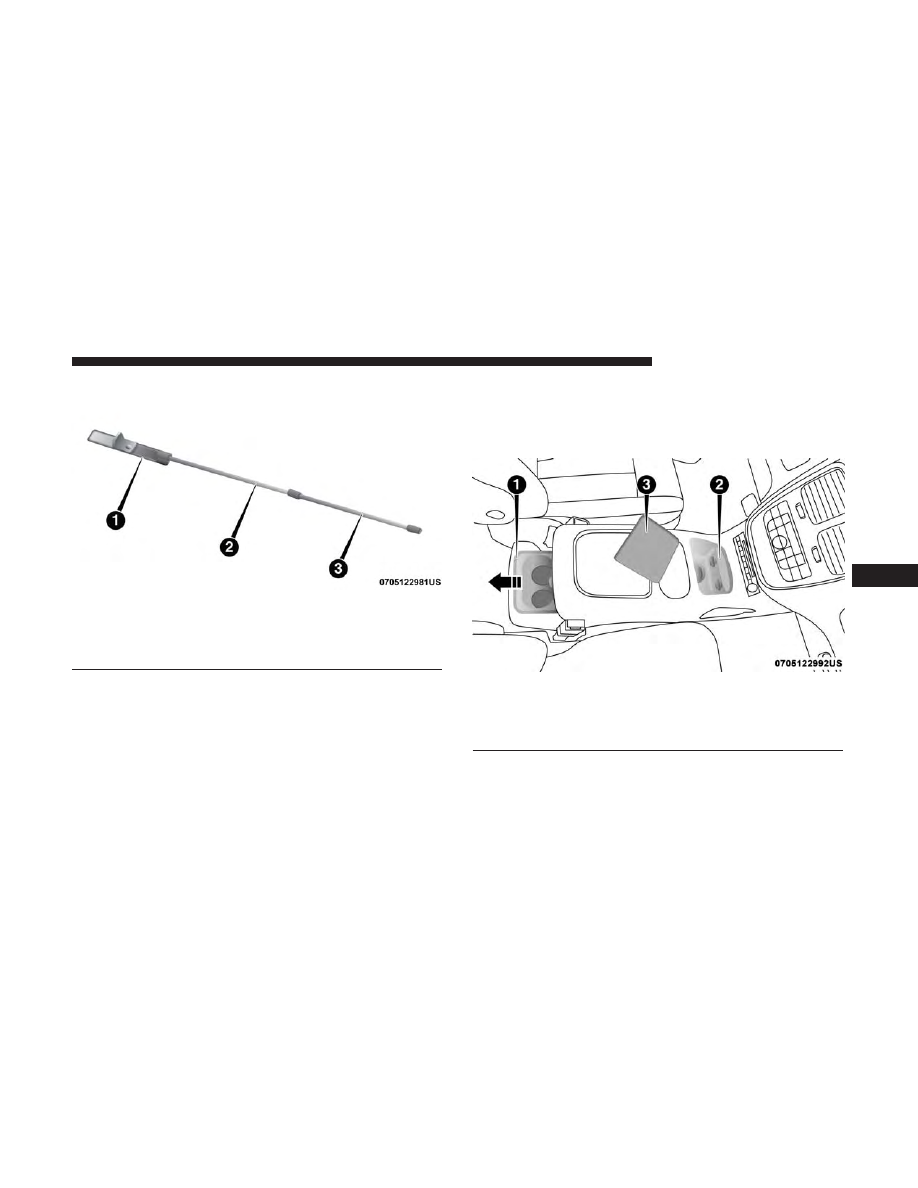

Assembling The Spare Tire Hook

1 — Spare Tire Hook/T-handle
2 — Extension 1
3 — Extension 2

Super Console

1 — Lower Drawer
2 — Front Drawer
3 — Front Drawer Liner

IN CASE OF EMERGENCY

299

2. Open the front drawer to expose the storage compart-

ment.

3. Remove the liner from the console’s storage compart-

ment to access the spare tire winch drive nut.

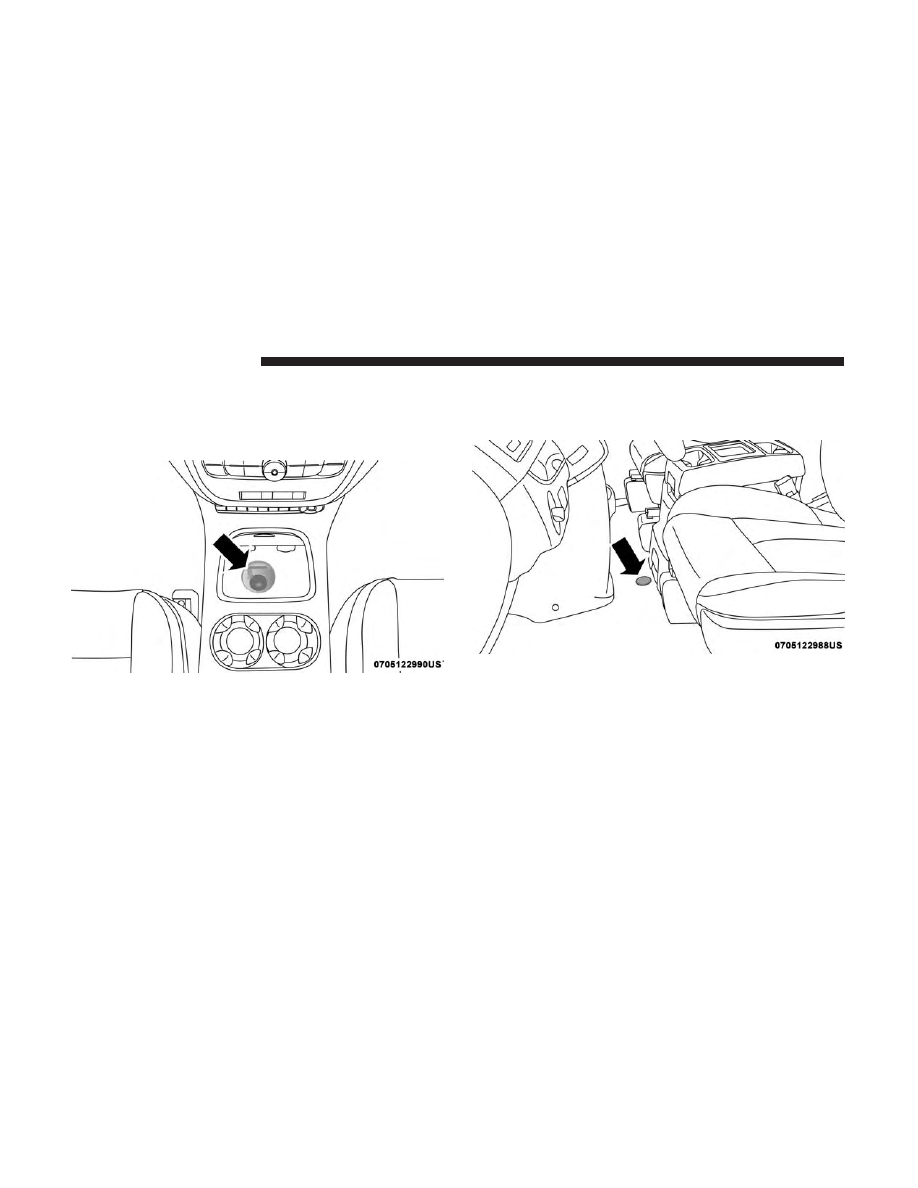

Base Cargo Center Console

Pull the Winch Cover assembly plug and retainer clip (if
equipped) to access the winch drive nut.

Drive Nut Access

Winch Cover Assembly Plug (If Equipped)

300

IN CASE OF EMERGENCY

Dodge Grand Caravan (2019 year). Manual - part 18
