Dodge Grand Caravan (2019 year). Manual - part 1

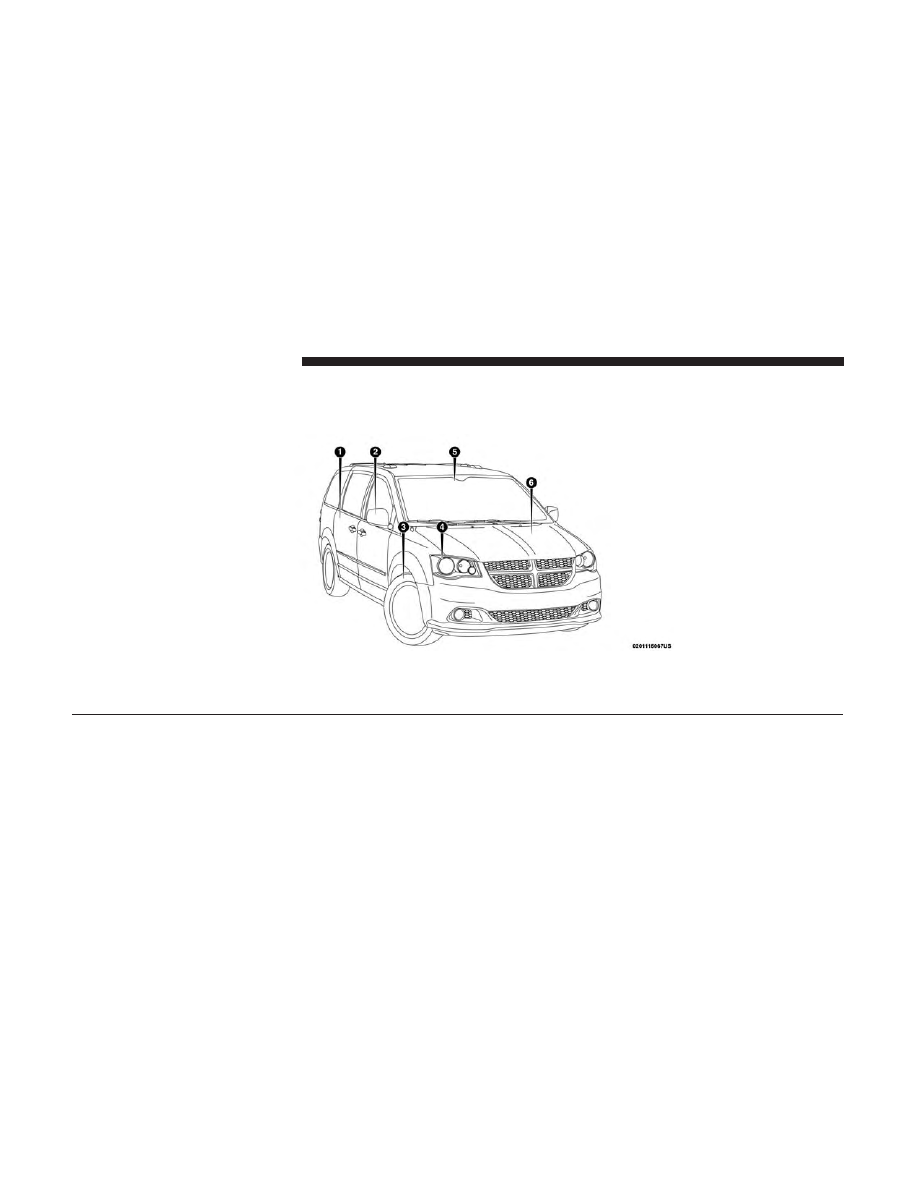

FRONT VIEW

Front View

1 — Doors

3 — Wheels/Tires

5 — Windshield

2 — Exterior Mirrors

4 — Headlights

6 — Hood/Engine Compartment

GRAPHICAL TABLE OF CONTENTS

REAR VIEW

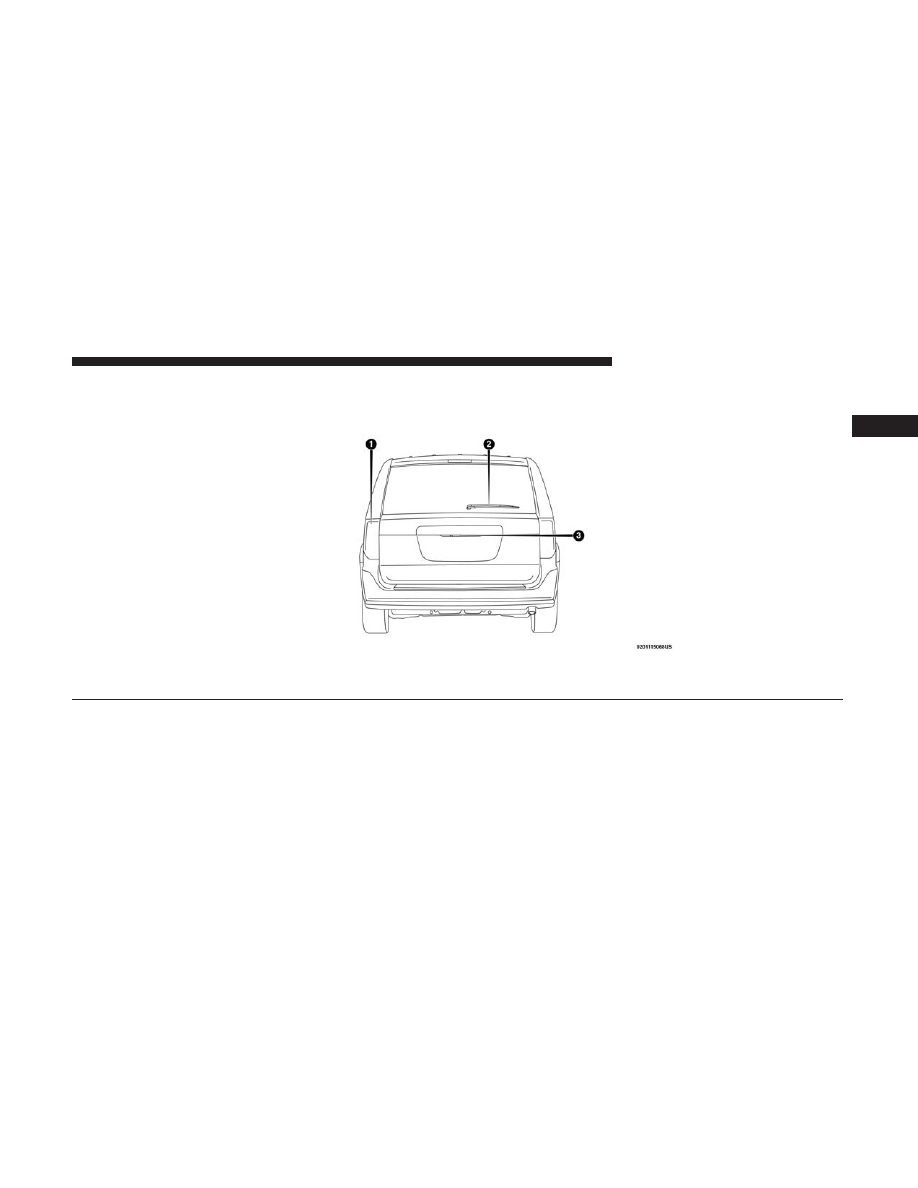

Rear View

1 — Taillights

2 — Rear Windshield Wiper

3 — Liftgate

GRAPHICAL TABLE OF CONTENTS

INSTRUMENT PANEL

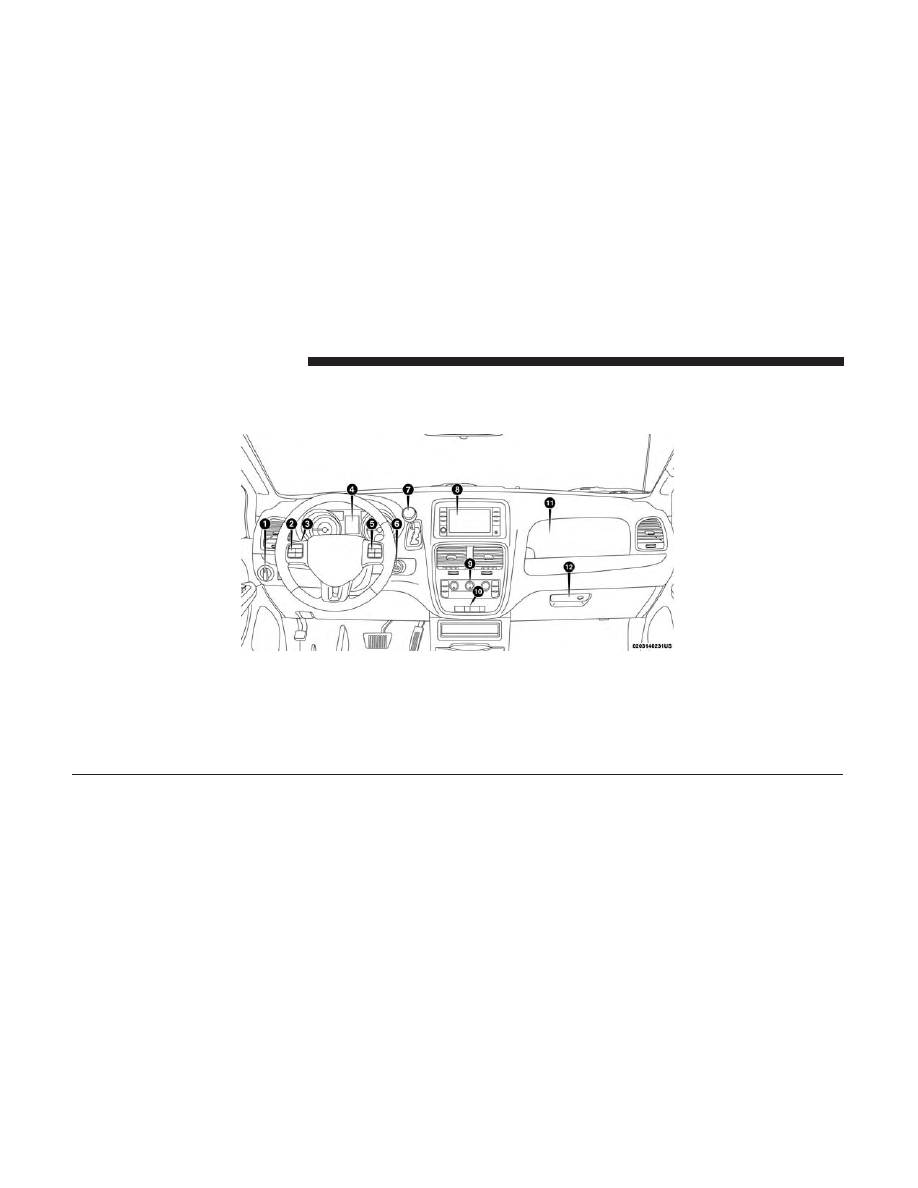

Instrument Panel

1 — Headlight Switch

7 — Gear Selector

2 — Instrument Cluster Display Controls

8 — Uconnect System

3 — Multifunction Lever (Behind Steering Wheel)

9 — Climate Controls

4 — Instrument Cluster

10 — Switch Panel

5 — Speed Controls

11 — Upper Glove Compartment

6 — Ignition

12 — Lower Glove Compartment

GRAPHICAL TABLE OF CONTENTS

INTERIOR

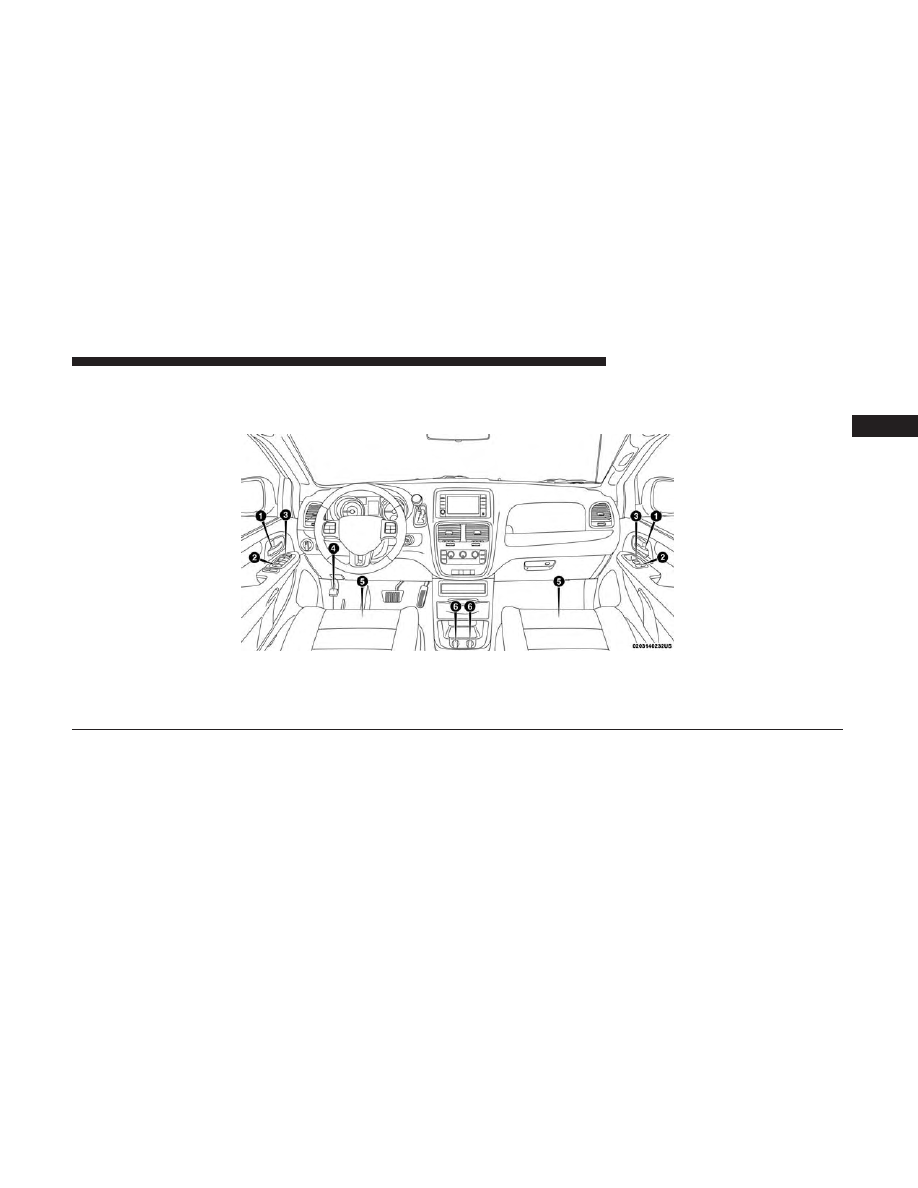

Interior Features

1 — Door Handles

4 — Parking Brake

2 — Door Locks

5 — Seats

3 — Window Switches

6 — Power Outlets

GRAPHICAL TABLE OF CONTENTS

KEYS

Key Fobs

Your vehicle uses a keyless ignition system. This system
consists of a Remote Keyless Entry (RKE) key fob and a
Wireless Ignition Node (WIN) with integral ignition. You
can insert the key fob into the ignition switch with either
side up. It also contains an emergency key, which stores in
the rear of the key fob.

NOTE:

The key fob may not be found if it is located next to

a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.

The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob go dead. You can
keep the emergency key with you when valet parking.

To remove the emergency key, slide the mechanical latch at
the top of the key fob sideways with your thumb and then
pull the key out with your other hand.

NOTE:

When using the emergency key to gain access to

your vehicle, be aware that the security alarm may be
triggered. Insert the key into the ignition and place the
ignition in the ON/RUN mode to disarm the security
system.

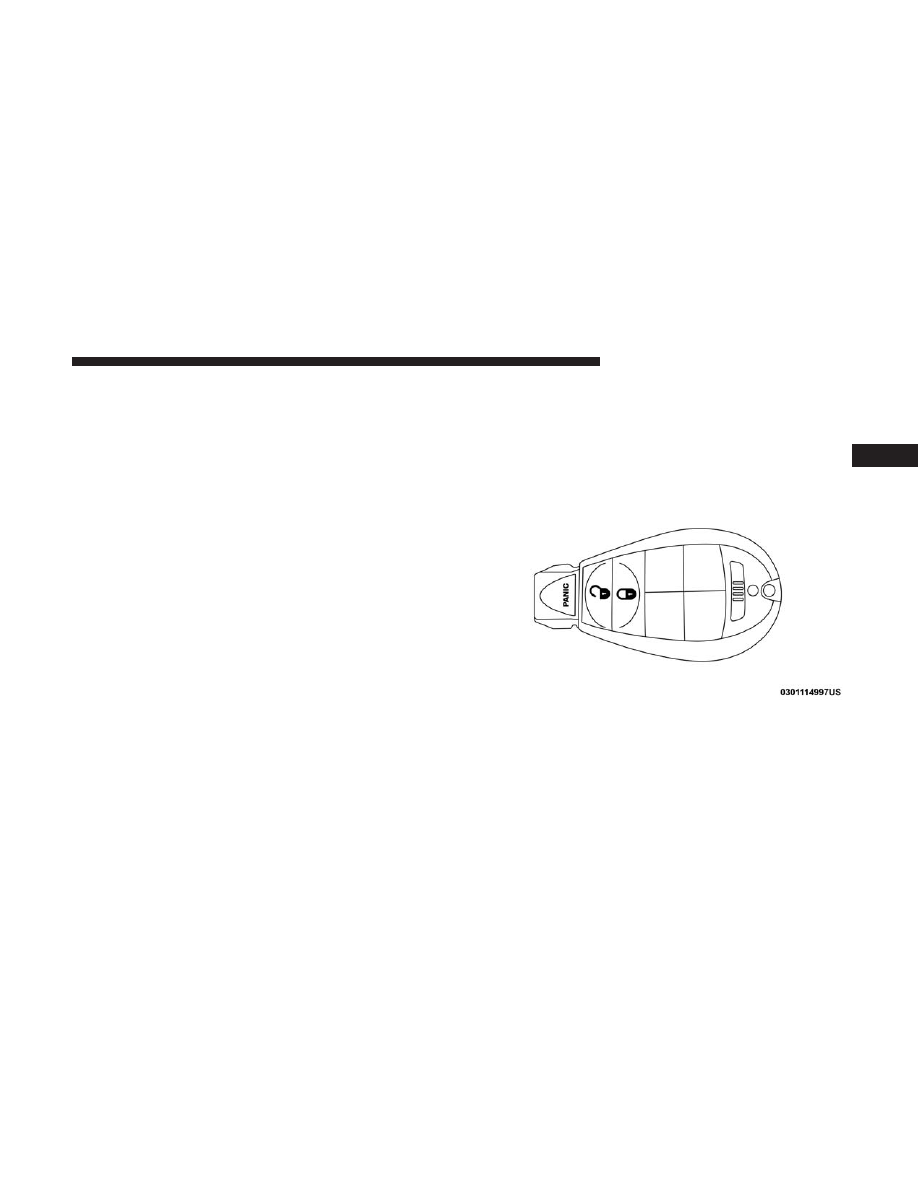

Key Fob

GETTING TO KNOW YOUR VEHICLE

To Unlock The Doors And Liftgate

Push and release the unlock button on the key fob once to
unlock the doors. Push and release the unlock button a
second time within 5 seconds to unlock the liftgate. The
turn signal lights will flash to acknowledge the unlock
signal.

To Lock The Doors And Liftgate

Push and release the lock button on the key fob once to lock
the doors. The turn signal lights will flash to acknowledge
the lock signal.

Replacing The Battery In The Key Fob With Remote
Control

The replacement battery is one CR2032 battery.

NOTE:
• Perchlorate Material — special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate

• Do not replace coin battery unless the cluster display

indicates a message “Key Fob Low Battery”

• Do not touch the battery terminals that are on the back

housing or the printed circuit board.

1. Remove the emergency key by sliding the mechanical

latch on the back of the key fob sideways with your
thumb and then pull the key out with your other hand.

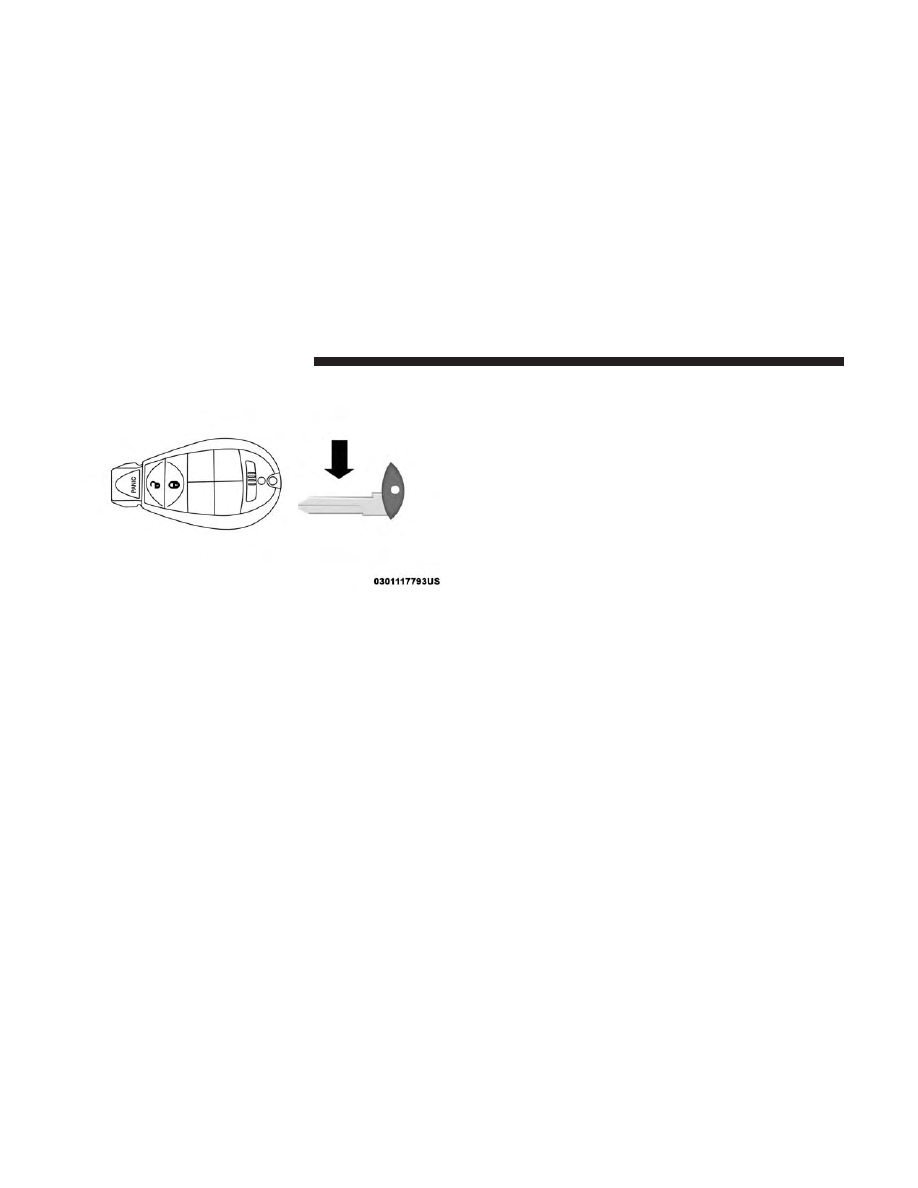

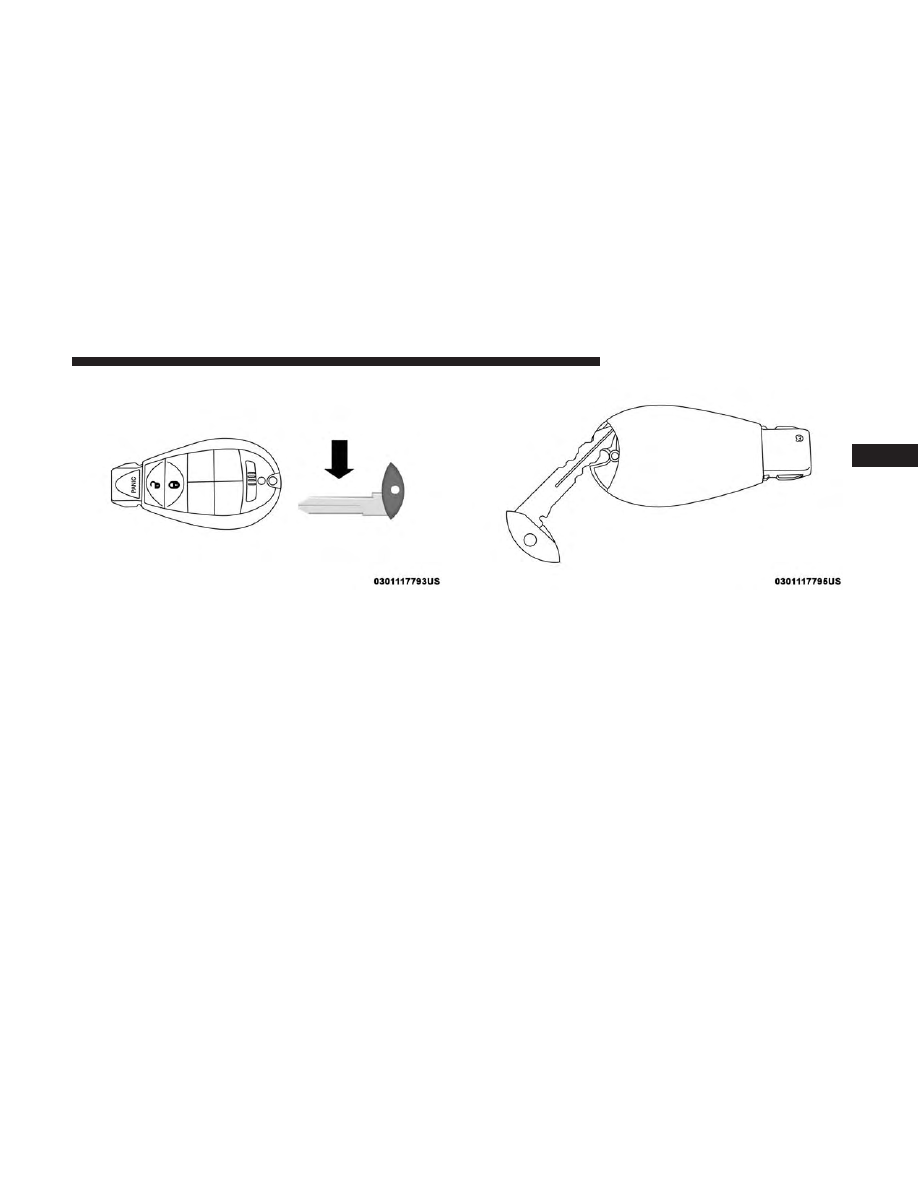

Emergency Key Removal

GETTING TO KNOW YOUR VEHICLE

2. Gently pry the two halves of the key fob apart. Make

sure not to damage the seal during removal.

3. Remove the battery by turning the back cover over

(battery facing downward) and tapping it lightly on a
solid surface such as a table or similar, then replace the
battery. When replacing the battery, match the + sign on
the battery to the + sign on the inside of the battery clip,
located on the back cover. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with
rubbing alcohol.

4. To assemble the key fob case, line up the two case

halves, and snap them together.

Emergency WIN Key Removal

Separating WIN Key Fob Case

GETTING TO KNOW YOUR VEHICLE

Programming Additional Key Fobs

Programming the key fob may be performed by an autho-
rized dealer.

NOTE:

Once a key fob is programmed to a vehicle, it

cannot be repurposed and reprogrammed to another ve-
hicle.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

IGNITION SWITCH

Wireless Ignition Node (WIN) — If Equipped

The Wireless Ignition Node (WIN) operates similar to an
ignition switch. It has four operating positions, three with
detents and one that is spring-loaded. The detent positions
are OFF, ACC, and ON/RUN. The START position is a
spring-loaded momentary contact position. When released
from the START position, the switch automatically returns
to the ON/RUN position.

GETTING TO KNOW YOUR VEHICLE

REMOTE START — IF EQUIPPED

How To Use Remote Start

All of the following conditions must be met before the
engine will remote start:
• Gear selector in PARK
• Doors closed

• Hood closed
• Liftgate closed
• HAZARD switch off
• BRAKE switch inactive (brake pedal not pushed)
• Battery at an acceptable charge level
• System not disabled from previous remote start event
• Vehicle security alarm not active
• Ignition in OFF position

WARNING!

• Do not start or run an engine in a closed garage or

confined area. Exhaust gas contains Carbon Monox-
ide (CO) which is odorless and colorless. Carbon
Monoxide is poisonous and can cause serious injury
or death when inhaled.

• Keep key fobs away from children. Operation of the

Remote Start System, windows, door locks or other
controls could cause serious injury or death.

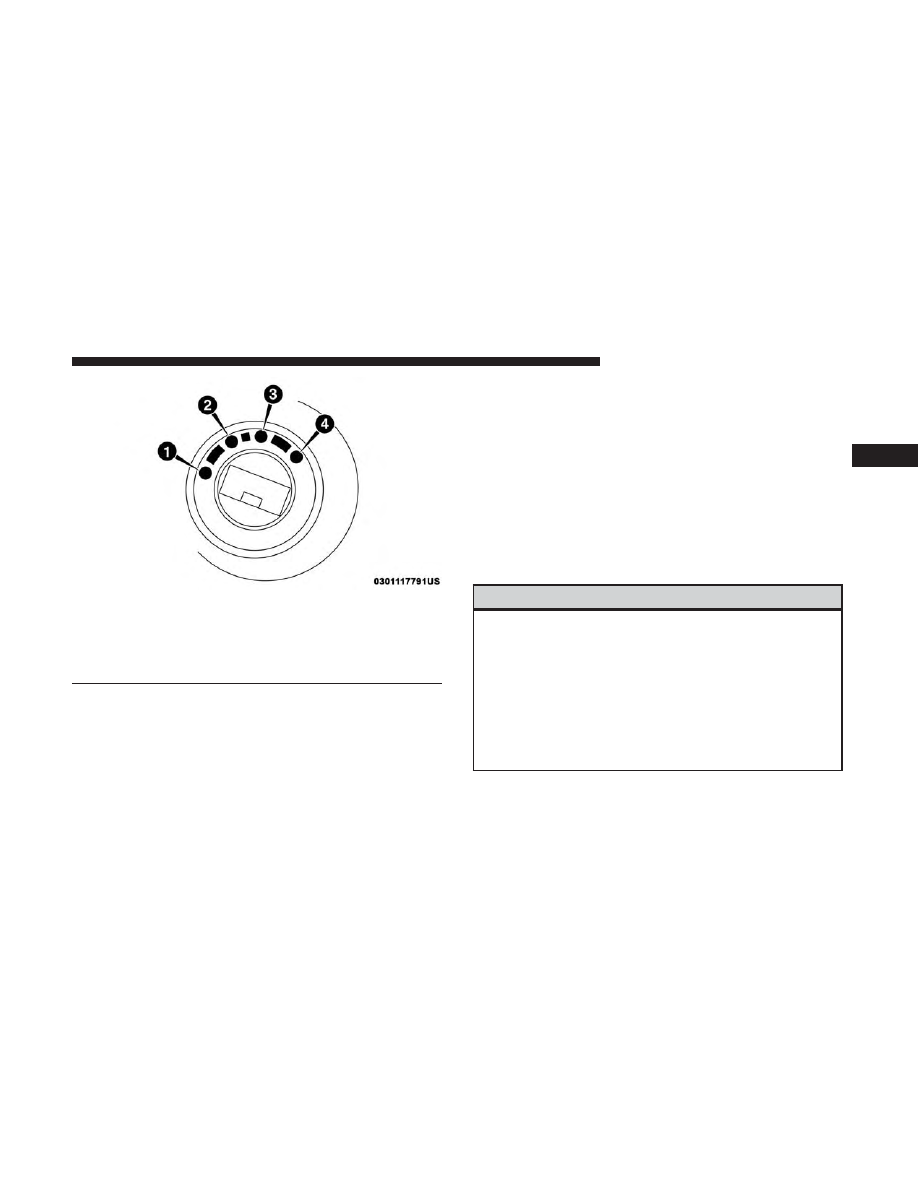

Wireless Ignition Switch

1 — OFF
2 — ACC (Accessory)
3 — ON/RUN
4 — START

GETTING TO KNOW YOUR VEHICLE

Remote Start Abort Messages

The following messages will display in the instrument
cluster display if the vehicle fails to remote start or exits
remote start prematurely:
• Remote Start Aborted — Door Ajar
• Remote Start Aborted — Hood Ajar
• Remote Start Aborted — Fuel Low
• Remote Start Aborted — L/Gate Ajar
• Remote Start Disabled — Start Vehicle To Reset
The instrument cluster display message stays active until
the ignition is turned to the ON/RUN position.

To Enter Remote Start Mode

Push and release the Remote Start button on the key fob
twice within five seconds. The vehicle doors will lock, the
turn signals will flash twice, and the horn will chirp twice.
Then the engine will start, and the vehicle will remain in
the Remote Start mode for a 15-minute cycle.

NOTE:
• If an engine fault is present or fuel level is low, the

vehicle will start and then shut down in 10 seconds.

• The park lamps will turn on and remain on during

Remote Start mode.

• For security, power window operation is disabled when

the vehicle is in the Remote Start mode.

• The engine can be started two consecutive times (two

15-minute cycles) with the key fob. However, the igni-
tion must be placed in the ON/RUN position before you
can repeat the start sequence for a third cycle.

To Exit Remote Start Mode Without Driving The
Vehicle

Push and release the Remote Start button one time or allow
the remote start cycle to complete the entire 15-minute
cycle.

NOTE:

To avoid unintentional shutdowns, the system will

disable the one time push of the Remote Start button for
two seconds after receiving a valid Remote Start request.

GETTING TO KNOW YOUR VEHICLE

To Exit Remote Start Mode And Drive The Vehicle

Before the end of the 15-minute cycle, push and release the
unlock button on the key fob to unlock the doors and
disarm the vehicle security alarm (if equipped). Then,
insert the key into the ignition and place the ignition in the
ON/RUN position.

NOTE:
• The ignition must be placed in the ON/RUN position in

order to drive the vehicle.

• The message “Remote Start Active — Key To Run” will

display in the instrument cluster display until you insert
and turn the key to ON/RUN position.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, includ-

ing interference that may cause undesired operation.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

SENTRY KEY

The Sentry Key Immobilizer system prevents unauthorized
vehicle operation by disabling the engine. The system does
not need to be armed or activated. Operation is automatic,
regardless of whether the vehicle is locked or unlocked.

The system uses a key fob, keyless push button ignition and
a RF receiver to prevent unauthorized vehicle operation.
Therefore, only key fobs that are programmed to the vehicle
can be used to start and operate the vehicle. The system
cannot reprogram a key fob obtained from another vehicle.

After turning the ignition switch to the ON/RUN position,
the vehicle security light will turn on for three seconds for
a bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check, it
indicates that someone attempted to start the engine with
an invalid key fob. In the event that a valid key fob is used
to start the engine but there is an issue with the vehicle
electronics, the engine will start and shut off after two
seconds.

GETTING TO KNOW YOUR VEHICLE

If the vehicle security light turns on during normal vehicle
operation (vehicle running for longer than ten seconds), it
indicates that there is a fault in the electronics. Should this
occur, have the vehicle serviced as soon as possible by an
authorized dealer.

CAUTION!

The Sentry Key Immobilizer system is not compatible
with some aftermarket remote starting systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics.

Key Programming

Key fob programming is performed at an authorized
dealer.

Replacement Keys

NOTE:

Only key fobs that are programmed to the vehicle

electronics can be used to start and operate the vehicle.
Once a key fob is programmed to a vehicle, it cannot be
programmed to any other vehicle.

CAUTION!

Always remove the key fobs from the vehicle and lock
all doors when leaving the vehicle unattended.

NOTE:

Duplication of key fobs may be performed at an

authorized dealer. This procedure consists of programming
a blank key fob to the vehicle electronics. A blank key fob
is one that has never been programmed.

When having the Sentry Key Immobilizer System serviced,
bring all vehicle keys with you to an authorized dealer.

General Information

The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

GETTING TO KNOW YOUR VEHICLE

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

VEHICLE SECURITY ALARM — IF EQUIPPED

The vehicle security alarm monitors the vehicle doors for
unauthorized entry and the ignition switch for unauthor-
ized operation. When the alarm is activated, the interior
switches for door locks, power sliding doors and power
liftgate are disabled. The vehicle security alarm provides
both audible and visible signals. If something triggers the
alarm, the vehicle security alarm will provide the following
audible and visible signals: the horn will pulse, the park
lamps and/or turn signals will flash, and the vehicle
security light in the instrument cluster will flash.

Rearming Of The System

The vehicle security alarm will rearm itself after the 15
additional minutes of the park lamps and vehicle security
light flashing, if the system has not been disabled. If the
condition which initiated the alarm is still present, the
system will ignore that condition and monitor the remain-
ing doors and ignition.

To Arm The System

Follow these steps to arm the vehicle security alarm:

1. Make sure the vehicle’s ignition is cycled to the “OFF”

position (refer to

⬙Starting The Engine⬙ in ⬙Starting And

Operating

⬙ for further information).

2. Perform one of the following methods to lock the

vehicle:

• Push lock on the interior power door lock switch with

the driver and/or passenger door open.

• Push the lock button on the key fob.

3. If any doors are open, close them.

To Disarm The System

The vehicle security alarm can be disarmed using any of
the following methods:
• Push the unlock button on the key fob.
• Cycle the vehicle ignition system out of the OFF posi-

tion. Insert a valid key into the ignition switch and turn
the key to the ON position.

GETTING TO KNOW YOUR VEHICLE

NOTE:
• The driver’s door key cylinder and the liftgate button on

the key fob cannot arm or disarm the vehicle security
alarm.

• The vehicle security alarm remains armed during power

liftgate entry. Pushing the liftgate button will not disarm
the vehicle security alarm. If someone enters the vehicle
through the liftgate and opens any door, the alarm will
sound.

• When the vehicle security alarm is armed, the interior

power door lock switches will not unlock the doors.

The vehicle security alarm is designed to protect your
vehicle. However, you can create conditions where the
system will give you a false alarm. If one of the previously
described arming sequences has occurred, the vehicle
security alarm will arm regardless of whether you are in
the vehicle or not. If you remain in the vehicle and open a
door, the alarm will sound. If this occurs, disarm the
vehicle security alarm.

If the vehicle security alarm is armed and the battery
becomes disconnected, the vehicle security alarm will
remain armed when the battery is reconnected; the exterior
lights will flash, and the horn will sound. If this occurs,
disarm the vehicle security alarm.

Tamper Alert

If something has triggered the vehicle security alarm in
your absence, the horn will sound three times and the
exterior lights will blink three times when you disarm the
vehicle security alarm. Check the vehicle for tampering.

GETTING TO KNOW YOUR VEHICLE

DOORS

Manual Door Locks

Lock the front doors by pushing down on the lock knobs
on each door trim panel.

If the lock knob is down when you shut either front door,
the door will lock. Make sure the keys are not inside the
vehicle before closing the door.

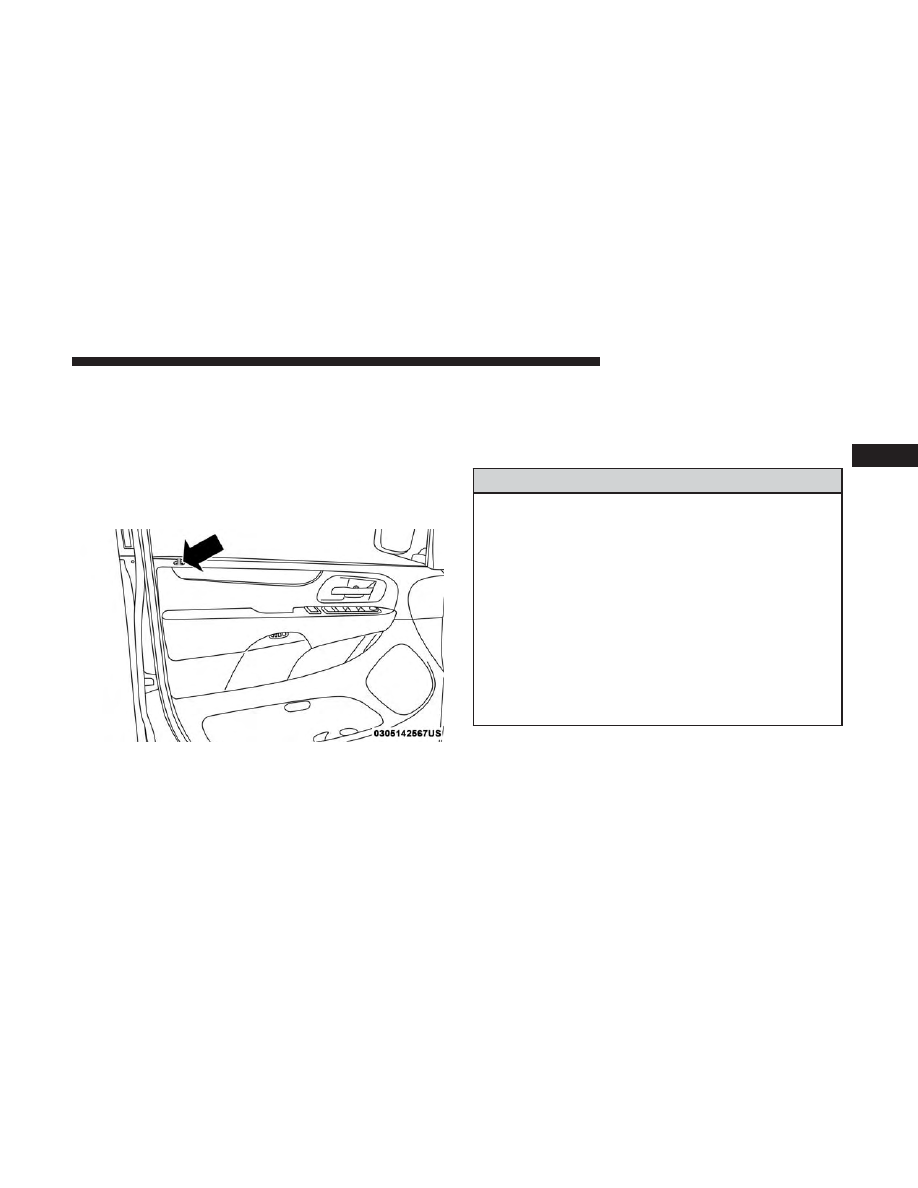

Manual Door Lock

If the lock knob is rearward when you shut either side
sliding door, the door will lock. Make sure the keys are not
inside the vehicle before closing the door.

WARNING!

• Do not leave children or animals inside parked

vehicles in hot weather. Interior heat build-up may
cause serious injury or death.

• For personal security and safety in the event of an

collision, lock the vehicle doors as you drive as well
as when you park and leave the vehicle.

• Before exiting a vehicle, always shift the automatic

transmission into PARK or the manual transmission
into FIRST gear or REVERSE, apply the parking
brake, turn the vehicle OFF, remove the key fobs
from vehicle, and lock all doors. and lock your
vehicle.

(Continued)

Door Lock Knob

GETTING TO KNOW YOUR VEHICLE

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Leaving children in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.

• Allowing children to be in a vehicle unattended is

dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.

• Do not leave the key fob in or near the vehicle, or in

a location accessible to children. A child could oper-
ate power windows, other controls, or move the
vehicle.

Power Door Locks — If Equipped

Power door lock switches are located on each front door
trim panel. Use these switches to lock or unlock the doors.

If you push the power door lock switch while the key fob
is in the ignition, and any front door is open, the power
locks will not operate. This prevents you from accidentally
locking your keys in the vehicle. Removing the key fob or
closing the door will allow the locks to operate. A chime
will sound if the key fob is in the ignition switch and a door
is open, as a reminder to remove the key fob.

NOTE:

If you push the power door lock switch while the

sliding door is open, the sliding door will lock.

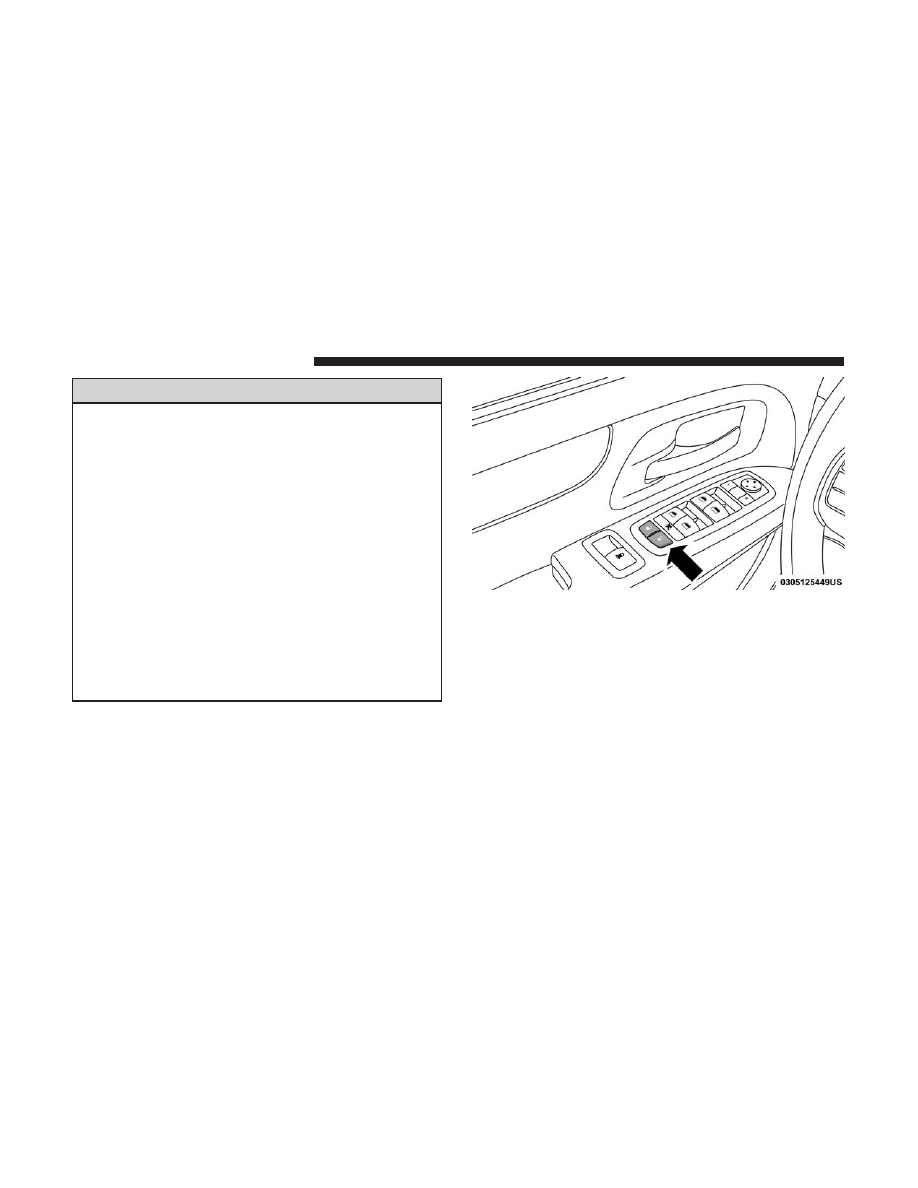

Driver Power Door Lock Switches

GETTING TO KNOW YOUR VEHICLE

Content .. 1 2 ..
