Dodge Durango (2019 year). Manual

Play A DVD/Blu-ray Disc Using The Touchscreen
Radio

1. Insert the DVD/Blu-ray Disc with the label facing as

indicated on the DVD/Blu-ray Disc player. The radio
automatically selects the appropriate mode after the disc
is recognized and displays the menu screen or starts
playing the first track.

2. To watch a DVD/Blu-ray Disc on Rear 1 (driver’s side

rear passenger), ensure the Remote Control and Head-
phone channel selector switch is on Rear 1.

3. To watch a DVD/Blu-ray Disc on Rear 2 (passenger’s

side rear passenger), ensure the Remote Control and
Headphone channel selector switch is on Rear 2.

Using The Remote Control

1. Push the SOURCE button on the Remote Control.

2. While looking at Rear 1 or 2, highlight DISC by either

pushing Up/Down/Left/Right buttons, then push
ENTER/OK.

Select DISC Mode On The Rear Seat Entertainment Screen

MULTIMEDIA

541

Using The Touchscreen Radio Controls

1. Press the Media button on the Uconnect system touch-

screen.

2. Press the Rear Media button to display the Rear Media

Control screen.

3. Press the 1 or 2 buttons on the touchscreen, and the

select source button on the touchscreen. Press the DISC
button on the touchscreen in the MEDIA column. To
exit, press the X at the top right of the screen.

NOTE:

Pressing the screen on the radio while a DVD or

Blu-ray Disc is playing, brings up the basic remote control
functions for DVD play such as scene selection, Play, Pause,
FF, RW, and Stop. Pressing the X in the upper corner will
turn OFF the remote control screen functions.

Rear Media Control Screen

Rear Seat Entertainment Source Screen

542

MULTIMEDIA

Important Notes For Dual Video Screen System
• The Rear Seat Entertainment System is able to transmit

two channels of stereo audio and video simultaneously.

• The Blu-ray Disc Player can play CDs, DVDs and

Blu-ray Discs.

• Selecting a video source on Rear 1, the video source will

display on Rear 1 and can be heard on Rear 1.

• Selecting a video source on Rear 2, the video source will

display on Rear 2 and can be heard on Rear 2.

• Audio can be heard through the headphones even when

the screen(s) are closed.

Blu-ray Disc Player Remote Control — If Equipped

Controls And Indicators

1. Power — Turns the screen and wireless headphone

transmitter for the selected Channel on or off. To hear
audio while the screen is closed, push the Power button
to turn the headphone transmitter on.

Blu-ray Player Remote Control

MULTIMEDIA

543

2. Channel Selector Indicators — When a button is pushed,

the currently affected channel or channel button is
illuminated momentarily.

3. SOURCE — Push to enter Source Selection screen.

4. Channel/Screen Selector Switch — Indicates which

channel is being controlled by the remote control. When
the selector switch is in the Rear 1 position, the remote
controls the functionality of headphone Channel 1 (left
screen). When the selector switch is in the Rear 2
position, the remote controls the functionality of head-
phone Channel 2 (right screen).

䉴 — Push to navigate menus.

6. SETUP — Push to access the screen settings menu.

䉴䉴 — Push and hold to fast forward through the
current audio track or video chapter.

䉴 / 㥋 (Play/Pause) — Begin/resume or pause disc play.

9. Four Colored Buttons — Push to access Blu-ray Disc

features.

10. POPUP/MENU — Push to bring up repeat and shuffle

options, the Blu-ray Disc popup menu, the DVD title
menu, or to access disc menus.

11. Keypad — Push to navigate chapters or titles.

12.

(Stop) — Stops disc play.

13.

䉳䉳 — Push and hold to fast rewind through the

current audio track or video chapter.

14.

— Mutes headphone audio.

15. BACK — Push to exit out of menus or return to source

selection screen.

16.

䉲 — Push to navigate menus.

17.

䉳 — Push to navigate menus.

18. OK— Push to select the highlighted option in a menu.

19.

䉱 — Push to navigate menus.

Headphones Operation

The headphones receive two separate channels of audio
using an infrared transmitter from the video screen.

If no audio is heard after increasing the volume control,
verify that the screen is turned on, the channel is not muted
and the headphone channel selector switch is on the
desired channel. If audio is still not heard, check that fully
charged batteries are installed in the headphones.

544

MULTIMEDIA

Controls

The headphone power indicator and controls are located
on the right ear cup.

NOTE:

The rear video system must be turned on before

sound can be heard from the headphones. To conserve
battery life, the headphones will automatically turn off
approximately three minutes after the rear video system is
turned off.

Changing the Audio Mode for Headphones

1. Ensure the Remote Control channel/screen selector

switch is in the same position as the headphone selector
switch.

NOTE:

• When both the headphone and the remote control

channel selector switches are on Channel 1, the Re-
mote is controlling Channel 1 and the headphones are
tuned to the audio on Channel 1.

• When both the headphone and the remote control

channel selector switches are on Channel 2, the Re-
mote is controlling Channel 2 and the headphones are
tuned to the audio on Channel 2.

2. Push the SOURCE button on the remote control.

3. Pushing the SOURCE button will advance to the next

mode.

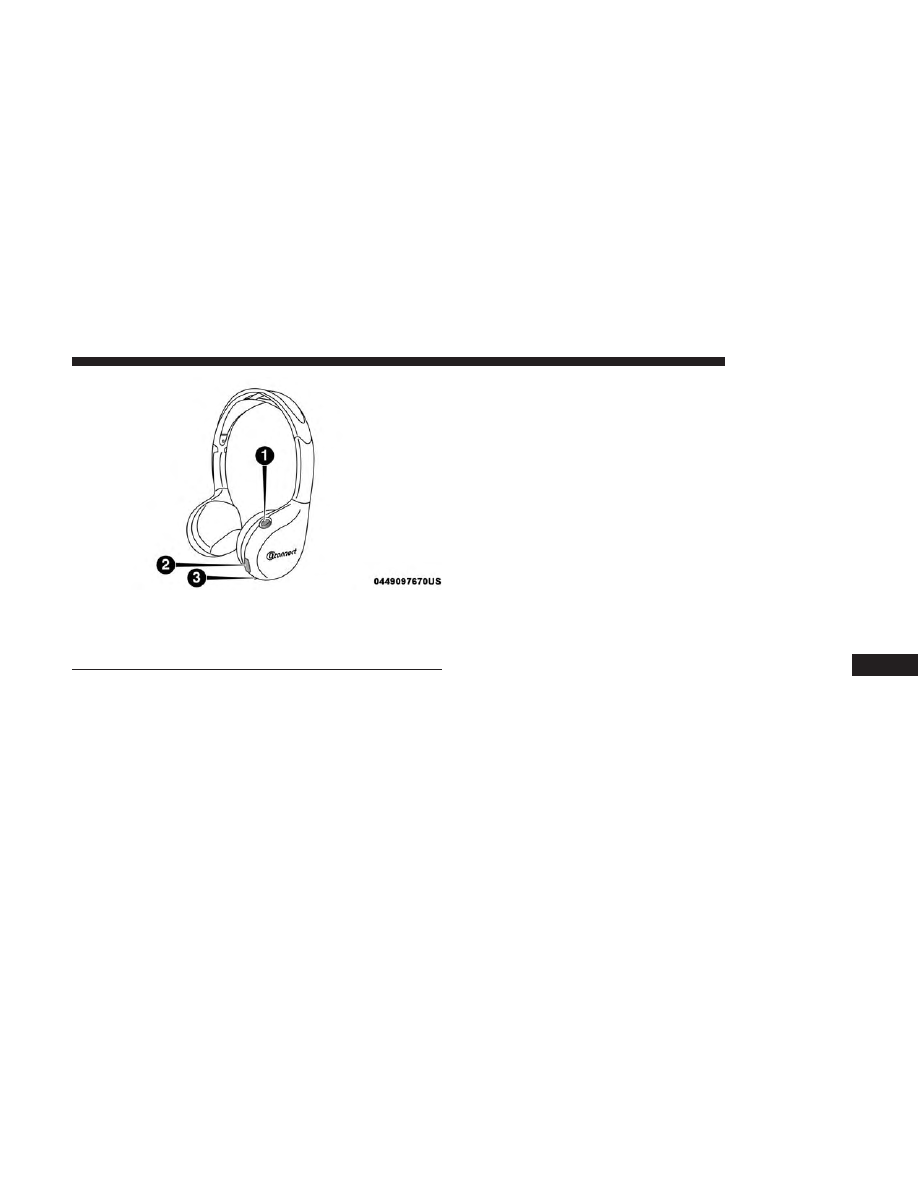

Rear Seat Entertainment Headphones

1 — Power Button
2 — Volume Control
3 — Channel Selection Switch

MULTIMEDIA

545

4. When the Mode Selection menu appears on screen, use

the cursor buttons on the remote control to navigate to
the available modes and push the OK button to select
the new mode.

5. To cancel out of the Mode Selection menu, push the

BACK button on the remote control.

Replacing The Headphone Batteries

Each set of headphones requires two AAA batteries for
operation. To replace the batteries:

1. Locate the battery compartment on the left ear cup of

the headphones, and then slide the battery cover down-
ward.

2. Replace the batteries, making sure to orient them ac-

cording to the polarity diagram shown.

3. Replace the battery compartment cover.

Accessibility — If Equipped

Accessibility is a feature of the DVD/Blu-ray system that
announces a function prior to performing the action. For
further information refer to “Uconnect Settings” in “Mul-
timedia.”

Stereo Headphone Lifetime Limited Warranty

Who Does This Warranty Cover?

This warranty covers the

initial user or purchaser (

⬙you⬙ or ⬙your⬙) of this particular

Aptiv PLC (“Aptiv”) wireless headphone (

⬙Product⬙). The

warranty is not transferable.

How Long Does the Coverage Last?

This warranty lasts as

long as you own the Product.

What Does This Warranty Cover?

Except as specified

below, this warranty covers any Product that in normal use
is defective in workmanship or materials.

What Does This Warranty Not Cover?

This warranty does

not cover any damage or defect that results from misuse,
abuse or modification of the Product other than by Aptiv.
Foam earpieces, which will wear over time through normal
use, are specifically not covered (replacement foam is
available for a nominal charge). APTIV IS NOT LIABLE
FOR ANY INJURIES OR DAMAGES TO PERSONS OR
PROPERTY RESULTING FROM THE USE OF, OR ANY
FAILURE OR DEFECT IN, THE PRODUCT, NOR IS AP-
TIV LIABLE FOR ANY GENERAL, SPECIAL, DIRECT,
INDIRECT, INCIDENTAL, CONSEQUENTIAL, EXEM-
PLARY, PUNITIVE OR OTHER DAMAGES OF ANY
KIND OR NATURE WHATSOEVER. Some states and
jurisdictions may not allow the exclusion or limitation of

546

MULTIMEDIA

incidental or consequential damages, so the above limita-
tion may not apply to you. This warranty gives you specific
legal rights. You may also have other rights, which vary
from jurisdiction to jurisdiction.

What Will Aptiv Do?

Aptiv, at its option, will repair or

replace any defective Product. Aptiv reserves the right to
replace any discontinued Product with a comparable
model. THIS WARRANTY IS THE SOLE WARRANTY
FOR THIS PRODUCT, SETS FORTH YOUR EXCLUSIVE
REMEDY REGARDING DEFECTIVE PRODUCTS, AND IS
IN LIEU OF ALL OTHER WARRANTIES (EXPRESS OR
IMPLIED), INCLUDING ANY WARRANTY FOR MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE.

If you have any questions or comments regarding your
Aptiv wireless headphones, or to register your wireless
headphones, please phone:

1-248-724-5900

System Information

Disc Menu

When listening to a CD Audio or CD Data disc, pushing
the remote control’s POP UP/MENU button displays a list
of all commands which control playback of the disc.

Display Settings

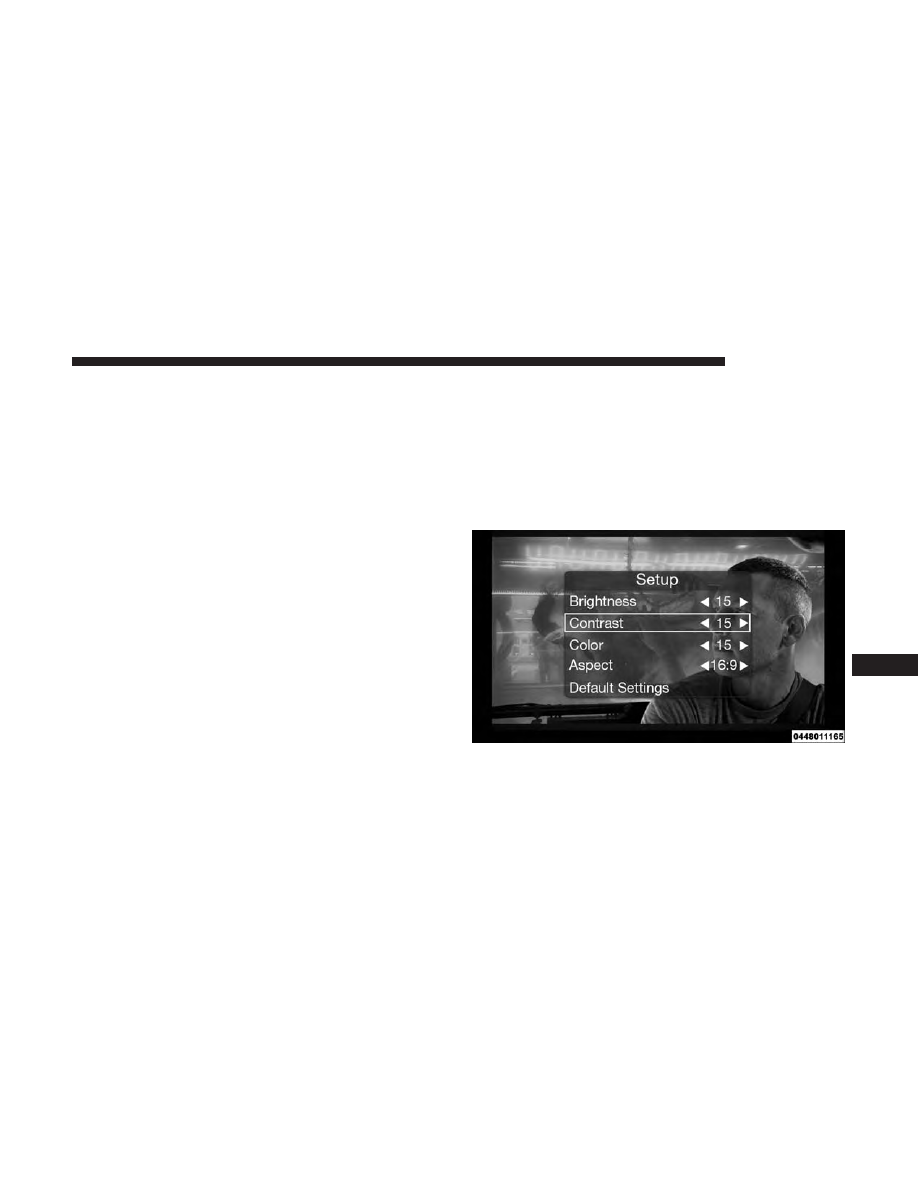

Video Screen Display Settings

MULTIMEDIA

547

When watching a video source (Blu-ray Disc or DVD Video
with the disc in Play mode, Aux Video, etc.), pushing the
remote control’s SETUP button activates the Display Set-
tings menu. These settings control the appearance of the
video on the screen. The factory default settings are already
set for optimum viewing, so there is no need to change
these settings under normal circumstances.

To change the settings, push the remote control’s naviga-
tion buttons (

䉱, 䉲) to select an item, then push the remote

control’s navigation buttons (

䉴, 䉳) to change the value for

the currently selected item. To reset all values back to the
original settings, select the Default Settings menu option
and push the remote control’s ENTER/OK button.

Disc Features control the remote Blu-ray Disc player’s
settings of DVD being watched in the remote player.

Listening To Audio With The Screen Closed

To listen to only audio portion of the channel with the
screen closed:
• Set the audio to the desired source and channel.
• Close the video screen.

• To change the current audio mode, push the remote

control’s SOURCE button. This will automatically select
the next available audio mode without using the Mode/
Source Select menu.

• When the screen is reopened, the video screen will

automatically turn back on and show the appropriate
display menu or media.

If the screen is closed and there is no audio heard, verify
that the headphones are turned on (the ON indicator is
illuminated) and the headphone selector switch is on the
desired channel. If the headphones are turned on, push the
remote control’s power button to turn audio on. If audio is
still not heard, check that fully charged batteries are
installed in the headphones.

Disc Formats

The Blu-ray Disc player is capable of playing the following
types of 4.7 inches (12 cm) diameter discs:
• BD: BDMV (Profile 1.1), BDAV (Profile 1.1)
• DVD: DVD-Video, DVD-Audio, AVCREC, AVCHD,

DVD-VR

• CD: CD-DA, VCD, CD-TEXT

548

MULTIMEDIA

• DVD/CD: MP3, WMA, AAC, DivX (versions 3 – 6)

profile 3.0

DVD Region Codes

The Blu-ray Disc player and many DVD discs are coded by
geographic region. These region codes must match in order
for the disc to play. If the region code for the DVD disc does
not match the region code for the player, the disc will not
play.

DVD Audio Support

When a DVD-Audio disc is inserted in the Blu-ray Disc
player, the DVD-Audio title on the disc is played by default
(most DVD-Audio discs also have a Video title, but the
Video title is ignored). All multi-channel program material
is automatically mixed down to two channels, which may
result in a lowered apparent volume level. If you increase
the volume level to account for this change in level,
remember to lower the volume before changing the disc or
to another mode.

Recorded Discs

The Blu-ray Disc player will play CD-R and CD-RW discs
recorded in CD-Audio or Video-CD format, or as a CD-
ROM containing MP3 or WMA files. The player will also

play DVD-Video content recorded to a DVD-R or DVD-RW
disc. DVD-ROM discs (either pressed or recorded) are not
supported.

If you record a disc using a personal computer, there may
be cases where the Blu-ray Disc player may not be able to
play some or the entire disc, even if it is recorded in a
compatible format and is playable on other players. To help
avoid playback problems, use the following guidelines
when recording discs.
• Open sessions are ignored. Only sessions that are closed

are playable.

• For multi-session CDs that contain only multiple CD-

Audio sessions, the player will renumber the tracks so
each track number is unique.

• For CD Data (or CD-ROM) discs, always use the ISO-

9660 (Level 1 or Level 2), Joliet, or Romeo format. Other
formats (such as UDF, HFS, or others) are not supported.

• The player recognizes a maximum of 512 files and 99

folders per CD-R and CD-RW disc.

• Mixed media recordable DVD formats will only play the

Video_TS portion of the disc.

MULTIMEDIA

549

If you are still having trouble writing a disc that is playable
in the Blu-ray Disc player, check with the disc recording
software publisher for more information about burning
playable discs.

The recommended method for labeling recordable discs
(CD-R, CD-RW, and DVD-R) is with a permanent marker.
Do not use adhesive labels as they may separate from the
disc, become stuck, and cause permanent damage to the
DVD player.

Compressed Audio Files (MP3 and WMA)

The Blu-ray Disc player is capable of playing MP3
(MPEG-1 Audio Layer 3) and WMA (Windows Media
Audio) files from a CD Data disc (usually a CD-R or
CD-RW).
• The Blu-ray Disc player always uses the file extension to

determine the audio format, so MP3 files must always
end with the extension

⬙.mp3⬙ or ⬙.MP3⬙ and WMA files

must always end with the extension

⬙.wma⬙ or ⬙.WMA⬙.

To prevent incorrect playback, do not use these exten-
sions for any other types of files.

• For MP3 files, only version 1 ID3 tag data (such as artist

name, track title, album, etc.) are supported.

• Any file that is copy protected (such as those down-

loaded from many online music stores) will not play. The
Blu-ray player will automatically skip the file and begin
playing the next available file.

• Other compression formats such as AAC, MP3 Pro, Ogg

Vorbis, and ATRAC3 will not play. The Blu-ray player
will automatically skip the file and begin playing the
next available file.

• If you are creating your own files, the recommended

fixed bit rate for MP3 files is between 96 and 192Kbps
and the recommended fixed bit rate for WMA files is
between 64 and 192Kbps. Variable bit rates are also
supported. For both formats, the recommended sample
rate is either 44.1kHz or 48kHz.

• To change the current file, use the remote control’s or

Blu-ray Disc player’s

䉱 button to advance to the next

file, or the

䉲 button to return to the start of the current

or previous file.

550

MULTIMEDIA

Disc Errors

If the Blu-ray Disc player is unable to read the disc, a

⬙Disc

Error

⬙ message is displayed on the rear screen and Radio

displays. A dirty, damaged, or incompatible disc format are
all potential causes for a

⬙Disc Error⬙ message.

If a disc has a damaged track which results in audible or
visible errors that persists for two seconds, the Blu-ray Disc
player will attempt to continue playing the disc by skip-
ping forward one to three seconds at a time. If the end of
the disc is reached, the Blu-ray Disc player will return to
the beginning of the disc and attempt to play the start of
the first track.

The Blu-ray Disc player may shut down during extremely
hot conditions, such as when the vehicle’s interior tem-
perature is above 120° F (48.9° C). When this occurs, the
player will display

⬙High Temp⬙ and will shut off the rear

seat displays until a safe temperature is reached. This
shutdown is necessary to protect the optics of the Blu-ray
Disc player.

Product Agreement

This product incorporates copyright protection technology
that is protected by U.S. patents and other intellectual

property rights. Use of this copyright protection technol-
ogy must be authorized by Macrovision, and is intended
for home or other limited viewing uses otherwise autho-
rized by Macrovision. Reverse engineering or disassembly
is prohibited.

Dolby Digital and MLP Lossless Manufactured un-

der license from Dolby Laboratories.

⬙Dolby⬙, ⬙MLP Loss-

less

⬙, and the double-D symbol are trademarks of Dolby

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being on in
your vehicle can cause erratic or noisy performance from
your radio. This condition may be lessened or eliminated
by relocating the mobile phone antenna. This condition is
not harmful to the radio. If your radio performance does
not satisfactorily “clear” by the repositioning of the an-
tenna, it is recommended that the radio volume be turned
down or off during mobile phone operation when not
using Uconnect (if equipped).

MULTIMEDIA

551

Regulatory And Safety Information

USA/CANADA

Exposure to Radio Frequency Radiation

The radiated output power of the internal wireless radio is
far below the FCC and IC radio frequency exposure limits.
Nevertheless, the wireless radio will be used in such a
manner that the radio is 8 in (20 cm) or further from the
human body.

The internal wireless radio operates within guidelines
found in radio frequency safety standards and recommen-
dations, which reflect the consensus of the scientific com-
munity.

The radio manufacturer believes the internal wireless radio
is safe for use by consumers. The level of energy emitted is
far less than the electromagnetic energy emitted by wire-
less devices such as mobile phones. However, the use of
wireless radios may be restricted in some situations or
environments, such as aboard airplanes. If you are unsure
of restrictions, you are encouraged to ask for authorization
before turning on the wireless radio.

The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:

This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, in-

cluding interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressly approved

by the party responsible for compliance could void the
user’s authority to operate the equipment.

552

MULTIMEDIA

NOTE:
• This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio commu-
nications. However, there is no guarantee that interfer-
ence will not occur in a particular installation.

• If this equipment does cause harmful interference to

radio or television reception, which can be determined
by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of
the following measures:

1. Increase the separation between the equipment and

receiver.

2. Consult an authorized dealer or an experienced radio

technician for help.

UCONNECT VOICE RECOGNITION QUICK TIPS

Introducing Uconnect

Start using Uconnect Voice Recognition with these helpful
quick tips. It provides the key Voice Commands and tips
you need to know to control your Uconnect system.

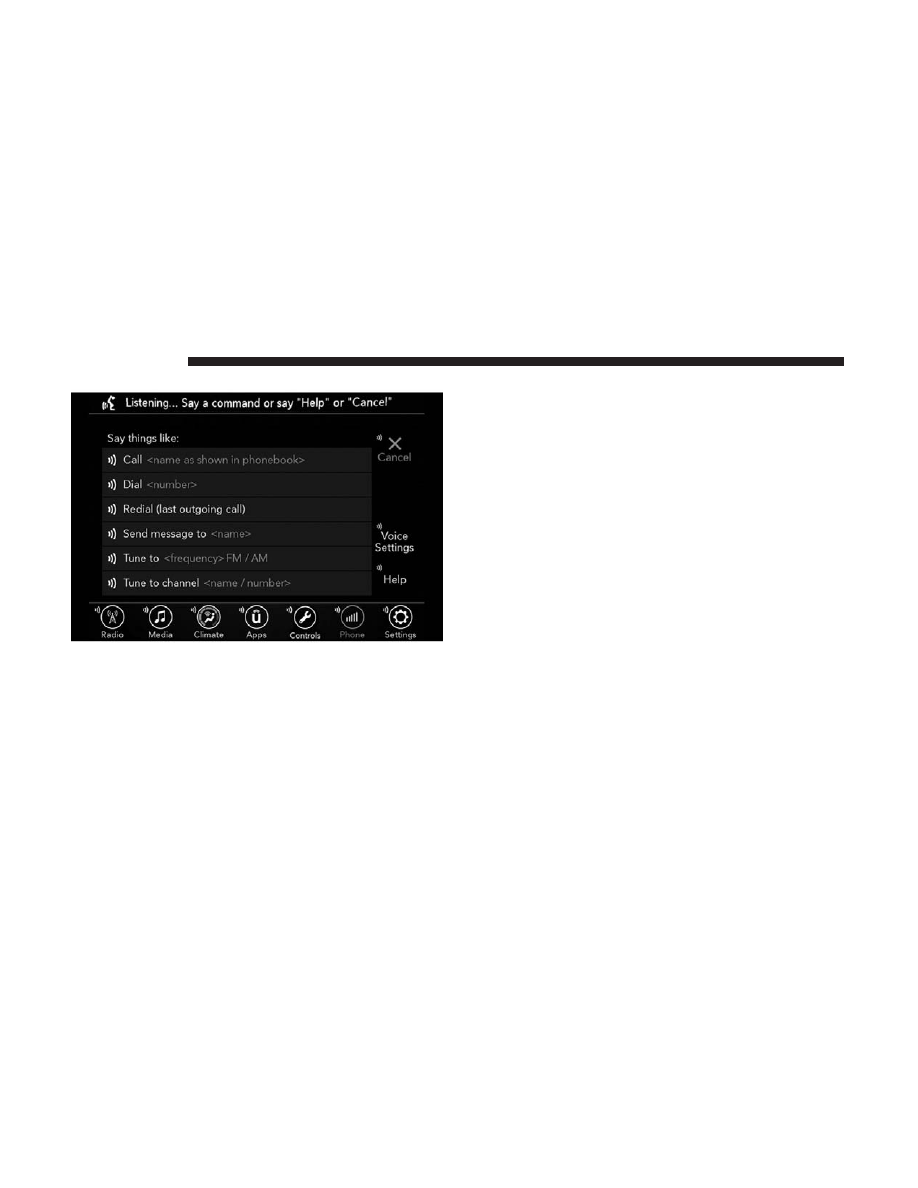

Uconnect 4

MULTIMEDIA

553

NOTE:

If you see the NAV icon on the bottom bar, or in the

Apps menus, of your touchscreen, you have the Uconnect
4C NAV system. If not, you have a Uconnect 4C system.

Get Started

All you need to control your Uconnect system with your
voice are the buttons on your steering wheel.

Helpful hints for using Voice Recognition:
• Visit UconnectPhone.com to check mobile device and

feature compatibility and to find phone pairing instruc-
tions.

• Reduce background noise. Wind and passenger conver-

sations are examples of noise that may impact recogni-
tion.

• Speak clearly at a normal pace and volume while facing

straight ahead. The microphone is positioned on the
rearview mirror and aimed at the driver.

• Each time you give a Voice Command, you must first

push either the Voice Recognition (VR) or Phone button,
wait until after the beep, then say your Voice Command.

• You can interrupt the help message or system prompts

by pushing the VR or Phone button and saying a Voice
Command from the current category.

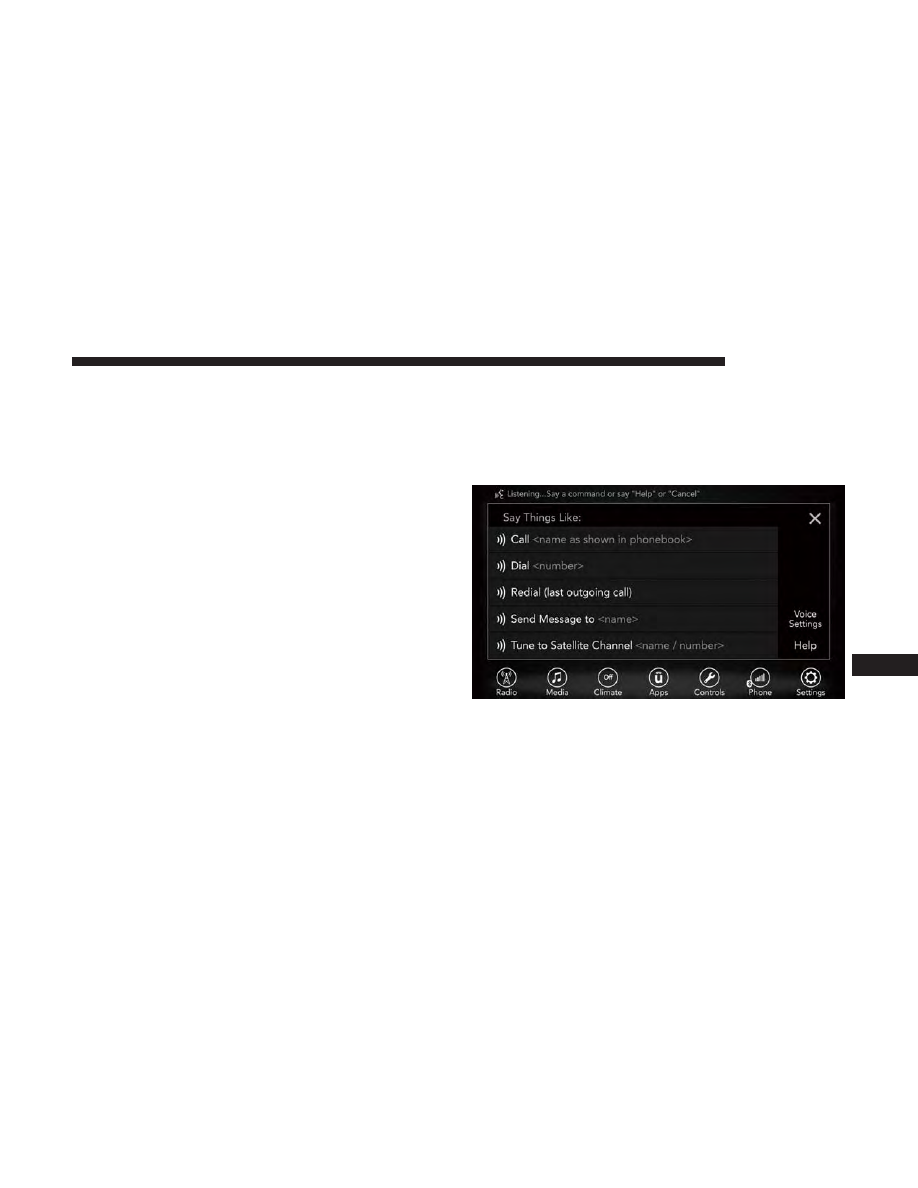

Uconnect 4C/4C NAV

554

MULTIMEDIA

Basic Voice Commands

The basic Voice Commands below can be given at any
point while using your Uconnect system.

Push the VR button

. After the beep, say:

• “ Cancel” to stop a current voice session
• “ Help” to hear a list of suggested Voice Commands
• “ Repeat” to listen to the system prompts again
Notice the visual cues that inform you of your voice
recognition system’s status. Cues appear on the touch-
screen.

Radio

Use your voice to quickly get to the AM, FM or SiriusXM
Satellite Radio stations you would like to hear. (Subscrip-
tion or included SiriusXM Satellite Radio trial required.)

Push the VR button

. After the beep, say:

• “ Tune to ninety-five-point-five FM”
• “ Tune to Satellite Channel Hits 1”

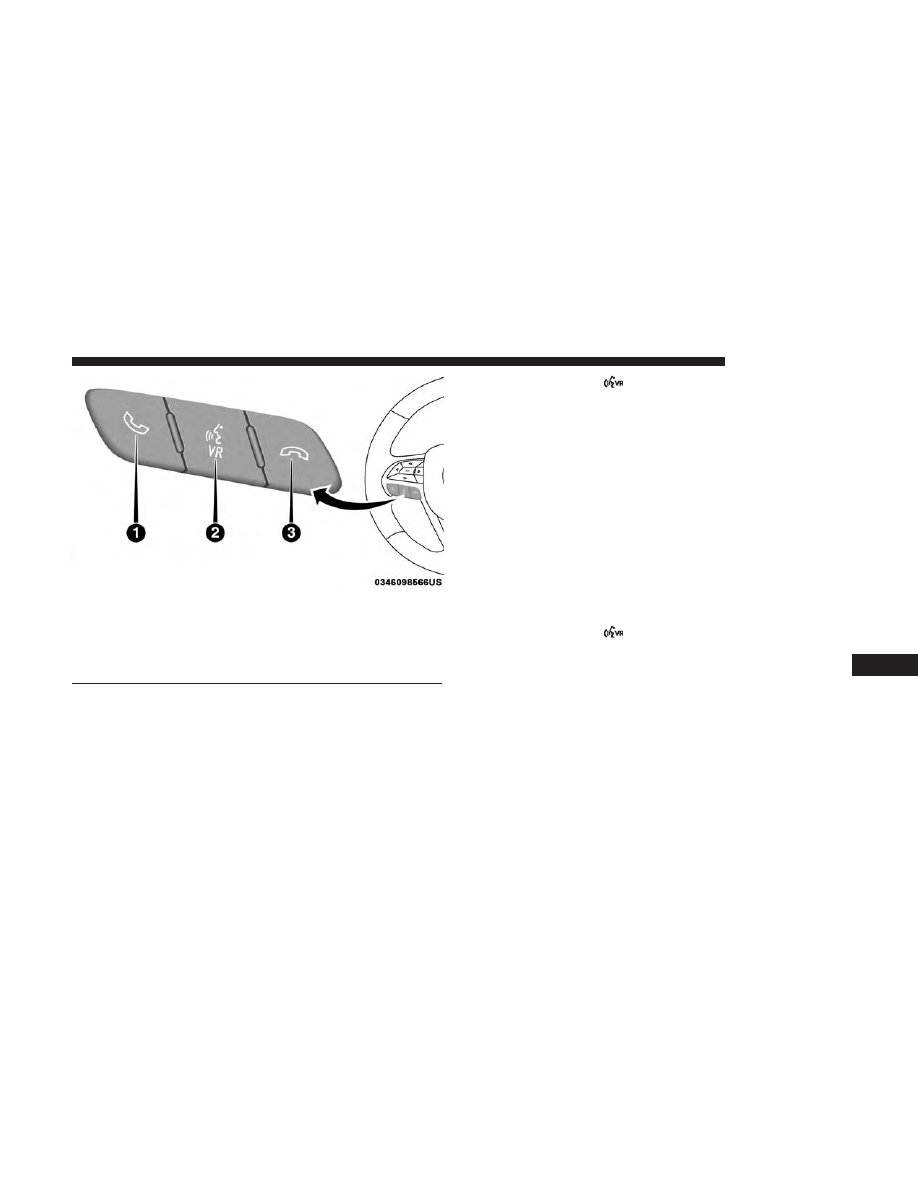

Uconnect Voice Command Buttons

1 — Push To Initiate Or To Answer A Phone Call, Send Or Receive
A Text
2 — For All Radios: Push To Begin Voice Commands
3 — Push To End Call

MULTIMEDIA

555

TIP:

At any time, if you are not sure of what to say or want

to learn a Voice Command, push the VR button

and say,

“ Help.” The system provides you with a list of com-
mands.

Media

Uconnect offers connections via USB, Bluetooth and auxil-
iary ports (if equipped). Voice operation is only available
for connected USB and AUX devices.

Push the VR button

. After the beep, say one of the

following commands and follow the prompts to switch
your media source or choose an artist.

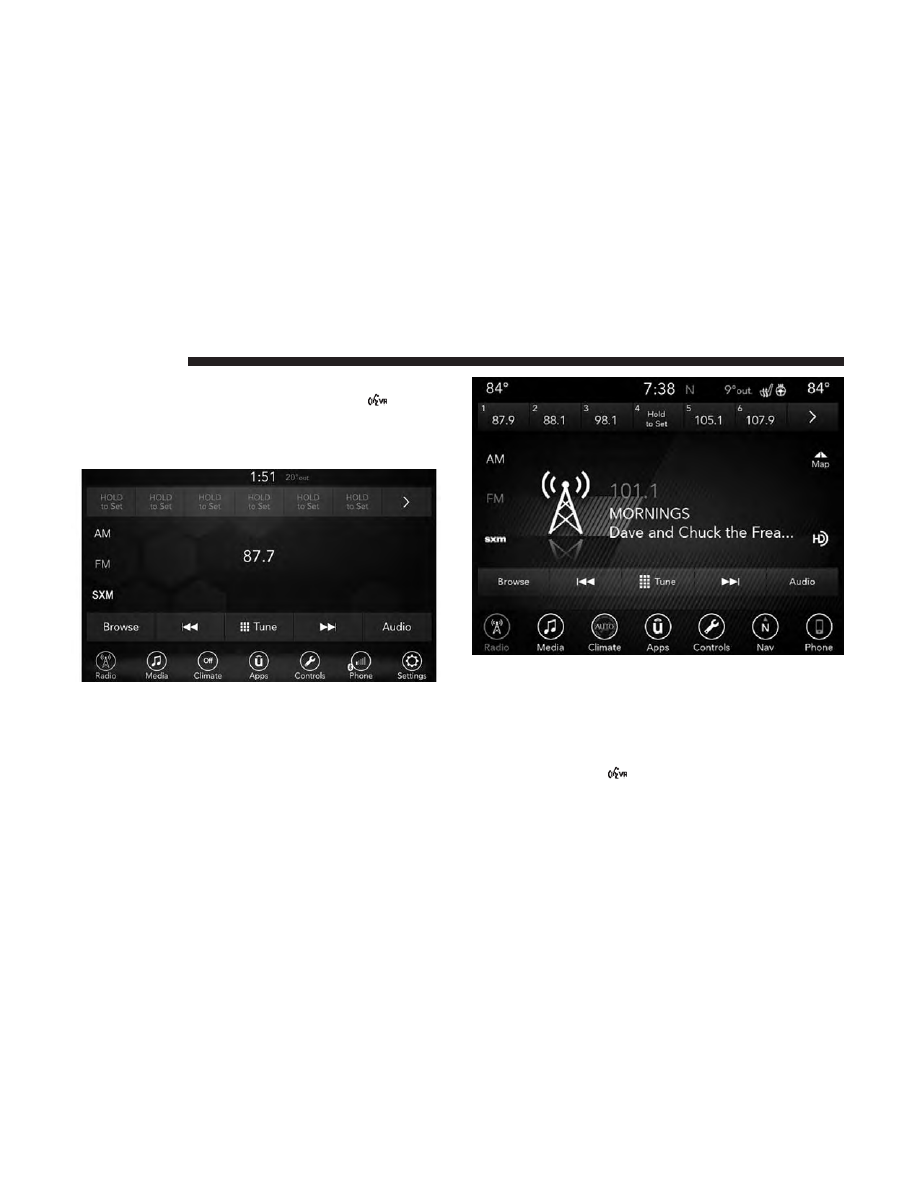

Uconnect 4 Radio

Uconnect 4C/4C NAV Radio

556

MULTIMEDIA

Dodge Durango (2019 year). Manual - part 34
