3. For the front tire, place the jack on the body flange just

behind the front tire. Do not raise the vehicle until you
are sure the jack is fully engaged.

4. For a rear tire, place the jack in the slot on the rear

tie-down bracket, just forward of the rear tire. Do not
raise the vehicle until you are sure the jack is fully
engaged.

5. Raise the vehicle by turning the jack screw clockwise.

Raise the vehicle just enough to remove the flat tire.

WARNING!

Raising the vehicle higher than necessary can make the
vehicle less stable. It could slip off the jack and hurt
someone near it. Raise the vehicle only enough to
remove the tire.

Front Jacking Location

Rear Jacking Location

IN CASE OF EMERGENCY

397

6. Remove the lug nuts and wheel.

7. Install the spare wheel/tire on the vehicle and install the

lug nuts with the cone-shaped end toward the wheel.
Lightly tighten the nuts.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the wheel nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.

CAUTION!

Be sure to mount the spare tire with the valve stem
facing outward. The vehicle could be damaged if the
spare tire is mounted incorrectly.

8. Lower the vehicle by turning the jack screw counter-

clockwise, and remove the jack and wheel blocks.

9. Finish tightening the lug nuts. Push down on the

wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until each
nut has been tightened twice. Refer to “Torque Specifi-
cations” in “Technical Specifications” for proper lug nut
torque. If in doubt about the correct tightness, have
them checked with a torque wrench by an authorized
dealer or at a service station.

Mounting Spare Tire

398

IN CASE OF EMERGENCY

10. Push out the small center cap using the jack tool from

inside the aluminum road wheel and position the
wheel behind the rear bumper with the protective plate
facing outward.

NOTE:

The plastic plate will prevent the road wheel from

being scratched when sliding it under the vehicle.

11. Insert the two long tubes on the plastic protective plate

in the lug holes of the road wheel. Push the end of the
winch’s cable, spring, steel sleeve and stamped cone
shape wheel plate though the road wheel and protec-
tive plate.

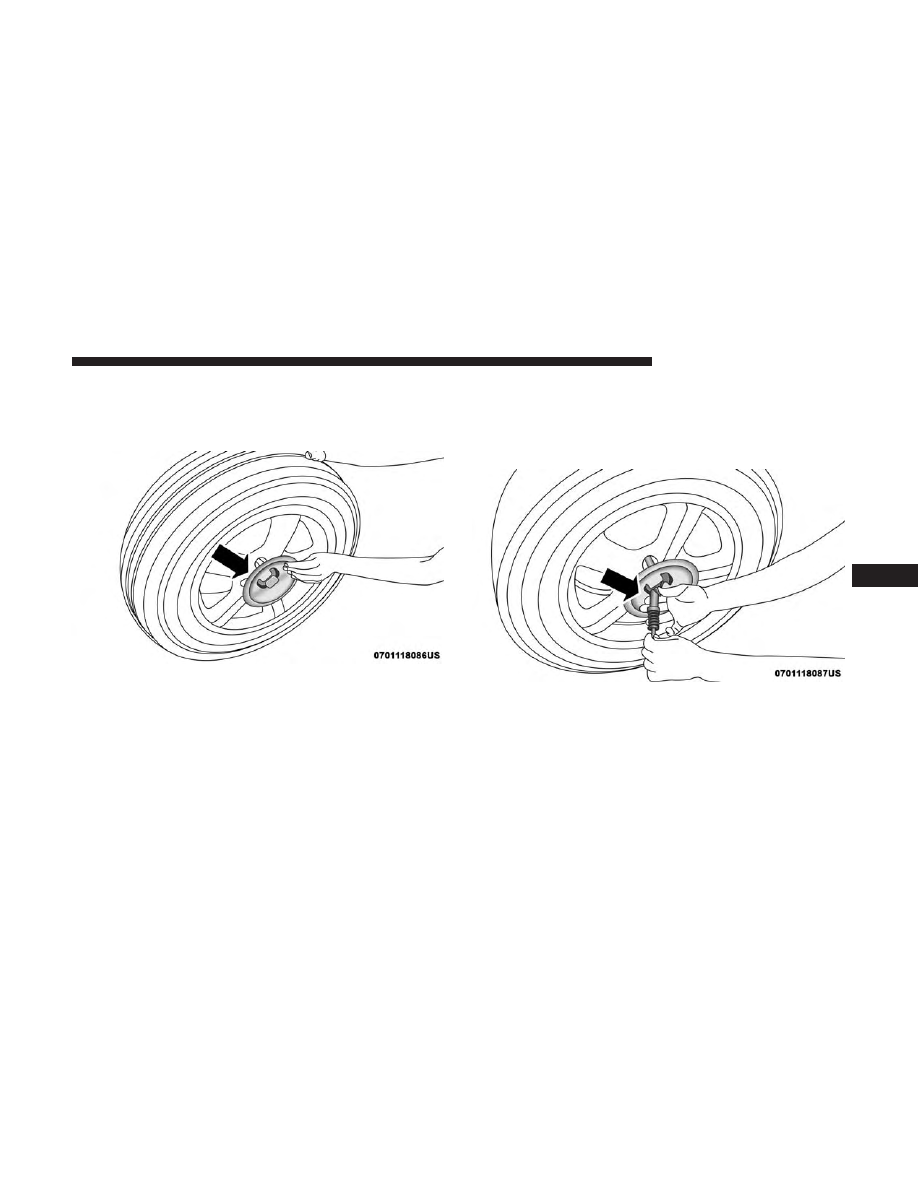

Installing Protective Plate On Damaged Wheel

Installing Winch

IN CASE OF EMERGENCY

399

12. Slide the road wheel on the ground using the protec-

tive plate until it is directly under the winch and
between the rear bumper and exhaust system heat
shields. Raise the tire by turning the lug wrench on the
winch extension clockwise until it clicks/ratchets three
times to make sure the cable is tight.

NOTE:

Double check to ensure the tire is snug against the

underbody of the vehicle. Damage to the winch cable may
result if the vehicle is driven with the tire loose.

CAUTION!

The winch mechanism is designed for use with the
jack wrench extension tool only. Use of air wrench or
power tool may damage the winch.

13. Lower the jack to the fully closed position. Return the

tools to the proper positions in the tool bag. Fold the
flap on the tool bag under the tools and roll the tools in
the bag underneath the others. Use the hook and loop
fasteners to secure the tool bag to the jack with the lug
wrench on the forward side of the jack. Expand the jack
on the bracket by turning the thumb screw clockwise
until it is tight to prevent rattles.

14. Reinstall the plastic plug into the floor of the cargo

area. Roll up and store the Jack, Tool Kit and Tire
Changing Instructions. Reinstall the cover for the jack
in the rear storage bin.

15. Have the aluminum road wheel and tire repaired as

soon as possible and properly secure the spare tire, jack
and tool kit.

Road Wheel Installed In Spare Location

400

IN CASE OF EMERGENCY

WARNING!

A loose tire or jack thrown forward in a collision or
hard stop, could endanger the occupants of the vehicle.
Always stow the jack parts and the spare tire in the
places provided.

Road Tire Installation

1. Mount the road tire on the axle.

2. Install the remaining lug nuts with the cone shaped end

of the nut toward the wheel. Lightly tighten the lug
nuts.

WARNING!

To avoid the risk of forcing the vehicle off the jack, do
not tighten the wheel nuts fully until the vehicle has
been lowered. Failure to follow this warning may
result in serious injury.

3. Lower the vehicle to the ground by turning the jack

handle counterclockwise.

4. Refer to “Torque Specifications” in “Technical Specifica-

tions” for proper lug nut torque.

5. After 25 miles (40 km), check the lug nut torque with a

torque wrench to ensure that all lug nuts are properly
seated against the wheel.

JUMP STARTING

If your vehicle has a discharged battery, it can be jump
started using a set of jumper cables and a battery in another
vehicle, or by using a portable battery booster pack. Jump
starting can be dangerous if done improperly, so please
follow the procedures in this section carefully.

WARNING!

Do not attempt jump starting if the battery is frozen. It
could rupture or explode and cause personal injury.

CAUTION!

Do not use a portable battery booster pack or any other
booster source with a system voltage greater than 12
Volts or damage to the battery, starter motor, alternator
or electrical system may occur.

NOTE:

When using a portable battery booster pack, follow

the manufacturer’s operating instructions and precautions.

IN CASE OF EMERGENCY

401

Preparations For Jump Start

The battery in your vehicle is located under the passenger’s
front seat. There are remote terminals located under the
hood to assist in jump starting.

WARNING!

• Take care to avoid the radiator cooling fan whenever

the hood is raised. It can start anytime the ignition
switch is ON. You can be injured by moving fan
blades.

• Remove any metal jewelry such as rings, watch

bands and bracelets that could make an inadvertent
electrical contact. You could be seriously injured.

• Batteries contain sulfuric acid that can burn your

skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.

NOTE:

Be sure that the disconnected cable ends do not

touch each other, or either vehicle, until properly con-
nected for jump starting.

1. Apply the parking brake, shift the automatic transmis-

sion into PARK and turn the ignition OFF.

2. Turn off the heater, radio, and all unnecessary electrical

accessories.

Jump Starting Locations

(+) — Remote Positive Post (Covered With Protective Cap)
(-) — Remote Negative Post

402

IN CASE OF EMERGENCY

3. Remove the protective cover over the remote positive

(+)

battery post. Pull upward on the cover to remove it.

4. If using another vehicle to jump start the battery, park

the vehicle within the jumper cables reach, apply the
parking brake and make sure the ignition is OFF.

WARNING!

Do not allow vehicles to touch each other as this could
establish a ground connection and personal injury
could result.

Jump Starting Procedure

WARNING!

Failure to follow this jump starting procedure could
result in personal injury or property damage due to
battery explosion.

CAUTION!

Failure to follow these procedures could result in
damage to the charging system of the booster vehicle
or the discharged vehicle.

NOTE:

Make sure at all times that unused ends of jumper

cables are not contacting each other or either vehicle while
making connections.

Connecting The Jumper Cables

1. Connect the positive (+) end of the jumper cable to the

remote positive (+) post of the discharged vehicle.

2. Connect the opposite end of the positive (+) jumper

cable to the positive (+) post of the booster battery.

3. Connect the negative end (-) of the jumper cable to the

negative (-) post of the booster battery.

4. Connect the opposite end of the negative (-) jumper

cable to the remote negative (-) post of the vehicle with
the discharged battery.

WARNING!

Do not connect the jumper cable to the negative (-) post
of the discharged battery. The resulting electrical spark
could cause the battery to explode and could result in
personal injury. Only use the specific ground point, do
not use any other exposed metal parts.

IN CASE OF EMERGENCY

403

5. Start the engine in the vehicle that has the booster

battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.

CAUTION!

Do not run the booster vehicle engine above 2,000 rpm
since it provides no charging benefit, wastes fuel, and
can damage booster vehicle engine.

6. Once the engine is started, remove the jumper cables in

the reverse sequence:

Disconnecting The Jumper Cables

1. Disconnect the negative (-) end of the jumper cable from

the remote negative (-) post of the discharged vehicle.

2. Disconnect the opposite end of the negative (-) jumper

cable from the negative (-) post of the booster battery.

3. Disconnect the positive (+) end of the jumper cable from

the positive (+) post of the booster battery.

4. Disconnect the opposite end of the positive (+) jumper

cable from the remote positive (+) post of the discharged
vehicle.

5. Reinstall the protective cover over the remote positive

(+)

post of the discharged vehicle.

If frequent jump starting is required to start your vehicle
you should have the battery and charging system tested at
an authorized dealer.

CAUTION!

Accessories plugged into the vehicle power outlets
draw power from the vehicle’s battery, even when not
in use (i.e., cellular devices, etc.). Eventually, if plugged
in long enough without engine operation, the vehicle’s
battery will discharge sufficiently to degrade battery
life and/or prevent the engine from starting.

IF YOUR ENGINE OVERHEATS

In any of the following situations, you can reduce the
potential for overheating by taking the appropriate action.
• On the highways — slow down.
• In city traffic — while stopped, place the transmission in

NEUTRAL, but do not increase the engine idle speed
while preventing vehicle motion with the brakes.

404

IN CASE OF EMERGENCY

NOTE:

There are steps that you can take to slow down an

impending overheat condition:
• If your air conditioner (A/C) is on, turn it off. The A/C

system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.

• You can also turn the temperature control to maximum

heat, the mode control to floor and the blower control to
high. This allows the heater core to act as a supplement
to the radiator and aids in removing heat from the
engine cooling system.

WARNING!

You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If you
see or hear steam coming from under the hood, do not
open the hood until the radiator has had time to cool.
Never try to open a cooling system pressure cap when
the radiator or coolant bottle is hot.

CAUTION!

Driving with a hot cooling system could damage your
vehicle. If the temperature gauge reads HOT (H), pull

(Continued)

CAUTION! (Continued)

over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back
into the normal range. If the pointer remains on HOT
(H), and you hear continuous chimes, turn the engine
off immediately and call for service.

MANUAL PARK RELEASE

WARNING!

Always secure your vehicle by fully applying the
parking brake before activating the Manual Park Re-
lease. In addition, you should be seated in the driver’s
seat with your foot firmly on the brake pedal when
activating the Manual Park Release. Activating the
Manual Park Release will allow your vehicle to roll
away if it is not secured by the parking brake, or by
proper connection to a tow vehicle. Activating the
Manual Park Release on an unsecured vehicle could
lead to serious injury or death for those in or around
the vehicle.

IN CASE OF EMERGENCY

405

In order to move the vehicle in cases where the transmis-
sion will not shift out of PARK (such as a dead battery), a
Manual Park Release is available.

Follow these steps to use the Manual Park Release:

1. Firmly apply the parking brake.

2. Open the center console and locate the Manual Park

Release cover, remove it by snapping the cover away
from the console hinges.

3. Press and maintain firm pressure on the brake pedal.

4. Using a screwdriver or similar tool, push the metal latch

in towards the tether strap.

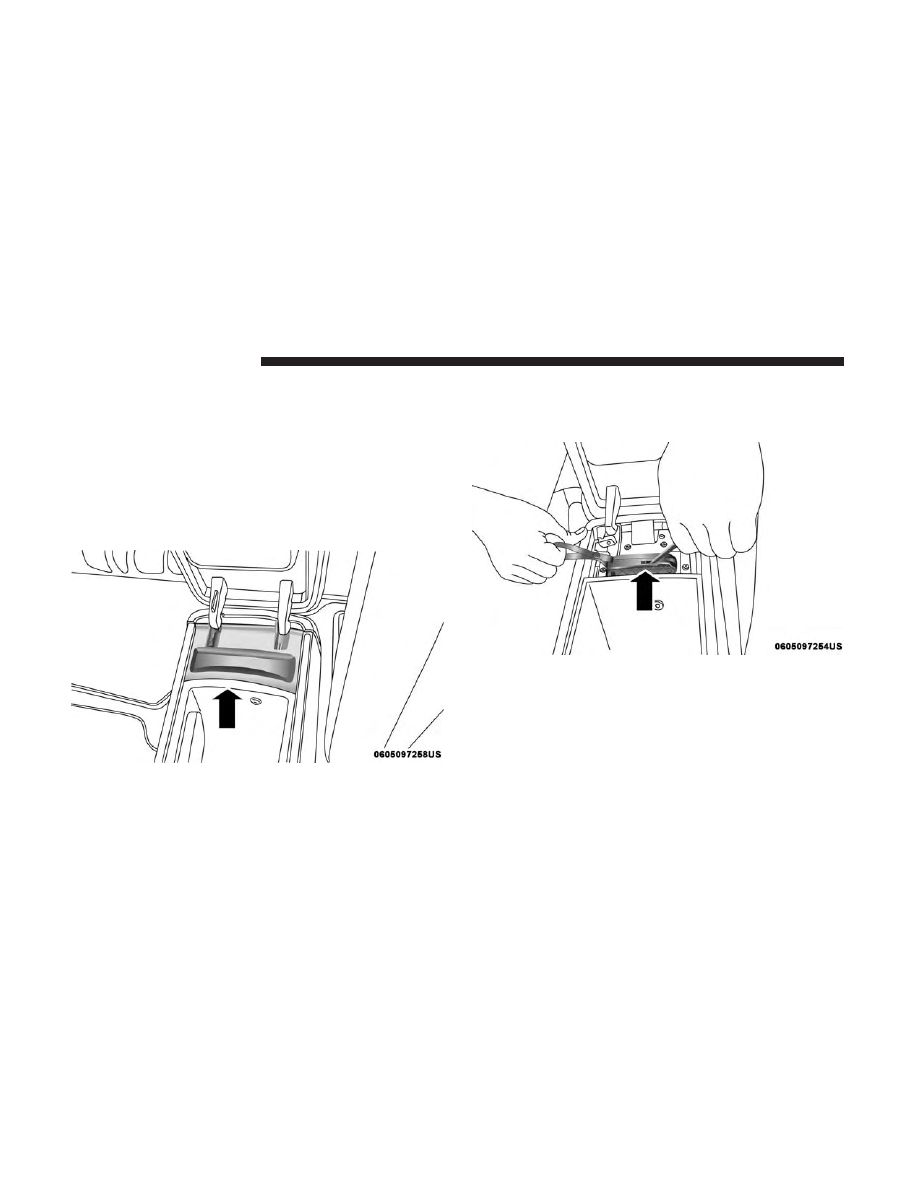

Manual Park Release Cover

Release Latch

406

IN CASE OF EMERGENCY

5. While the metal latch is in the open position, pull

upward on the tether strap until the lever clicks and
latches in the released position. The transmission is now
out of PARK and the vehicle can be moved.

CAUTION!

Closing the armrest while the Manual Park Release is
activated may damage the Manual Park Release
mechanism, the transmission, and/or the armrest.

NOTE:

To prevent the vehicle from rolling unintentionally,

firmly apply the parking brake.

To Disengage The Manual Park Release Lever:

1. To disengage the Manual Park Release, apply tension

upward while pushing the release latch towards the
tether to unlock the lever.

Released Position

Release Latch

IN CASE OF EMERGENCY

407

2. Once the tension has been released and the lever has

been unlocked, be sure it is stowed properly and locks
into position.

NOTE:

Be sure to replace the cover by snapping it back in

place.

FREEING A STUCK VEHICLE

If your vehicle becomes stuck in mud, sand or snow, it can
often be moved using a rocking motion. Turn the steering
wheel right and left to clear the area around the front
wheels. Push and hold the lock button on the gear selector.
Then, shift back and forth between DRIVE and REVERSE
while gently pressing the accelerator.

NOTE:

Shifts between DRIVE and REVERSE can only be

achieved at wheel speeds of 5 mph (8 km/h) or less.
Whenever the transmission remains in NEUTRAL for more
than two seconds, you must press the brake pedal to
engage DRIVE or REVERSE.

Use the least amount of accelerator pedal pressure that will
maintain the rocking motion without spinning the wheels
or racing the engine.

NOTE:

Push the

⬙ESC Off⬙ switch, to place the Electronic

Stability Control (ESC) system in

⬙Partial Off⬙ mode, before

rocking the vehicle. Refer to “Electronic Brake Control” in
“Safety” for further information. Once the vehicle has been
freed, push the

⬙ESC Off⬙ switch again to restore ⬙ESC On⬙

mode.

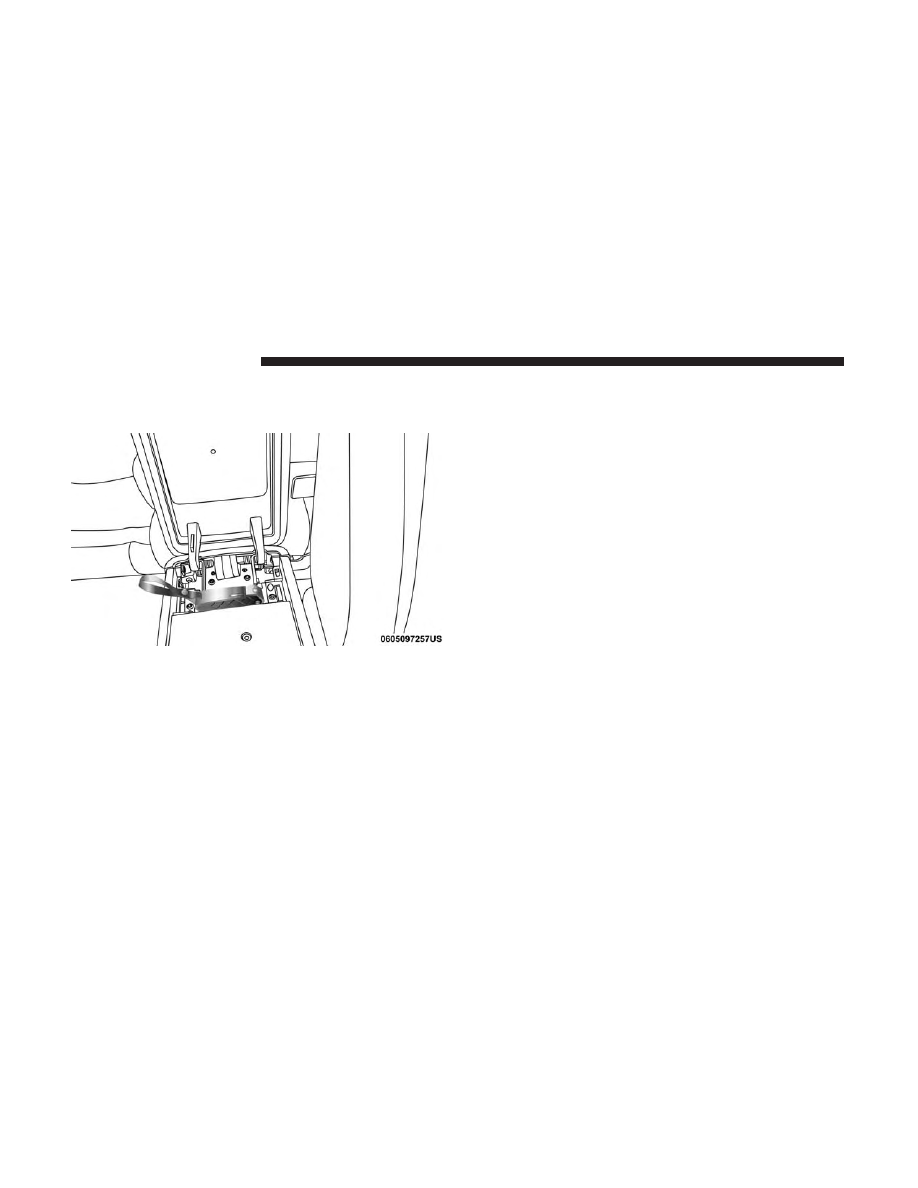

Stowed Position

408

IN CASE OF EMERGENCY

WARNING!

Fast spinning tires can be dangerous. Forces generated
by excessive wheel speeds may cause damage, or even
failure, of the axle and tires. A tire could explode and
injure someone. Do not spin your vehicle’s wheels
faster than 30 mph (48 km/h) or for longer than 30
seconds continuously without stopping when you are
stuck and do not let anyone near a spinning wheel, no
matter what the speed.

CAUTION!

• Racing the engine or spinning the wheels may lead

to transmission overheating and failure. Allow the
engine to idle with the transmission in NEUTRAL
for at least one minute after every five rocking-
motion cycles. This will minimize overheating and

(Continued)

CAUTION! (Continued)

reduce the risk of transmission failure during pro-
longed efforts to free a stuck vehicle.

• When “rocking” a stuck vehicle by shifting between

DRIVE and REVERSE, do not spin the wheels faster
than 15 mph (24 km/h), or drivetrain damage may
result.

• Revving the engine or spinning the wheels too fast

may lead to transmission overheating and failure. It
can also damage the tires. Do not spin the wheels
above 30 mph (48 km/h) while in gear (no transmis-
sion shifting occurring).

TOWING A DISABLED VEHICLE

This section describes procedures for towing a disabled
vehicle using a commercial towing service. If the transmis-
sion and drivetrain are operable, disabled vehicles may
also be towed as described under “Recreational Towing” in
“Starting And Operating”.

IN CASE OF EMERGENCY

409

Towing Con-

dition

Wheels OFF
The Ground

Rear-Wheel Drive Models

All-Wheel

Drive Models

With Single-

Speed Trans-

fer Case

All-Wheel Drive Models With

Two-Speed Transfer Case

Flat Tow

NONE

If Transmission Is Operable:

• Transmission in NEUTRAL

• 30 mph (48 km/h) max

speed

• 30 miles (48 km) max dis-

tance

NOT AL-

LOWED

See Instructions in “Recre-

ational Towing” in “Starting

And Operating”

• Transmission in PARK

• Transfer case in NEUTRAL

(N)

• Tow in forward direction

Wheel Lift Or

Dolly Tow

Front

If Transmission Is Operable:

• Transmission in NEUTRAL

• 30 mph (48 km/h) max

speed

• 30 miles (48 km) max dis-

tance

NOT AL-

LOWED

NOT ALLOWED

Rear

NOT AL-

LOWED

NOT ALLOWED

Flatbed

ALL

BEST METHOD

410

IN CASE OF EMERGENCY

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main
structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.

If the key fob is unavailable, or the vehicle’s battery is
discharged, refer to “Manual Park Release” in this section
for instructions on shifting the transmission out of PARK
for towing or loading onto a flatbed truck.

CAUTION!

• Do not use sling type equipment when towing.

Vehicle damage may occur.

• When securing the vehicle to a flat bed truck, do not

attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.

Rear Wheel Drive Models

The manufacturer recommends towing your vehicle with
all four wheels OFF the ground using a flatbed.

If flatbed equipment is not available, and the transmission
is operable, the vehicle may be towed (with rear wheels on
the ground) under the following conditions:
• The transmission must be in NEUTRAL. Refer to

⬙Manual Park Release⬙ in this section for instructions on
shifting the transmission to NEUTRAL when the engine
is off.

• The towing speed must not exceed 30 mph (48 km/h).
• The towing distance must not exceed 30 miles (48 km).

CAUTION!

• Towing faster than 30 mph (48 km/h) or farther than

30 miles (48 km) with rear wheels on the ground can
cause severe transmission damage. Damage from
improper towing is not covered under the New
Vehicle Limited Warranty.

If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 30
miles (48 km), tow with the rear wheels OFF the ground.

IN CASE OF EMERGENCY

411

Acceptable methods are to tow the vehicle on a flatbed, or
with the front wheels raised and the rear wheels on a
towing dolly, or (when using a suitable steering wheel
stabilizer to hold the front wheels in the straight position)
with the rear wheels raised and the front wheels on the
ground.

All Wheel Drive Models

The manufacturer recommends towing with all wheels
OFF

the ground. Acceptable methods are to tow the vehicle

on a flatbed or with one end of the vehicle raised and the
opposite end on a towing dolly.

If flatbed equipment is not available, and the transfer case
is operable, vehicles with a two-speed transfer case may
be towed (in the forward direction, with ALL wheels on the
ground), IF the transfer case is in NEUTRAL (N) and the
transmission is in PARK. Refer to “Recreational Towing” in
“Starting And Operating” for detailed instructions.

Vehicles equipped with a single-speed transfer case have
no NEUTRAL position, and therefore must be towed will
all four wheels OFF the ground.

CAUTION!

• Front or rear wheel lifts must not be used (if the

remaining wheels are on the ground). Internal dam-
age to the transmission or transfer case will occur if
a front or rear wheel lift is used when towing.

• Towing this vehicle in violation of the above require-

ments can cause severe transmission and/or transfer
case damage. Damage from improper towing is not
covered under the New Vehicle Limited Warranty.

ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS)

This vehicle is equipped with an Enhanced Accident
Response System.

Please refer to “Occupant Restraint Systems” in “Safety”
for further information on the Enhanced Accident Re-
sponse System (EARS) function.

412

IN CASE OF EMERGENCY

Dodge Durango (2019 year). Manual - part 25
