ENGINE BLOCK HEATER — IF EQUIPPED

The engine block heater warms the engine, and permits
quicker starts in cold weather. Connect the cord to a
standard 110-115 Volt AC electrical outlet with a grounded,
three-wire extension cord.

The engine block heater must be plugged in at least one
hour to have an adequate warming effect on the engine.

The engine block heater cord is located:
• 3.6L Engine — Coiled and strapped to the engine oil

dipstick tube.

• 5.7L Engine — Bundled and fastened to the injector

harness.

WARNING!

Remember to disconnect the engine block heater cord
before driving. Damage to the 110-115 Volt electrical
cord could cause electrocution.

ENGINE BREAK-IN RECOMMENDATIONS

A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.

Drive moderately during the first 300 miles (500 km). After
the initial 60 miles (100 km), speeds up to 50 or 55 mph (80
or 90 km/h) are desirable.

While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.

The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil changes
should be consistent with anticipated climate conditions
under which vehicle operations will occur. For the recom-
mended viscosity and quality grades, refer to “Dealer
Service” in “Servicing And Maintenance”.

CAUTION!

Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.

NOTE:

A new engine may consume some oil during its

first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and not
interpreted as a problem. Please check your oil level with
the engine oil indicator often during the break in period.
Add oil as required.

STARTING AND OPERATING

269

PARKING BRAKE

Before leaving the vehicle, make sure that the parking
brake is fully applied and place the gear selector in the
PARK position.

The foot operated parking brake is located below the lower
left corner of the instrument panel. To apply the park
brake, firmly push the park brake pedal fully. To release the
parking brake, press the park brake pedal a second time
and let your foot up as you feel the brake disengage.

When the parking brake is applied with the ignition switch
in the ON mode, the Brake Warning Light in the instru-
ment cluster will illuminate.

NOTE:
• When the parking brake is applied and the transmission

is placed in gear, the Brake Warning Light will flash. If
vehicle speed is detected, a chime will sound to alert the
driver. Fully release the parking brake before attempting
to move the vehicle.

• This light only shows that the parking brake is applied.

It does not show the degree of brake application.

When parking on a hill, it is important to turn the front
wheels toward the curb on a downhill grade and away
from the curb on an uphill grade. Apply the parking brake
before placing the gear selector in PARK, otherwise the
load on the transmission locking mechanism may make it
difficult to move the gear selector out of PARK. The
parking brake should always be applied whenever the
driver is not in the vehicle.

Parking Brake

270

STARTING AND OPERATING

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake fully
when parked to guard against vehicle movement and
possible injury or damage.

• When leaving the vehicle, always remove the key fob

from the ignition and lock your vehicle.

• Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a number
of reasons. A child or others could be seriously or
fatally injured. Children should be warned not to
touch the parking brake, brake pedal or the gear
selector.

• When leaving the vehicle, always make sure the

keyless ignition node is in the OFF mode, remove the
key fob from the vehicle and lock the vehicle.

• Do not leave the key fob in or near the vehicle or in

a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.

(Continued)

WARNING! (Continued)

• Be sure the parking brake is fully disengaged before

driving; failure to do so can lead to brake failure and
a collision.

• Always fully apply the parking brake when leaving

your vehicle, or it may roll and cause damage or
injury. Also be certain to leave the transmission in
PARK. Failure to do so may allow the vehicle to roll
and cause damage or injury.

CAUTION!

If the Brake Warning Light remains on with the park-
ing brake released, a brake system malfunction is
indicated. Have the brake system serviced by an au-
thorized dealer immediately.

STARTING AND OPERATING

271

AUTOMATIC TRANSMISSION

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake fully
when exiting the vehicle to guard against vehicle
movement and possible injury or damage.

• Your vehicle could move and injure you and others if

it is not in PARK. Check by trying to move the
transmission gear selector out of PARK with the
brake pedal released. Make sure the transmission is
in PARK before exiting the vehicle.

• The transmission may not engage PARK if the ve-

hicle is moving. Always bring the vehicle to a
complete stop before shifting to PARK, and verify
that the transmission gear position indicator solidly
indicates PARK (P) without blinking. Ensure that the
vehicle is completely stopped, and the PARK posi-
tion is properly indicated, before exiting the vehicle.

(Continued)

WARNING! (Continued)

• It is dangerous to shift out of PARK or NEUTRAL if

the engine speed is higher than idle speed. If your
foot is not firmly pressing the brake pedal, the
vehicle could accelerate quickly forward or in re-
verse. You could lose control of the vehicle and hit
someone or something. Only shift into gear when the
engine is idling normally and your foot is firmly
pressing the brake pedal.

• Unintended movement of a vehicle could injure

those in or near the vehicle. As with all vehicles, you
should never exit a vehicle while the engine is
running. Before exiting a vehicle, always come to a
complete stop, then apply the parking brake, shift
the transmission into PARK, and turn the ignition
OFF. When the ignition is in the OFF mode, the
transmission is locked in PARK, securing the vehicle
against unwanted movement.

• When exiting the vehicle, always make sure the

ignition is in the OFF mode, remove the key fob from
the vehicle, and lock the vehicle.

(Continued)

272

STARTING AND OPERATING

WARNING! (Continued)

• Never leave children alone in a vehicle, or with

• Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave
the ignition in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.

CAUTION!

Damage to the transmission may occur if the following
precautions are not observed:

• Shift into or out of PARK or REVERSE only after the

vehicle has come to a complete stop.

• Do not shift between PARK, REVERSE, NEUTRAL,

or DRIVE when the engine is above idle speed.

• Before shifting into any gear, make sure your foot is

firmly pressing the brake pedal.

NOTE:

You must press and hold the brake pedal while

shifting out of PARK.

Ignition Park Interlock
This vehicle is equipped with an Ignition Park Interlock
which requires the transmission to be in PARK before the
ignition can be turned to the OFF mode. This helps the
driver avoid inadvertently leaving the vehicle without
placing the transmission in PARK. This system also locks
the transmission in PARK whenever the ignition is in the
OFF mode.

NOTE:

The transmission is NOT locked in PARK when the

ignition is in the ACC mode (even though the engine will
be off). Ensure that the transmission is in PARK, and the
ignition is OFF (not in ACC mode) before exiting the
vehicle.

Brake/Transmission Shift Interlock System
This vehicle is equipped with a Brake Transmission Shift
Interlock system (BTSI) that holds the transmission gear
selector in PARK unless the brakes are applied. To shift the
transmission out of PARK, the engine must be running and
the brake pedal must be pressed. The brake pedal must
also be pressed to shift from NEUTRAL into DRIVE or
REVERSE when the vehicle is stopped or moving at low
speeds.

STARTING AND OPERATING

273

Fuel Economy (ECO) Mode

The Fuel Economy (ECO) mode can improve the vehicle’s
overall fuel economy during normal driving conditions.
Push the “eco” button in the center stack of the instrument
panel to activate or disable ECO mode. A light on the
button indicates when ECO mode is disabled.

When the Fuel Economy (ECO) Mode is enabled, the
vehicle control systems will change the following:
• The transmission will upshift sooner and downshift

later.

• The overall driving performance will be more conserva-

tive.

• Some ECO mode functions may be temporarily inhib-

ited based on temperature and other factors.

Eight-Speed Automatic Transmission

The transmission gear range is displayed both on the gear
selector and in the instrument cluster. To select a gear
range, press the lock button on the gear selector and move
the selector rearward or forward. To shift the transmission
out of PARK, the engine must be running and the brake
pedal must be pressed. You must also press the brake pedal
to shift from NEUTRAL into DRIVE or REVERSE when the
vehicle is stopped or moving at low speeds. Select the
DRIVE range for normal driving.

NOTE:

In the event of a mismatch between the gear

selector position and the actual transmission gear (for
example, driver selects PARK while driving), the position
indicator will blink continuously until the selector is re-
turned to the proper position, or the requested shift can be
completed.

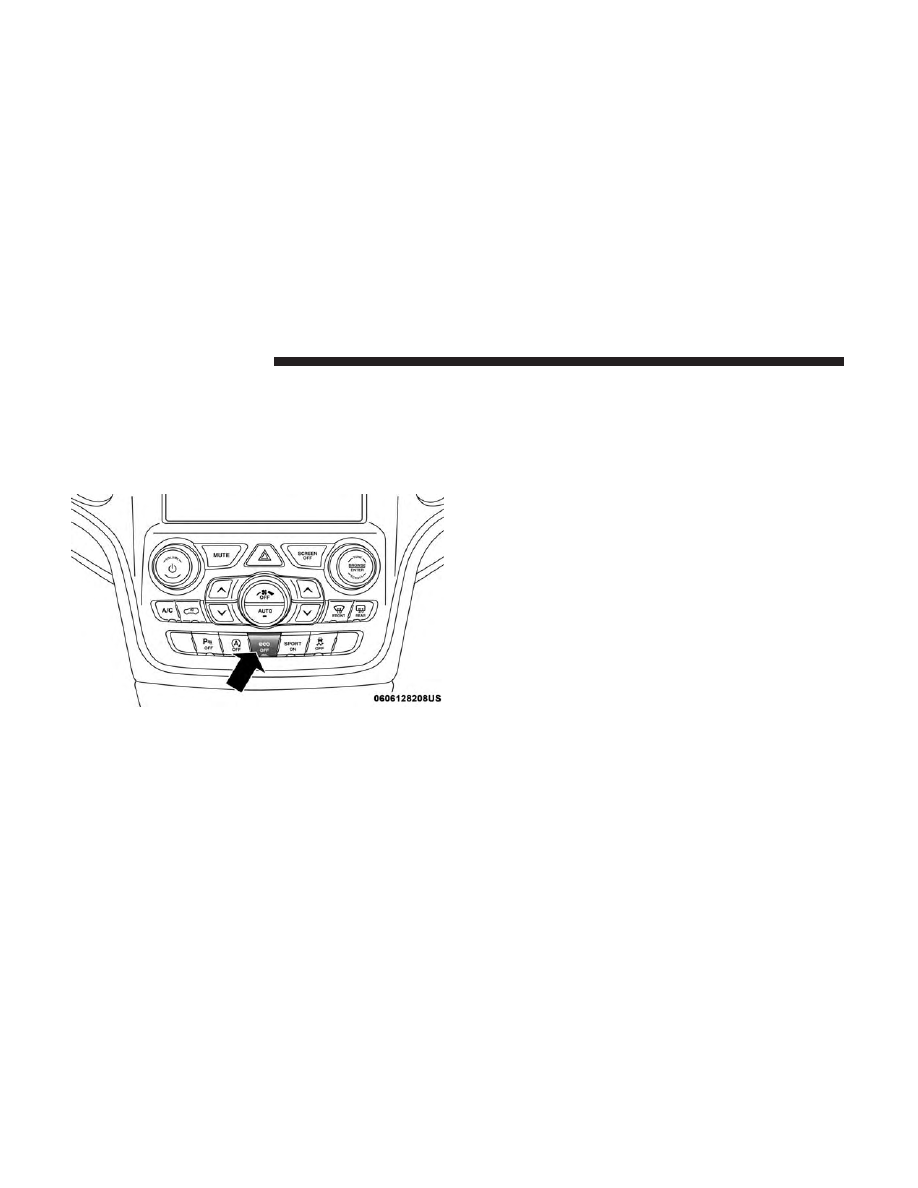

ECO Button

274

STARTING AND OPERATING

The electronically-controlled transmission adapts its shift
schedule based on driver inputs, along with environmental
and road conditions. The transmission electronics are self-
calibrating; therefore, the first few shifts on a new vehicle
may be somewhat abrupt. This is a normal condition, and
precision shifts will develop within a few hundred miles
(kilometers).

Only shift from DRIVE to PARK or REVERSE when the
accelerator pedal is released and the vehicle is stopped. Be
sure to keep your foot on the brake pedal when shifting
between these gears.

The transmission gear selector provides PARK, REVERSE,
NEUTRAL, DRIVE, and MANUAL (AutoStick) shift posi-
tions. Manual shifts can be made using the AutoStick shift
control. Toggling the gear selector forward (-) or rearward
(+) while in the MANUAL (AutoStick) position (beside the
DRIVE position), or tapping the shift paddles (+/-), if
equipped, will manually select the transmission gear, and
will display the current gear in the instrument cluster.
Refer to “AutoStick” in this section for further information.

NOTE:

If the gear selector cannot be moved to the PARK,

REVERSE, or NEUTRAL position (when pushed forward)
it is probably in the MANUAL (AutoStick, +/-) position
(beside the DRIVE position). In MANUAL (AutoStick)
mode, the transmission gear is displayed in the instrument
cluster (as 1, 2, 3, etc.). Move the gear selector to the right
(into the DRIVE [D] position) for access to PARK, RE-
VERSE, and NEUTRAL.

Transmission Gear Selector

1 – Lock Button
2 – Gear Selector

STARTING AND OPERATING

275

Gear Ranges

Do not depress the accelerator pedal when shifting from
PARK or NEUTRAL into another gear range.

NOTE:

After selecting any gear range, wait a moment to

allow the selected gear to engage before accelerating. This
is especially important when the engine is cold.

PARK (P)

This range supplements the parking brake by locking the
transmission. The engine can be started in this range.
Never attempt to use PARK while the vehicle is in motion.
Apply the parking brake when exiting the vehicle in this
range.

When parking on a level surface, you may shift the
transmission into PARK first, and then apply the parking
brake.

When parking on a hill, apply the parking brake before
shifting the transmission to PARK. As an added precau-
tion, turn the front wheels toward the curb on a downhill
grade and away from the curb on an uphill grade.

NOTE:

On vehicles equipped with the electronically

shifted transfer case, ensure that the transfer case is in
AWD AUTO or LOW RANGE position on the AWD
Control Switch. Ensure that the NEUTRAL position light is
NOT illuminated.

When exiting the vehicle, always:
• Apply the parking brake.
• Shift the transmission into PARK.
• Turn the ignition OFF.
• Remove the key fob from the vehicle.

WARNING!

• Never use the PARK position as a substitute for the

parking brake. Always apply the parking brake fully
when exiting the vehicle to guard against vehicle
movement and possible injury or damage.

• Your vehicle could move and injure you and others if

it is not in PARK. Check by trying to move the
transmission gear selector out of PARK with the
brake pedal released. Make sure the transmission is
in PARK before exiting the vehicle.

(Continued)

276

STARTING AND OPERATING

WARNING! (Continued)

• The transmission may not engage PARK if the ve-

• It is dangerous to shift out of PARK or NEUTRAL if

• Unintended movement of a vehicle could injure

(Continued)

WARNING! (Continued)

transmission is locked in PARK, securing the vehicle
against unwanted movement.

• When exiting the vehicle, always make sure the

ignition is in the OFF mode, remove the key fob from
the vehicle, and lock the vehicle.

• Never leave children alone in a vehicle, or with

• Do not leave the key fob in or near the vehicle (or in

a location accessible to children), and do not leave
the ignition in the ACC or ON/RUN mode. A child
could operate power windows, other controls, or
move the vehicle.

STARTING AND OPERATING

277

CAUTION!

• Before moving the transmission gear selector out of

PARK, you must start the engine, and also press the
brake pedal. Otherwise, damage to the gear selector
could result.

• DO NOT race the engine when shifting from PARK

or NEUTRAL into another gear range, as this can
damage the drivetrain.

The following indicators should be used to ensure that you
have properly engaged the transmission into the PARK
position:
• When shifting into PARK, push the lock button on the

gear selector and firmly move the selector all the way
forward until it stops and is fully seated.

• Look at the transmission gear position display and

verify that it indicates the PARK position (P), and is not
blinking.

• With brake pedal released, verify that the gear selector

will not move out of PARK.

NOTE:

If the gear selector cannot be moved to the PARK,

REVERSE (R)

This range is for moving the vehicle backward. Shift into
REVERSE only after the vehicle has come to a complete
stop.

NEUTRAL (N)

Use this range when the vehicle is standing for prolonged
periods with the engine running. Apply the parking brake
and shift the transmission into PARK if you must exit the
vehicle.

278

STARTING AND OPERATING

WARNING!

Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. These are unsafe practices
that limit your response to changing traffic or road
conditions. You might lose control of the vehicle and
have a collision.

CAUTION!

Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can cause
severe transmission damage.
Refer to “Recreational Towing” in “Starting And Op-
erating” and “Towing A Disabled Vehicle” in “In Case
Of Emergency” for further information.

DRIVE (D)

This range should be used for most city and highway
driving. It provides the smoothest upshifts and downshifts,
and the best fuel economy. The transmission automatically
upshifts through all forward gears. The DRIVE position
provides optimum driving characteristics under all normal
operating conditions.

When frequent transmission shifting occurs (such as when
operating the vehicle under heavy loading conditions, in
hilly terrain, traveling into strong head winds, or while
towing a heavy trailer), use the AutoStick shift control
(refer to AutoStick in this section for further information) to
select a lower gear. Under these conditions, using a lower
gear will improve performance and extend transmission
life by reducing excessive shifting and heat buildup.

During cold temperatures, transmission operation may be
modified depending on engine and transmission tempera-
ture as well as vehicle speed. This feature improves warm
up time of the engine and transmission to achieve maxi-
mum efficiency. Engagement of the torque converter clutch
is inhibited until the transmission fluid is warm. Normal
operation will resume once the transmission temperature
has risen to a suitable level.

Manual (M)

The MANUAL (M, +/-) position (beside the DRIVE posi-
tion) enables full manual control of transmission shifting
(also known as AutoStick mode; refer to “AutoStick” in this
section for further information). Toggling the gear selector
forward (-) or rearward (+) while in the MANUAL

STARTING AND OPERATING

279

(AutoStick) position will manually select the transmission
gear, and will display the current gear in the instrument
cluster as 1, 2, 3, etc.

Transmission Limp Home Mode

Transmission function is monitored electronically for ab-
normal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission may
operate only in certain gears, or may not shift at all. Vehicle
performance may be severely degraded and the engine
may stall. In some situations, the transmission may not
re-engage if the engine is turned off and restarted. The
Malfunction Indicator Light (MIL) may be illuminated. A
message in the instrument cluster will inform the driver of
the more serious conditions, and indicate what actions may
be necessary.

In the event of a momentary problem, the transmission can
be reset to regain all forward gears by performing the
following steps:

NOTE:

In cases where the instrument cluster message

indicates the transmission may not re-engage after engine
shutdown, perform this procedure only in a desired loca-
tion (preferably, at an authorized dealer).

1. Stop the vehicle.

2. Shift the transmission into PARK, if possible. If not, shift

the transmission to NEUTRAL.

3. Push and hold the ignition switch until the engine turns

OFF.

4. Wait approximately 30 seconds.

5. Restart the engine.

6. Shift into the desired gear range. If the problem is no

longer detected, the transmission will return to normal
operation.

NOTE:

Even if the transmission can be reset, we recom-

mend that you visit an authorized dealer at your earliest
possible convenience. An authorized dealer has diagnostic
equipment to assess the condition of your transmission.

If the transmission cannot be reset, authorized dealer
service is required.

AutoStick

AutoStick is a driver-interactive transmission feature pro-
viding manual shift control, giving you more control of the
vehicle. AutoStick allows you to maximize engine braking,

280

STARTING AND OPERATING

eliminate undesirable upshifts and downshifts, and im-
prove overall vehicle performance. This system can also
provide you with more control during passing, city driv-
ing, cold slippery conditions, mountain driving, trailer
towing, and many other situations.

Operation

To activate AutoStick mode, move the gear selector into the
MANUAL (M) position (beside the DRIVE position), or tap
one of the shift paddles on the steering wheel (if equipped).
Tapping the (-) shift paddle (if equipped) to enter
AutoStick mode will downshift the transmission to the
next lower gear, while tapping (+) to enter AutoStick mode
will retain the current gear. The current transmission gear
will be displayed in the instrument cluster. In AutoStick
mode, you can use the gear selector (in the MANUAL
position), or the shift paddles (if equipped), to manually
shift the transmission. Tapping the gear selector forward (-)
while in the MANUAL (M) position, or tapping the (-) shift
paddle (if equipped), will downshift the transmission to
the next lower gear. Tapping the selector rearward (+) (or
tapping the (+) shift paddle, if equipped) will command an
upshift.

NOTE:

The shift paddles (if equipped) may be disabled (or

re-enabled, as desired) using the Uconnect Personal Set-
tings.

In AutoStick mode, the transmission will shift up or down
when (+/-) is manually selected by the driver, unless an
engine lugging or overspeed condition would result. It will
remain in the selected gear until another upshift or down-
shift is chosen, except as described below.
• The transmission will automatically downshift as the

vehicle slows (to prevent engine lugging) and will
display the current gear.

• The transmission will automatically downshift to first

gear when coming to a stop. After a stop, the driver
should manually upshift (+) the transmission as the
vehicle is accelerated.

• You can start out, from a stop, in first or second gear.

Tapping (+) at a stop will allow starting in second gear.
Starting out in second gear can be helpful in snowy or
icy conditions.

• If a requested downshift would cause the engine to

over-speed, that shift will not occur.

• The system will ignore attempts to upshift at too low of

a vehicle speed.

STARTING AND OPERATING

281

• Holding the (-) paddle depressed (if equipped), or

holding the gear selector in the (-) position, will down-
shift the transmission to the lowest gear possible at the
current speed.

• Transmission shifting will be more noticeable when

AutoStick is enabled.

• The system may revert to automatic shift mode if a fault

or overheat condition is detected.

To disengage AutoStick mode, return the gear selector to
the DRIVE position, or press and hold the (+) shift paddle
(if equipped, and if the gear selector is already in DRIVE)
until

⬙D⬙ is once again indicated in the instrument cluster.

You can shift in or out of AutoStick mode at any time
without taking your foot off the accelerator pedal.

WARNING!

Do not downshift for additional engine braking on a
slippery surface. The drive wheels could lose their grip
and the vehicle could skid, causing a collision or
personal injury.

SPORT MODE — IF EQUIPPED

Your vehicle is equipped with a Sport Mode feature. This
mode is a configuration set up for typical enthusiast
driving. The engine, transmission, and steering systems are
all set to their SPORT settings. Sport Mode will provide
improved throttle response and modified shifting for an
enhanced driving experience, as well the greatest amount
of steering feel. This mode may be activated and deacti-
vated by pushing the Sport button on the instrument panel
switch bank.

ALL-WHEEL DRIVE OPERATION

Single-Speed Operating Instructions/Precautions
— If Equipped

This system contains a single-speed (HI range only) trans-
fer case, which provides convenient full-time all-wheel
drive. No driver interaction is required. The Brake Traction
Control (BTC) System, which combines standard ABS and
Traction Control, provides resistance to any wheel that is
slipping to allow additional torque transfer to wheels with
traction.

NOTE:

This system is not appropriate for conditions

where LOW range is recommended. Refer to “Driving
Tips” in “Starting And Operating” for further information.

282

STARTING AND OPERATING

Electronically Shifted Transfer Case (Three-
Position Switch) — If Equipped

This is an electronic shift transfer case and it is operated by the
AWD Control Switch, which is located on the center console.

This electronically shifted transfer case provides three
mode positions:
• All-wheel drive automatic range (AWD AUTO)
• All-wheel drive low range (LOW RANGE)
• Neutral (NEUTRAL)

This electronically shifted transfer case is designed to be
driven in the AWD AUTO position for normal street and
highway conditions on dry hard surfaced roads.

For variable driving conditions, the AWD AUTO mode can
be used. In this mode, the front axle is engaged, but the
vehicle’s power is sent to the rear wheels. All-wheel drive
will be automatically engaged when the vehicle senses a
loss of traction.

When additional traction is required, the transfer case
LOW RANGE position can be used to lock the front and
rear driveshafts together forcing the front and rear wheels
to rotate at the same speed. This is accomplished by
rotating the AWD Control Switch to the desired position.
Refer to “Shifting Procedure” for specific shifting instruc-
tions. The LOW RANGE position is designed for loose,
slippery road surfaces only. Driving in the LOW RANGE
position on dry hard surfaced roads may cause increased
tire wear and damage to the driveline components.

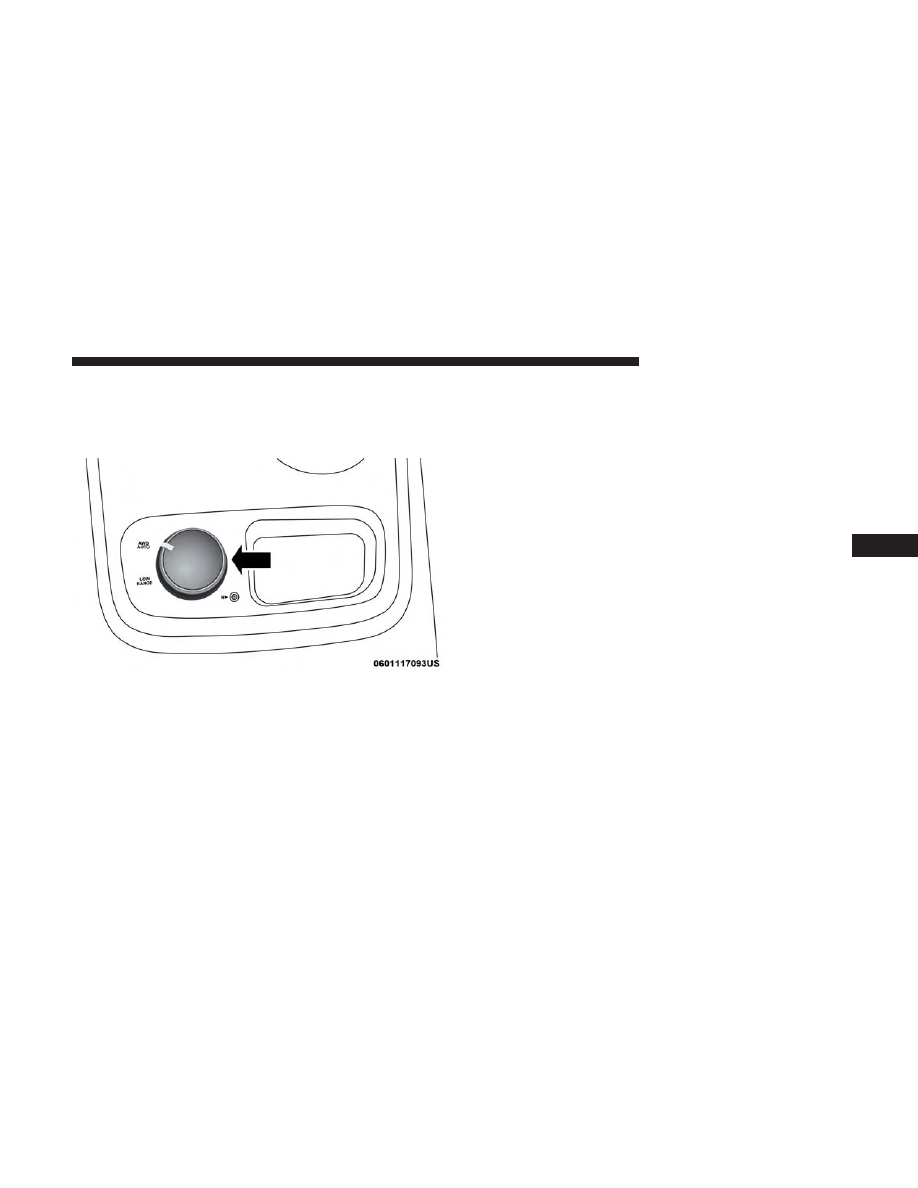

AWD Control Switch (Three-Position)

STARTING AND OPERATING

283

Transfer Case Position Indicator Messages

The Transfer Case Position Indicator messages (AWD
AUTO and LOW RANGE) are located in the instrument
cluster and indicate the current and desired transfer case
selection. Refer to “Instrument Cluster Display” in “Get-
ting To Know Your Instrument Panel” for further informa-
tion. When you select a different transfer case position, the
position indicator lights will do the following:

If All Shift Conditions Are Met:

1. The current position indicator light will turn OFF.

2. The selected position indicator light will flash until the

transfer case completes the shift.

3. When the shift is complete, the indicator light for the

selected position will stop flashing and remain ON.

If One Or More Shift Conditions Are Not Met:

1. The indicator light for the current position will remain

ON.

2. The newly selected position indicator light will continue

to flash.

3. The transfer case will not shift.

NOTE:

Before retrying a selection, make certain that all the

necessary requirements for selecting a new transfer case
position have been met. To retry the selection, turn the
control knob back to the current position, wait five sec-
onds, and retry selection. To find the shift requirements,
refer to the

⬙Shifting Procedure⬙ for your transfer case,

located in this section.

The “SERV AWD” Warning Light monitors the electronic
shift all-wheel drive system. If this light remains on after
engine start up or illuminates during driving, it means that
the all-wheel drive system is not functioning properly and
that service is required.

WARNING!

Always engage the parking brake when powering
down the vehicle if the “SERV AWD Warning Light” is
illuminated. Not engaging the parking brake may
allow the vehicle to roll which may cause personal
injury.

NOTE:

Do not attempt to make a shift while only the front

or rear wheels are spinning. This could cause damage to
driveline components.

284

STARTING AND OPERATING

Dodge Durango (2019 year). Manual - part 17
