Dodge Challenger SRT (2019 year). Manual

Chassis

Component

Fluid, Lubricant, or Genuine Part

Manual Transmission – If Equipped

We recommend you use Mopar ATF+4 Automatic Transmission Fluid.

Automatic Transmission – If
Equipped

Use only Mopar ZF 8&9 Speed ATF Automatic Transmission Fluid, or equiva-
lent. Failure to use the correct fluid may affect the function or performance of
your transmission.

Hydraulic Power Steering Reservoir
– If Equipped

We recommend you use Mopar Hydraulic System Power Steering Fluid or
equivalent meeting the requirements of FCA Material Standard MS-10838.

Brake Master Cylinder

We recommend you use Mopar DOT 3, SAE J1703 should be used. If DOT 3,
SAE J1703 brake fluid is not available, then DOT 4 is acceptable.
DOT 4 brake fluid must be changed every 24 months. This interval is time
based only, mileage intervals do not apply.

Rear Axle

We recommend you use Mopar LSD Synthetic Gear Lubricant SAE 75W85
(API GL-5).

400

TECHNICAL SPECIFICATIONS

UCONNECT SYSTEMS

For detailed information about your Uconnect system,
refer to your Uconnect Owner’s Manual Supplement.

NOTE:

Uconnect screen images are for illustration pur-

poses only and may not reflect exact software for your
vehicle.

DRAG & DROP MENU BAR

The Uconnect features and services in the main menu bar
are easily changed for your convenience. Simply follow
these steps:

1. Press the “Apps

” button to open the App screen.

2. Press and hold, then drag the selected App to replace an

existing shortcut in the main menu bar.

The new app shortcut, that was dragged down onto the
main menu bar, will now be an active App/shortcut.

NOTE:

This feature is only available if the vehicle is in

park.

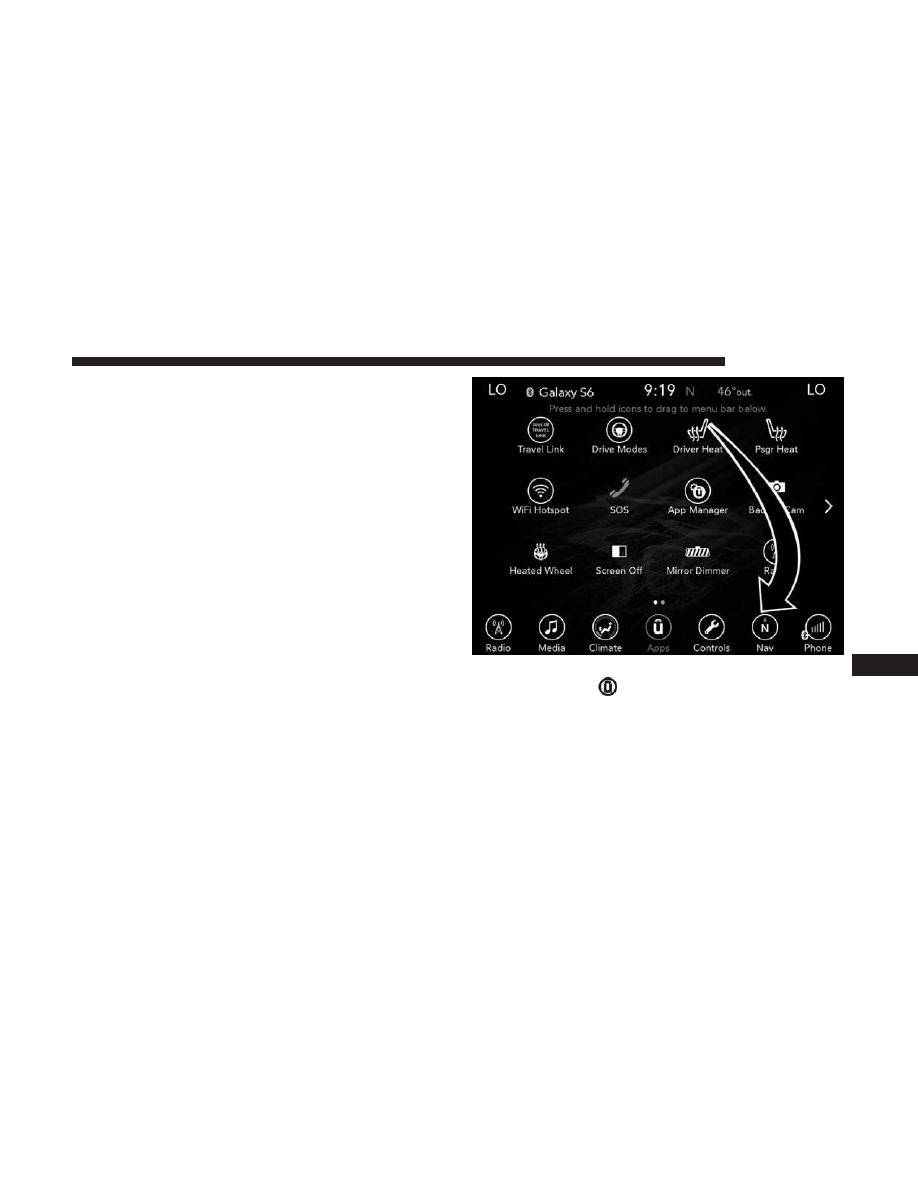

Uconnect 4C/4C NAV Main Menu

MULTIMEDIA

403

CYBERSECURITY

Your vehicle may be a connected vehicle and may be
equipped with both wired and wireless networks. These
networks allow your vehicle to send and receive informa-
tion. This information allows systems and features in your
vehicle to function properly.

Your vehicle may be equipped with certain security fea-
tures to reduce the risk of unauthorized and unlawful
access to vehicle systems and wireless communications.
Vehicle software technology continues to evolve over time
and FCA US LLC, working with its suppliers, evaluates
and takes appropriate steps as needed. Similar to a com-
puter or other devices, your vehicle may require software
updates to improve the usability and performance of your
systems or to reduce the potential risk of unauthorized and
unlawful access to your vehicle systems.

The risk of unauthorized and unlawful access to your
vehicle systems may still exist, even if the most recent
version of vehicle software (such as Uconnect software) is
installed.

WARNING!

• It is not possible to know or to predict all of the

possible outcomes if your vehicle’s systems are
breached. It may be possible that vehicle systems,
including safety related systems, could be impaired
or a loss of vehicle control could occur that may
result in an accident involving serious injury or
death.

• ONLY insert media (e.g., USB, SD card, or CD) into

your vehicle if it came from a trusted source. Media
of unknown origin could possibly contain malicious
software, and if installed in your vehicle, it may
increase the possibility for vehicle systems to be
breached.

• As always, if you experience unusual vehicle behav-

ior, take your vehicle to your nearest authorized
dealer immediately.

404

MULTIMEDIA

NOTE:
• FCA US LLC or your dealer may contact you directly

regarding software updates.

• To help further improve vehicle security and minimize

the potential risk of a security breach, vehicle owners
should:

• Routinely check www.driveuconnect.com (U.S. Resi-

dents) or www.driveuconnect.ca (Canadian Residents)
to learn about available Uconnect software updates.

• Only connect and use trusted media devices (e.g.

personal mobile phones, USBs, CDs).

Privacy of any wireless and wired communications cannot
be assured. Third parties may unlawfully intercept infor-
mation and private communications without your consent.
For further information, refer to “Data Collection & Pri-
vacy” in your Uconnect Owner’s Manual Supplement or
“Onboard Diagnostic System (OBD II) Cybersecurity” in
“Getting To Know Your Instrument Panel”.

UCONNECT SETTINGS

The Uconnect system uses a combination of buttons on the
touchscreen and buttons on the faceplate located on the
center of the instrument panel that allows you to access
and change the customer programmable features.

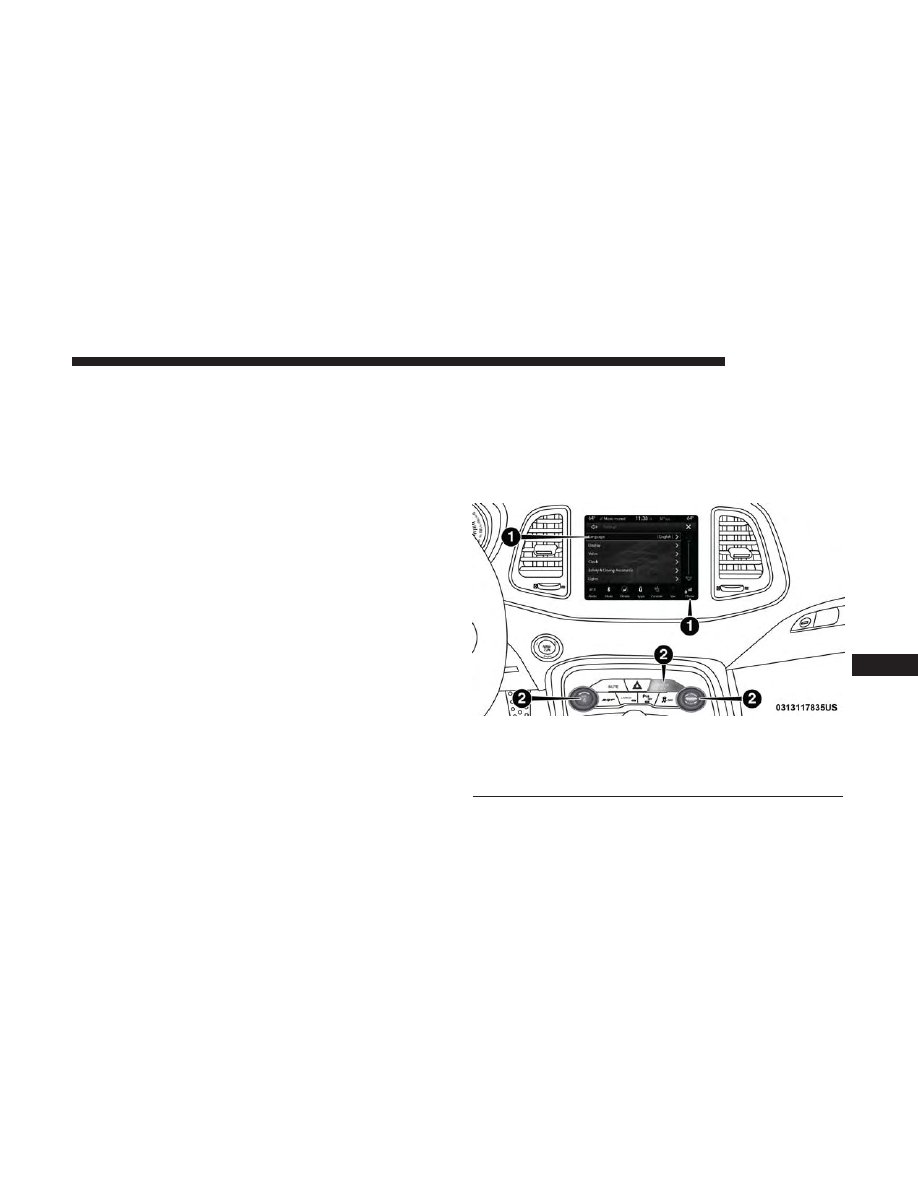

Uconnect 4C/4C NAV Buttons On Touchscreen And

Buttons On Faceplate

1 — Uconnect Buttons On The Touchscreen
2 — Uconnect Buttons On The Faceplate

MULTIMEDIA

405

Customer Programmable Features — Uconnect
4C/4C NAV Settings

Press the “Apps

” button (if equipped), and then

press the “Settings” button on the touchscreen to dis-
play the menu setting screen. In this mode, the
Uconnect system allows you to access programmable
features that may be equipped such as Language, Dis-
play, Units, Voice, Clock & Date, Safety & Driving
Assistance, Mirrors & Wipers, Lights, Doors & Locks,
Auto-On Comfort, Key Off Options, Audio, Phone/
Bluetooth, SiriusXM Setup, Reset, and System Informa-
tion.

NOTE:

Depending on the vehicle’s options, feature set-

tings may vary.

When making a selection, press the button on the touch-
screen to enter the desired mode. Once in the desired
mode, press and release the preferred setting “option” until
a check-mark appears next to the setting, showing that
setting has been selected. Once the setting is complete,
press the “X” button on the touchscreen to close out of the
settings screen. Pressing the up or down arrow button on
the right side of the screen will allow you to toggle up or
down through the available settings.

Language

After pressing the “Language” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Set Language

English

Français

Español

406

MULTIMEDIA

Display
After pressing the “Display” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Display Mode

Auto

Manual

Display Brightness With Headlights

–

NOTE:

• When in the “Display Brightness With Headlights ON” display, you may select the brightness with the headlights

on.

• To make changes to the ⬙Display Brightness With Headlights ON⬙ setting, the headlights must be on and the inte-

rior dimmer switch must not be in the

⬙party⬙ or ⬙parade⬙ positions.

Display Brightness With Headlights

OFF

–

NOTE:

• When in the “Display Brightness With Headlights OFF” display, you may select the brightness with the headlights

off. Adjust the brightness from (1–10) with the “+” and “–” buttons on the touchscreen.

• To make changes to the ⬙Display Brightness With Headlights OFF⬙ setting, the headlights must be off and the inte-

rior dimmer switch must not be in the

⬙party⬙ or ⬙parade⬙ positions.

MULTIMEDIA

407

Setting Name

Selectable Options

Set Theme

List Of Themes

NOTE:
When in the “Set Theme” display, you may select the theme for the display screen. To make your selection, press the

⬙Set Theme⬙ button on the touchscreen, then select the desired theme option button until a check-mark appears show-
ing that the setting has been selected.

AutoShow Smartphone Display

Upon Connection — If Equipped

Off

Touchscreen Beep

Off

Controls Screen Time-Out — If

Equipped

Off

NOTE:
When the “Control Screen Time-Out” feature is selected, the controls screen will stay open for five seconds before the
screen times out. With the feature deselected, the screen will stay open until it is manually closed.

Navigation Next Turn Pop-Ups Dis-

played In Cluster — If Equipped

Off

NOTE:
When the “Navigation Turn-By-Turn Displayed In Cluster” feature is selected, the turn-by-turn directions will appear
in the instrument cluster display as the vehicle approaches a designated turn within a programmed route.

408

MULTIMEDIA

Units
After pressing the “Units” button on the touchscreen, you may select each unit of measure independently displayed in the
instrument cluster display, and navigation system (if equipped). The following selectable units of measure are listed below:

Setting Name

Selectable Options

Units

Metric

Custom

NOTE:

When the “Custom” setting is selected, units will appear according to your personally configured settings. To

configure these settings, press the “Custom” bar. The following settings will appear:

Speed

MPH

km/h

Distance

Fuel Consumption

MPG (US)

MPG (UK)

L/100 km

km/L

Pressure

psi

kPa

bar

Temperature

°F

°C

Voice
After pressing the “Voice” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Voice Response Length

Brief

Detailed

Show Command List

Never

w/Help

Always

MULTIMEDIA

409

Clock & Date
After pressing the “Clock & Date” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Sync Time With GPS — If Equipped

Off

NOTE:
The “Sync Time With GPS” feature will allow you to automatically have the radio set the time.

Set Time Hours

–

Set Time Minutes

–

Time Format

12 hrs

24 hrs

Show Time In Status Bar — If Equipped

Off

NOTE:
The “Show Time In Status Bar” feature will allow you to turn on or shut off the digital clock in the status bar.

410

MULTIMEDIA

Safety & Driving Assistance
After pressing the “Safety & Driving Assistance” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

ParkView Backup Camera Delay

Off

NOTE:
The “ParkView Backup Camera Delay” setting determines whether or not the screen will display the rear view image
with dynamic grid lines for up to ten seconds after the vehicle is shifted out of REVERSE. This delay will be canceled
if the vehicle’s speed exceeds 8 mph (13 km/h), the transmission is shifted into PARK, or the ignition is switched to
the OFF position.

Active ParkView Backup Camera Guide-

lines

Off

NOTE:
The “Active ParkView Backup Camera Guidelines” feature overlays the Rear Backup Camera image with active, or
dynamic, grid lines to help illustrate the width of the vehicle and its projected back up path, based on the steering
wheel position when the option is checked. A dashed center line overlay indicates the center of the vehicle to assist
with parking or aligning to a hitch/receiver.

MULTIMEDIA

411

Setting Name

Selectable Options

Forward Collision Warning Sensitivity — If

Equipped

Near

Far

NOTE:
The “Forward Collision Warning Plus (FCW+) Sensitivity” setting determines at what relative distance the vehicle
directly in front of you needs to be at, before the system will warn you of a possible collision with the vehicle directly
in front of you, based on the option is selected. “Far” will give you the most amount of reaction time, whereas
“Near” will give you the least amount of reaction time, based on the distance between the two vehicles.

Forward Collision Warning — If Equipped

Off

NOTE:
Changing the FCW status to “Off” prevents the system from warning you of a possible collision with the vehicle in
front of you.
The FCW system state is kept in memory from one ignition cycle to the next. If the system is turned OFF, it will re-
main off when the vehicle is restarted.

Forward Collision Warning Active Braking

— If Equipped

Off

NOTE:
The “Forward Collision Warning Plus (FCW+)” setting includes Advanced Brake Assist (ABA). The ABA applies ad-
ditional brake pressure when the driver requests insufficient brake pressure to avoid a potential frontal collision.

412

MULTIMEDIA

Setting Name

Selectable Options

Electric Power Steering Default — If

Equipped

Sport

Normal

Comfort

NOTE:
When

⬙Electric Power Steering Default⬙ is selected, it allows you to change the default setting of your vehicle to either

normal, sport, or comfort.

ParkSense — If Equipped

Sound Only

Sound & Display

NOTE:
The ParkSense system will scan for objects behind the vehicle when the gear selector is in REVERSE and the vehicle
speed is less than 7 mph (11 km/h). It will provide an alert (audible and/or visual) to indicate the proximity to other
objects. The system can be enabled with Sound Only, or Sound and Display.

Rear ParkSense Volume — If Equipped

Low

Med

High

NOTE:
The Rear ParkSense Chime Volume settings can be selected from the instrument cluster display or Uconnect System.
The chime volume settings include LOW, MEDIUM, and HIGH. The factory default volume setting is MEDIUM. To
make your selection, press the “Rear ParkSense Vol.” button on the touchscreen, until a check-mark appears next to
setting, indicating that the setting had been selected. ParkSense will retain its last known configuration state through
ignition cycles.

MULTIMEDIA

413

Setting Name

Selectable Options

Blind Spot Alert — If Equipped

Off

Lights

Lights & Chime

NOTE:

• When this feature is selected, the Blind Spot Alert feature Provides alerts, visual and/or audible, to indicate objects

in your blind spot. The Blind Spot Alert feature can be activated in “Lights” mode. When this mode is selected, the
Blind Spot Monitor (BSM) system is activated and will only show a visual alert in the exterior mirrors. When
“Lights & Chime” mode is activated, the Blind Spot Monitor (BSM) will show a visual alert in the exterior mirrors
as well as an audible alert when the turn signal is on. When “Off” is selected, the Blind Spot Monitor (BSM) sys-
tem is deactivated.

• If your vehicle has experienced any damage in the area where the sensor is located, even if the fascia is not dam-

aged, the sensor may have become misaligned. Take your vehicle to an authorized dealer to verify sensor align-
ment. Having a sensor that is misaligned will result in the BSM not operating to specification.

Hill Start Assist — If Equipped

Off

NOTE:
When this feature is selected, the Hill Start Assist (HSA) system is active.

Paddle Shifters

Off

414

MULTIMEDIA

Mirrors & Wipers
After pressing the “Mirror and Wipers” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Rain Sensing Auto Wipers

Off

NOTE:
When this feature is selected and the wipers are on, the system will automatically activate the windshield wipers if it
senses moisture on the windshield.

Headlights with Wipers

Off

Lights
After pressing the “Lights” button on the touchscreen, the following settings will be available:

Setting Name

Selectable Options

Headlight Off Delay

Headlight Illumination On Ap-

proach

Headlights With Wipers — If

Equipped

Off

Auto Dim High Beams — If

Equipped

Off

Daytime Running Lights — If

Equipped

Off

MULTIMEDIA

415

Dodge Challenger SRT (2019 year). Manual - part 25
