Dodge Dart (2016 year). Manual

• If you carry special cargo such as chemicals, fertilizers,

de-icer salt, etc., be sure that such materials are well
packaged and sealed.

• If a lot of driving is done on gravel roads, consider

mud or stone shields behind each wheel.

• Use MOPAR Touch Up Paint on scratches as soon as

possible. Your authorized dealer has touch up paint to
match the color of your vehicle.

Wheel And Wheel Trim Care

• All wheels and wheel trim, especially aluminum and

chrome plated wheels, should be cleaned regularly
with a mild soap and water to prevent corrosion.

• To remove heavy soil and/or excessive brake dust, use

MOPAR Wheel Cleaner.

NOTE:

If your vehicle is equipped with Dark Vapor or

Black Satin Chrome wheels DO NOT USE wheel cleaners,
abrasives or polishing compounds. They will perma-
nently damage this finish and such damage is not cov-
ered by the New Vehicle Limited Warranty. USE ONLY
MILD SOAP AND WATER WITH A SOFT CLOTH. Used
on a regular basis this is all that is required to maintain
this finish.

CAUTION!

Do not use scouring pads, steel wool, a bristle brush,
or metal polishes. Do not use oven cleaner. These
products may damage the wheel’s protective finish.
Avoid automatic car washes that use acidic solutions
or harsh brushes that may damage the wheel’s pro-
tective finish. Only MOPAR Wheel Cleaner or
equivalent is recommended.

604

MAINTAINING YOUR VEHICLE

Stain Repel Fabric Cleaning Procedure — If
Equipped

Stain Repel seats may be cleaned in the following man-
ner:

• Remove as much of the stain as possible by blotting

with a clean, dry towel.

• Blot any remaining stain with a clean, damp towel.
• For tough stains, apply MOPAR Total Clean or equiva-

lent, or a mild soap solution to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.

• For grease stains, apply MOPAR Multi-Purpose

Cleaner or equivalent to a clean, damp cloth and
remove the stain. Use a fresh, damp towel to remove
soap residue.

• Do not use any harsh solvents or any other form of

protectants on Stain Repel products.

Interior Care

Use MOPAR Total Clean to clean fabric upholstery and
carpeting.

Use MOPAR Total Clean to clean vinyl upholstery.

MOPAR Total Clean is specifically recommended for
leather upholstery.

Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean. Care should be taken to avoid
soaking your leather upholstery with any liquid. Please
do not use polishes, oils, cleaning fluids, solvents, deter-
gents, or ammonia-based cleaners to clean your leather

MAINTAINING YOUR VEHICLE

605

upholstery. Application of a leather conditioner is not
required to maintain the original condition.

WARNING!

Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.

CAUTION!

Direct contact of air fresheners, insect repellents,
suntan lotions, or hand sanitizers to the plastic,
painted, or decorated surfaces of the interior may
cause permanent damage. Wipe away immediately.

CAUTION!

Damage caused by these type of products may not be
covered by your New Vehicle Limited Warranty.

CAUTION!

Do not use Alcohol and Alcohol-based and/or Keton
based cleaning products to clean leather seats, as
damage to the seat may result.

Cleaning Headlights

Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.

Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.

606

MAINTAINING YOUR VEHICLE

To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.

Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.

Glass Surfaces

All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner or any commercial
household-type glass cleaner. Never use an abrasive type
cleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or the right rear
quarter window equipped with the radio antenna. Do
not use scrapers or other sharp instruments that may
scratch the elements.

When cleaning the rear view mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.

Instrument Panel Cover

The instrument panel cover has a low glare surface which
minimizes reflections on the windshield. Do not use
protectants or other products which may cause undesir-
able reflections. Use soap and warm water to restore the
low glare surface.

Instrument Panel Bezels

CAUTION!

When installing hanging air fresheners in your ve-
hicle, read the installation instructions carefully.
Some air fresheners will damage the finish of
painted or decorated parts if allowed to directly
contact any surface.

MAINTAINING YOUR VEHICLE

607

Cleaning Plastic Instrument Cluster Lenses

The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.

1. Clean with a wet soft cloth or micro-fiber towel. A

mild soap solution may be used, but do not use high
alcohol content or abrasive cleaners. If soap is used,
wipe clean with a clean damp cloth.

2. Dry with a soft cloth.

Seat Belt Maintenance

Do not bleach, dye, or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage can also weaken the fabric.

If the belts need cleaning, use MOPAR Total Clean, a mild
soap solution, or lukewarm water. Do not remove the
belts from the vehicle to wash them. Dry with a soft cloth.

Replace the belts if they appear frayed or worn or if the
buckles do not work properly.

WARNING!

A frayed or torn belt could rip apart in a collision and
leave you with no protection. Inspect the belt system
periodically, checking for cuts, frays, or loose parts.
Damaged parts must be replaced immediately. Do
not disassemble or modify the system. Seat belt
assemblies must be replaced after a collision if they
have been damaged (i.e., bent retractor, torn web-
bing, etc.).

608

MAINTAINING YOUR VEHICLE

FUSES

WARNING!

• When replacing a blown fuse, always use an appro-

priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.

(Continued)

WARNING! (Continued)

• Before replacing a fuse, make sure that the ignition

is off and that all the other services are switched off
and/or disengaged.

• If the replaced fuse blows again, contact an autho-

rized dealer.

• If a general protection fuse for safety systems (air

bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.

MAINTAINING YOUR VEHICLE

609

Interior Fuses

The interior fuses are located on the drivers side under the instrument panel.

Cavity

Cartridge Fuse

Mini Fuse

Description

–

20 Amp Yellow

Front Heated Seats – If Equipped

–

20 Amp Yellow

Rear Heated Seats, Heated Steering Wheel – If Equipped

–

10 Amp Red

Park Assist Module, Rear Camera, Left and Right Blind Spot
Sensor, Compass – If Equipped

–

15 Amp Blue

Instrument Cluster

–

10 Amp Red

HVAC, Humidity Sensor, In-Vehicle Temperature Sensor, In-
side Mirror Assembly

F18

–

15 Amp Blue

Radio

F20

–

10 Amp Red

Steering Column Control Module, Switch Bank

F21

–

10 Amp Red

Diagnostic Port

F22

–

10 Amp Red

Universal Garage Door Opener, EOM

F23

–

20 Amp Yellow

Sunroof

610

MAINTAINING YOUR VEHICLE

Cavity

Cartridge Fuse

Mini Fuse

Description

F24

–

5 Amp Tan

Run/Accessory Relay

F25

–

5 Amp Tan

Transmission Control Module #4

F26

–

5 Amp Tan

Stop Lamp Switch

F27

–

10 Amp Red

Pneumatic Lumbar Support

Underhood Fuses

The Power Distribution Center is located on the right side
of the engine compartment, behind the battery. This
center contains maxi fuses, mini fuses, relays, and circuit
breakers. The cavity number of each fuse is stamped on
the inside cover that corresponds to the following chart.

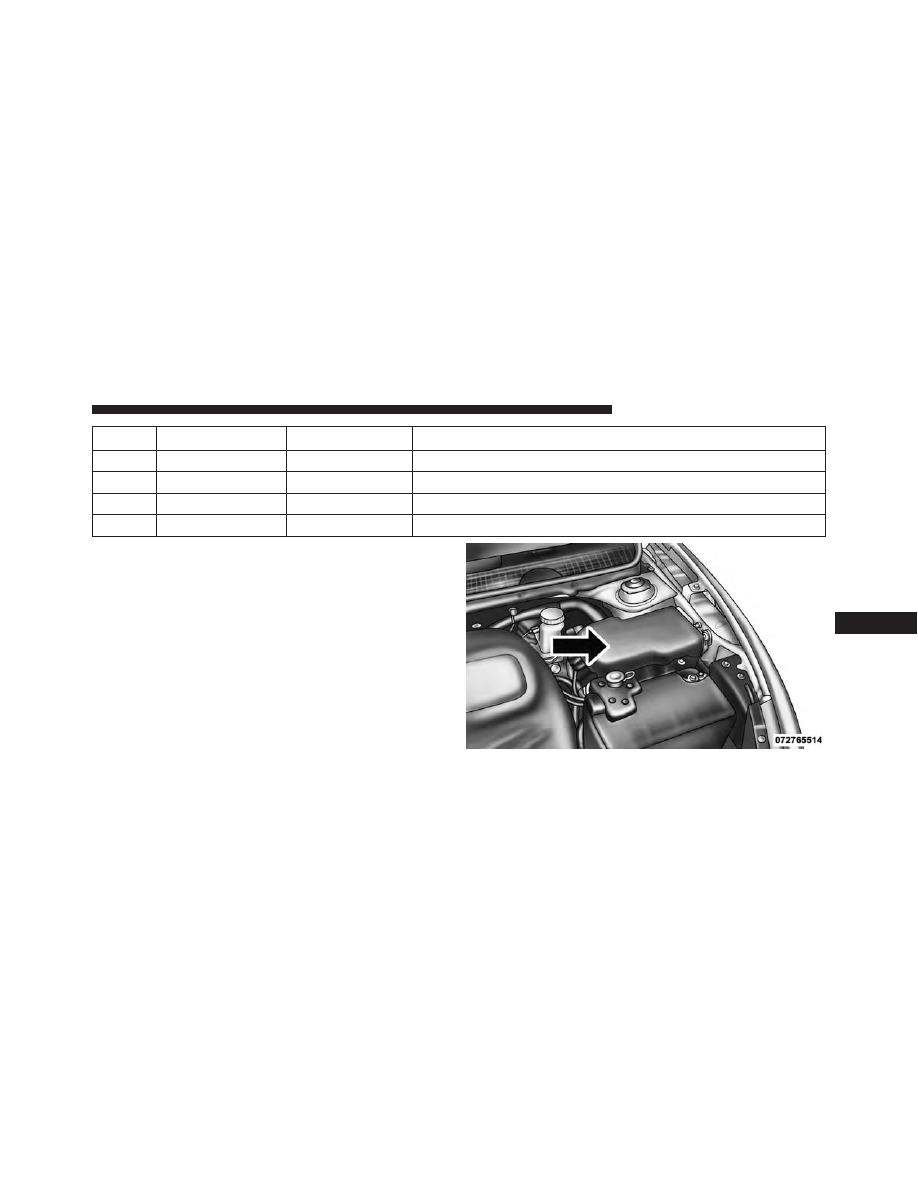

Power Distribution Center

MAINTAINING YOUR VEHICLE

611

Cavity

Maxi Fuse

Mini Fuse

Description

F01

70 Amp Tan

–

Body Control Module #1

F02

60 Amp Blue

–

Body Control Module #2

F03

30 Amp Green

–

Output For Starter Relay #1

F04

40 Amp Orange

–

ESC Pump Motor

F05

40 Amp Orange

–

Transmission Control Module #1

F06

30 Amp Green

–

Body Control Module #3

F07

40 Amp Orange

–

EBL RLY Coil, Blower Motor RLY Coil

F09

–

5 Amp Tan

Radiator Fan

F10

–

10 Amp Red

ORC

F11

–

20 Amp Yellow

Run/Start, Engine Control Module

F14

–

15 Amp Blue

Transmission Control Module #2

F15

–

15 Amp Blue

Transmission Control Module #3

F16

–

15 Amp Blue

Engine Control Module, Ignition Coils

F17

–

15 Amp Blue

Brake System Module

F18

–

20 Amp Yellow

Engine Control Module

612

MAINTAINING YOUR VEHICLE

Cavity

Maxi Fuse

Mini Fuse

Description

F19

–

10 Amp Red

A/C Compressor Clutch

F20

–

30 Amp Green

Rear Defroster (EBL)

F21

–

20 Amp Yellow

Fuel Pump

F22

–

10 Amp Red

Occupant Restraint Controller

F23

–

25 Amp Clear

Brake System Module

F24

–

20 Amp Yellow

Engine Control Module, Fuel Injectors

F30

–

20 Amp Yellow

Power Outlet (Console)

F81

60 Amp Blue

–

Interior PDC Battery Feed, Power Seats

F82

30 Amp Green

–

Amplifier

F83

40 Amp Orange

–

HVAC Blower Motor

F84

–

20 Amp Yellow

Cigar Lighter

F85

–

10 Amp Red

Sunroof, LRSM, Power Outlet (Console),

UCI/AUX Port, Cigar Lighter

F86

–

20 Amp Yellow

–

MAINTAINING YOUR VEHICLE

613

Cavity

Maxi Fuse

Mini Fuse

Description

F87

–

10 Amp Red

Wastegate, Purge Solenoid, OBD Vent

Valve, Oxygen Sensor Heaters

F88

–

10 Amp Red

Heated Outside Mirrors

Body Control Module (BCM) Fuses

Cavity

Cartridge Fuse

Mini Fuse

Description

F12

–

Spare

F13

–

15 Amp Blue

Left Headlamp

F31

–

Spare

F32

–

10 Amp Red

Interior Lighting/Decklid/Liftgate Release

F33

–

25 Amp Clear

Window Motor – Driver

F34

–

25 Amp Clear

Window Motor – Passenger

F36

–

15 Amp Blue

Intrusion Module

F37

–

10 Amp Red

Instrument Panel Cluster

F38

–

20 Amp Yellow

Door Locks

614

MAINTAINING YOUR VEHICLE

Cavity

Cartridge Fuse

Mini Fuse

Description

F42

–

Spare

F43

–

20 Amp Yellow

Windshield Washer Pump

F47

–

5 Amp Tan

Transmission Control Module (Tcm)

F48

–

20 Amp Yellow

Spare

F49

–

7.5 Amp Brown

Stop Lamp Switch

F50

–

7.5 Amp Brown

Pneumatic Lumbar Support

F51

–

7.5 Amp Brown

Cd/Hands-Free Module – Bluetooth/
Radio Display

F53

–

7.5 Amp Brown

Driver Window Switch/Power Mirrors

F89

–

5 Amp Tan

Trunk Lamp

F90

–

7.5 Amp Brown

Front Fog Lamps – Right

F91

–

7.5 Amp Brown

Front Fog Lamps – Left

F92

–

7.5 Amp Brown

High Beams (Shutters)

F93

–

15 Amp Blue

Right Headlamp

MAINTAINING YOUR VEHICLE

615

VEHICLE STORAGE

If you will not be using your vehicle for more than 21
days, you may want to take steps to preserve your
battery.
• Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of

service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes

in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

NOTE:

When the vehicle has not been started or driven

for at least 35 days, an Extended Park Start Procedure is
required to start the vehicle. Refer to “Starting Procedures”
in “Starting And Operating” for further information.

REPLACEMENT BULBS

Interior Bulbs

Bulb Number

Dome Lamp

W5W

Overhead Console Lamp

W5W

616

MAINTAINING YOUR VEHICLE

Exterior Bulbs

Bulb Number

Low Beam/High Beam (Bi-Halogen Headlamp)

9005HL+

Low Beam/High Beam (Bi-Xenon Headlamp)

D3S **

Front Park/Turn Signal Lamp

7442NALL

Sidemarker Lamp

194

Front Fog Lamp

H11

Center High-Mounted Stop Lamp (CHMSL)

LED (Serviced at Authorized Dealer) *

Rear Tail/Stop/Turn Signal Lamp

LED (Serviced at Authorized Dealer) *

Backup Lamp

7440

License Lamp

168

* Lamp is not serviceable. It is a LED lamp. To replace the
LED, the entire assembly must be replaced.

** The headlamps are a type of high-voltage discharge
tube. High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of

this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.

MAINTAINING YOUR VEHICLE

617

BULB REPLACEMENT

NOTE:

Lens fogging can occur under certain atmo-

spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.

Headlamps

Halogen Headlamps

Can be serviced by removing the cap from the backside
of the headlamp. Remove the HIR2 bulb from the con-
nector and replacing the bulb. Reinstall bulb and cap.

High Intensity Discharge Headlamps (HID)

The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb

yourself. If a headlamp bulb fails, take your vehicle to an
authorized dealer for service.

WARNING!

A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.

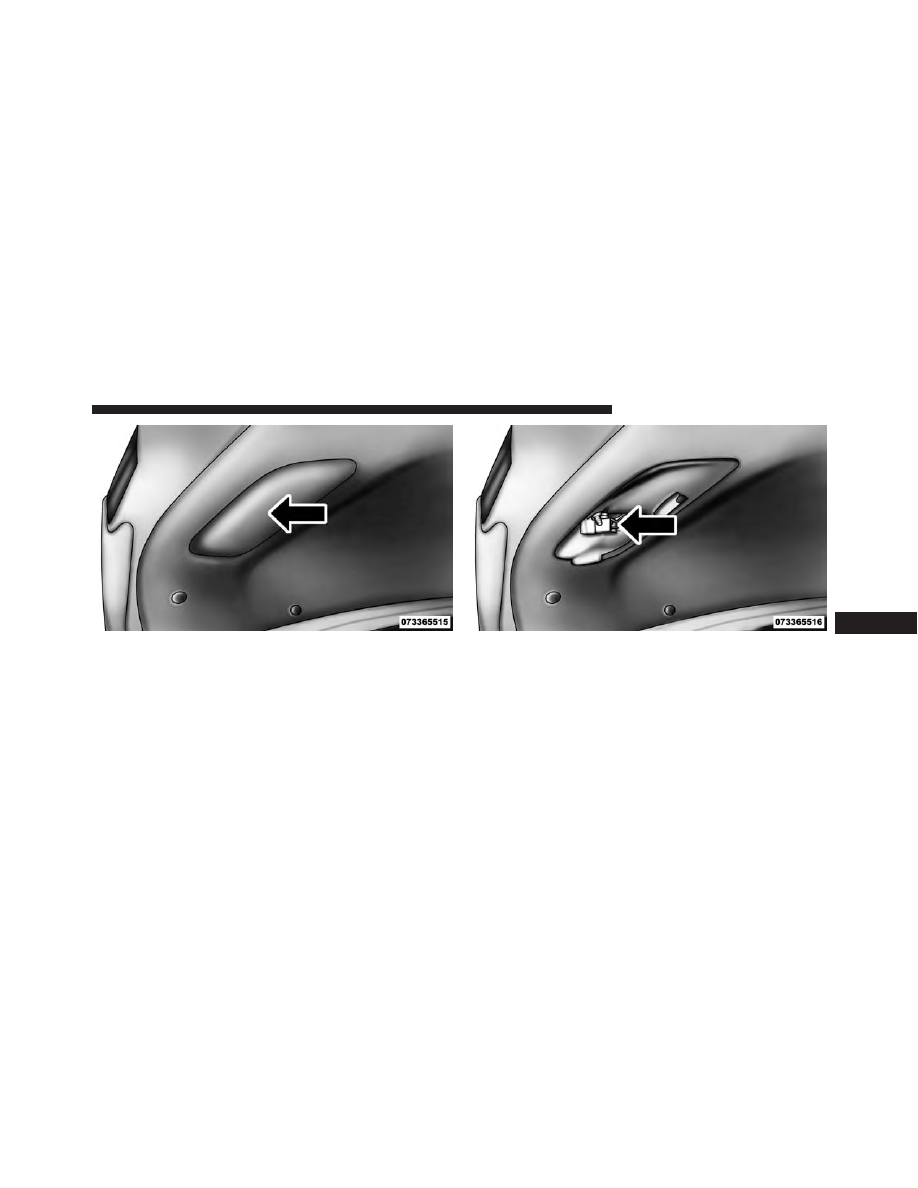

Backup Lamps

1. Open trunk.

2. Remove trim cover.

618

MAINTAINING YOUR VEHICLE

Dodge Dart (2016 year). Manual - part 38
