ADDING FUEL

The fuel filler cap (gas cap) is located behind the fuel
filler door, on the left side of the vehicle. Open the fuel
door and remove the fuel cap by turning it counter-
clockwise.

NOTE:

When removing the fuel filler cap, lay the cap

tether in the hook, located on the fuel filler door.

CAUTION!

• Damage to the fuel system or emissions control

system could result from using an improper fuel
tank filler tube cap (gas cap).

• A poorly fitting gas cap could let impurities into

the fuel system.

• A poorly fitting gas cap may cause the “Malfunc-

tion Indicator Light (MIL)” to turn on.

• To avoid fuel spillage and overfilling, do not “top

off” the fuel tank after filling. When the fuel
nozzle “clicks” or shuts off, the fuel tank is full.

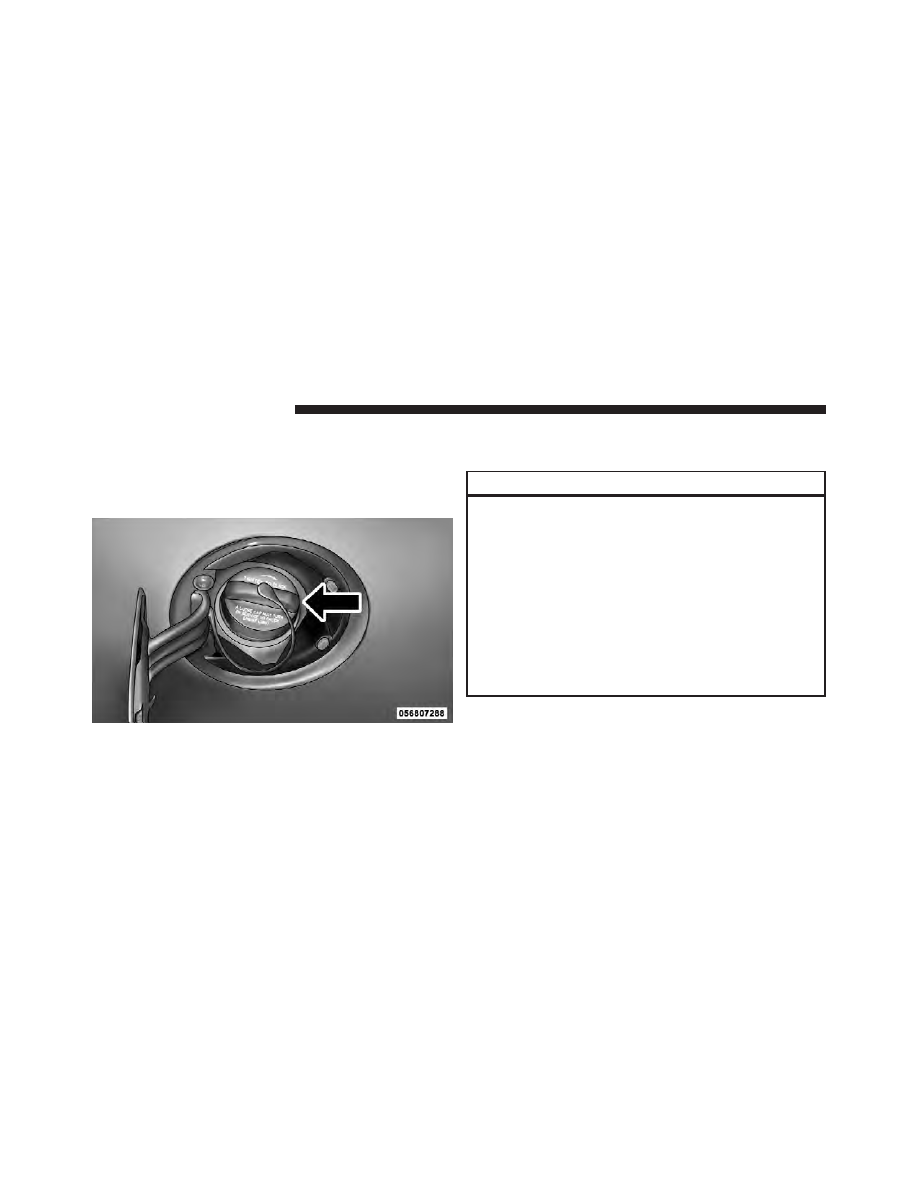

Fuel Filler Cap

540

STARTING AND OPERATING

WARNING!

• Never have any smoking materials lit in or near

the vehicle when the gas cap is removed or the
tank is being filled.

• Never add fuel to the vehicle when the engine is

running.

• A fire may result if gasoline is pumped into a

portable container that is inside of a vehicle. You
could be burned. Always place gas containers on
the ground while filling.

NOTE:

• Tighten the gas cap until you hear a “clicking” sound.

This is an indication that the gas cap is tightened
properly. The MIL in the instrument cluster may turn
on if the gas cap is not secured properly. Make sure
that the gas cap is tightened each time the vehicle is
refueled.

• When the fuel nozzle “clicks” or shuts off, the fuel

tank is full.

Loose Fuel Filler Cap Message

If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the EVIC telltale display area.

Refer to “Electronic Vehicle Information Center (EVIC) in
“Understanding Your Instrument Panel” for further in-
formation. Tighten the fuel filler cap properly and press
the SELECT button to turn off the message. If the
problem continues, the message will appear the next time
the vehicle is started.

VEHICLE LOADING

Certification Label

As required by National Highway Traffic Safety Admin-
istration regulations, your vehicle has a certification label
affixed to the driver’s side door or pillar.

STARTING AND OPERATING

541

This label contains the month and year of manufacture,
Gross Vehicle Weight Rating (GVWR), Gross Axle Weight
Rating (GAWR) front and rear, and Vehicle Identification
Number (VIN). A Month-Day-Hour (MDH) number is
included on this label and indicates the Month, Day and
Hour of manufacture. The bar code that appears on the
bottom of the label is your VIN.

Gross Vehicle Weight Rating (GVWR)
The GVWR is the total permissible weight of your vehicle
including driver, passengers, vehicle, options and cargo.
The label also specifies maximum capacities of front and
rear axle systems (GAWR). Total load must be limited so
GVWR and front and rear GAWR are not exceeded.

Payload
The payload of a vehicle is defined as the allowable load
weight a truck can carry, including the weight of the
driver, all passengers, options and cargo.

Gross Axle Weight Rating (GAWR)
The GAWR is the maximum permissible load on the front
and rear axles. The load must be distributed in the cargo
area so that the GAWR of each axle is not exceeded.

Each axle GAWR is determined by the components in the
system with the lowest load carrying capacity (axle,
springs, tires or wheels). Heavier axles or suspension
components sometimes specified by purchasers for in-
creased durability does not necessarily increase the vehi-
cle’s GVWR.

Tire Size
The tire size on the label represents the actual tire size on
your vehicle. Replacement tires must be equal to the load
capacity of this tire size.

Rim Size
This is the rim size that is appropriate for the tire size
listed.

542

STARTING AND OPERATING

Inflation Pressure
This is the cold tire inflation pressure for your vehicle for
all loading conditions up to full GAWR.

Curb Weight
The curb weight of a vehicle is defined as the total weight
of the vehicle with all fluids, including vehicle fuel, at full
capacity conditions, and with no occupants or cargo
loaded into the vehicle. The front and rear curb weight
values are determined by weighing your vehicle on a
commercial scale before any occupants or cargo are
added.

Loading
The actual total weight and the weight of the front and
rear of your vehicle at the ground can best be determined
by weighing it when it is loaded and ready for operation.

The entire vehicle should first be weighed on a commer-
cial scale to insure that the GVWR has not been exceeded.
The weight on the front and rear of the vehicle should
then be determined separately to be sure that the load is
properly distributed over the front and rear axle. Weigh-
ing the vehicle may show that the GAWR of either the
front or rear axles has been exceeded but the total load is
within the specified GVWR. If so, weight must be shifted
from front to rear or rear to front as appropriate until the
specified weight limitations are met. Store the heavier
items down low and be sure that the weight is distributed
equally. Stow all loose items securely before driving.

Improper weight distributions can have an adverse effect
on the way your vehicle steers and handles and the way
the brakes operate.

STARTING AND OPERATING

543

CAUTION!

Do not load your vehicle any heavier than the GVWR
or the maximum front and rear GAWR. If you do,
parts on your vehicle can break, or it can change the
way your vehicle handles. This could cause you to
lose control. Also overloading can shorten the life of
your vehicle.

TRAILER TOWING

In this section you will find safety tips and information
on limits to the type of towing you can reasonably do
with your vehicle. Before towing a trailer, carefully
review this information to tow your load as efficiently
and safely as possible.

To maintain warranty coverage, follow the requirements
and recommendations in this manual concerning ve-
hicles used for trailer towing.

Common Towing Definitions

The following trailer towing related definitions will assist
you in understanding the following information:

Gross Vehicle Weight Rating (GVWR)
The GVWR is the total allowable weight of your vehicle.
This includes driver, passengers, cargo and tongue
weight. The total load must be limited so that you do not
exceed the GVWR. Refer to “Vehicle Loading/Vehicle
Certification Label” in “Starting and Operating” for
further information.

Gross Trailer Weight (GTW)
The GTW is the weight of the trailer plus the weight of all
cargo, consumables and equipment (permanent or tem-
porary) loaded in or on the trailer in its

⬙loaded and

ready for operation

⬙ condition.

The recommended way to measure GTW is to put your
fully loaded trailer on a vehicle scale. The entire weight
of the trailer must be supported by the scale.

544

STARTING AND OPERATING

Gross Combination Weight Rating (GCWR)
The GCWR is the total permissible weight of your vehicle
and trailer when weighed in combination.

NOTE:

The GCWR rating includes a 150 lbs (68 kg)

allowance for the presence of a driver.

Gross Axle Weight Rating (GAWR)
The GAWR is the maximum capacity of the front and rear
axles. Distribute the load over the front and rear axles
evenly. Make sure that you do not exceed either front or
rear GAWR. Refer to “Vehicle Loading/Vehicle Certifica-
tion Label” in “Starting and Operating” for further
information.

WARNING!

It is important that you do not exceed the maximum
front or rear GAWR. A dangerous driving condition
can result if either rating is exceeded. You could lose
control of the vehicle and have a collision.

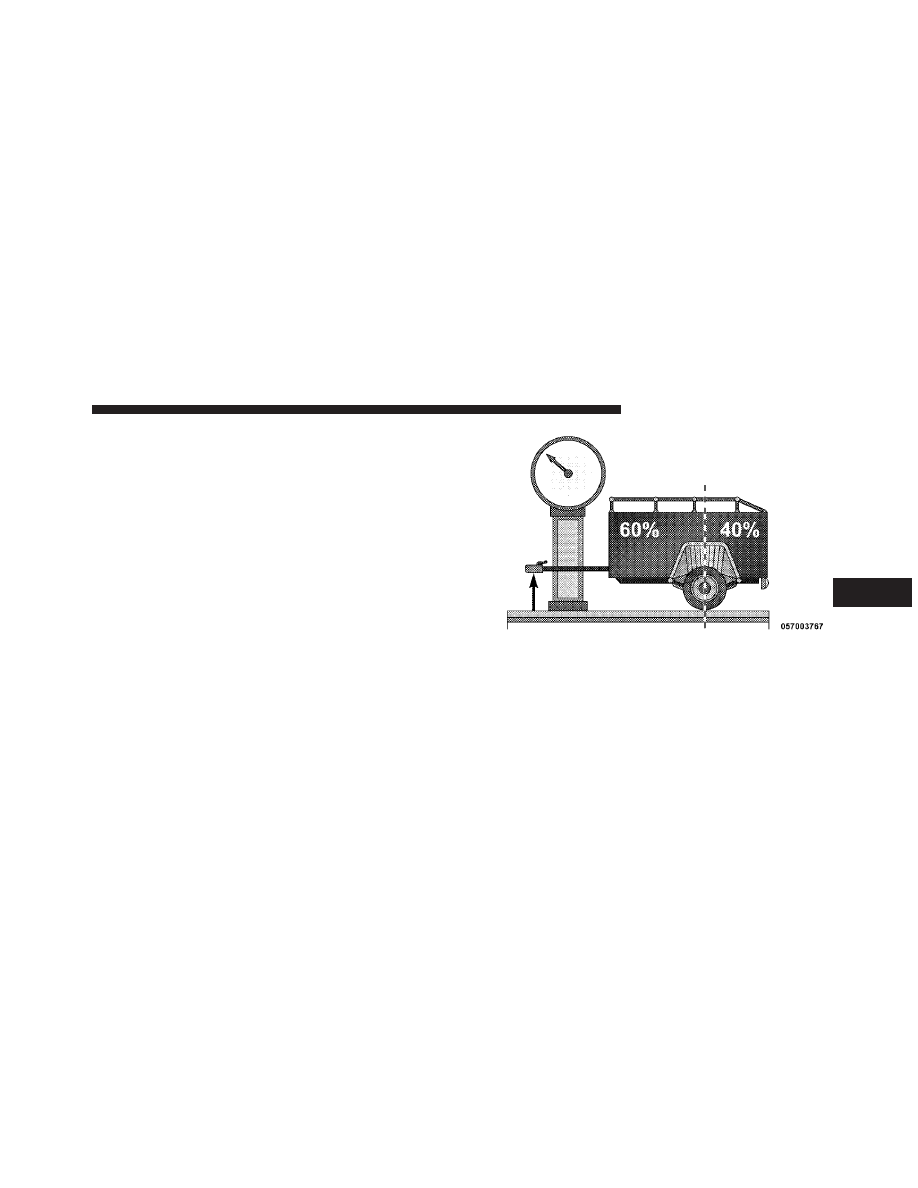

Tongue Weight (TW)
The tongue weight is the downward force exerted on the
hitch ball by the trailer. In most cases it should not be less
than 10% or more than 15% of the trailer load. You must
consider this as part of the load on your vehicle.

Frontal Area
The frontal area is the maximum height multiplied by the
maximum width of the front of a trailer.

Trailer Sway Control
The trailer sway control can be a mechanical telescoping
link that can be installed between the hitch receiver and
the trailer tongue that typically provides adjustable fric-
tion associated with the telescoping motion to dampen
any unwanted trailer swaying motions while traveling.

If equipped, the electronic Trailer Sway Control (TSC)
recognizes a swaying trailer and automatically applies
individual wheel brakes and/or reduces engine power to
attempt to eliminate the trailer sway.

STARTING AND OPERATING

545

Weight-Carrying Hitch
A weight-carrying hitch supports the trailer tongue
weight, just as if it were luggage located at a hitch ball or
some other connecting point of the truck. These kind of
hitches are the most popular on the market today and
they are commonly used to tow small- and medium-
sized trailers.

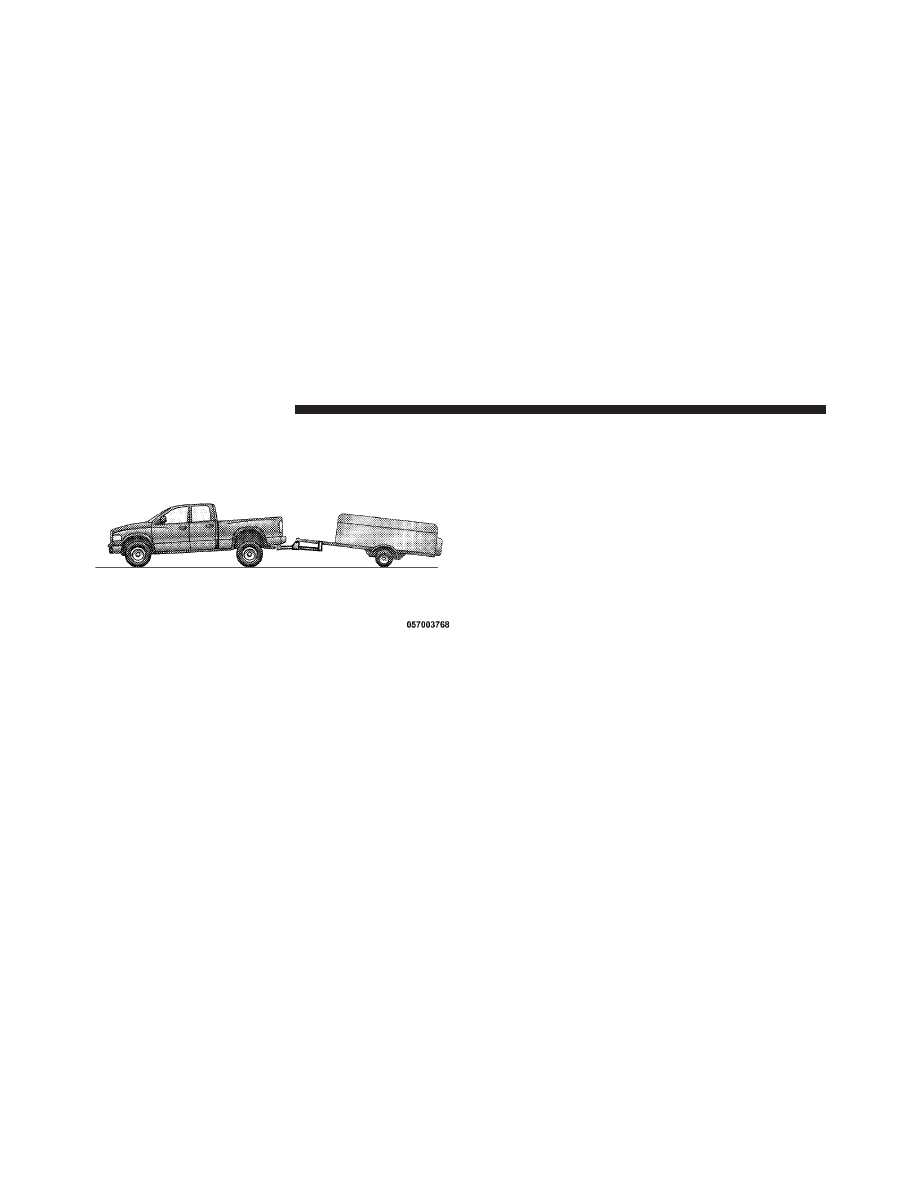

Weight-Distributing Hitch
A weight-distributing system works by applying lever-
age through spring (load) bars. They are typically used
for heavier loads to distribute trailer tongue weight to the
tow vehicle’s front axle and the trailer axle(s). When used
in accordance with the manufacturer’s directions, it pro-
vides for a more level ride, offering more consistent
steering and brake control, thereby enhancing towing
safety. The addition of a friction/hydraulic sway control
also dampens sway caused by traffic and crosswinds and
contributes positively to tow vehicle and trailer stability.
Trailer sway control and a weight distributing (load

equalizing) hitch are recommended for heavier Tongue
Weights (TW) and may be required depending on vehicle
and trailer configuration/loading to comply with GAWR
requirements.

WARNING!

• An improperly adjusted weight distributing hitch

system may reduce handling, stability and braking
performance and could result in a collision.

• Weight distributing systems may not be compat-

ible with surge brake couplers. Consult with your
hitch and trailer manufacturer or a reputable Rec-
reational

Vehicle

dealer

for

additional

information.

546

STARTING AND OPERATING

Fifth-Wheel Hitch
The fifth-wheel hitch is a special high platform with a
coupling that mounts over the rear axle of the tow vehicle
in the truck bed. It connects a vehicle and fifth-wheel
trailer with a coupling king pin.

Gooseneck Hitch
The gooseneck hitch employs a pivoted coupling arm
which attaches to a ball mounted in the bed of a pickup
truck. The coupling arm connects to the hitch mounted
over the rear axle in the truck bed.

Trailer Hitch Classification

The following chart provides the industry standard for
the maximum trailer weight a given trailer hitch class can
tow and should be used to assist you in selecting the
correct trailer hitch for your intended towing condition.

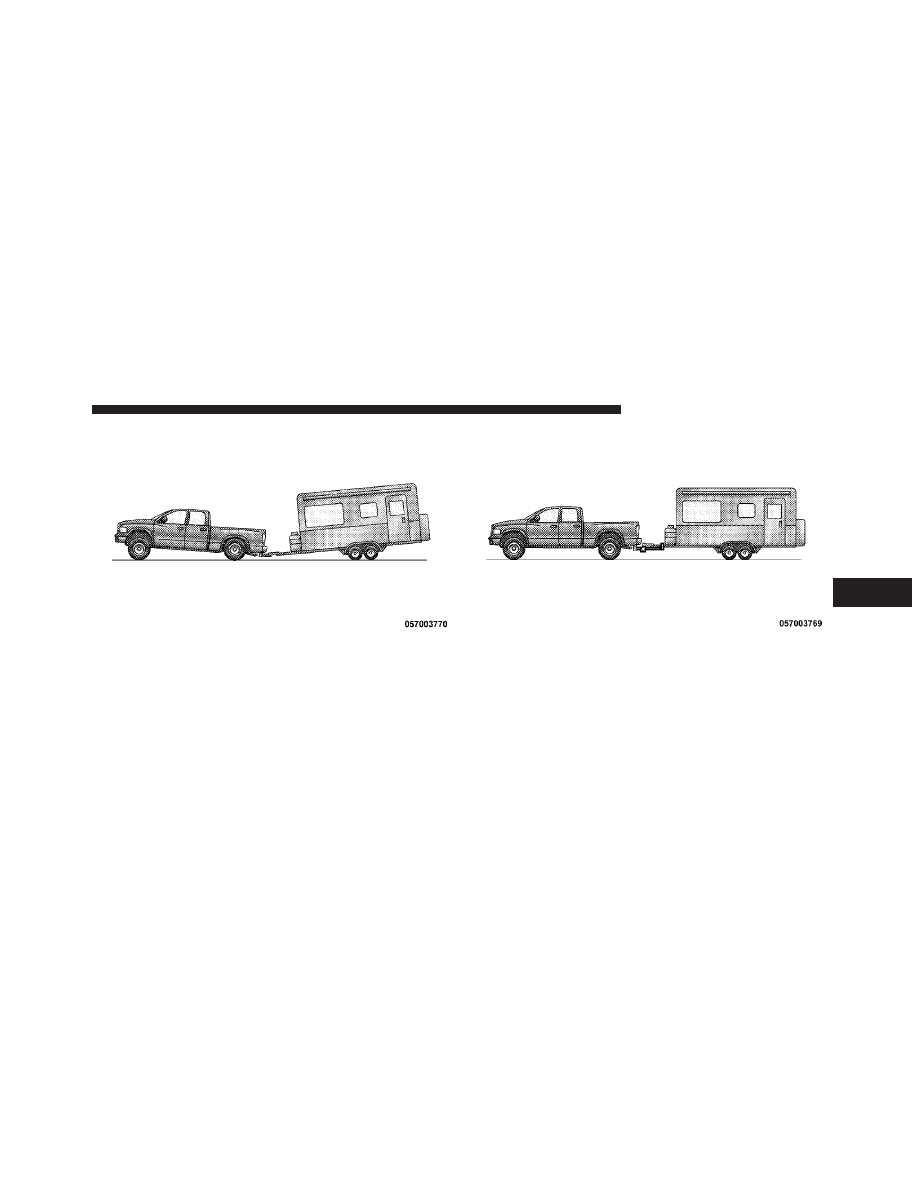

EXAMPLE — Improper Adjustment of

Weight-Distributing Hitch (Incorrect)

548

STARTING AND OPERATING

Trailer Hitch Classification Definitions

Class

Max. Trailer Hitch Industry

Standards

Class I - Light Duty

2,000 lbs (907 kg)

Class II - Medium
Duty

3,500 lbs (1587 kg)

Class III - Heavy Duty

5,000 lbs (2268 kg)

Class IV - Extra
Heavy Duty

10,000 lbs (4540 kg)

Fifth Wheel/
Gooseneck

Greater than 10,000 lbs

(4540 kg)

Refer to the “Trailer Towing Weights (Maximum
Trailer Weight Ratings)” for the Maximum Gross
Trailer Weight (GTW) towable for your given drive-
train.

All trailer hitches should be professionally installed on
your vehicle.

Trailer Towing Weights
(Maximum Trailer Weight Ratings)

The rear bumper is intended to tow trailers up to
5,000 lbs (2 268 kg) without added equipment or altera-
tions to the standard equipment.

STARTING AND OPERATING

549

Ram 1500 4x2

SLT/Outdoorsman/Sport

Laramie

3.7L V-6 4–Speed
Automatic Transmission

Towing: 3,750 lbs
(1701 kg) - max
Payload: 1,860 lbs
(839 kg) - max

—

4.7L V-8 6–Speed
Automatic Transmission

Towing: 5,000 lbs
(2268 kg) - std 7,600 lbs
(3447 kg) - max
Payload: 1,700 lbs
(771 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 7,650 lbs
(3470 kg) - max
Payload: 1,730 lbs
(785 kg) - max

—

5.7L HEMI

威V-8 6–Speed

Automatic Transmission

Towing: 5,000 lbs
(2268 kg) - std 10,400 lbs
(4717 kg) - max
Payload: 1,660 lbs
(753 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 10,450 lbs
(4740 kg) - max
Payload: 1,670 lbs
(757 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 10,050 lbs
(4559 kg) - max
Payload: 1,610 lbs
(730 kg) - max

550

STARTING AND OPERATING

Ram 1500 4x4

SLT/Outdoorsman/Sport

Laramie

4.7L V-8 6–Speed
Automatic Transmission

Towing: 5,000 lbs
(2268 kg) - std 7,400 lbs
(3356 kg) - max
Payload: 1,540 lbs
(698 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 7,450 lbs
(3379 kg) - max
Payload: 1,560 lbs
(708 kg) - max

—

5.7L HEMI

威V-8 6–Speed

Automatic Transmission

Towing: 5,000 lbs
(2268 kg) - std 10,250 lbs
(4649 kg) - max
Payload: 1,510 lbs
(685 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 10,250 lbs
(4649 kg) - max
Payload: 1,530 lbs
(694 kg) - max

Towing: 5,000 lbs
(2268 kg) - std 9,850 lbs
(4468 kg) - max
Payload: 1,610 lbs
(730 kg) - max

STARTING AND OPERATING

551

Ram 2500 & 3500

2500 Power Wagon

威

2500 ST SLT Bighorn/
Lonestar Laramie Out-
doorsman

3500 ST SLT Bighorn/
Lonestar Laramie Out-
doorsman

5.7L HEMI

威 V-8 6-Speed

Automatic Transmission

Towing: 10,100 lbs
(4581 kg) - max
Payload: 1,780 lbs
(807 kg) - max

Towing: 12,300 lbs
(5579 kg) - max
Payload: 3,120 lbs
(1415 kg) - max

—

6.7L Cummins

威 Turbo

Diesel I-6 6-Speed
Manual Transmission

—

Towing: 13,350 lbs
(6055 kg) - max
Payload: 2,490 lbs
(1129 kg) - max

Towing: 14,050 lbs
(6372 kg) - max
Payload: 5,050 lbs
(2291 kg) - max

6.7L Cummins

威 Turbo

Diesel I-6 6-Speed
Automatic Transmission

—

Towing: 15,450 lbs
(7008 kg) - max
Payload: 2,580 lbs
(1170 kg) - max

Towing: 22,700 lbs
(10296 kg) - max
Payload: 5,130 lbs
(2327 kg) - max

552

STARTING AND OPERATING

NOTE:

For additional trailer towing information (maxi-

mum trailer weight ratings) refer to the following website
addresses:

• http://www.ramtrucks.com.
• http://www.ramtruck.ca (Canada).

Trailer And Tongue Weight

Always load a trailer with 60% to 65% of the weight in
the front of the trailer. This places 10% to 15% of the GTW
on the tow hitch of your vehicle. Loads balanced over the
wheels or heavier in the rear can cause the trailer to sway
severely

side to side which will cause loss of control of

the vehicle and trailer. Failure to load trailers heavier in
front is the cause of many trailer collisions.

Consider the following items when computing the
weight on the rear axle of the vehicle:

• The tongue weight of the trailer
• The weight of any other type of cargo or equipment

put in or on your vehicle

• The weight of the driver and all passengers.

STARTING AND OPERATING

553

NOTE:

Remember that everything put into or on the

trailer adds to the load on your vehicle. Also, additional
factory-installed options or dealer-installed options must
be considered as part of the total load on your vehicle.
Refer to “Tire Safety Information/Tire and Loading In-
formation Placard” in “Starting and Operating” for fur-
ther information.

Towing Requirements

To promote proper break-in of your new vehicle drive-
train components the following guidelines are recom-
mended:

CAUTION!

• Do not tow a trailer at all during the first 500 miles

(805 km) the new vehicle is driven. The engine,
axle or other parts could be damaged.

(Continued)

CAUTION! (Continued)

• Then, during the first 500 miles (805 km) that a

trailer is towed, do not drive over 50 mph
(80 km/h) and do not make starts at full throttle.
This helps the engine and other parts of the
vehicle wear in at the heavier loads.

WARNING!

Improper towing can lead to a collision. Follow these
guidelines to make your trailer towing as safe as
possible:

(Continued)

554

STARTING AND OPERATING

WARNING! (Continued)

• Make certain that the load is secured in the trailer

and will not shift during travel. When trailering
cargo that is not fully secured, dynamic load shifts
can occur that may be difficult for the driver to
control. You could lose control of your vehicle and
have a collision.

• When hauling cargo or towing a trailer, do not

overload your vehicle or trailer. Overloading can
cause a loss of control, poor performance or dam-
age to brakes, axle, engine, transmission, steering,
suspension, chassis structure or tires.

• Safety chains must always be used between your

vehicle and trailer. Always connect the chains to
the hook retainers of the vehicle hitch. Cross the
chains under the trailer tongue and allow enough
slack for turning corners.

(Continued)

WARNING! (Continued)

• Vehicles with trailers should not be parked on a

grade. When parking, apply the parking brake on
the tow vehicle. Put the tow vehicle transmission
in PARK. For four-wheel drive vehicles, make sure
the transfer case is not in NEUTRAL. Always,
block or

ⴖchockⴖ the trailer wheels.

• GCWR must not be exceeded.
• Total weight must be distributed between the tow

vehicle and the trailer such that the following four
ratings are not exceeded:
1. GVWR
2. GTW
3. GAWR
4. Trailer tongue weight rating for the trailer hitch
utilized (This requirement may limit the ability to
always achieve the 10% to 15% range of tongue
weight as a percentage of total trailer weight).

STARTING AND OPERATING

555

Dodge 1500 (2012 year). Manual - part 34
