Dodge 1500 (2012 year). Manual

3. After adjusting the hours, press the right side TUNE/
SCROLL control knob to set the minutes. The minutes
will begin to blink.

4. Adjust the minutes using the right side TUNE/
SCROLL control knob. Press the TUNE/SCROLL control
knob to save time change.

5. To exit, press any button/knob or wait five seconds.

The clock can also be set by pressing the SETUP button.
For vehicles equipped with satellite radio, press the
SETUP button, use the TUNE/SCROLL control to select
SET CLOCK, and then follow the above procedure,
starting at Step 2. For vehicles not equipped with satellite
radio, press the SETUP button and then follow the above
procedure, starting at Step 2.

INFO Button
Press the INFO button for an RDS station (one with call
letters displayed). The radio will return a Radio Text
message broadcast from an FM station (FM mode only).

RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next frequency in the
direction of the arrows. This feature operates in either
AM or FM frequencies.

TUNE Control
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the frequency.

Setting the Tone, Balance, and Fade
Push the rotary TUNE/SCROLL control knob and BASS
will display. Turn the TUNE/SCROLL control knob to
the right or left to increase or decrease the bass tones.

300

UNDERSTANDING YOUR INSTRUMENT PANEL

Push the rotary TUNE/SCROLL control knob a second
time and MID will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
mid-range tones.

Push the rotary TUNE/SCROLL control knob a third
time and TREBLE will display. Turn the TUNE/SCROLL
control knob to the right or left to increase or decrease the
treble tones.

Push the rotary TUNE/SCROLL control knob a fourth
time and BALANCE will display. Turn the TUNE/
SCROLL control knob to the right or left to adjust the
sound level from the right or left side speakers.

Push the rotary TUNE/SCROLL control knob a fifth time
and FADE will display. Turn the TUNE/SCROLL control
knob to the left or right to adjust the sound level between
the front and rear speakers.

Push the rotary TUNE/SCROLL control knob again to
exit setting tone, balance, and fade.

MUSIC TYPE Button
Pressing this button once will turn on the Music Type
mode for five seconds. Pressing the MUSIC TYPE button
or turning the TUNE/SCROLL control knob within five
seconds will allow the program format type to be se-
lected. Many radio stations do not currently broadcast
Music Type information.

Toggle the MUSIC TYPE button to select the following
format types:

Program Type

16-Digit Character Display

No program type or

undefined

None

Adult Hits

Adlt Hit

Classical

Classicl

Classic Rock

Cls Rock

College

Country

Foreign Language

Language

UNDERSTANDING YOUR INSTRUMENT PANEL

301

Program Type

16-Digit Character Display

Information

Inform

Jazz

News

Nostalgia

Nostalga

Oldies

Personality

Persnlty

Public

Rhythm and Blues

R & B

Religious Music

Rel Musc

Religious Talk

Rel Talk

Rock

Soft

Soft Rock

Soft Rck

Soft Rhythm and Blues

Soft R&B

Sports

Talk

Program Type

16-Digit Character Display

Top 40

Weather

By pressing the SEEK button when the Music Type icon
is displayed, the radio will be tuned to the next frequency
station with the same selected Music Type name. The
Music Type function only operates when in the FM
mode.

If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset station.

SETUP Button
Pressing the SETUP button allows you to select between
the following items:

• Set Clock — Pressing the SELECT button will allow

you to set the clock. Adjust the hours by turning the
TUNE/SCROLL control knob. After adjusting the

302

UNDERSTANDING YOUR INSTRUMENT PANEL

hours, press the TUNE/SCROLL control knob to set
the minutes. The minutes will begin to blink. Adjust
the minutes using the right side TUNE/SCROLL
control knob. Press the TUNE/SCROLL control knob
to save time change.

AM/FM Button
Press the button to select either AM or FM mode.

SET/RND Button — To Set the Pushbutton
Memory
When you are receiving a station that you wish to
commit to pushbutton memory, press the SET/RND
button. The symbol SET 1 will now show in the display
window. Select the button (1–6) you wish to lock onto this
station and press and release that button. If a button is
not selected within five seconds after pressing the SET/
RND button, the station will continue to play but will not
be stored into pushbutton memory.

You may add a second station to each pushbutton by
repeating the above procedure with this exception: Press
the SET/RND button twice and SET 2 will show in the
display window. Each button can be set for SET 1 and
SET 2 in both AM and FM. This allows a total of 12 AM
and 12 FM stations to be stored into pushbutton memory.
The stations stored in SET 2 memory can be selected by
pressing the pushbutton twice.

Every time a preset button is used, a corresponding
button number will display.

Buttons 1 - 6
These buttons tune the radio to the stations that you
commit to pushbutton memory (12 AM and 12 FM
stations).

DISC/AUX Button
Pressing the DISC/AUX button will allow you to switch
from AM/FM modes to DISC/AUX mode.

UNDERSTANDING YOUR INSTRUMENT PANEL

303

Operation Instructions — CD MODE for CD and
MP3 Audio Play

NOTE:

• The ignition switch must be in the ON/RUN or ACC

position to operate the radio.

• This radio is capable of playing compact discs (CD),

recordable compact discs (CD-R), rewritable compact
discs (CD-RW), compact discs with MP3 tracks and
multisession compact discs with CD and MP3 tracks.

Inserting Compact Disc(s)
Gently insert one CD into the CD player with the CD
label facing up. The CD will automatically be pulled into
the CD player and the CD icon will illuminate on the
radio display. If a CD does not go into the slot more than
1.0 in (2.5 cm), a disc may already be loaded and must be
ejected before a new disc can be loaded.

If you insert a disc with the ignition ON/RUN and the
radio ON, the unit will switch from radio to CD mode
and begin to play when you insert the disc. The display
will show the track number, and index time in minutes
and seconds. Play will begin at the start of track 1.

CAUTION!

• This CD player will accept 4–3/4 in (12 cm) discs

only. The use of other sized discs may damage the
CD player mechanism.

• Do not use adhesive labels. These labels can peel

away and jam the player mechanism.

• The RES Media Center is a single CD player. Do

not attempt to insert a second CD if one is already
loaded.

EJECT Button - Ejecting a CD

Press the EJECT button to eject the CD.

304

UNDERSTANDING YOUR INSTRUMENT PANEL

If you have ejected a disc and have not removed it within
10 seconds, it will be reloaded. If the CD is not removed,
the radio will reinsert the CD but will not play it.

A disc can be ejected with the radio and ignition OFF.

NOTE:

Ejecting with the ignition OFF is not allowed on

convertible or soft-top models (if equipped).

SEEK Button
Press the right SEEK button for the next selection on the
CD. Press the left SEEK button to return to the beginning
of the current selection, or return to the beginning of the
previous selection if the CD is within the first second of
the current selection. Pressing and holding the SEEK
button will allow faster scrolling through the tracks in
CD and MP3 modes.

TIME Button
Press this button to change the display from a large CD
playing time display to a small CD playing time display.

RW/FF
Press and hold FF (Fast Forward) and the CD player will
begin to fast forward until FF is released or RW or
another CD button is pressed. The RW (Reverse) button
works in a similar manner.

AM/FM Button
Press the button to select either AM or FM mode.

SET/RND Button (Random Play Button)
Press this button while the CD is playing to activate
Random Play. This feature plays the selections on the
compact disc in random order to provide an interesting
change of pace.

Press the right SEEK button to move to the next ran-
domly selected track.

Press the SET/RND button a second time to stop Ran-
dom Play.

UNDERSTANDING YOUR INSTRUMENT PANEL

305

Notes On Playing MP3 Files

The radio can play MP3 files; however, acceptable MP3
file recording media and formats are limited. When
writing MP3 files, pay attention to the following restric-
tions.

Supported Media (Disc Types)
The MP3 file recording media supported by the radio are
CDDA, CD-R, CD-RW, MP3, and CDDA+MP3.

Supported Medium Formats (File Systems)
The medium formats supported by the radio are ISO 9660
Level 1 and Level 2 and includes the Joliet extension.
When reading discs recorded using formats other than
ISO 9660 Level 1 and Level 2, the radio may fail to read
files properly and may be unable to play the file nor-
mally. UDF and Apple HFS formats are not supported.

The radio uses the following limits for file systems:

• Maximum number of folder levels: 8

• Maximum number of files: 255
• Maximum number of folders. (The radio display of file

names and folder names is limited. For large numbers
of files and/or folders, the radio may be unable to
display the file name and folder name and will assign
a number instead. With a maximum number of files,
exceeding 20 folders will result in this display. With
200 files, exceeding 50 folders will result in this
display.)

• Maximum number of characters in file/folder names:

• Level 1: 12 (including a separator ⬙.⬙ and a three-

character extension)

• Level 2: 31 (including a separator ⬙.⬙ and a three-

character extension)

Multisession disc formats are supported by the radio.
Multisession discs may contain combinations of normal
CD audio tracks and computer files (including MP3 files).

306

UNDERSTANDING YOUR INSTRUMENT PANEL

Discs created with an option such as

⬙keep disc open after

writing

⬙ are most likely multisession discs. The use of

multisession for CD audio or MP3 playback may result in
longer disc loading times.

Supported MP3 File Formats
The radio will recognize only files with the *.MP3 exten-
sion as MP3 files. Non-MP3 files named with the *.MP3
extension may cause playback problems. The radio is
designed to recognize the file as an invalid MP3 and will
not play the file.

When using the MP3 encoder to compress audio data to
an MP3 file, the bit rate and sampling frequencies in the
following table are supported. In addition, variable bit
rates (VBR) are also supported. The majority of MP3 files
use a 44.1 kHz sampling rate and a 192, 160, 128, 96 or
VBR bit rates.

MPEG

Specification

Sampling Fre-

quency (kHz)

Bit Rate (kbps)

MPEG-1 Audio

Layer 3

48, 44.1, 32

320, 256, 224,
192, 160, 128,

112, 96, 80, 64,

56, 48, 40, 32

MPEG-2 Audio

Layer 3

24, 22.05, 16

160, 128, 144,

112, 96, 80, 64,

56, 48, 40, 32, 24,

16, 8

ID3 Tag information for artist, song title, and album title
are supported for version 1 ID3 tags. ID3 version 2 is not
supported by the radios.

Playlist files are not supported. MP3 Pro files are not
supported.

UNDERSTANDING YOUR INSTRUMENT PANEL

307

Playback of MP3 Files
When a medium containing MP3 data is loaded, the
radio checks all files on the medium. If the medium
contains a lot of folders or files, the radio will take more
time to start playing the MP3 files.

Loading times for playback of MP3 files may be affected
by the following:

• Media - CD-RW media may take longer to load than

CD-R media

• Medium formats - Multisession discs may take longer

to load than non-multisession discs

• Number of files and folders - Loading times will

increase with more files and folders

To increase the speed of disc loading, it is recommended
to use CD-R media and single-session discs. To create a
single-session disc, enable the “Disc at Once” option
before writing to the disc.

LIST Button (CD Mode for MP3 Play)

Pressing the LIST button will bring up a list of all folders
on the disc. Scrolling up or down the list is done by
turning the TUNE/SCROLL control knob. Selecting a
folder by pressing the TUNE/SCROLL control knob will
begin playing the files contained in that folder (or the
next folder in sequence if the selection does not contain
playable files).

The folder list will time out after five seconds.

INFO Button (CD Mode for MP3 Play)

Pressing the INFO button repeatedly will scroll through
the following TAG information: Song Title, Artist, File
Name, and Folder Name (if available).

Press the INFO button once more to return to

⬙elapsed

time

⬙ priority mode.

Press and hold the INFO button for three seconds or
more and the radio will display song titles for each file.

308

UNDERSTANDING YOUR INSTRUMENT PANEL

Press and hold the INFO button again for three seconds
to return to

⬙elapsed time⬙ display.

Operation Instructions - Auxiliary Mode
The auxiliary (AUX) jack is an audio input jack which
allows the user to plug in a portable device such as an
MP3 player or cassette player and utilize the vehicle’s
audio system to amplify the source and play through the
vehicle speakers.

Pressing the AUX button will change the mode to auxil-
iary device if the AUX jack is connected.

NOTE:

The AUX device must be turned on and the

device’s volume set to the proper level. If the AUX audio
is not loud enough, turn the device’s volume up. If the
AUX audio sounds distorted, turn the device’s volume
down.

TIME Button (Auxiliary Mode)
Press this button to change the display to time of day. The
time of day will display for five seconds (when the
ignition is OFF).

Uconnect™ Multimedia (Satellite Radio) — If
Equipped

Satellite radio uses direct satellite-to-receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius Satellite
Radio. This service offers over 130 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.

NOTE:

Sirius service is not available in Hawaii and has

limited coverage in Alaska.

System Activation
Sirius Satellite Radio service is pre-activated, and you
may begin listening immediately to the one year of audio
service that is included with the factory-installed satellite

UNDERSTANDING YOUR INSTRUMENT PANEL

309

radio system in your vehicle. Sirius will supply a wel-
come kit that contains general information, including
how to setup your on-line listening account. For further
information, call the toll-free number 888-539-7474, or
visit the Sirius web site at www.sirius.com, or at www-
.siriuscanada.ca for Canadian residents.

Electronic Serial Number/Sirius Identification
Number (ESN/SID)
Please have the following information available when
calling:

1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).

2. Your Vehicle Identification Number.

To access the ESN/SID, refer to the following steps:

ESN/SID Access
With the ignition switch in the ON/RUN or ACC posi-
tion and the radio on, press the SETUP button and scroll

using the TUNE/SCROLL control knob until Sirius ID is
selected. Press the TUNE/SCROLL control knob and the
Sirius ID number will display. The Sirius ID number
display will time out in two minutes. Press any button on
the radio to exit this screen.

Selecting Uconnect™ Multimedia (Satellite) Mode
Press the SAT button until

⬙SAT⬙ appears in the display. A

CD may remain in the radio while in the Satellite radio
mode.

Satellite Antenna
To ensure optimum reception, do not place items on the
roof around the rooftop antenna location. Metal objects
placed within the line of sight of the antenna will cause
decreased performance. Larger luggage items such as
bikes should be placed as far rearward as possible, within
the loading design of the rack. Do not place items directly
on or above the antenna.

310

UNDERSTANDING YOUR INSTRUMENT PANEL

Reception Quality
Satellite reception may be interrupted due to one of the
following reasons:

• The vehicle is parked in an underground parking

structure or under a physical obstacle.

• Dense tree coverage may interrupt reception in the

form of short audio mutes.

• Driving under wide bridges or along tall buildings can

cause intermittent reception.

• Placing objects over or too close to the antenna can

cause signal blockage.

Operating Instructions - Uconnect™ Multimedia
(Satellite) Mode

NOTE:

The ignition switch must be in the ON/RUN or

ACC position to operate the radio.

SEEK Buttons
Press and release the SEEK buttons to search for the next
channel in Satellite mode. Press the right switch to seek
up and the left switch to seek down. The radio will
remain tuned to the new channel until you make another
selection. Holding either button will bypass channels
without stopping until you release it.

SCAN Button
Pressing the SCAN button causes the tuner to search for
the next channel, pausing for eight seconds before con-
tinuing to the next. To stop the search, press the SCAN
button a second time.

INFO Button
Pressing the INFO button will cycle the display informa-
tion between Artist, Song Title, and Composer (if avail-
able). Also, pressing and holding the INFO button for an
additional three seconds will make the radio display the
Song Title all of the time (press and hold again to return
to normal display).

UNDERSTANDING YOUR INSTRUMENT PANEL

311

RW/FF
Pressing the RW (Rewind) or FF (Fast Forward) buttons
causes the tuner to search for the next channel in the
direction of the arrows.

TUNE Control (Rotary)
Turn the rotary TUNE/SCROLL control knob clockwise
to increase or counterclockwise to decrease the channel.

Toggle the MUSIC TYPE button again to select the music
type.

By pressing the SEEK button when the Music Type
function is active, the radio will be tuned to the next
channel with the same selected Music Type name.

If a preset button is activated while in the Music Type
(Program Type) mode, the Music Type mode will be
exited and the radio will tune to the preset channel.

SETUP Button
Pressing the SETUP button allows you to select the
following items:

• Display Sirius ID number — Press the AUDIO/

SELECT button to display the Sirius ID number. This
number is used to activate, deactivate, or change the
Sirius subscription.

SET Button – To Set the Pushbutton Memory
When you are receiving a channel that you wish to
commit to pushbutton memory, press the SET button.
The symbol SET 1 will now show in the display window.

312

UNDERSTANDING YOUR INSTRUMENT PANEL

Select the button (1-6) you wish to lock onto this channel
and press and release that button. If a button is not
selected within five seconds after pressing the SET but-
ton, the channel will continue to play but will not be
stored into pushbutton memory.

You may add a second channel to each pushbutton by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2. This
allows a total of 12 Satellite channels to be stored into
pushbutton memory. The channels stored in SET 2
memory can be selected by pressing the pushbutton
twice.

Every time a preset button is used, a corresponding
button number will display.

Buttons 1 - 6
These buttons tune the radio to the channels that you
commit to pushbutton memory (12 Satellite stations).

Operating Instructions (Uconnect™ Phone) — If
Equipped

Refer to “Uconnect™ Phone” in the Uconnect™ User
Manual located on the DVD for further details.

iPod

姞

/USB/MP3 CONTROL — IF EQUIPPED

NOTE:

This section is for sales code RES and REQ/

REL/RET radios only with Uconnect™. For sales code
RBZ/RHB, RHR, RHP, RHW or RB2 touch-screen radio
iPod

威/USB/MP3 control feature, refer to the separate

RBZ/RHB, RHR, RHP, RHW or RB2 User’s Manual.
iPod

威/USB/MP3 control is available only if equipped as

an option with these radios.

This feature allows an iPod

威 or external USB device to be

plugged into the USB port, located in the glove compart-
ment.

UNDERSTANDING YOUR INSTRUMENT PANEL

313

iPod

威 control supports Mini, 4G, Photo, Nano, 5G iPod威

and iPhone

威 devices. Some iPod威 software versions may

not fully support the iPod

威 control features. Please visit

Apple’s website for software updates.

NOTE:

• If the radio has a USB port, refer to the appropriate

Uconnect™ Multimedia radio User’s Manual for
iPod

威 or external USB device support capability.

• Connecting an iPod威 or consumer electronic audio

device to the AUX port located in the radio faceplate,
plays media, but does not use the iPod

威 /MP3 control

feature to control the connected device.

Connecting The iPod

姞

Or External USB Device

Use the connection cable to connect an iPod

威 or external

USB device to the vehicle’s USB connector port which is
located in the glove compartment.

NOTE:

The glove compartment will have a position

where the iPod

威 or consumer electronic audio device

cable can be routed through without damaging the cable
when closing the lid. This allows routing of the cable
without damaging it while closing the lid. If a cut out is

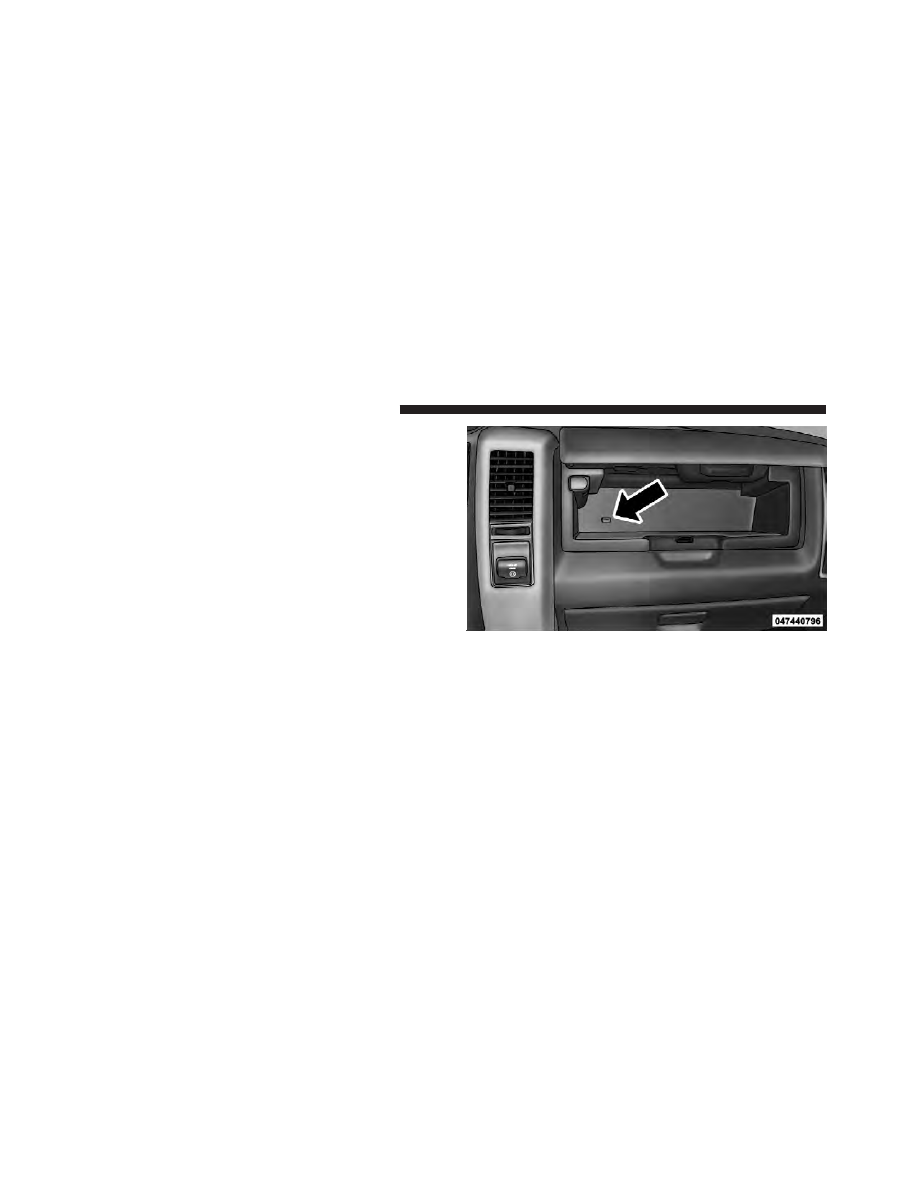

USB Connector Port

314

UNDERSTANDING YOUR INSTRUMENT PANEL

not available in the glove compartment, route the cable
away from the lid latch and in a place that will allow the
lid to close without damaging the cable.

Once the audio device is connected and synchronized to
the vehicle’s iPod

威/USB/MP3 control system (iPod威 or

external USB device may take a few minutes to connect),
the audio device starts charging and is ready for use by
pressing radio switches, as described below.

NOTE:

If the audio device battery is completely dis-

charged, it may not communicate with the iPod

威/USB/

MP3 control system until a minimum charge is attained.
Leaving the audio device connected to the iPod

威/USB/

MP3 control system may charge it to the required level.

Using This Feature

By using iPod cable or external USB device to connect to
USB port:

• The audio device can be played on the vehicle’s sound

system, providing metadata (artist, track title, album,
etc.) information on the radio display.

• The audio device can be controlled using the radio

buttons to Play, Browse, and List the iPod

威 contents.

• The audio device battery charges when plugged into

the USB/AUX connector (if supported by the specific
audio device)

Controlling The iPod

姞

Or External USB Device

Using Radio Buttons

To get into the iPod

威/USB/MP3 control mode and access

a connected audio device, either press the “AUX” button
on the radio faceplate or press the VR button and say

⬙USB⬙ or ⬙Switch to USB⬙. Once in the iPod威/USB/MP3

UNDERSTANDING YOUR INSTRUMENT PANEL

315

Dodge 1500 (2012 year). Manual - part 19
