Dodge Ram 1500 (2011 year). Manual

Cavity Cartridge

Fuse

Mini

Fuse

Description

M19

25 Amp
Natural

Automatic Shutdown
1 and 2

M20

15 Amp
Blue

Instrument Cluster
Interior Lighting /Sw
Steering Wheel/Sw
Bank

M21

20 Amp
Yellow

Automatic Shutdown
3

M22

10 Amp
Red

Horns (Low/High) –
Right

M23

10 Amp
Red

Horns (Low/High) –
Left

M25

20 Amp
Yellow

Fuel Pump Motor/
Diesel Lift Pump – If
Equipped

M26

10 Amp
Red

Spare

Cavity Cartridge

Fuse

Mini

Fuse

Description

M27

10 Amp
Red

Ignition Switch

M28

15 Amp
Blue

Powertrain Control
Module

M29

10 Amp
Red

Tire Pressure Monitor

M30

15 Amp
Blue

J1962 Diag Connector

M32

10 Amp
Red

Airbag Module

M33

10 Amp
Red

Powertrain Control
Module

M34

10 Amp
Red

Park Assist Module/
Climate Control Sys-
tem Module/IR
Sensor/Compass
Module

556

MAINTAINING YOUR VEHICLE

Cavity Cartridge

Fuse

Mini

Fuse

Description

M35

15 Amp
Blue

LH Front & Rear
Parklamps

M36

20 Amp
Yellow

Power Outlet

M37

10 Amp
Red

Antilock Brakes/
Stability Control Sys-
tem Module/
Stoplamp Switch

M38

25 Amp
Natural

All Door Lock &Un-
lock

CAUTION!

• When installing the totally integrated power mod-

ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the totally
integrated power module and possibly result in a
electrical system failure.

• When replacing a blown fuse, it is important to

use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.

MAINTAINING YOUR VEHICLE

557

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:

• Disconnect the Ignition-Off Draw (IOD) fuse located in

the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.

• As an alternative to the above steps you may discon-

nect the negative cables from both batteries.

• Any time you store your vehicle or keep it out of

service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

NOTE:

• When reinstalling the IOD fuse push firmly until fully

seated; the gauges in the instrument cluster will do a
full sweep when the ignition switch is turned to the
RUN position. This is a normal condition.

• When the vehicle is shipped from the factory, the IOD

fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play

⬙NO FUSE.”

558

MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS

LIGHT BULBS – Interior

Bulb No.

Overhead Console Lamps . . . . . . . . . . . . . . . TS 212-2
Dome Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 7679

NOTE:

For lighted switches, see your authorized dealer

for replacement instructions.

All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.

LIGHT BULBS – Exterior

Bulb No.

Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 921
Center High Mounted Stop Lamp (CHMSL) . . . . . 921
Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9145
Dual Headlamp . . . . . . . . . . . . . . . . . . . . . . . . . H13
Quad Headlamp – Low Beam . . . . . . . . . . . . . . . H11
Quad Headlamp – High Beam . . . . . . . . . . . . . . 9005
Side Marker (Dual Headlamp) . . . . . . . . . . . . . 3157K

Side Marker (Quad Headlamp). . . . . . . . . . . . 3157NA
Rear License Plate Lamp . . . . . . . . . . . . . . . . . . . 194
Rear Cargo Lamp . . . . . . . . . . . . . . . . . . . . . . . . 921
Rear Tail/Turn and Stop. . . . . . . . . . . . . . . . . . 3157K
Cab Roof Marker Lamps . . . . . . . . . . . . . . . . . 194NA
Rear Lamp Bar ID Marker Lamp. . . . . . . . . . . . . . 194
Side Marker Lamps (Dual Rear Wheels) . . . . . . . . 194

BULB REPLACEMENT

Dual or Quad Headlamp/Front Park and Turn
Signal — If Equipped

1. Open the hood.

2. Disconnect and isolate the negative battery cable.

3. Remove the four plastic push-in fasteners that secure
the upper radiator seal to the grille support and both
fender ledges.

MAINTAINING YOUR VEHICLE

559

4. Remove the two plastic push-in rivets that secure the
upper radiator seal to the radiator.

5. Remove the upper radiator seal from the vehicle.

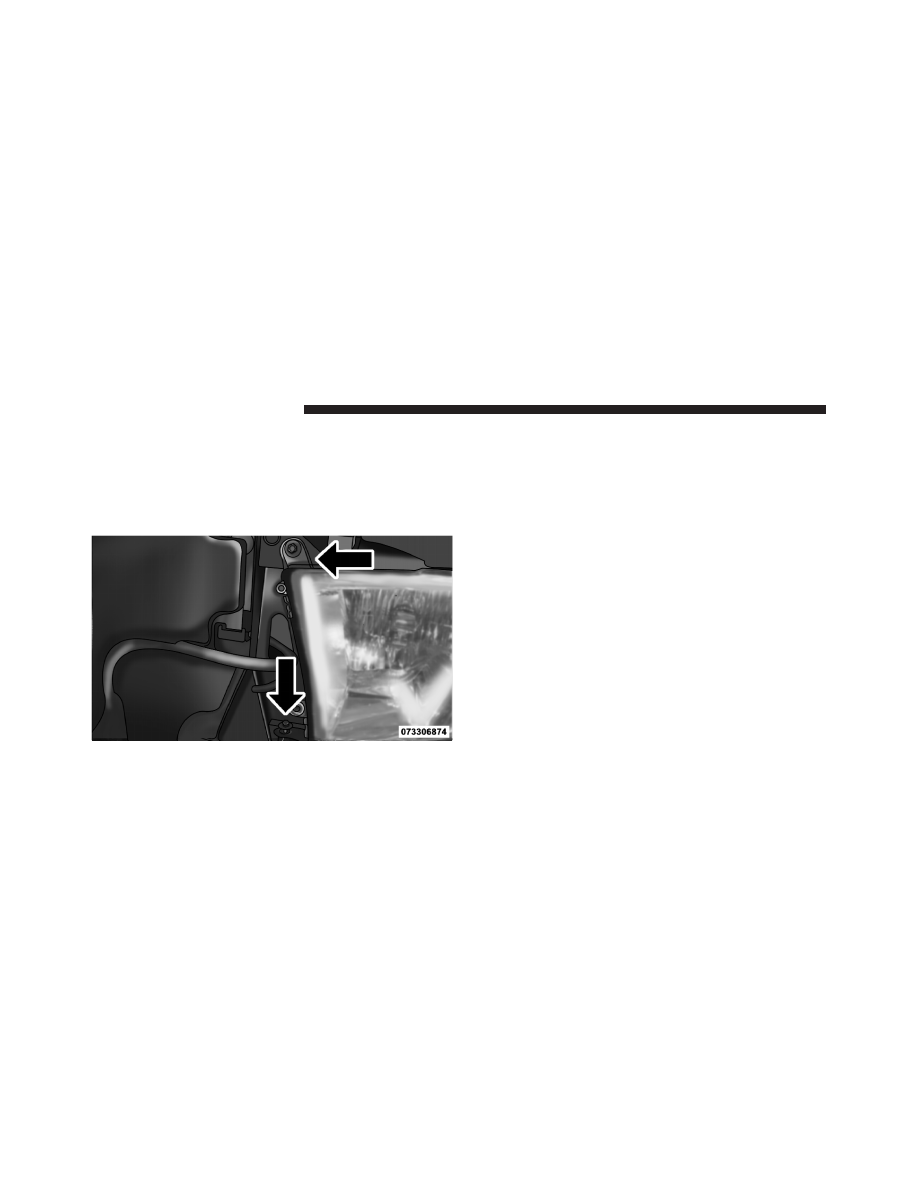

6. Remove the two headlamp assembly attachment
screws.

7. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over the
access hole in the front of the wheel house splash shield.
Access to the rear of the lamp can be gained through this
access hole.

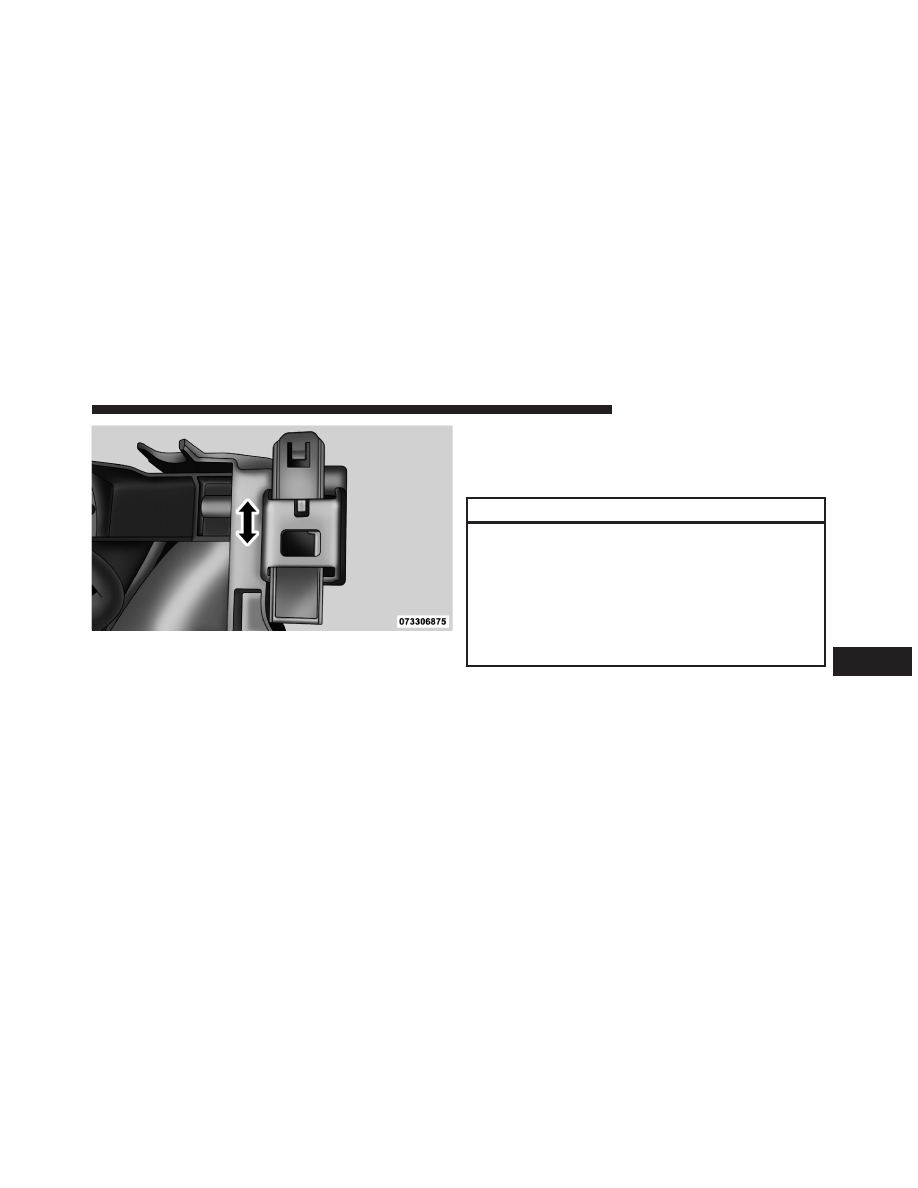

8. Reach through the access hole of the wheel house
splash shield and lift the slide lock upward far enough to
disengage it from the lock post on the back of the front
lamp unit housing.

560

MAINTAINING YOUR VEHICLE

9. Remove the headlamp assembly. Grasp the outboard
edge of the lamp and pull it straight forward to disen-
gage the ball stud from the plastic grommet.

10. Disconnect the wiring harness connectors from the
bulb socket.

11. Replace bulb(s) as necessary.

CAUTION!

• Do not contaminate the bulb glass by touching it

with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.

• Always use the correct bulb size and type for

replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the bulb
socket, or the lamp wiring.

NOTE:

There are access covers over both headlamp

bulb access holes in the quad front lamp unit housing (if
equipped). These covers MUST be reinstalled after the
bulb has been replaced.

MAINTAINING YOUR VEHICLE

561

Fog Lamps

1. Reach under and behind the front bumper to access
the back of the front fog lamp housing.

2. Disconnect the fog lamp wiring harness connector
from the fog lamp bulb.

3. Rotate the bulb counterclockwise

⁄

turn to unlock the

bulb from the housing.

4. Pull the bulb straight out from the housing.

CAUTION!

Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.

Rear Tail/Stop, Turn Signal and Backup Lamps

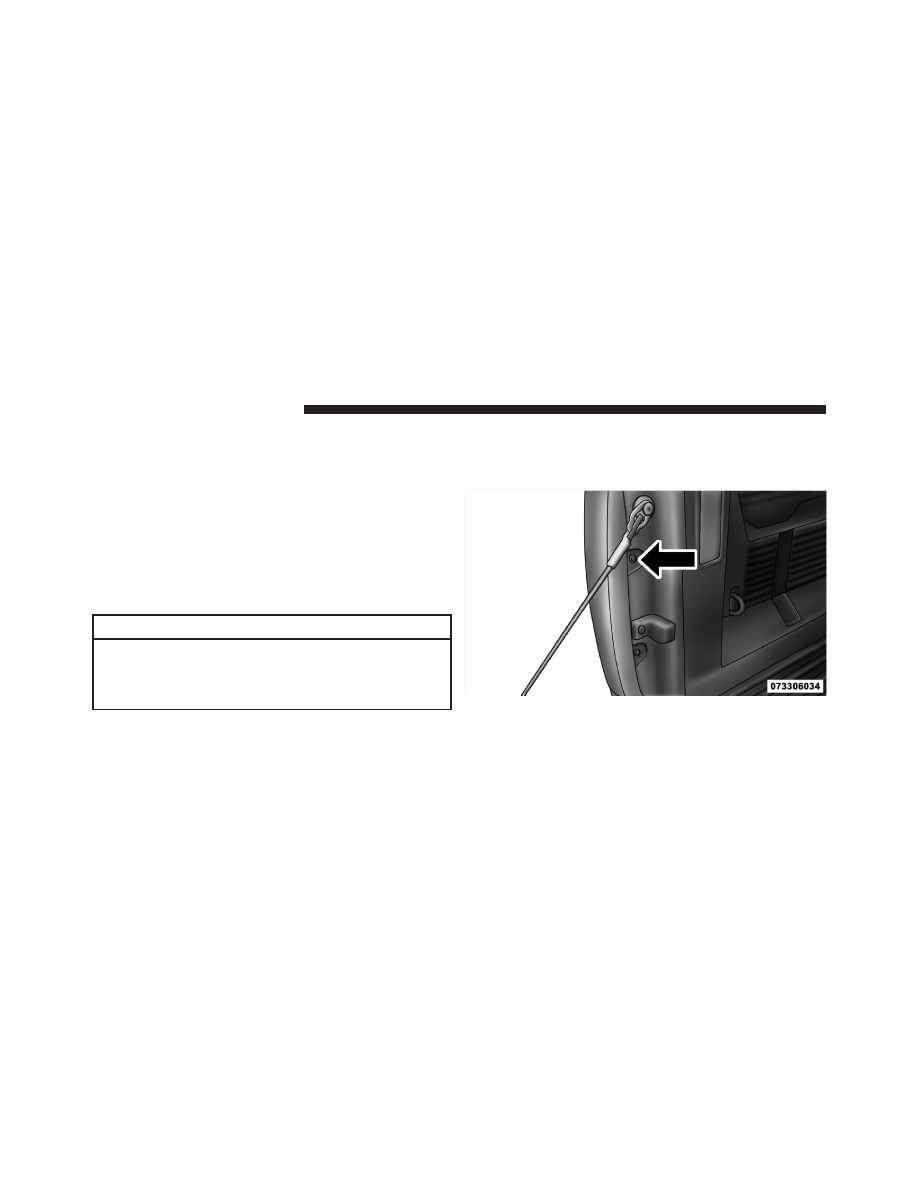

1. Remove the two screws that pass through the bed
sheetmetal.

562

MAINTAINING YOUR VEHICLE

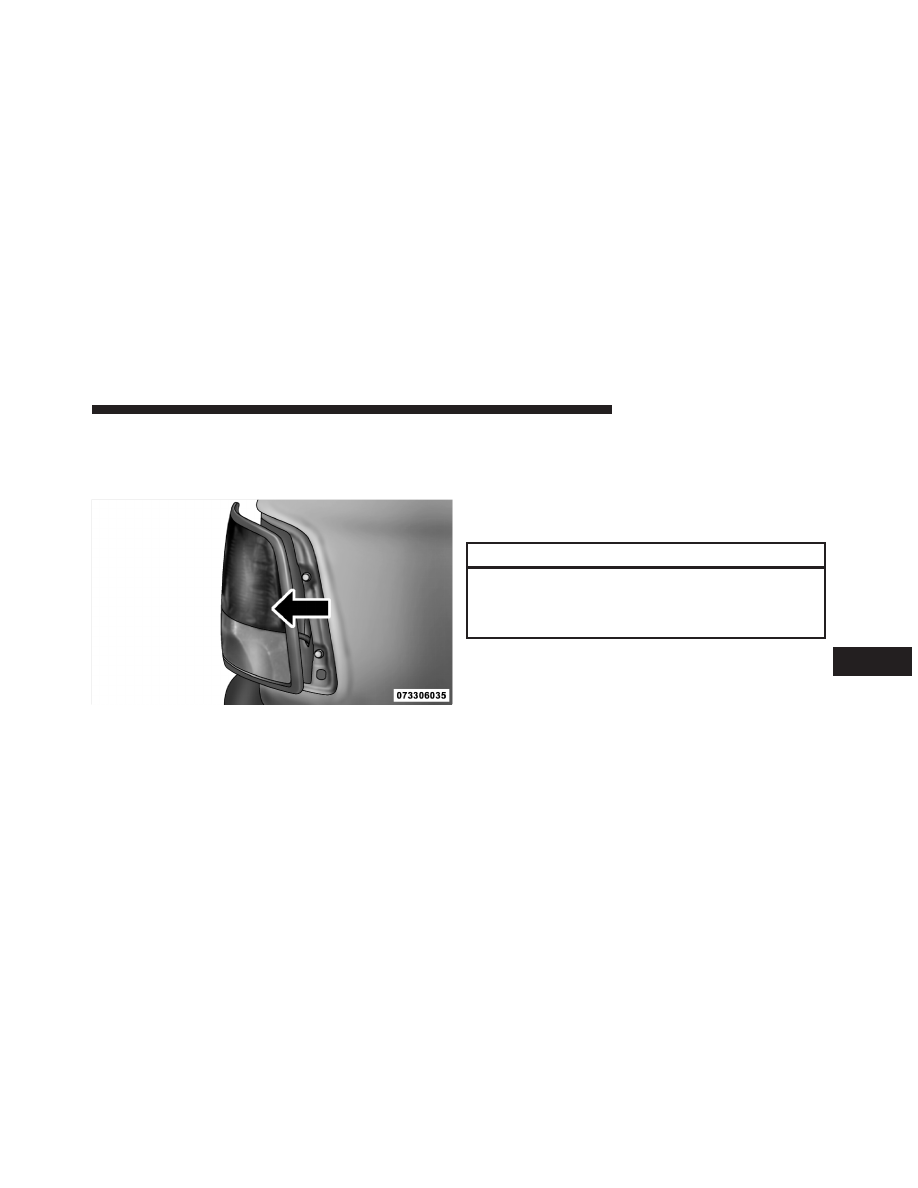

2. Pull the outboard side of the lamp rearward far
enough to unsnap the two receptacles on the outboard
side of the lamp housing from the two plastic snap post
retainers in the outer box side panel.

3. Disconnect the wiring harness connectors from the
bulb socket.

4. Rotate the bulb socket counterclockwise 1/4 turn to
unlock it from the housing.

5. Pull the bulb straight out of the socket.

CAUTION!

Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.

6. Reverse the procedure to install the bulb and housing.

MAINTAINING YOUR VEHICLE

563

Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp

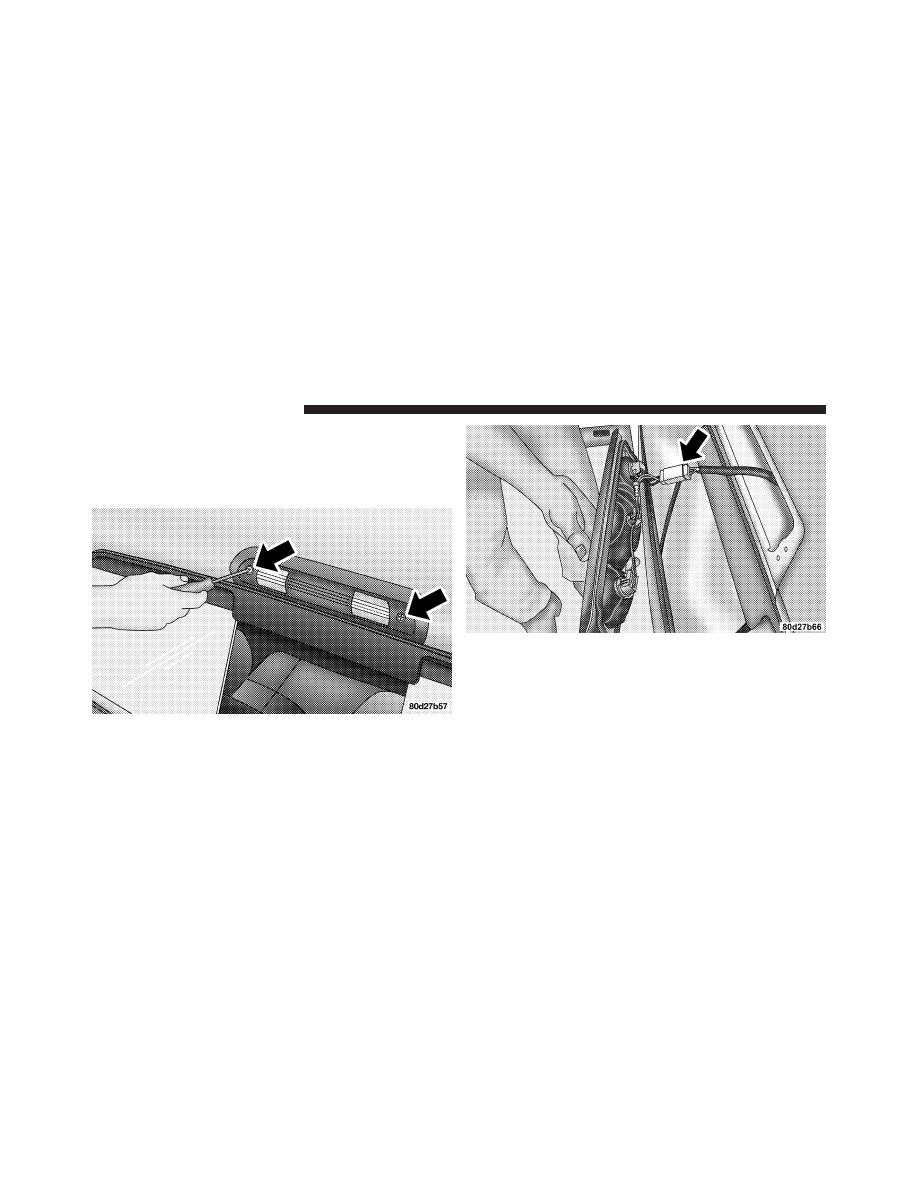

1. Remove the two screws holding the housing/lens to
the body as shown.

2. Separate the connector holding the housing and wir-
ing harness to the body.

3. Turn the desired bulb socket

⁄

turn and remove the

socket and bulb from housing.

4. Pull the desired bulb straight from the socket.

564

MAINTAINING YOUR VEHICLE

CAUTION!

Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.

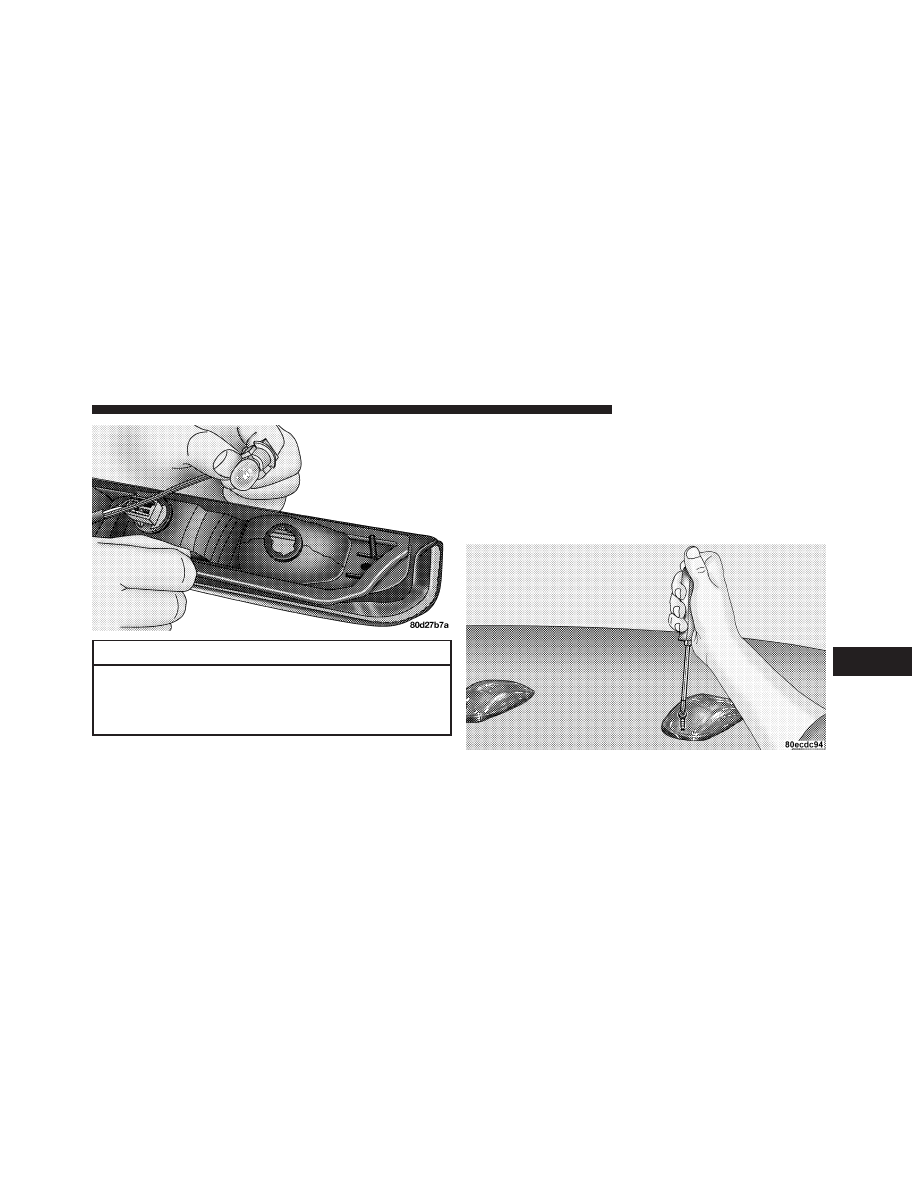

• Outside Bulbs: Cargo Lamps

• Inside Bulb: Center High-Mounted Stop Lamp

5. Reverse the procedure for installation of bulbs and
housing.

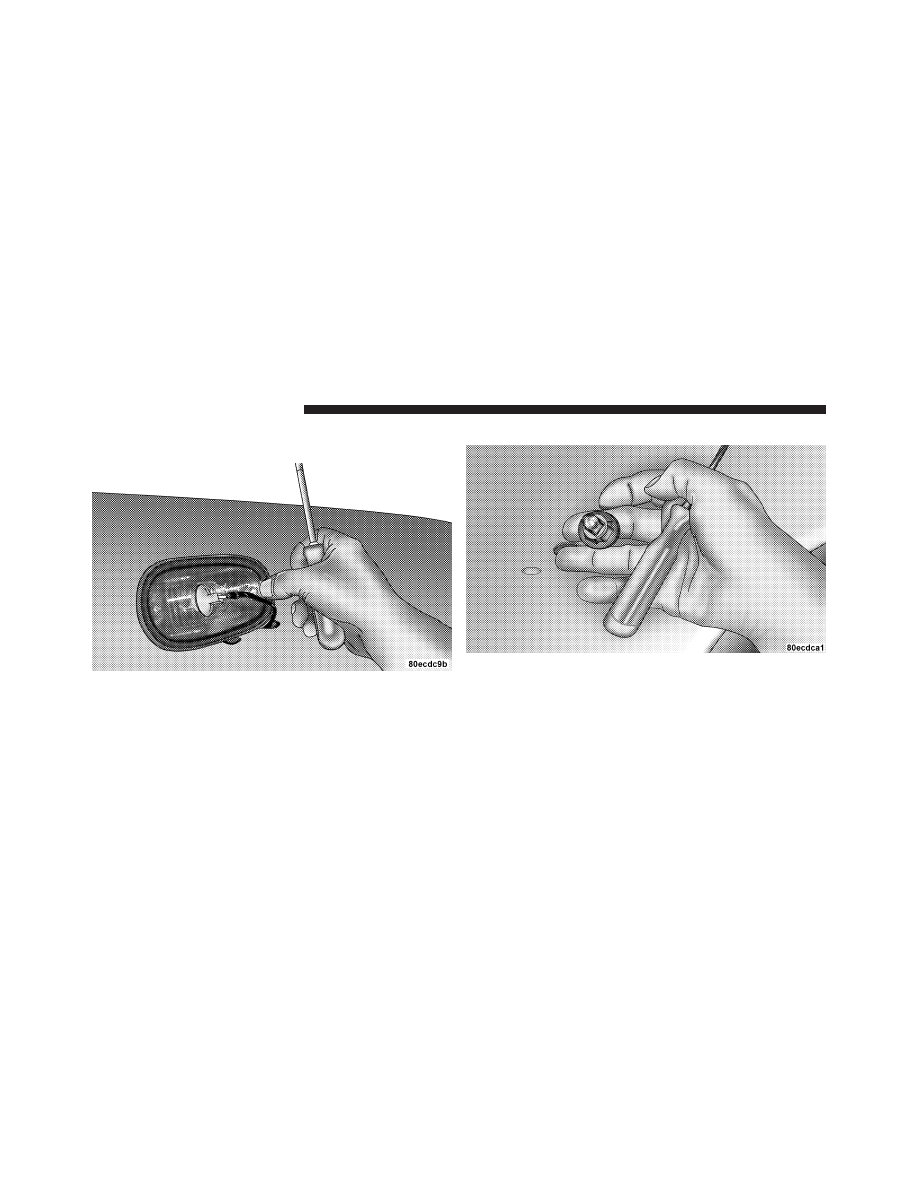

Cab Top Clearance Lamps — If Equipped

1. Remove the two screws from the top of the lamp.

MAINTAINING YOUR VEHICLE

565

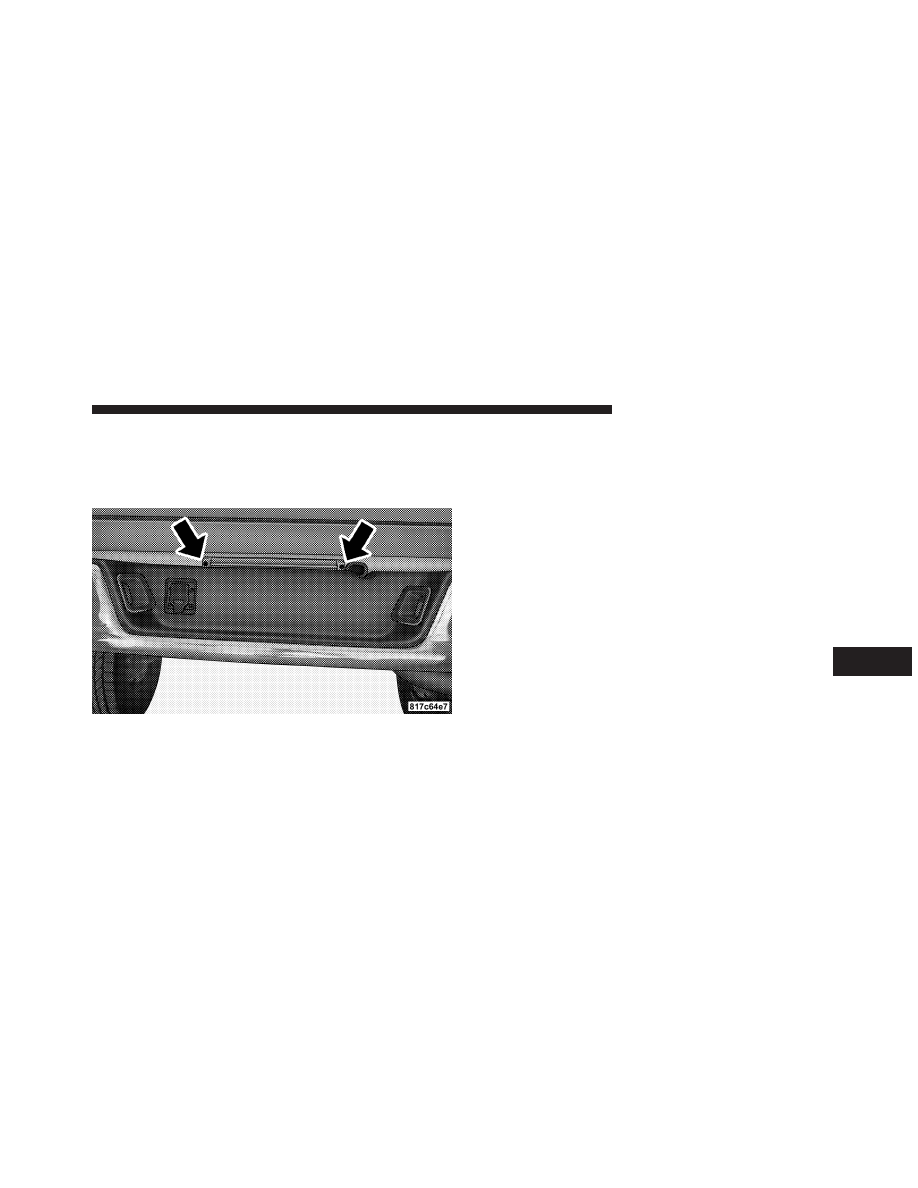

Rear Lamp Bar ID Marker (Dual Rear Wheels) — If
Equipped

1. Loosen the two screws and the housing to gain access
to the bulb sockets.

2. Turn the socket

⁄

turn counterclockwise to access the

bulb.

3. Pull the bulb straight out from the socket.

4. Reverse the procedure for installation of the bulbs and
housing.

MAINTAINING YOUR VEHICLE

567

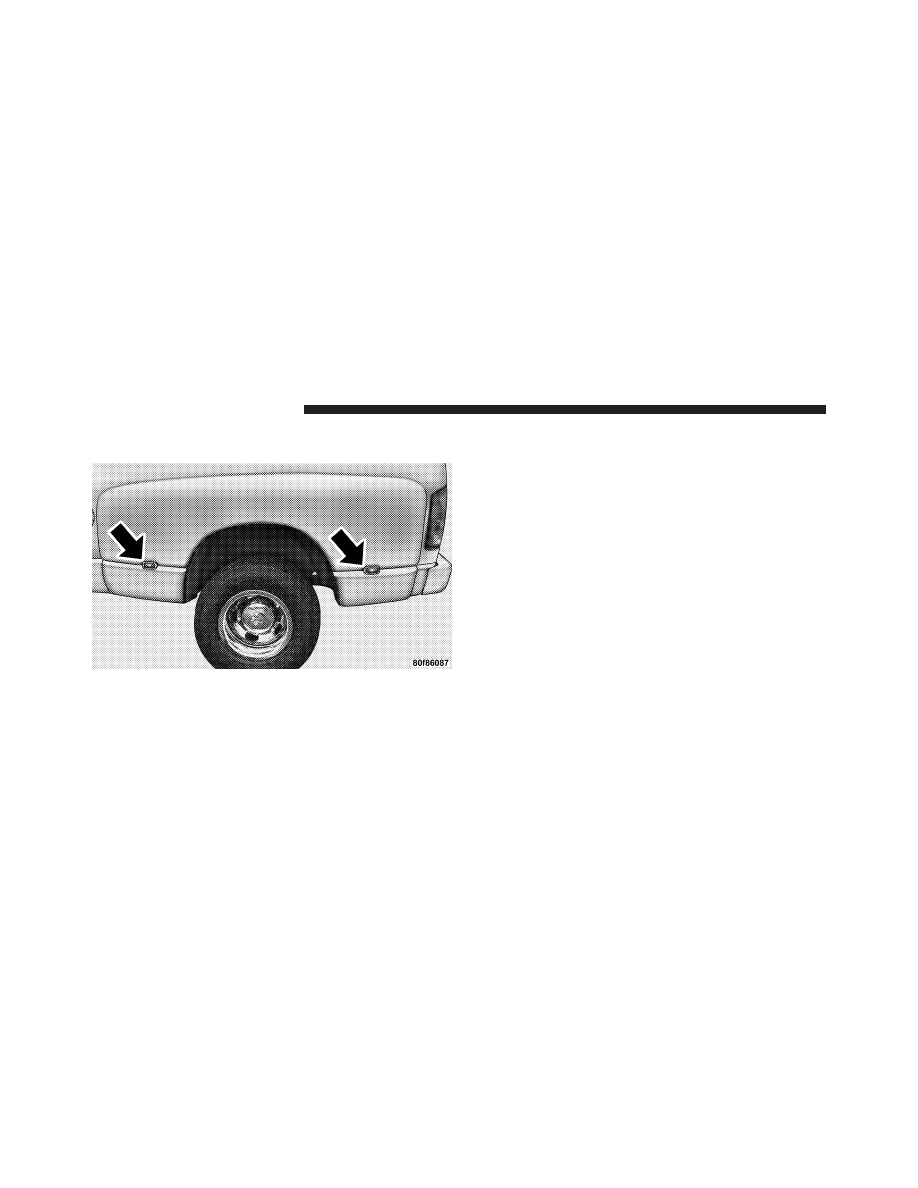

Side Marker Lamps (Dual Rear Wheels) — If
Equipped

1. Push rearward on the side marker lamp assembly.

2. Pull the entire assembly from the fender.

3. Turn the socket

⁄

turn counterclockwise and remove

from assembly to access the bulb.

4. Pull the bulb straight out from socket.

5. Reverse the procedure for installation of the bulbs and
housing.

568

MAINTAINING YOUR VEHICLE

FLUID CAPACITIES

U.S.

Metric

Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models

26 Gallons

98 Liters

1500 Regular Cab Longbed/Crew Quad Cab Models
(Optional)

32 Gallons

121 Liters

2500/3500 Shortbed Models

34 Gallons

129 Liters

2500/3500 Longbed Models

35 Gallons

132 Liters

Engine Oil with Filter
3.7L Engine (SAE 5W-20, API Certified)

5 Quarts

4.7 Liters

4.7L Engine (SAE 5W-20, API Certified)

6 Quarts

5.7 Liters

5.7L Engine (SAE 5W-20, API Certified)

7 Quarts

6.6 Liters

5.7L Engine (SAE 5W-30, API Certified). For 2500/
3500 trucks operating under a gross combined weight
rating greater than 14,000 lbs (6 350 kg).

7 Quarts

6.6 Liters

MAINTAINING YOUR VEHICLE

569

U.S.

Metric

Cooling System
3.7L Engine (MOPAR

威 Antifreeze/Coolant 5

Year/100,000 Mile Formula or equivalent)

14 Quarts

13 Liters

4.7L Engine (MOPAR

威 Antifreeze/Coolant 5

Year/100,000 Mile Formula or equivalent)

14 Quarts

13 Liters

5.7L Engine — 1500 Models (MOPAR

威 Antifreeze/

Coolant 5 Year/100,000 Mile Formula or equivalent)

16 Quarts

15 Liters

5.7L Engine — 2500/3500 Models (MOPAR

威

Antifreeze/Coolant 5 Year/100,000 Mile Formula or
equivalent)

18.7 Quarts

17.7 Liters

5.7L Engine — 2500/3500 Models w/Heavy Duty
(MOPAR

威 Antifreeze/Coolant 5 Year/100,000 Mile

Formula or equivalent)

19.2 Quarts

18.2 Liters

570

MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS

Engine

Component

Fluid, Lubricant, or Genuine Part

Engine Coolant

MOPAR

威 Antifreeze/Coolant 5 Year/100,000 Mile Formula HOAT

(Hybrid Organic Additive Technology) or equivalent.

Engine Oil

Use API Certified SAE 5W-20 Engine Oil, meeting the requirements
of Chrysler Material Standard MS-6395. Refer to your engine oil
filler cap for correct SAE grade.

Engine Oil – For 2500/3500 trucks operat-
ing under a gross combined weight rating
greater

than 14,000 lbs/(6,350 kg.)

Use API Certified SAE 5W-30 Engine Oil, meeting the requirements
of Chrysler Material Standard MS-6395. Refer to your engine oil
filler cap for correct SAE grade.

Engine Oil Filter

MOPAR

威 Engine Oil Filter or equivalent.

Spark Plugs – 3.7L Engine

ZFR6F-11G (Gap 0.043 in [1.09 mm])

Spark Plugs – 4.7L Engine

Upper Bank — FR8TE2 (Gap 0.039 in [.99 mm]) Lower Bank —
FR8T1332 (Gap 0.051 in [1.30 mm])

Spark Plugs – 5.7L Engine

LZFR5C–11 (Gap 0.043 in [1.09 mm])

Fuel Selection – 3.7L and 4.7L Engines

87 Octane

Fuel Selection – 5.7L Engine

87 Octane Acceptable - 89 Octane Recommended

MAINTAINING YOUR VEHICLE

571

Dodge Ram 1500 (2011 year). Manual - part 35
