Cavity Cartridge

Fuse

Mini

Fuse

Description

30 Amp
Pink

Electric Brake

25 Amp
Natural

Power-Battery
RWAL/ABS Module
Feed

15 Amp
Blue

Park Lights Left

20 Amp
Yellow

Trailer Park Lights

15 Amp
Blue

Park Lights Right

—

40 Amp
Green

ABS Pump

30 Amp
Pink

Trailer Tow Battery
Feed

Cavity Cartridge

Fuse

Mini

Fuse

Description

10 Amp
Red

Occupant Restraints
Controller (ORC) 2

10 Amp
Red

Occupant Restraints/
Pass Disable Switch

2 Amp
Gray

IGN Switch Feed

10 Amp
Red

HVAC

20 Amp
Blue

AISIN Relay Feed
(Diesel Only)

10 Amp
Red

Power Mirror/T-Case
Brake

20 Amp
Yellow

Brake Switch/Center
High Mount Stop
Light (CHMSL)/
Aftermarket CHMSL

460

MAINTAINING YOUR VEHICLE

Cavity Cartridge

Fuse

Mini

Fuse

Description

40 Amp
Green

Power Seats

10 Amp
Red

Power Run/Start-
PCM/Steering Angle
Sensor

10 Amp
Red

4X4 Switch/Pass Dr
Switch/EC Mirror

15 Amp
Blue

Power Run/Start-
ABS/RWAL/Smart
Bar/YAW Sensor/
Universal Exhaust
Gas Oxygen (Uego)
Sensor Controller

10 Amp
Red

PCM (Gas)/TCM
(Diesel 58RFE)

Cavity Cartridge

Fuse

Mini

Fuse

Description

10 Amp
Red

Power Ignition Run
— Adjustable Pedals
LED

10 Amp
Red

Power-IGN Run —
HVAC

—

15 Amp
Blue

Cabin Compartment
Node (CCN) Illumi-
nation

25 Amp
Natural

Audio_Amplifier

15 Amp
Blue

Variable Gate Turbo
(VGT) — Turbo Die-
sel

20 Amp
Yellow

Power Outlet IP

MAINTAINING YOUR VEHICLE

461

Cavity Cartridge

Fuse

Mini

Fuse

Description

10 Amp
Red

Seatbelt Tension
Reducer/Power IGN
Run/Acc

20 Amp
Yellow

Power IGN Run/Acc
— Cigar Lighter/Rear
Power Point

—

30 Amp
Pink

Diesel PCM (Diesel
Only)

CAUTION!

• When installing the Integrated Power Module

cover, it is important to ensure the cover is prop-
erly positioned and fully latched. Failure to do so
may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.

• When replacing a blown fuse, it is important to

use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.

462

MAINTAINING YOUR VEHICLE

VEHICLE STORAGE
If you are storing your vehicle for more than 21 days, we
recommend that you take the following steps to mini-
mize the drain on your vehicle’s battery:

• Disconnect the Ignition-Off Draw (IOD) fuse located in

the Integrated Power Module, located in the engine
compartment. The IOD cavity includes a snap-in re-
tainer that allows the fuse to be disconnected without
removing it from the fuse block.

• The electronic shift transfer case should be placed in

the 4HI mode and kept in this position to minimize the
battery drain.

• As an alternative to the above steps you may discon-

nect the negative cables from both batteries.

• Any time you store your vehicle or keep it out of

service (i.e., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes

in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.

NOTE:

• When reinstalling the IOD fuse push firmly until fully

seated; the gauges in the instrument cluster will do a
full sweep when the ignition key is cycled to RUN.
This is a normal condition.

• When the vehicle is shipped from the factory, the IOD

fuse is in the up or extracted position. If the radio,
interior lamps, keyless entry or other features do not
work with the key OFF, check the position of the fuse
(or check to see if the fuse is blown) to ensure that it is
fully seated. When the IOD fuse is extracted, the
instrument cluster in the odometer window will dis-
play

⬙NO FUSE.”

MAINTAINING YOUR VEHICLE

463

REPLACEMENT LIGHT BULBS

LIGHT BULBS — Interior

Bulb No.

Overhead Console Lights . . . . . . . . . . . . . . . TS 212-2
Dome Light. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7679

NOTE:

For lighted switches, see your authorized dealer

for replacement instructions.

All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.

LIGHT BULBS — Exterior

Bulb No.

Backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3057
Center High Mounted Stop Light . . . . . . . . . . . . . 912
Fog Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 9006LL
Headlight (Halogen) . . . . . . . . . . . . . . . . . . . . . . H13
Side Marker, Park & Turn Signal . . . . . . . . . 3157NAK
Rear License Plate Light. . . . . . . . . . . . . . . . . . . . 168
Rear Cargo Light. . . . . . . . . . . . . . . . . . . . . . . . . 912

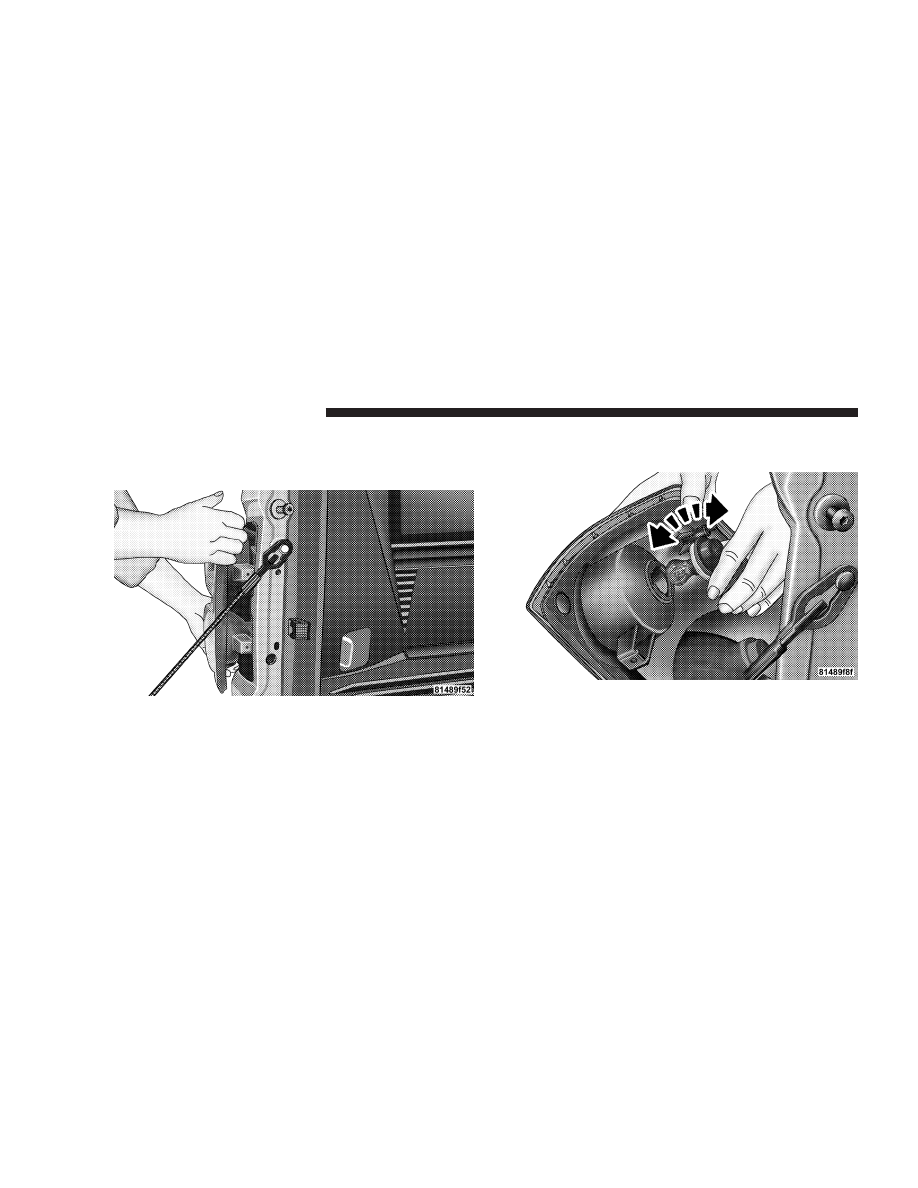

Tail & Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3057
Cab Clearance Lights . . . . . . . . . . . . . . . . . . . . . . 168
Dual Rear Wheel Sidemarker Light . . . . . . . . . . . . 168
Dual Rear Wheel Tailgate ID Lights (3) . . . . . . . . . 168

464

MAINTAINING YOUR VEHICLE

BULB REPLACEMENT

Headlight (Halogen)/Front Park and Turn Lights

CAUTION!

This is a halogen bulb. Avoid touching the glass with
your fingers. Reduced bulb life will result.

1. Open the hood

2. Remove the two bolts from the front of the headlight
housing.

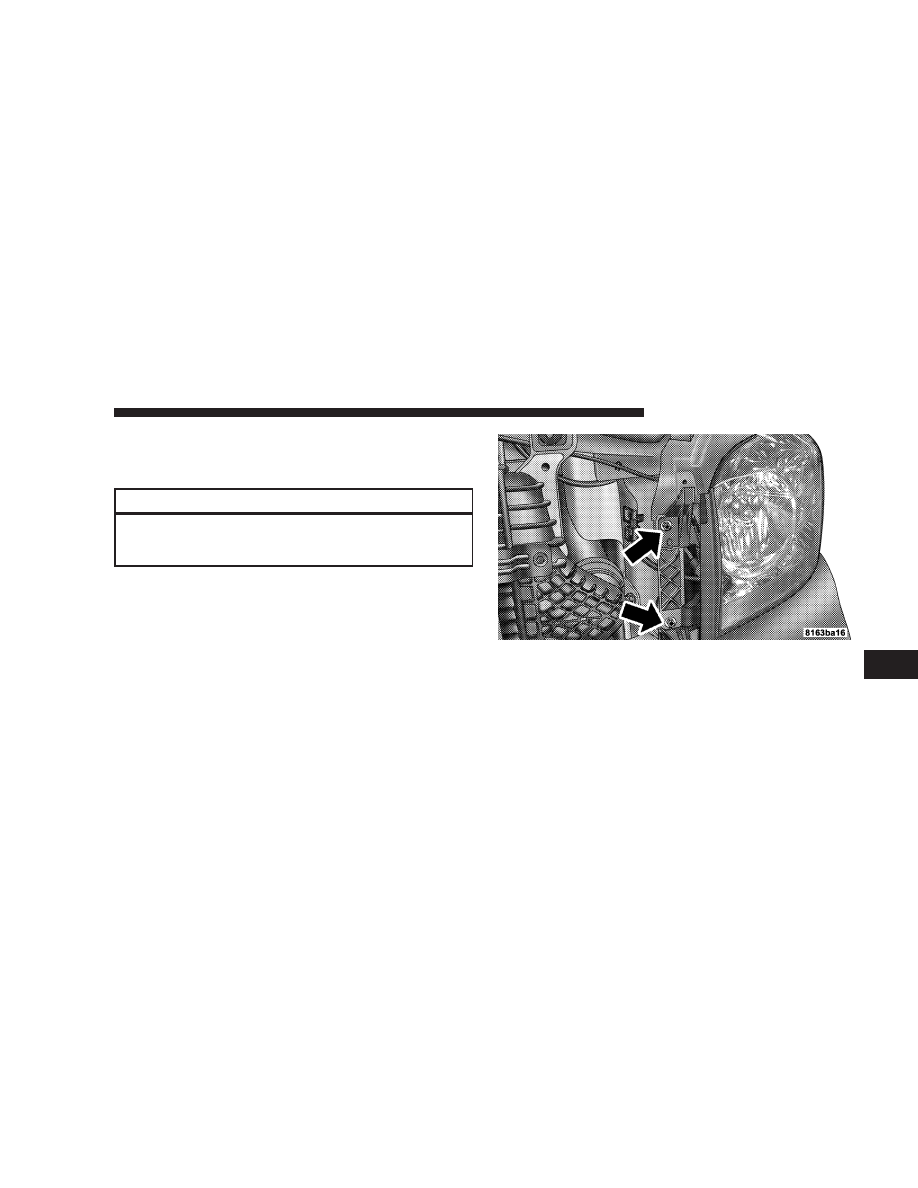

Front Headlight Housing Bolts

MAINTAINING YOUR VEHICLE

465

3. Remove the plug from the inner fender well and
remove the nut through the access hole.

4. Pull the housing out from the fender to allow room to
disconnect the electrical connectors.

NOTE:

For easier removal, pull the headlight assembly

straight forward, applying the greatest amount of force to
the outer edge of the headlight assembly.

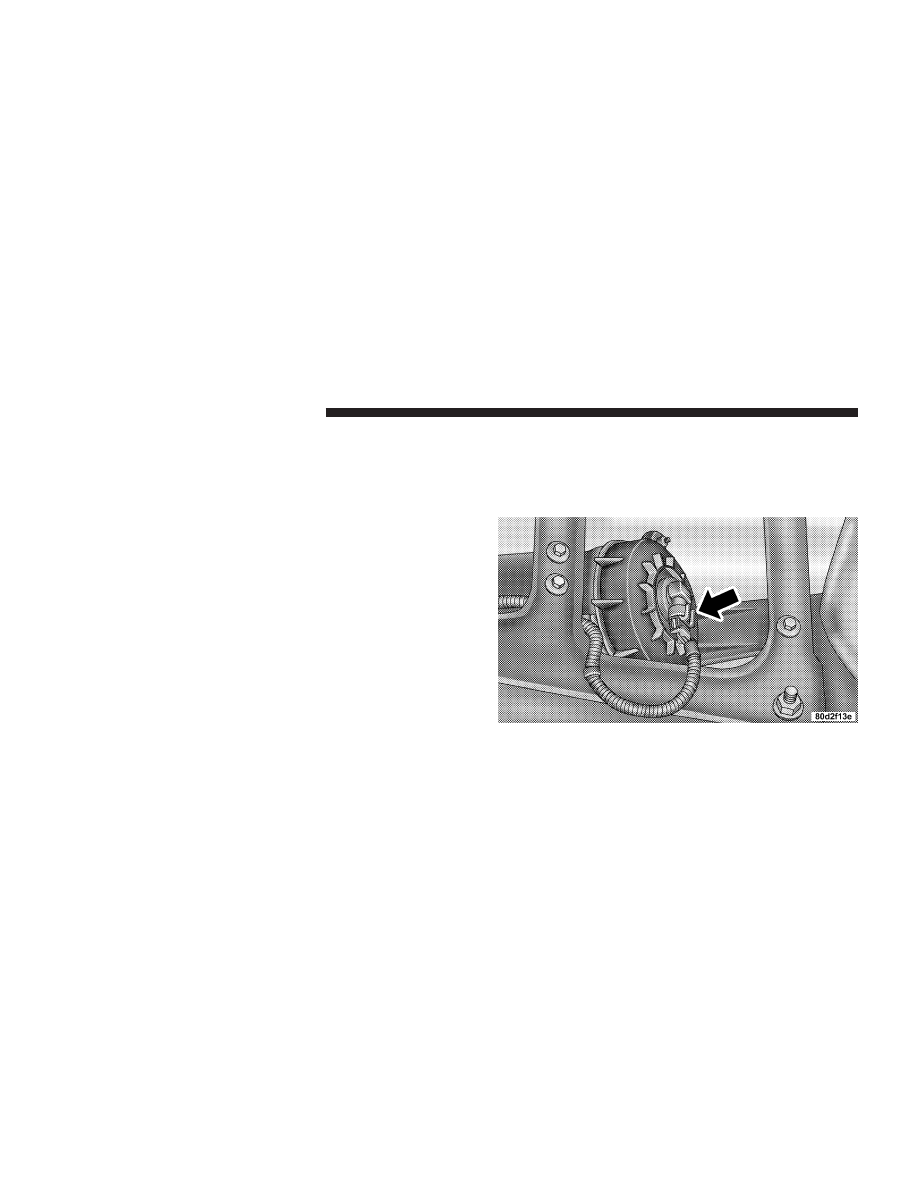

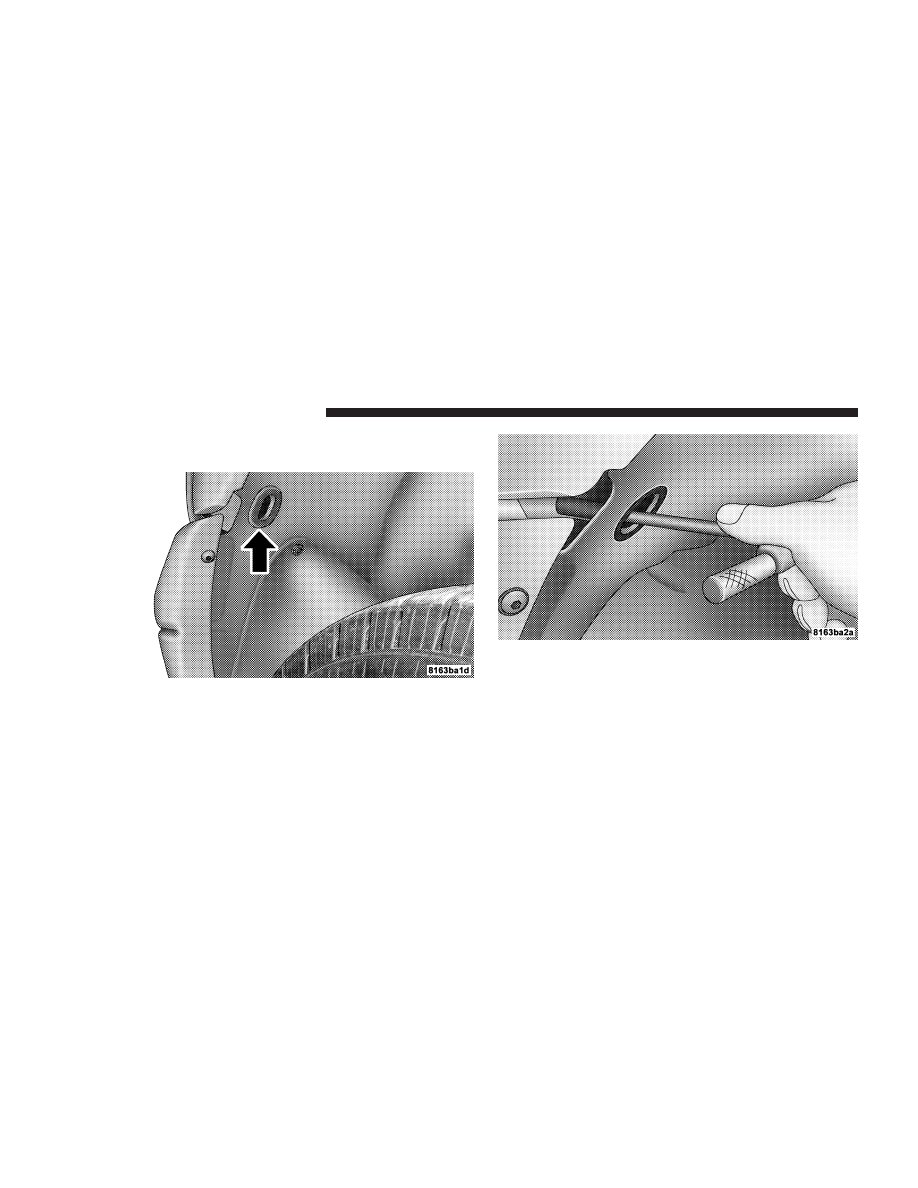

Inner Fender Plug

Rear Headlight Housing Nut Access

466

MAINTAINING YOUR VEHICLE

5. Unlock and pull the connector straight from the base
of the headlight halogen bulb.

6. Twist the connector on the side marker/turn signal/
park light bulb

⁄

turn and remove the connector and

bulb from housing.

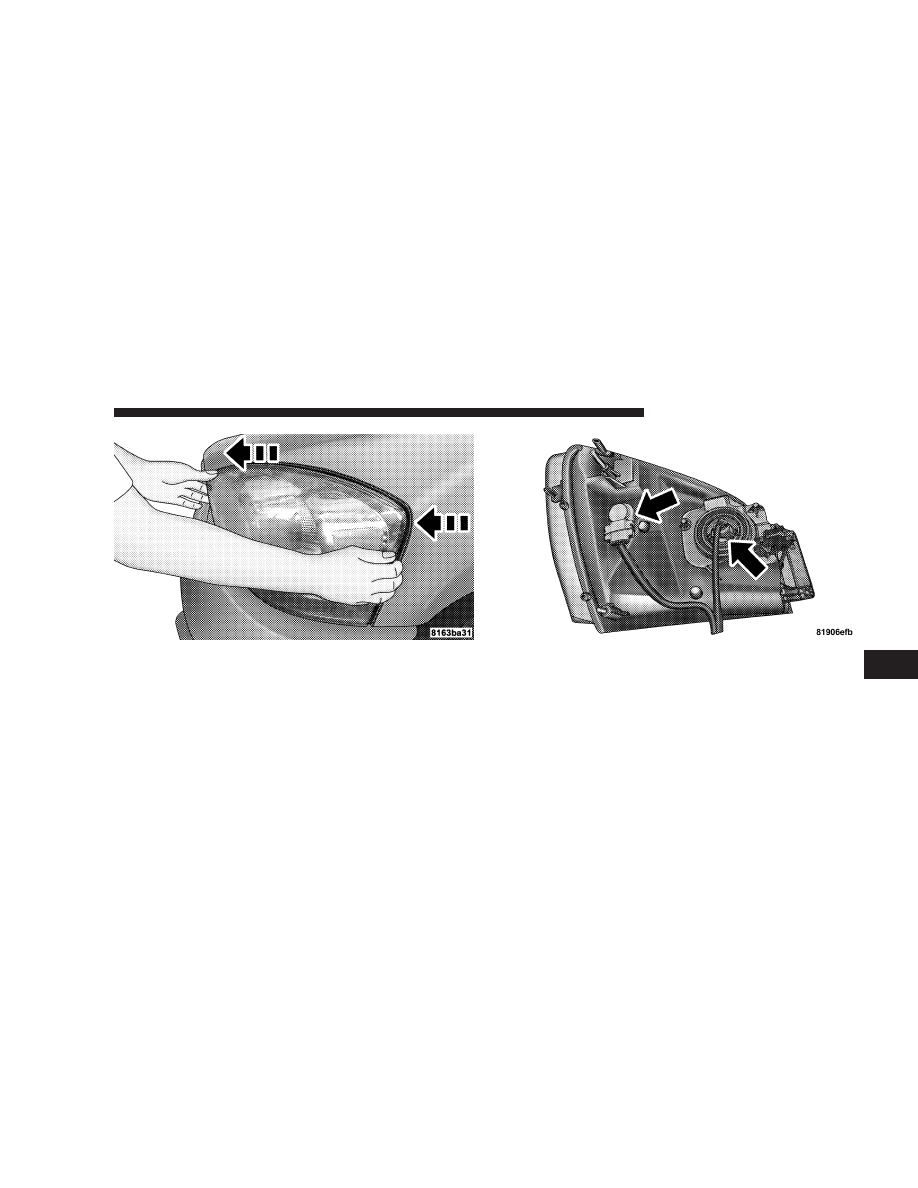

Headlight Removal

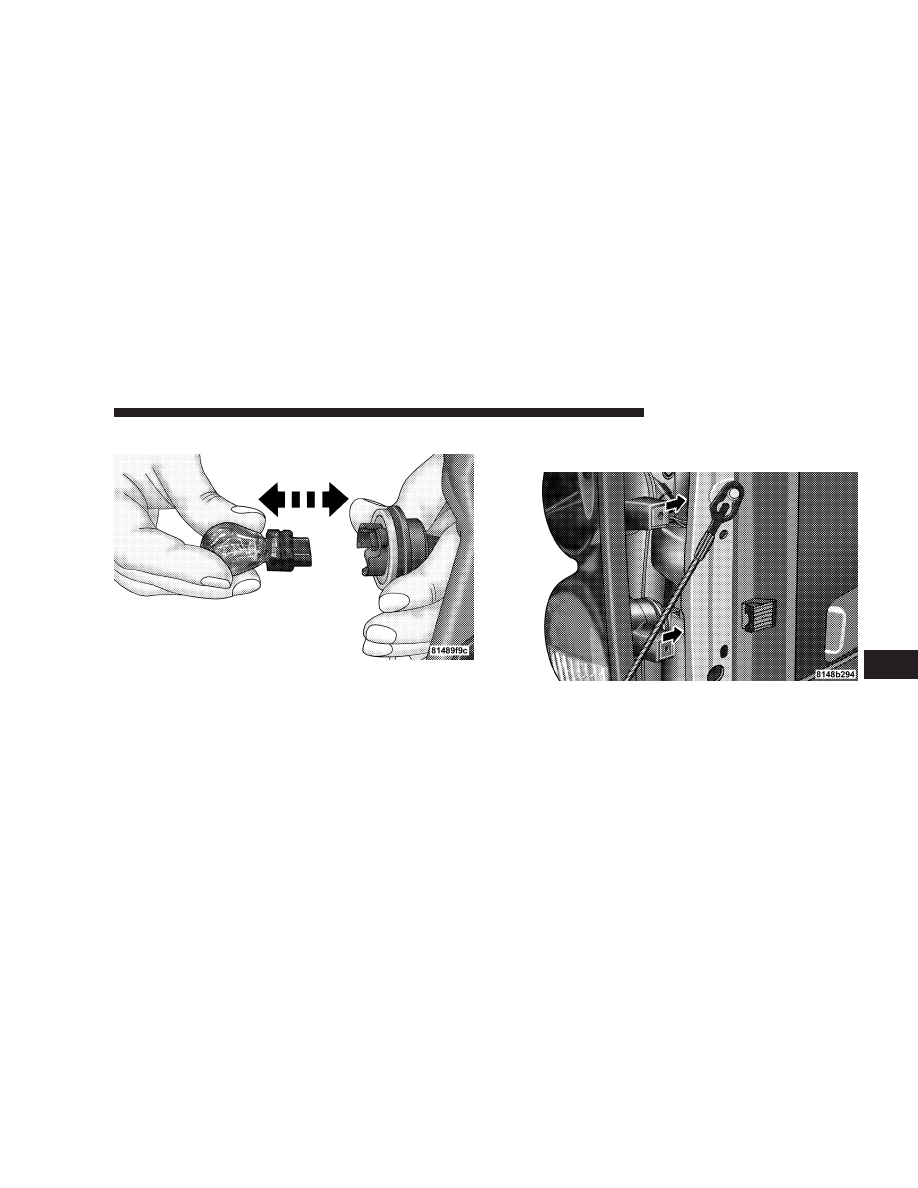

Bulb Removal

MAINTAINING YOUR VEHICLE

467

7. Remove the housing from vehicle with the headlight
halogen bulb in housing.

8. Twist the headlight halogen bulb

⁄

turn and remove

the headlight bulb from the housing.

9. Replace headlight or side marker/turn signal/park
light bulb. Do not touch the headlight halogen bulb.

10. Reverse the procedure for installation of bulbs and
housing.

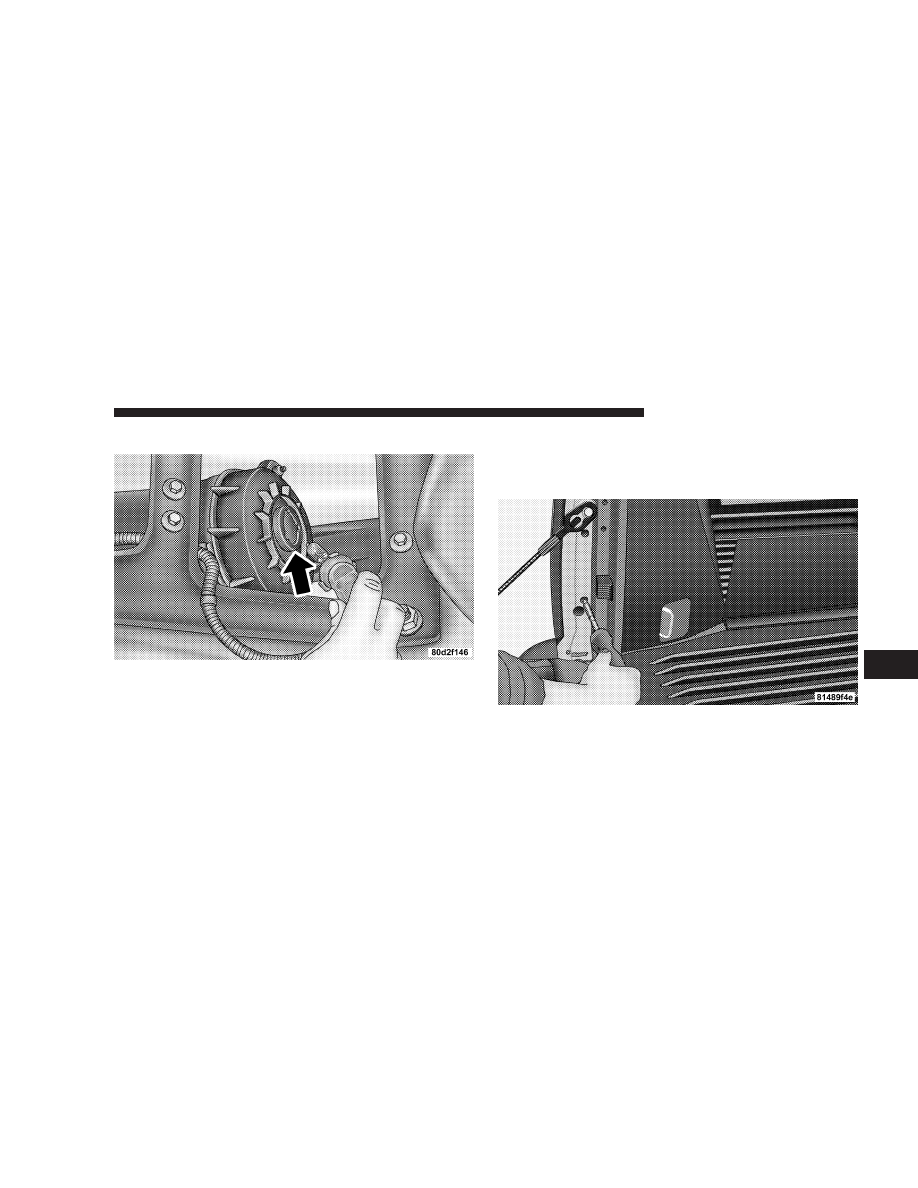

Fog Lights

1. Reach under the vehicle, unlock and twist the connec-
tor counterclockwise

⁄

turn and remove the connector

and bulb from the housing.

468

MAINTAINING YOUR VEHICLE

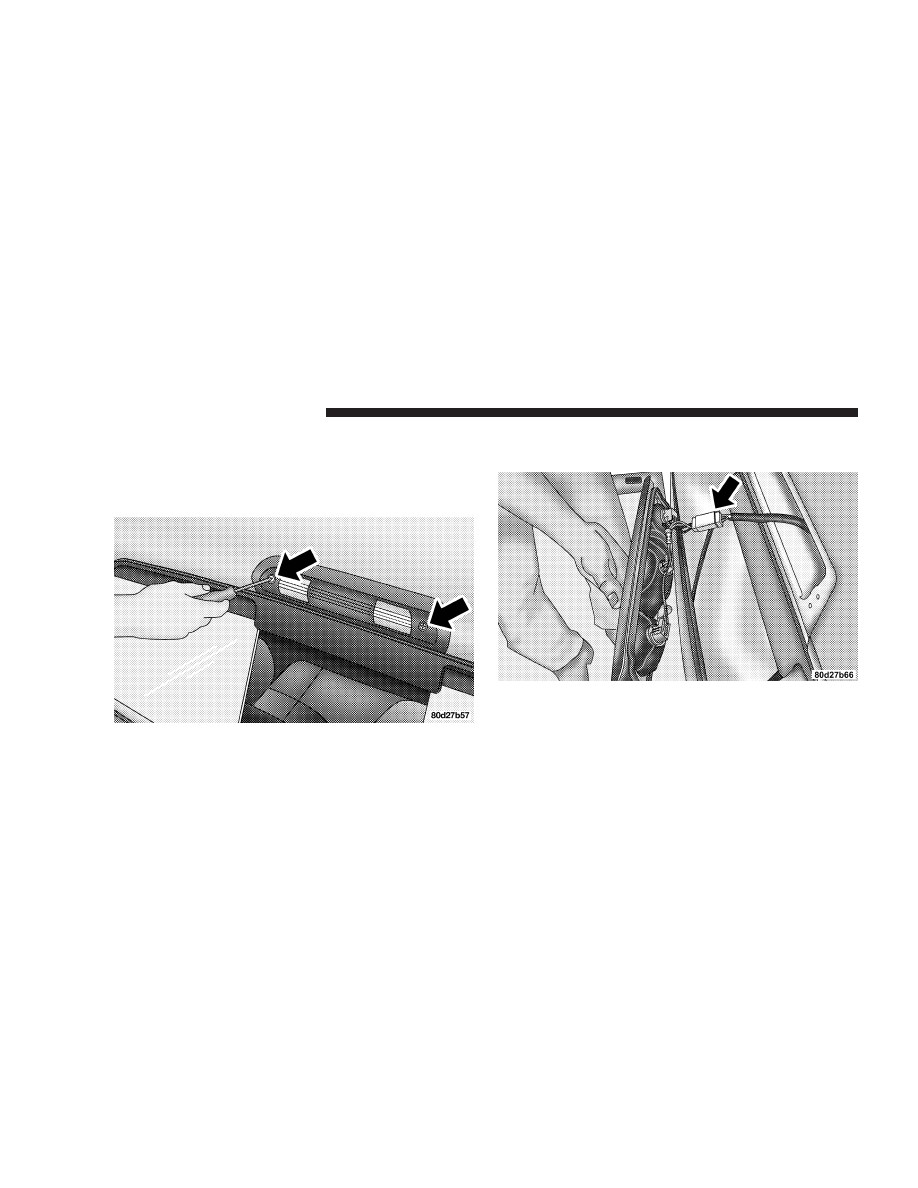

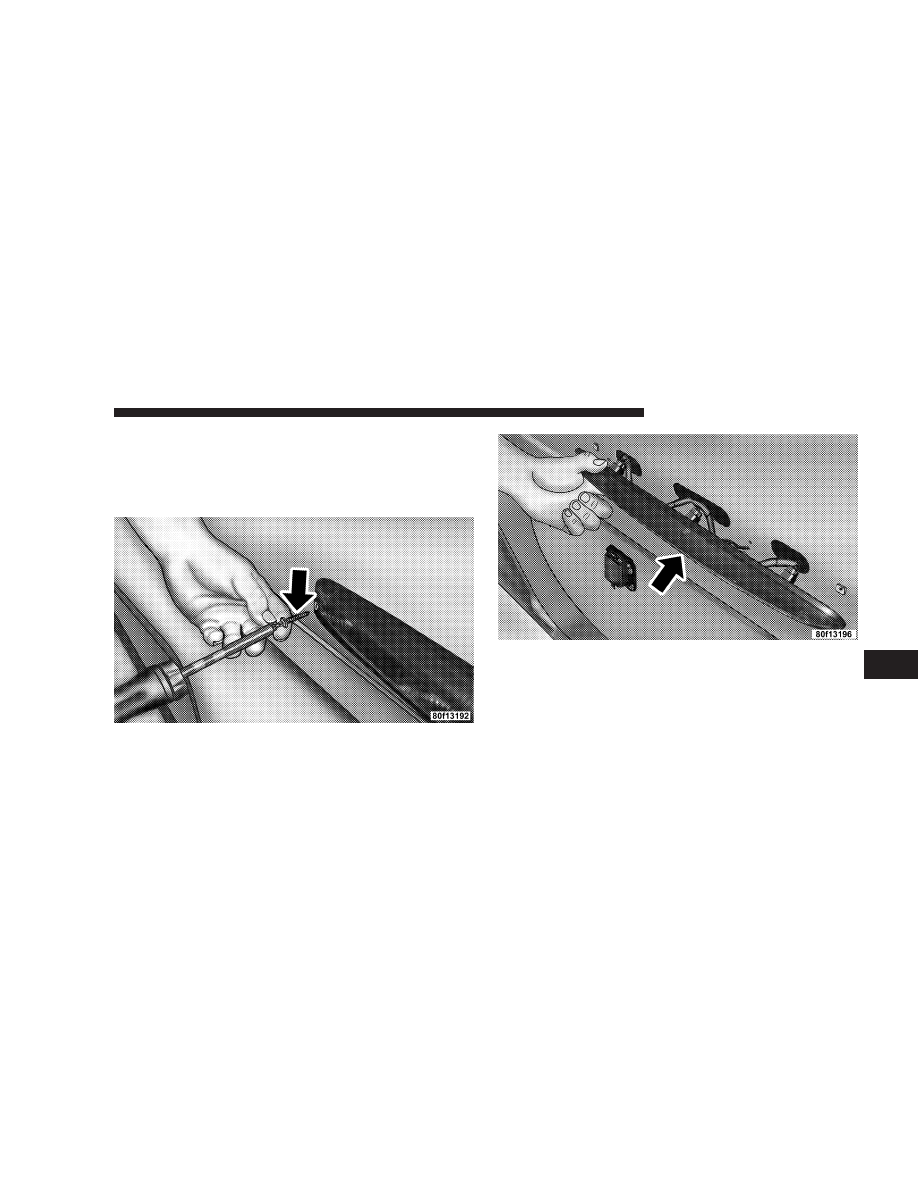

Center High-Mounted Stoplight (CHMSL) With
Cargo Light

1. Remove the two screws holding the housing/lens to
the body as shown.

2. Separate the connector holding the housing and wir-
ing harness to the body.

3. Turn the desired bulb socket

⁄

turn and remove the

socket and bulb from housing.

472

MAINTAINING YOUR VEHICLE

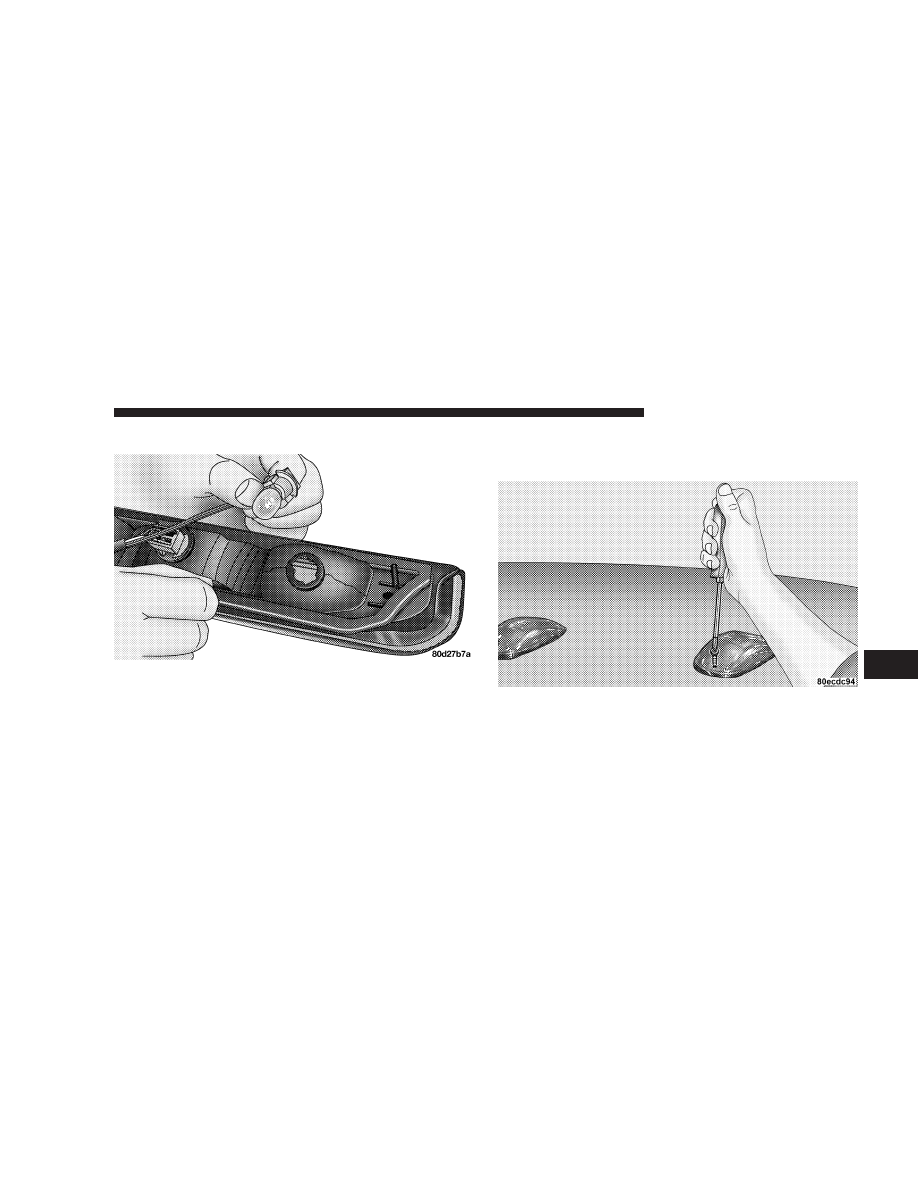

4. Pull the desired bulb straight from the socket.

• Outside Bulbs: Cargo Lights
• Inside Bulb: Center High-Mounted Stop Light

5. Reverse the procedure for installation of the bulbs and
housing.

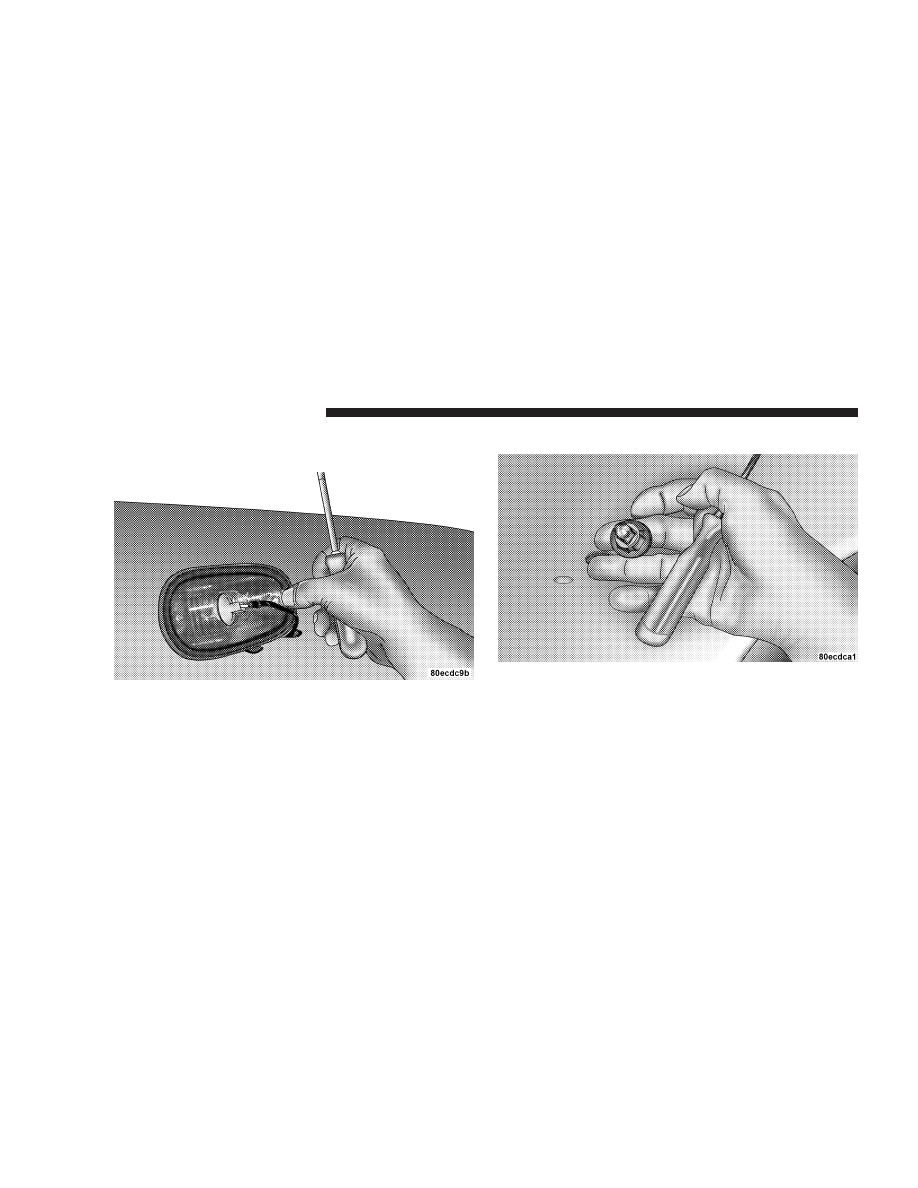

Cab Top Clearance Lights — If Equipped

1. Remove the two screws from the top of the light.

MAINTAINING YOUR VEHICLE

473
