Dodge Neon (2005 year). Manual

Cassette Player Features

With ignition OFF and the sound system OFF, you can
eject the tape cassette by pushing the EJECT button.

You can turn the tape player ON by inserting a cassette or
activating the MODE button (with a cassette in the radio),
but only when the ignition and radio are on.

Each time a cassette is inserted the tape player will begin
playing on the side of the cassette that is facing up in the
player.

Music Search
Pressing the SEEK button while playing a tape will start
the Music Search mode. Press the SEEK button up for the
next selection on the tape and down to return to the
beginning of the current selection, or return to the
beginning of the previous selection if the tape is within
the first 5 seconds of the current selection.

The SEEK symbol appears on the display when Music
Search is in operation. Music Search shuts off automati-
cally when a selection has been located.

Selective Music Search
Press the SEEK button up or down to move the track
number to skip forward or backward 1 to 7 selections.
Press the SEEK button once to move 1 selection, twice to
move 2 selections, etc.

Fast Forward And Rewind Buttons
Pressing the TUNE button up or down momentarily
activates Fast Forward or Rewind and makes the direc-
tional arrows appear on the display.

To stop Fast Forward or Rewind, press the TUNE button
again.

Time Button
Press the time button to toggle between station frequency
and time of day.

SCAN Button (Cassette Mode)
Pressing this button while playing a cassette tape will
change the side of the tape being played.

NR (Noise Reduction)
Pushing the Number 2 Pre-set button when a tape is
playing deactivates the Dolby Noise Reduction System*.

UNDERSTANDING YOUR INSTRUMENT PANEL

When Dolby is ON, the NR symbol appears on the
display. Each time a tape is inserted the Dolby will turn
ON.

* “Dolby” noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation. Dolby
and the double-D symbol are trademarks of Dolby Labo-
ratories Licensing Corporation.

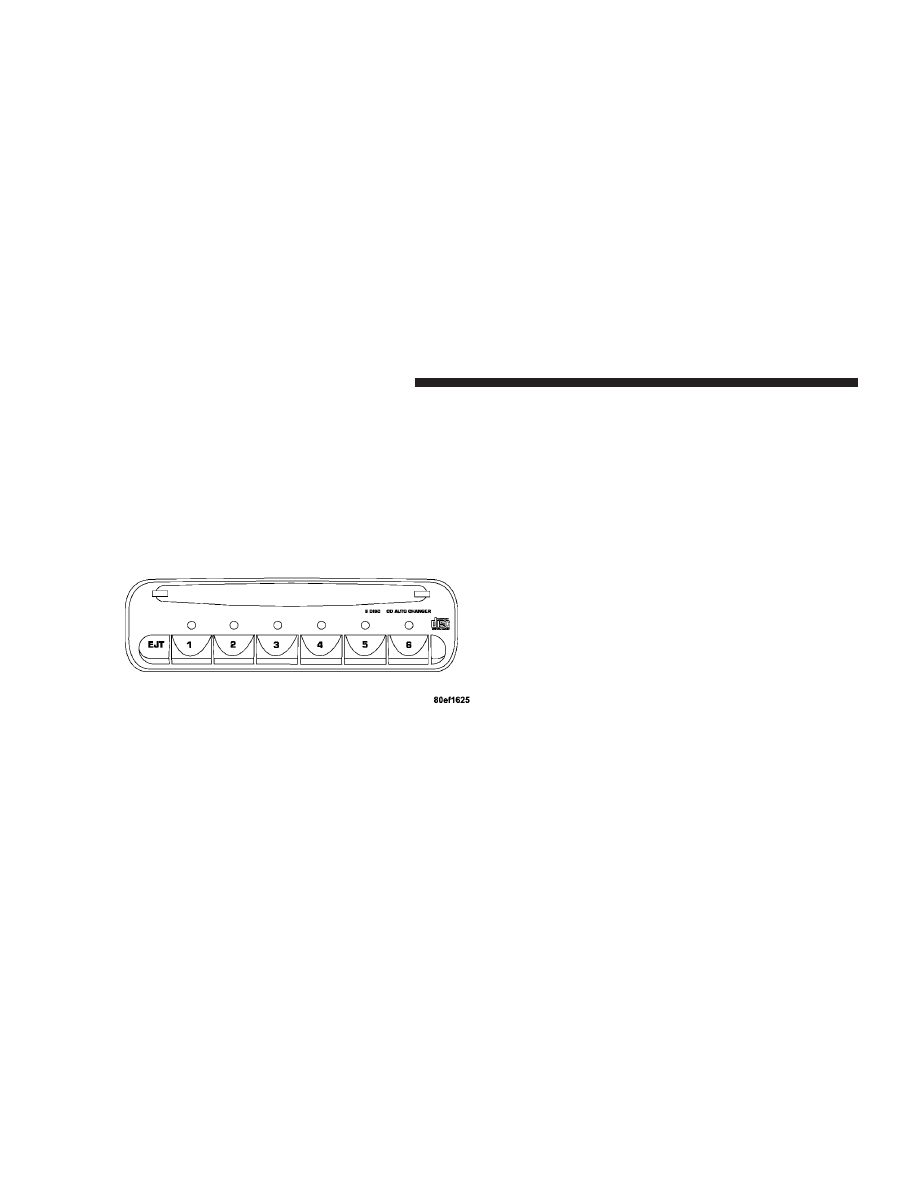

CD Changer Control Capability — If Equipped

This radio is compatible with a remote mounted CD
changer available through Mopar Accessories. The fol-
lowing instructions are for the radio controls that operate
this CD changer.

Mode Button
To activate the CD changer, press the MODE button until
CD information appears on the display.

Push-Button
While the CD changer is playing, press the NUMBER 1
push-button or the NUMBER 5 push-button to select a
disc numbered higher or lower than the one currently
being played.

Seek Button
Press the SEEK up or down to select another track on the
same disc. A SEEK symbol will appear on the display.

Fast Forward And Rewind Buttons
Press and hold the FF button for fast forward. Press and
hold the RW button for fast reverse.

The audio output can be heard when fast forward and
fast reverse are activated.

Random Play (RND)
Press the Random button to play the tracks on the
selected disc in random order for an interesting change of
pace.

Random can be cancelled by pressing the button a second
time or by ejecting the CD from the changer.

SCAN Button (CD Mode)
Press this button to play the first 10 seconds of each track.
To stop the scan function, press the button a second time.

UNDERSTANDING YOUR INSTRUMENT PANEL

Operating Instructions - Satellite Radio Mode (If
Equipped)
Refer to the Satellite Radio section of the Owner’s
Manual.

CD Diagnostic Indicators
When driving over a very rough road, the CD player may
skip momentarily. Skipping will not damage the disc or
the player, and play will resume automatically.

As a safeguard and to protect your CD player, one of the
following warning symbols may appear on your display.

A CD HOT symbol indicates the player is too hot.

CD HOT will pause the operation. Play can be resumed
when the operating temperature is corrected or another
MODE is selected.

An ERR symbol will appear on the display if the laser is
unable to read the Disc data for the following reasons:

• Excessive vibration
• Disc inserted upside down
• Damaged disc

• Water condensation on optics

SALES CODE RBK—AM/ FM STEREO RADIO
WITH CD PLAYER AND CD CHANGER
CONTROLS

Radio Operation

Power/Volume Control
Press the ON/VOL control to turn the radio on. Turn the
volume control clockwise to increase the volume.

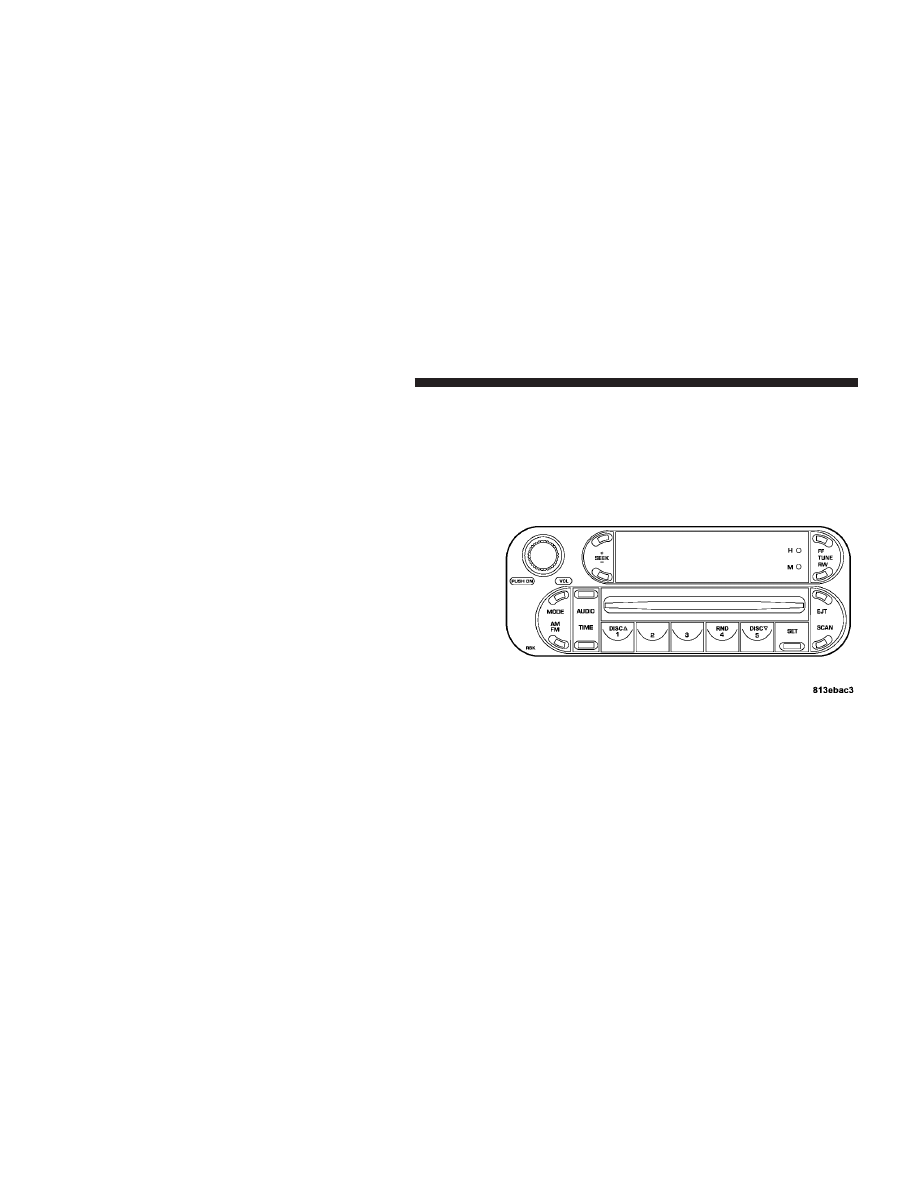

RBK Radio

UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:

Power to operate the radio is supplied through

the ignition switch. It must be in the ON or ACC position
to operate the radio.

Seek
Press and release the SEEK button to search for the next
station in either the AM or FM mode. Press the top of the
button to seek up or the bottom to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding the button in will bypass
stations without stopping until you release it.

Tune
Press the TUNE control up or down to increase or
decrease the frequency. If you press and hold the button,
the radio will continue to tune until you release the
button. The frequency will be displayed and continu-
ously updated while the button is pressed.

To Set The Radio Push-Button Memory
When you are receiving a station that you wish to
commit to push-button memory, press the SET button.
SET 1 will show in the display window. Select the “1–5”
button you wish to lock onto this station and press and
release that button. If a button is not selected within 5

seconds after pressing the SET button, the station will
continue to play but will not be locked into push-button
memory.

You may add a second station to each push-button by
repeating the above procedure with this exception: Press
the SET button twice and SET 2 will show in the display
window. Each button can be set for SET 1 and SET 2 in
both AM and FM. This allows a total of 10 AM and 10 FM
stations to be locked into push-button memory. The
stations stored in SET 2 memory can be selected by
pressing the push-button twice. Every time a preset
button is used a corresponding button number will be
displayed.

Audio
The audio button controls the BASS, TREBLE, BAL-
ANCE, and FADE.

Press the AUDIO button and BASS will be displayed.
Press the SEEK + or SEEK – to increase or decrease the
Bass tones.

UNDERSTANDING YOUR INSTRUMENT PANEL

Press the AUDIO button a second time and TREB will be
displayed. Press the SEEK + or SEEK – to increase or
decrease the Treble tones.

Press the AUDIO button a third time and BAL will be
displayed. Press the SEEK + or SEEK – to adjust the
sound level from the right or left side speakers.

Press the AUDIO button a fourth time and FADE will be
displayed. Press the SEEK + or SEEK – to adjust the
sound level between the front and rear speakers.

Press the AUDIO button again or wait 5 seconds to exit
setting tone, balance, and fade.

AM/FM Selection
Press the AM/FM button to change from AM to FM. The
operating mode will be displayed next to the station
frequency. The display will show ST when a stereo
station is received.

Time
Press the TIME button to change the display between
radio frequency and time.

General Information
This radio complies with Part 15 of FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the
following conditions:

1. This device may not cause harmful interference,

2. This device must accept any interference received,
including interference that may cause undesired opera-
tion.

NOTE:

Changes or modifications not expressively ap-

proved by the party responsible for compliance could
void the user’s authority to operate the equipment.

CD Player Operation

NOTE:

The ignition switch must be in the ON or ACC

position and the volume control ON before the CD player
will operate.

UNDERSTANDING YOUR INSTRUMENT PANEL

Inserting The Compact Disc

CAUTION!

This CD player will accept 4

⁄

inch (12 cm) discs

only. The use of other sized discs may damage the
CD player mechanism.

You may either insert or eject a disc with the radio OFF.

If you insert a disc with the ignition ON and the radio
OFF, the display will show the time of day.

If the power is ON, the unit will switch from radio to CD
mode and begin to play when you insert the disc. The
display will show the track number and index time in
minutes and seconds. Play will begin at the start of track
one.

Seek
Press the top of the SEEK button for the next selection on
the CD. Press the bottom of the button to return to the

beginning of the current selection, or return to the
beginning of the previous selection if the CD is within the
first second of the current selection.

EJT — Eject
Press the EJT button and the disc will unload and move
to the entrance for easy removal. The unit will switch to
the radio mode.

If you do not remove the disc within 15 seconds, it will be
reloaded. The unit will continue in radio mode.

The disc can be ejected with the radio and ignition OFF
(except on convertibles).

FF/TUNE/RW
Press FF (Fast Forward) and the CD player will begin to
fast forward until FF is released. The RW ( Reverse)
button works in a similar manner.

Random Play — RND/Program Button 4
Press the RND (button 4) button while the CD is playing
to activate Random Play. This feature plays the tracks on
the selected disc in random order to provide an interest-
ing change of pace.

UNDERSTANDING YOUR INSTRUMENT PANEL

Press the SEEK button to move to the next randomly
selected track.

Press the RND (button 4) button a second time to stop
Random Play.

Mode
Press the MODE button repeatedly to select between the
CD player, the optional remote CD changer and the
Satellite Radio (if equipped). When Satellite Radio (if
equipped) is selected “SAT” will appear in your radio
display.

A CD or tape may remain in the player while in the
Satellite mode.

Time
Press the TIME button to change the display from
elapsed CD playing time to time of day.

CD Changer Control Capability — If Equipped

This radio is compatible with a remote mounted CD
changer available through Mopar Accessories. The fol-
lowing instructions are for the radio controls that operate
this CD changer.

Mode Button
To activate the CD changer, press the MODE button until
CD information appears on the display.

Disc Up/Program Button 1
Press the DISC up (button 1) button to play the next
available disc.

Disc Down/Program Button 5
Press the DISC down (button 5) button to play the
previous disc.

Seek Button
Press the SEEK up or down to select another track on the
same disc. A SEEK symbol will appear on the display.

Fast Forward And Rewind Buttons
Press and hold the FF button for fast forward. Press and
hold the RW button for fast reverse.

The audio output can be heard when fast forward and
fast reverse are activated.

UNDERSTANDING YOUR INSTRUMENT PANEL

Random Play (RND)
Press the Random button to play the tracks on the
selected disc in random order for an interesting change of
pace.

Random can be cancelled by pressing the button a second
time or by ejecting the CD from the changer.

Operating Instructions - Satellite Radio Mode (If
Equipped)
Refer to the Satellite Radio section of the Owner’s
Manual.

CD Diagnostic Indicators
When driving over a very rough road, the CD player may
skip momentarily. Skipping will not damage the disc or
the player, and play will resume automatically.

As a safeguard and to protect your CD player, one of the
following warning symbols may appear on your display.

A CD HOT symbol indicates the player is too hot.

CD HOT will pause the operation. Play can be resumed
when the operating temperature is corrected or another
MODE is selected.

An ERR symbol will appear on the display if the laser is
unable to read the Disc data for the following reasons:

• Excessive vibration
• Disc inserted upside down
• Damaged disc
• Water condensation on optics

SATELLITE RADIO — IF EQUIPPED

Satellite radio uses direct satellite to receiver broadcast-
ing technology to provide clear digital sound, coast to
coast. The subscription service provider is Sirius™ Satel-
lite Radio. This service offers up to 100 channels of music,
sports, news, entertainment, and programming for chil-
dren, directly from its satellites and broadcasting studios.

UNDERSTANDING YOUR INSTRUMENT PANEL

System Activation

To activate your Sirius Satellite Radio service, call the
toll-free number 888-539-7474, or visit the Sirius web site
at www.sirius.com. Please have the following informa-
tion available when activating your system:

1. The Electronic Serial Number/Sirius Identification
Number (ESN/SID).

2. Credit card information.

3. Your Vehicle Identification Number.

Electronic Serial Number/Sirius Identification
Number (ENS/SID)

The Electronic Serial Number/Sirius Identification Num-
ber is needed to activate your Sirius Satellite Radio
system. To access the ESN/SID, refer to the following
steps:

ESN/SID Access With RBB, RAH and RBK Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the Tape Eject or CD Eject (depend-
ing on the radio type) and Time buttons simultaneously
for 3 seconds. The first four digits of the twelve-digit
ESN/SID number will be displayed. Press the SEEK UP

button to display the next four digits. Continue to press
the SEEK UP button until all twelve ESN/SID digits have
been displayed. The SEEK DOWN will page down until
the first four digits are displayed. The radio will exit the
ESN/SID mode when any other button is pushed, the
ignition is turned OFF, or 5 minutes has passed since any
button was pushed.

ESN/SID Access With RBP, RBU, RAZ, RB1 and
RBQ Radios
With the ignition switch in the ACCESSORY position and
the radio OFF, press the CD Eject and TIME buttons
simultaneously for 3 seconds. All twelve ESN/SID num-
bers will be displayed. The radio will exit the ESN/SID
mode when any other button is pushed, the ignition is
turned OFF, or 5 minutes has passed since any button
was pushed.

Selecting Satellite Mode in RBB, RAH and RBK
Radios

Press the MODE button repeatedly until

9S A9 appears in

the display. A CD or tape may remain in the radio while
in the Satellite radio mode.

UNDERSTANDING YOUR INSTRUMENT PANEL

Selecting Satellite Mode in RBP, RBU, RAZ, RB1
and RBQ Radios

Press the MODE button repeatedly until the word

9SIRIUS9 appears in the display. These radios will also
display the following:

• After 3 seconds, the current channel name and channel

number will be displayed for 5 seconds.

• The current program type and channel number will

then be displayed for 5 seconds.

• The current channel number will then be displayed

until an action occurs.

A CD or tape may remain in the radio while in the
Satellite radio mode.

Selecting a Channel

Press and release the SEEK or TUNE buttons to search for
the next channel. Press the top of the button to search up
and the bottom of the button to search down. Holding the
TUNE button causes the radio to bypass channels until
the button is released.

Press and release the SCAN button (if equipped) to
automatically change channels every 7 seconds. The
radio will pause on each channel for 7 seconds before
moving on to the next channel. The word

9SCAN9 will

appear in the display between each channel change. Press
the SCAN button a second time to stop the search.

NOTE:

Channels that may contain objectionable con-

tent can be blocked. Contact Sirius Customer Care at
888-539-7474 to discuss options for channel blocking or
unblocking. Please have your ESN/SID information
available.

Storing and Selecting Pre-Set Channels

In addition to the 10 AM and 10 FM pre-set stations, you
may also commit 10 satellite stations to push button
memory. These satellite channel pre-set stations will not
erase any AM or FM pre-set memory stations. Follow the
memory pre-set procedures that apply to your radio.

UNDERSTANDING YOUR INSTRUMENT PANEL

Using the PTY (Program Type) Button (if
equipped)

Follow the PTY button instructions that apply to your
radio.

PTY Button

(

SCAN

(

When the desired program type is obtained, press the

9SCAN9 button within five seconds. The radio will play 7
seconds of the selected channel before moving to the next
channel of the selected program type. Press the

9SCAN9

button a second time to stop the search.

NOTE:

Pressing the

9SEEK9 or 9SCAN9 button while

performing a music type scan will change the channel by
one and stop the search. Pressing a pre-set memory
button during a music type scan, will call up the memory
channel and stop the search.

PTY Button

(

SEEK

(

When the desired program is obtained, press the

9SEEK9

button within five seconds. The channel will change to
the next channel that matches the program type selected.

Satellite Antenna

To ensure optimum reception, do not place items on the
roof around the rooftop antenna location. Metal objects
placed within the line of sight of the antenna will cause
decreased performance. Larger luggage items should be
placed as far forward as possible. Do not place items
directly on or above the antenna.

Reception Quality

Satellite reception may be interrupted due to one of the
following reasons.

• The vehicle is parked in an underground parking

structure or under a physical obstacle.

• Dense tree coverage may interrupt reception in the

form of short audio mutes.

• Driving under wide bridges or along tall buildings can

cause intermittent reception.

• Placing objects over or too close to the antenna can

cause signal blockage.

UNDERSTANDING YOUR INSTRUMENT PANEL

CASSETTE TAPE AND PLAYER MAINTENANCE

To keep the cassette tapes and player in good condition,
take the following precautions:

1. Do not use cassette tapes longer than C-90; otherwise,
sound quality and tape durability will be greatly dimin-
ished.

2. Keep the cassette tape in its case to protect from
slackness and dust when it is not in use.

3. Keep the cassette tape away from direct sunlight, heat
and magnetic fields such as the radio speakers.

4. Before inserting a tape, make sure that the label is
adhering flatly to the cassette.

5. A loose tape should be corrected before use. To rewind
a loose tape, insert the eraser end of a pencil into the tape
drive gear and twist the pencil in the required directions.

Maintain your cassette tape player. The head and capstan
shaft in the cassette player can pick up dirt or tape
deposits each time a cassette is played. The result of
deposits on the capstan shaft may cause the tape to wrap
around and become lodged in the tape transport. The
other adverse condition is low or “muddy” sound from
one or both channels, as if the treble tone control were
turned all the way down. To prevent this, you should
periodically clean the head with a commercially available
WET cleaning cassette.

As preventive maintenance, clean the head about every
30 hours of use. If you wait until the head becomes very
dirty (noticeably poor sound), it may not be possible to
remove all deposits with a simple WET cleaning cassette.

UNDERSTANDING YOUR INSTRUMENT PANEL

6 DISC CD CHANGER — IF EQUIPPED

The CD changer is located below the radio in the
instrument panel. The changer plays only 4

⁄

inch (12

cm) discs. The changer holds up to 6 discs. Each disc is
loaded and ejected through a single slot in front of the
changer. Each disc has a numbered button with an amber
light above it which, when illuminated, indicates that a
disc is loaded in that particular chamber.

Loading the CD Changer

When inserting the first CD into the changer if the radio
is on, wait until the single slot is illuminated on both
sides and simply insert the first disc.

To insert additional CDs into the changer, the instructions
follow:

1. Select and press any numbered button without an
illuminated light above it.

2. Insert the CD while the light above the chosen button
is flashing and the two lights on either side of the slot are
illuminated.

3. Upon insertion, the CD will begin to play, and both the
button light and the lights in the corner of the loading
slot will illuminate.

4. Repeat the process for loading any additional CDs.
The CD player will stop while additional CDs are loaded.

6 Disc CD Changer

UNDERSTANDING YOUR INSTRUMENT PANEL

Playing Discs

The radio will show the CD number, the CD track
number, and the Track Time Elapsed while the radio is in
the CD mode. If more than one CD is loaded in the
changer, the changer will automatically play the next disc
after playing the last track of the current disc.

Seek Button

Press the top of this button on the radio once to play the
next track. Press the bottom of the button once to return
to the beginning of the current track. Press the bottom of
the button twice to play the previous track.

FF/TUNE/RW

Press the FF (fast forward) button and the CD player will
fast forward through the tracks until the button is re-
leased. Press the RW (rewind) button and the CD player
will reverse through the tracks until the button is re-
leased.

Mode Button

Press this button to toggle between radio and cd modes.

Program Button 1

Press this button to play the next available disc.

Program Button 4 (Random Play)

Press this button while the CD is playing to activate
Random Play. This feature plays the selections on the
current compact disc in random order to provide an
interesting change of pace. The CD changer stays in the
random play mode when changing to the next disc.

NOTE:

The changer will not random play between

discs.

Press the top of the Seek button once to move to the next
randomly selected track. Press the bottom of the Seek
button to go back to the beginning of the track.

Press button 4 a second time to stop random play.

Program Button 5

Press this button to play the previous disc.

UNDERSTANDING YOUR INSTRUMENT PANEL

Time Button

Press this button to switch between time of day and CD
track time.

Changing Modes

While in the radio mode, if a cassette is loaded, press the
Mode button to switch to the tape mode. If a CD is
loaded, press the Mode button to select the CD mode. If
neither a tape nor CD is loaded, the radio will ignore the
command.

• Inserting either a tape or CD automatically starts that

mode of play.

• Pressing the AM/FM button while in the tape or CD

mode will select the radio mode.

• If in the CD mode and the last CD is ejected, the radio

will tune to the last station selected.

Removing Discs from the CD Changer

If there is a single CD in the changer, press the EJT button
and the CD will eject. If the CD is not removed within 15
seconds, it will automatically reload into the CD changer.

To eject additional CDs from the changer, first select the
numbered button where the CD is located and then press
the EJT button.

CD Changer Operation with the Changer Off

The CD changer is able to load and eject discs with the
ignition power off. However, while the ignition is off, one
of the six numbered buttons must be pressed first.

COMPACT DISC MAINTENANCE

To keep the compact discs in good condition, take the
following precautions:

1. Handle the disc by its edge; avoid touching the
surface.

2. If the disc is stained, clean the surface with a soft cloth,
wiping from center to edge.

3. Do not apply paper or tape to the disc; avoid scratch-
ing the disc.

4. Do not use solvents such as benzine, thinner, cleaners,
or antistatic sprays.

5. Store the disc in its case after playing.

100

UNDERSTANDING YOUR INSTRUMENT PANEL

6. Do not expose the disc to direct sunlight.

7. Do not store the disc where temperatures may become
too high.

NOTE:

If you experience difficulty in playing a particu-

lar disc, it may be damaged, oversized, or have theft
protection encoding. Try a known good disc before
considering disc player service.

RADIO OPERATION AND CELLULAR PHONES

Under certain conditions, the operation of a cellular
phone in your vehicle can cause erratic or noisy perfor-
mance from your radio. This condition may be lessened
or eliminated by relocating the cellular phone antenna.
This condition is not harmful to the radio. If your radio
performance does not satisfactorily “clear” by the repo-
sitioning of the antenna, it is recommended that the radio
volume be turned down or off during cellular phone
operation.

CLIMATE CONTROLS

Heater Only

The controls are as follows:

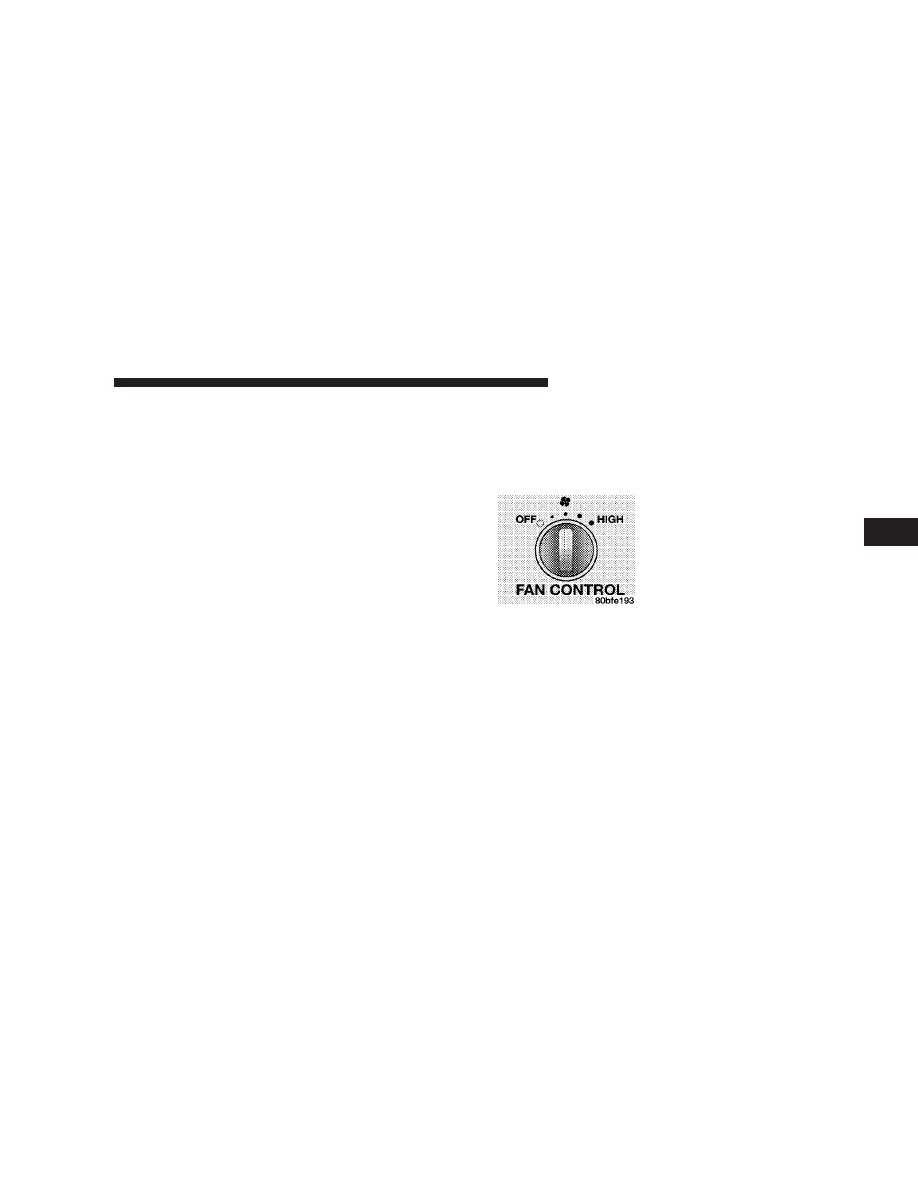

Fan Control

Use this control to regulate the
amount of air forced through the
system in any mode you select.
Turn the control clockwise to in-
crease fan speed. Turn the control
to the full counterclockwise posi-
tion to turn the fan off.

NOTE:

There is always a small amount of air entering

the vehicle even when the fan is turned off. If this
becomes objectionable during cold weather, place the
mode control on FLOOR to direct the air flow away from
passengers.

UNDERSTANDING YOUR INSTRUMENT PANEL

101

Dodge Neon (2005 year). Manual - part 6
