PATCHED PANEL SURFACING

After patch panel is installed, the patch area can

be finished using the same methods as finishing
other types of body panels. If mesh material is
exposed in the patched area, grind surface down, and
apply a coat of high quality rigid plastic body filler.
Prime, block sand, and paint as required.

STANDARD PROCEDURE - BUZZ, SQUEAK &
RATTLE

Buzz, Squeak & Rattles (BSR) may be caused by

any one or more of the following and may be cor-
rected as indicated:

• Loose fasteners should be tightened to specifica-

tions.

• Damaged or missing clips should be replaced.

• Damaged trim panels should be replaced.

• Incorrectly installed trim panels should be rein-

stalled properly.

Many BSR complaints such as loose trim, can be

serviced using the Mopar

t Parts BSR Noise Reduc-

tion Kit. This kit contains various tapes including
foam, flock and anti-squeak used to eliminate noises
caused by metal, plastic and vinyl components. Long
life lubricants and greases can also be used on a vari-
ety of components. Refer to the Buzz, Squeak & Rat-
tle Kit table for material contents and usage.

BUZZ, SQUEAK & RATTLE KIT

ITEM

FEATURES

APPLICATIONS

SERVICE TEMP

Itch And Squeak
Tape

An abrasion resistant material
thin enough to conform to
most irregular surfaces. Stops
most itches and squeaks.

Between metal and metal, met-
al and plastic, metal and vinyl,
vinyl and plastic. Interior.
Examples: Trim panels and
bezels.

-40° to 225° Fahr-
enheit
(-40° to 107° Cel-
sius)

Black Nylon Flock

Nylon Flock with an aggressive
acrylic adhesive. Provides for
cushioning and compression fit,
also isolates components. Wa-
ter-resistant.

Between metal and metal, met-
al and plastic, vinyl and plastic.
Examples: Pull cups, bezels,
clips, ducts, top cover to glass,
cowl panel.

-40° to 180° Fahr-
enheit
(-40° to 82° Celsius)

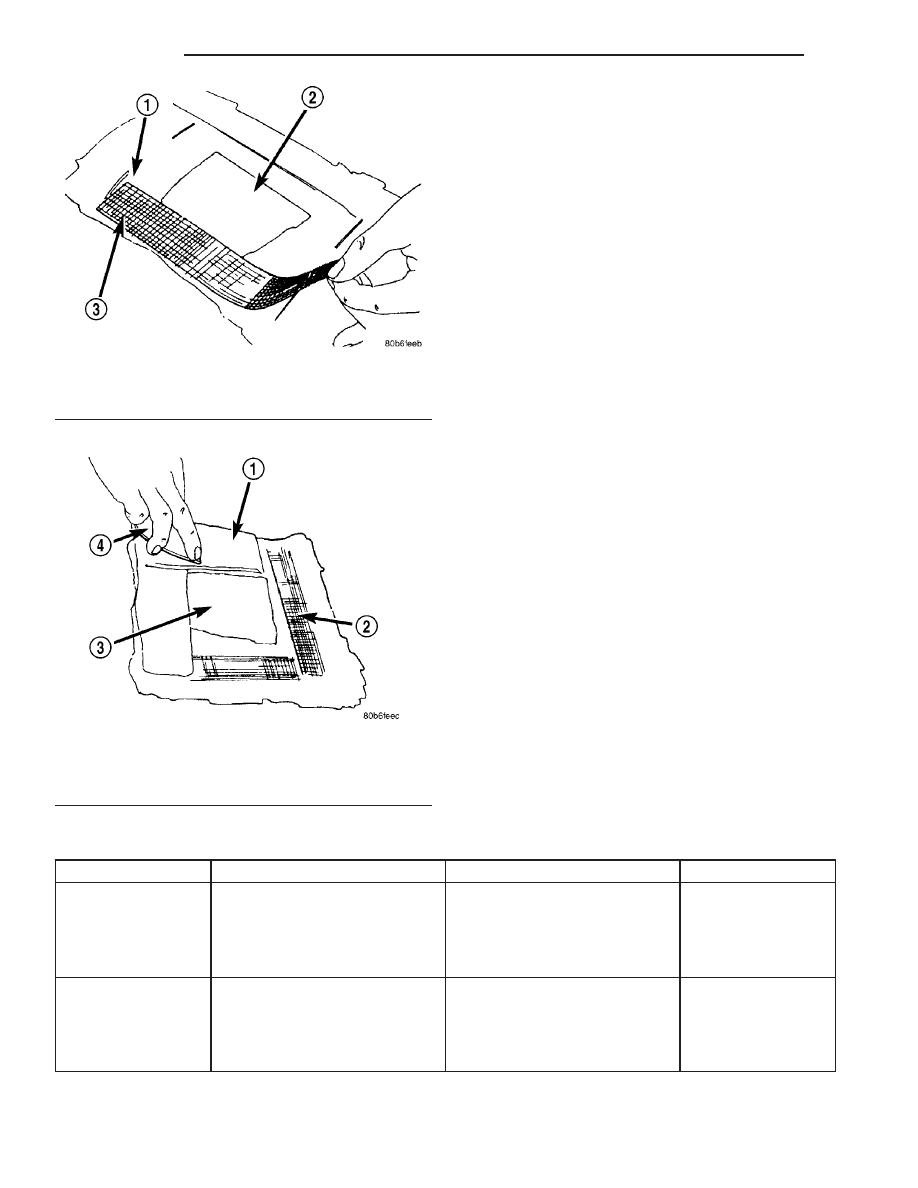

Fig. 14 COVER GAPS WITH MESH

1 - GROUND DOWN AREA
2 - PATCH
3 - MESH

Fig. 15 COVER MESH WITH ADHESIVE

1 - ADHESIVE
2 - MESH
3 - PATCH
4 - SPREADER

23 - 10

BODY

VA

ITEM

FEATURES

APPLICATIONS

SERVICE TEMP

High Density Ure-
thane Foam

Tear resistant, highly resilient
and durable.

Between metal and metal, met-
al and plastic. Water-resistant.
Examples: I/P, heavy metal rat-
tles, isolating brackets.

-40° to 180° Fahr-
enheit
(-40° to 82° Celsius)

Open Cell Foam
Tape

Soft foam conforms to irregular
surfaces.

Wire harness and connector
wrap.
Examples: Seals, gasket, wir-
ing, heat ducts.

-40° to 180° Fahr-
enheit
(-40° to 82° Celsius)

Closed Cell Low
Density Foam Tape

Soft, conformable. Water-resis-
tant.

Wherever bulk is needed. Pre-
vents closing flutters and rat-
tles when applied to door wa-
tershield.
Examples: Door, I/P.

-40° to 180° Fahr-
enheit
(-40° to 82° Celsius)

NYE

T

Grease 880

Long life.

Suspensions.
Examples: Strut busings, sway
bars.

-40° to 390° Fahr-
enheit
(-40° to 200° Cel-
sius)

Krytox

T

Oil

Long life. Will not dry out or
harm plastics or rubber.

When access is not possible,
oil will migrate to condition.
Vinyl, rubber, plastic, metal.
Examples: Convertible top
bushings, pull cups trim panel
inserts.

-30° to 400° Fahr-
enheit
(-34° to 205° Cel-
sius)

Krytox

T

Grease

Long life. Will not dry out or
harm plastics or rubber.

Vinyl, rubber, plastic, metal,
glass.
Examples: Weather-strips,
backlite and windshield mold-
ings.

-30° to 400° Fahr-
enheit
(-34° to 205° Cel-
sius)

SPECIFICATIONS

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Front door check bracket bolt/nut

6

53

Front door check to a-pillar M6 bolts

10

89

Front door check to a-pillar M8 bolts

35

26

Front door check to door fasteners

10

89

Front door exterior handle

10

89

Front door hinge bolts

25

18

Front door latch assembly bolts

10

89

Front door latch striker bolts

28

18

Front door regulator carrier plate bolts

10

89

Front door reinforcement bolts

21

15

Front door striker bolts

25

18

Front seat back mounting bolts

20

15

Front seat back stop bolt

20

15

Front seat mounting bolts

25

18

Hood hinge bolts/nuts

23

17

VA

BODY

23 - 11

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Lower seat belt anchor bolt

35

26

Radiator crossmember bolts

14

10

Rear door check bolts

10

89

Rear door exterior handle bolts

10

89

Rear door hinge bolts

25

18

Rear door upper closing wedge screws

10

89

Side view mirror bolts

25

18

Sliding door center guide rail end piece screws

10

89

Sliding door center roller arm bolt

45

33

Sliding door center track bolts/nuts

10

89

Sliding door inside handle screw

10

89

Sliding door latch screws

10

89

Sliding door latch/lock control bolts

10

89

Sliding door lower roller arm to door screws

25

18

Sliding door reinforcement bolts

21

15

Sliding door stabilizer screws

10

89

Sliding door stop bumper screws

10

89

Sliding door striker

25

18

Sliding door upper roller arm to door screws

25

18

Steering column support bolts

25

18

23 - 12

BODY

VA

DOOR - FRONT

TABLE OF CONTENTS

page

page

CHECK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 13

DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 14

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . . 15

DOOR GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 15

EXTERIOR HANDLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 16

HINGE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 17

LATCH

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

LATCH STRIKER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

LOCK CYLINDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 18

TRIM PANEL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 20

WINDOW REGULATOR - POWER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 21

WINDOW REGULATOR - MANUAL

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 22

CHECK

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove trim panel. (Refer to 23 - BODY/DOOR

- FRONT/TRIM PANEL - REMOVAL)

(3) Remove a-pillar bolts. (Fig. 1)

(4) Remove the bolt/nut and remove check bracket.

(Fig. 2)

(5) Remove the door fasteners and remove check

from door.

INSTALLATION

(1) Install check through door opening and install

the fasteners.

(2) Tighten door fasteners to 10 N·m (89 in. lbs.).

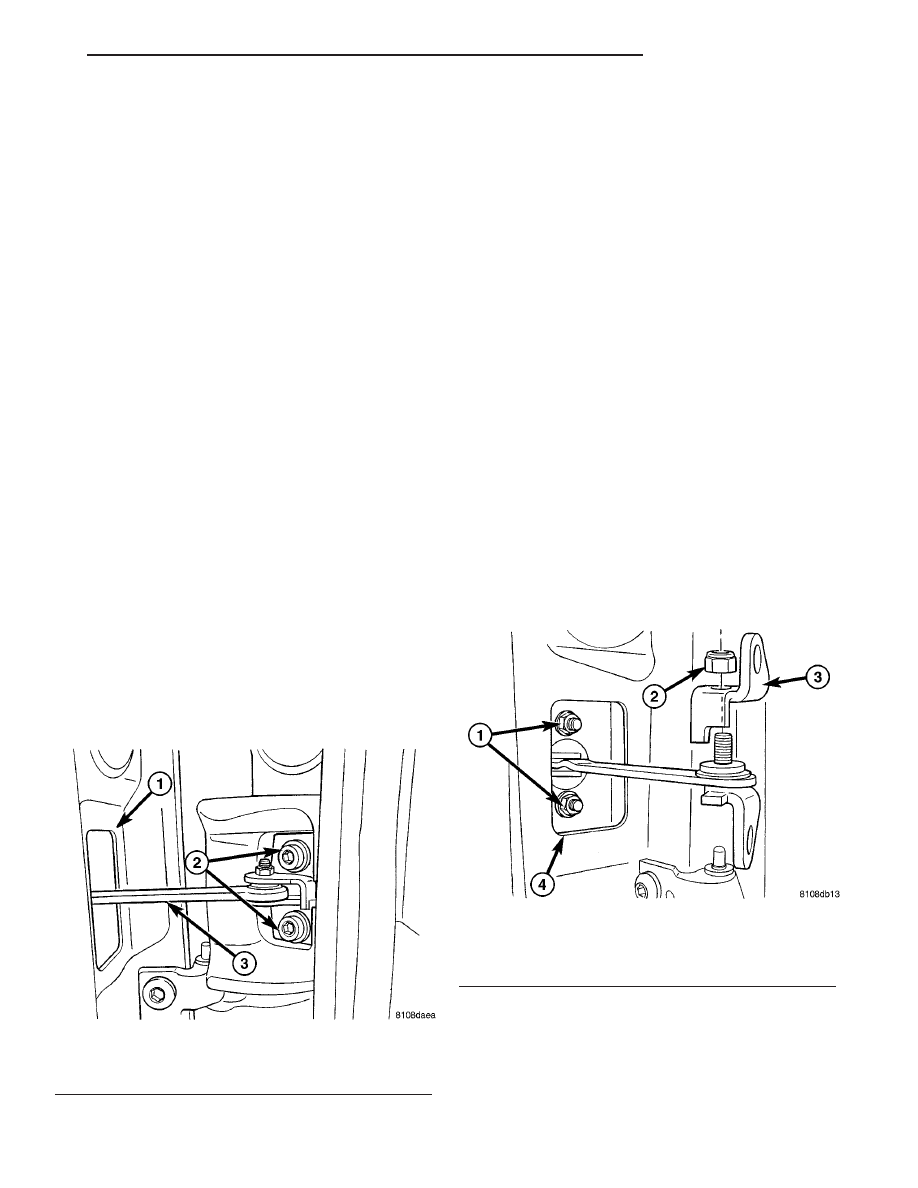

Fig. 1 FRONT DOOR CHECK - BODY

1 - DOOR
2 - A-PILLAR BOLTS
3 - DOOR CHECK

Fig. 2 FRONT DOOR CHECK - DOOR

1 - DOOR FASTENERS
2 - CHECK BRACKET NUT
3 - CHECK BRACKET
4 - DOOR OPENING

VA

DOOR - FRONT

23 - 13
