Dodge Sprinter. Manual - part 82

(5) Pull SKREEM straight out of rear of instru-

ment cluster (Fig. 4) and remove from vehicle.

SENTRY KEY REMOTE ENTRY MODULE TRAN-
SPONDER RING

(1) Open hood, disconnect and isolate the battery

negative cable.

(2) Wait two minutes for the system reserve capac-

itor to discharge before beginning any system or com-
ponent service.

(3) Remove the steering column shrouds.
(4) Unsnap the SKREEM transponder from the

ignition cylinder (Fig. 5).

(5) Remove top cover - cluster (Refer to 23 -

BODY/INSTRUMENT PANEL/TOP COVER - CLUS-
TER - REMOVAL).

(6) Disconnect the transponder electrical connector

from the SKREEM (Fig. 4).

(7) Maneuver wiring from instrument panel and

remove transponder from vehicle.

INSTALLATION

SENTRY KEY REMOTE ENTRY MODULE

(1) Push SKREEM straight into the rear of instru-

ment cluster (Fig. 4).

(2) Connect the one electrical connector to the

SKREEM (Fig. 4).

(3) Install the top cover - cluster (Refer to 23 -

BODY/INSTRUMENT PANEL/TOP COVER - CLUS-
TER - INSTALLATION)

(4) Connect the battery negative cable.
(5) Verify vehicle and system operation.
(6) Close hood.

SENTRY KEY REMOTE ENTRY MODULE TRAN-
SPONDER RING

(1) Maneuver wiring through instrument panel

(Fig. 5).

(2) Connect the transponder electrical connect or

to the SKREEM (Fig. 4).

(3) Install the top cover - cluster (Refer to 23 -

BODY/INSTRUMENT PANEL/TOP COVER - CLUS-
TER - INSTALLATION)

(4) Snap

the

SKREEM

transponder

place

around the ignition cylinder (Fig. 5).

(5) Install the steering column shrouds.
(6) Connect the battery negative cable.
(7) Verify vehicle and system operation.
(8) Close hood.

SIREN

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove mounting fasteners.
(3) Disconnect wire harness connector from siren.

INSTALLATION

(1) Connect wire harness connector to siren.
(2) Position siren. Install and tighten mounting

fasteners.

(3) Connect battery negative cable.

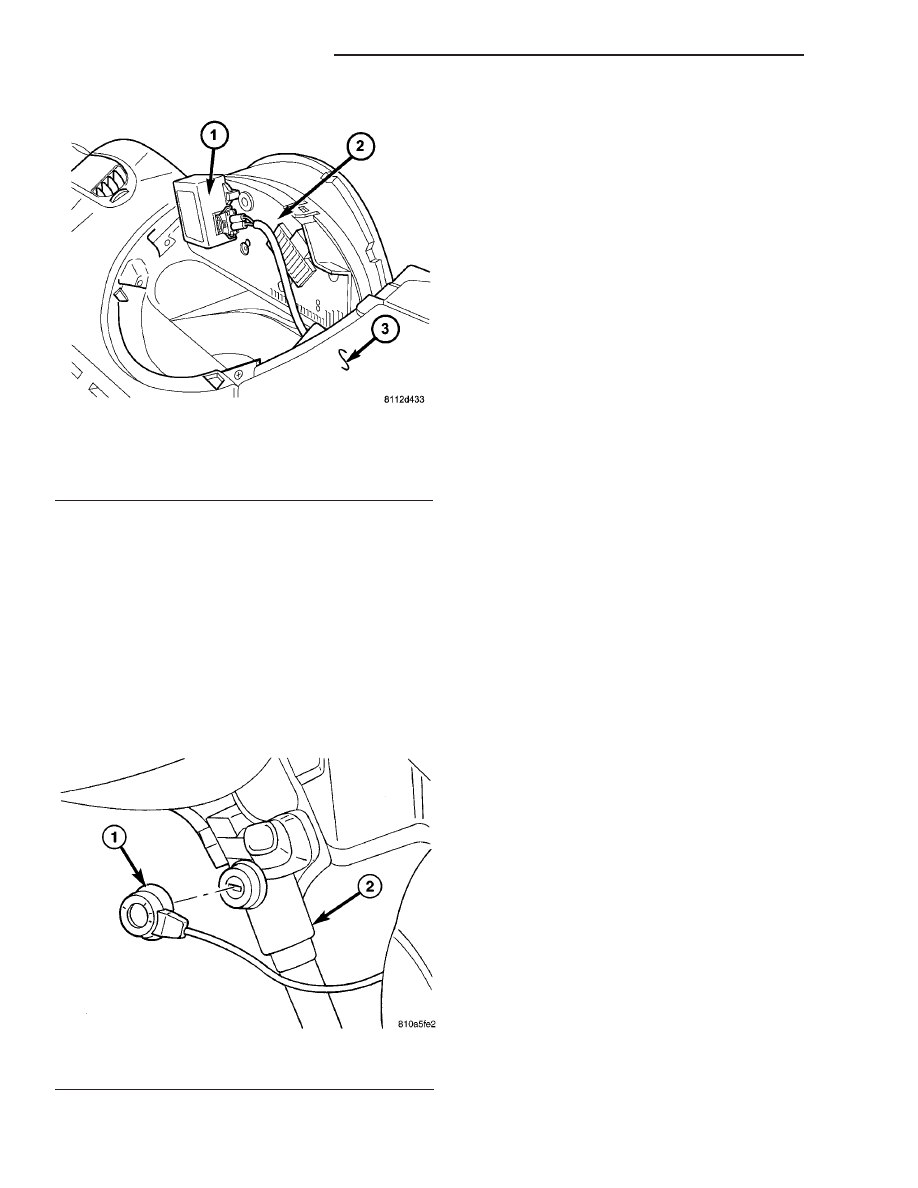

Fig. 4 SENTRY KEY REMOTE ENTRY MODULE

(SKREEM) - REMOVE/INSTALL

1 - SENTRY KEY REMOTE ENTRY MODULE (SKREEM)
2 - INSTRUMENT CLUSTER (REAR)
3 - INSTRUMENT PANEL

Fig. 5 TRANSPONDER RING

1 - TRANSPONDER RING
2 - STEERING COLUMN

8Q - 4

VEHICLE THEFT SECURITY

TRANSPONDER KEY

DESCRIPTION

The Sentry Key Immobilizer System (SKIS) which

communicates with the Sentry Key Remote Entry
Module (SKREEM), uses a transponder chip that is
integral to each key fob (Fig. 6). Ignition keys are
supplied with the vehicle when it is shipped from the
factory. The transponder chip is located within the
Remote Keyless Entry (RKE) fob.

OPERATION

Each Sentry Key has a unique transponder identi-

fication code permanently programmed into it by the
manufacturer. Likewise, the Sentry Key Remote
Entry Module (SKREEM) has a unique “Secret Key

code programmed into it by the manufacturer as
well. When a Sentry Key is programmed into the
memory of the SKREEM, the SKREEM stores the
transponder identification code from the Sentry Key,
and the Sentry Key learns the “Secret Key” code
from the SKREEM. Once the Sentry Key learns the
“Secret Key” code of the SKREEM, it is also perma-
nently programmed into the transponder’s memory.

The Sentry Key’s transponder is within the range

of the SKREEM’s transponder ring when it is
inserted into the ignition lock cylinder. When the
ignition switch is turned to the ON position, the
SKREEM communicates with the Sentry Key via a
radio frequency (RF) signal. The SKREEM deter-
mines if a valid key is present based on the informa-
tion it receives from the Sentry Key. If a valid key is
detected, that fact is communicated to the Engine
Control Module (ECM) via the Controller Area Net-
work (CAN) data bus and the vehicle is allowed to
continue running. If an invalid key is received by the

ECM or no status at all is communicated, the vehicle
will stall after two (2) seconds of running. The indi-
cator light will be flashing at this point. The Sentry
Key’s transponder can not be repaired. If it is faulty
or damaged, it must be replaced.

Common communication problems:
• Two transponder keys too close together.

• Speed Pass too close to transponder key.
Solid indicator that there is a system failure.
• Loss of ECM communication.

• Failed transponder ring circuit.

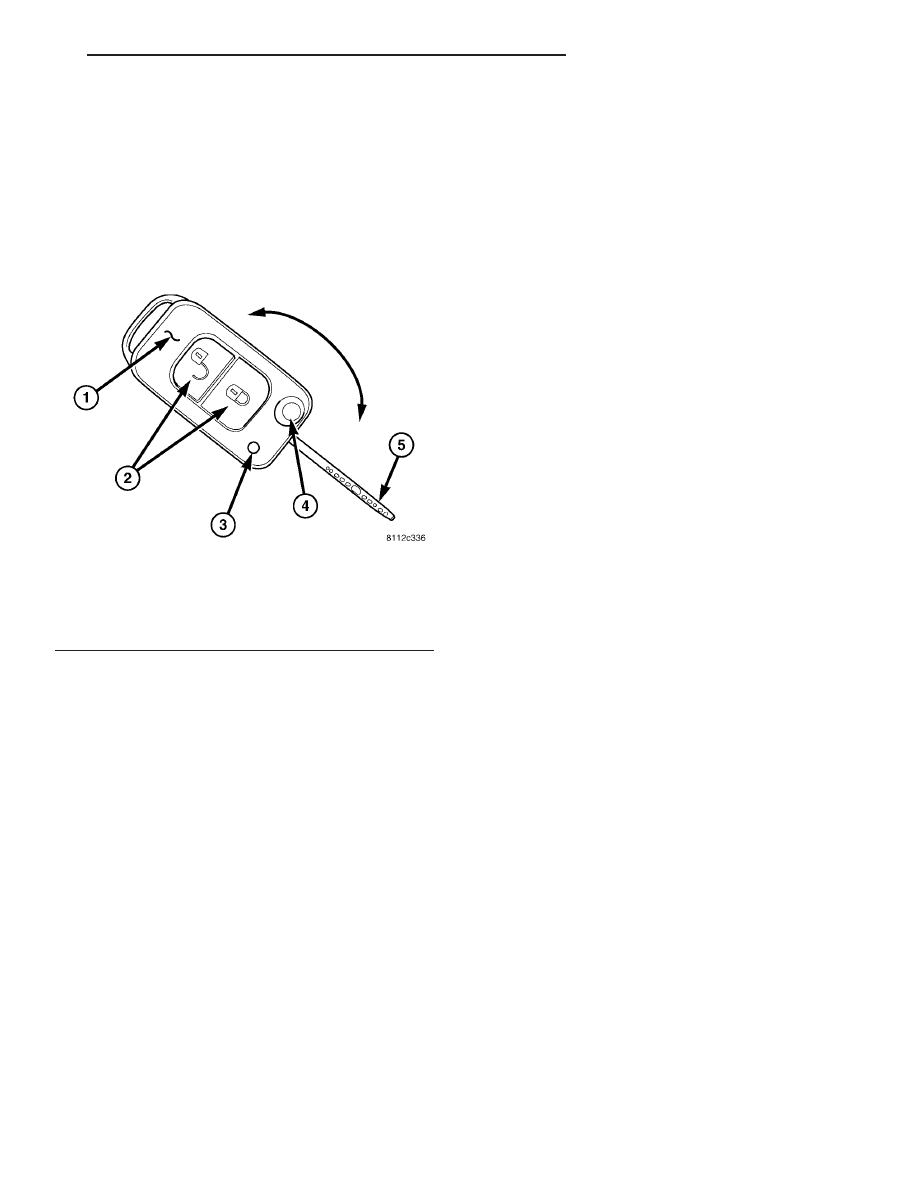

Fig. 6 TRANSPONDER KEY

1 - TRANSPONDER KEY FOB
2 - RKE BUTTONS
3 - INDICATOR LIGHT
4 - KEY BLADE RELEASE BUTTON
5 - KEY BLADE

VEHICLE THEFT SECURITY

8Q - 5
