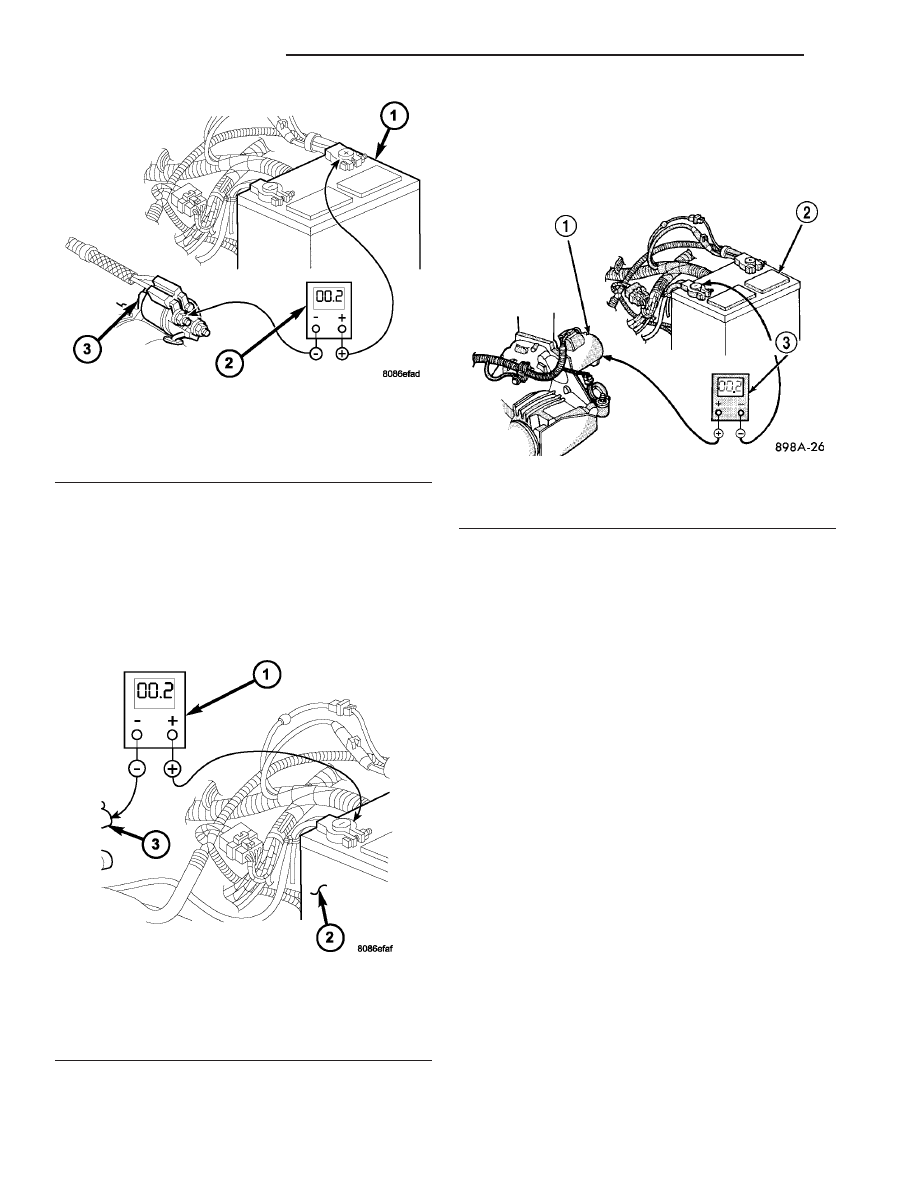

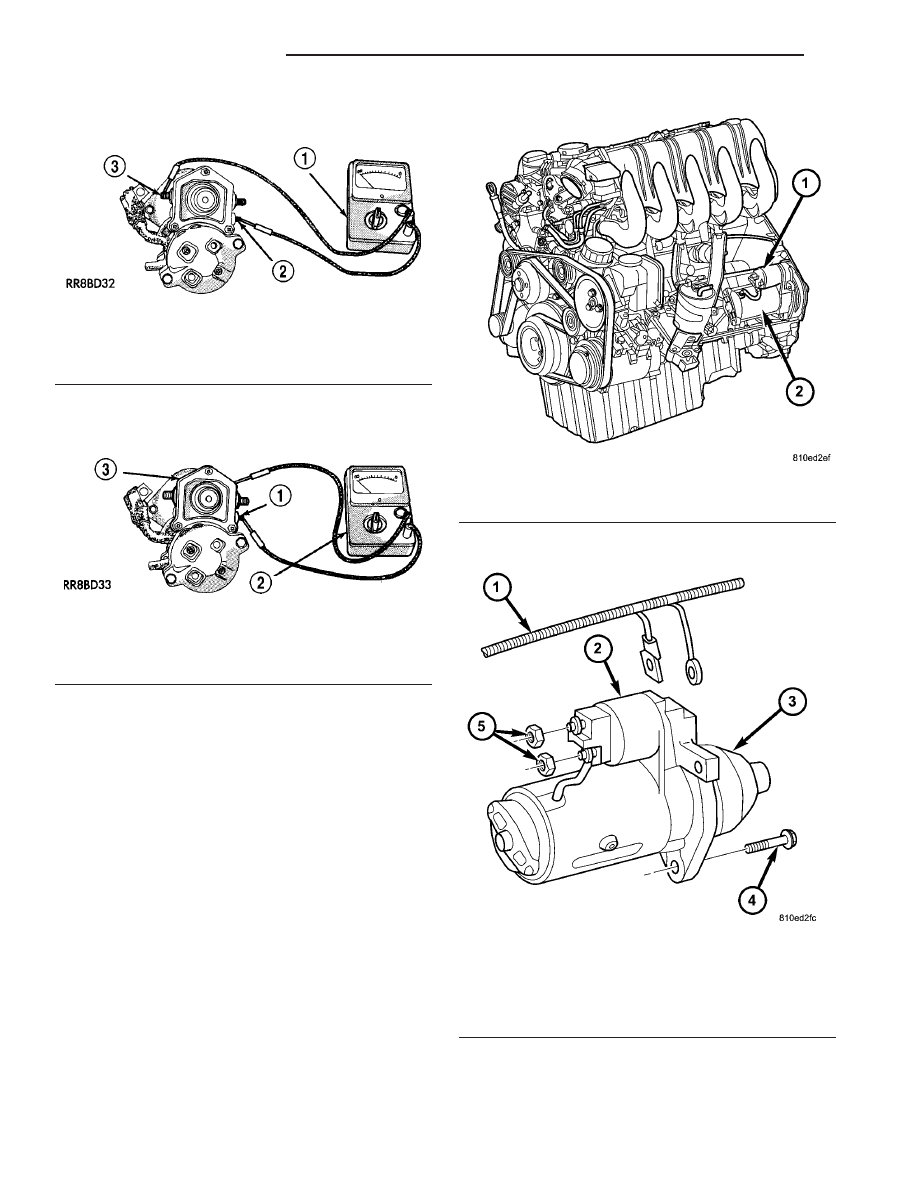

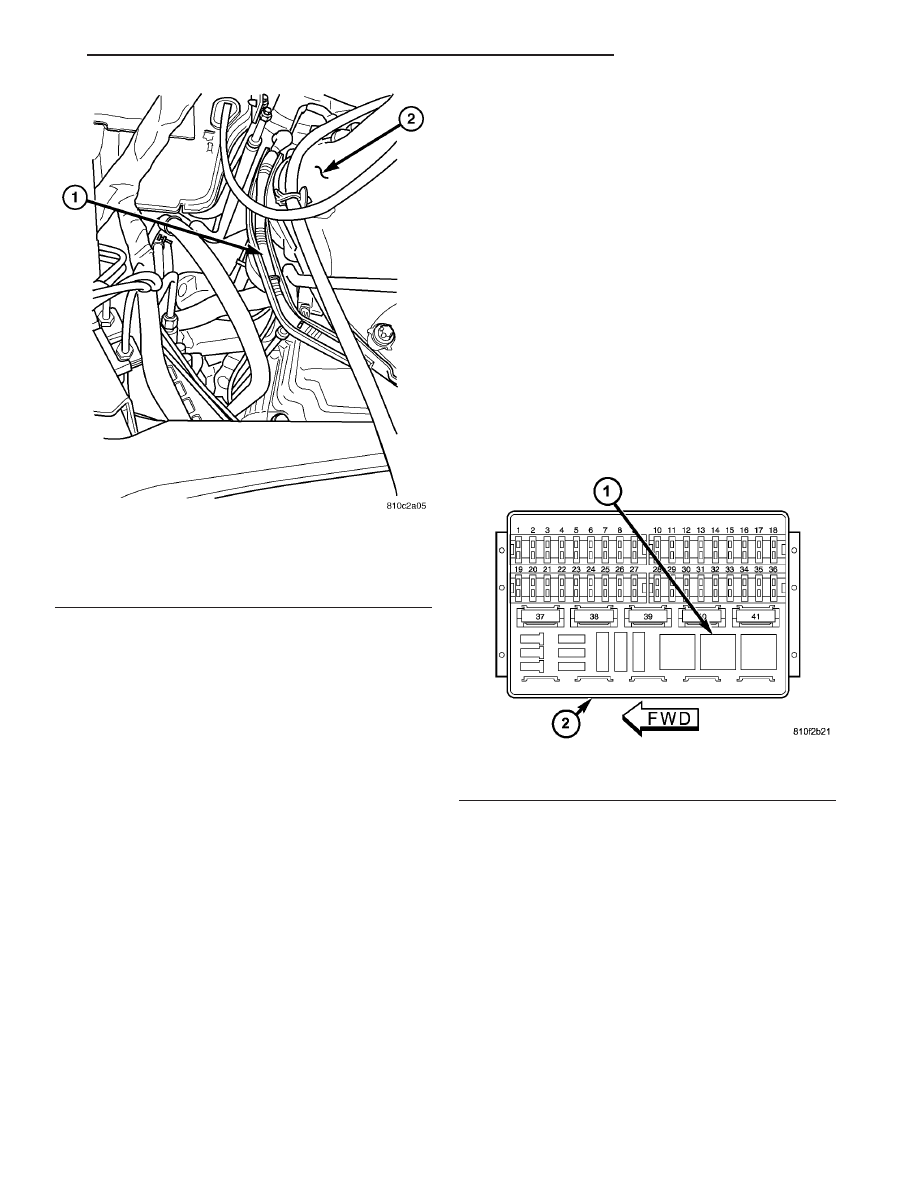

(4) Connect voltmeter to measure between nega- tive battery terminal post and a good clean ground (5) Connect positive lead of voltmeter to starter housing. Connect negative lead of voltmeter to nega- If resistance tests detect no feed circuit problems, refer to Starter Motor in the Diagnosis and Testing. CONTROL CIRCUIT TESTING The starter control circuit components should be tested in the order in which they are listed, as fol- • Starter Relay - Refer to Starter Relay Diag- nosis and Testing. • Starter Solenoid - Refer to Starter Motor Diagnosis and Testing. • Ignition Switch - Refer to Ignition Switch and Key Lock Cylinder • Park/Neutral Position Switch - If equipped with automatic transmission, refer to Park/Neutral • Wire harnesses and connections - Refer to 8, Wiring Diagrams. Fig. 4 TEST POSITIVE BATTERY CABLE 1 - BATTERY Fig. 5 TEST GROUND CIRCUIT RESISTANCE - TYPICAL 1 - VOLTMETER Fig. 6 TEST STARTER GROUND - TYPICAL 1 - STARTER MOTOR 8F - 32 STARTING SYSTEM VA |
