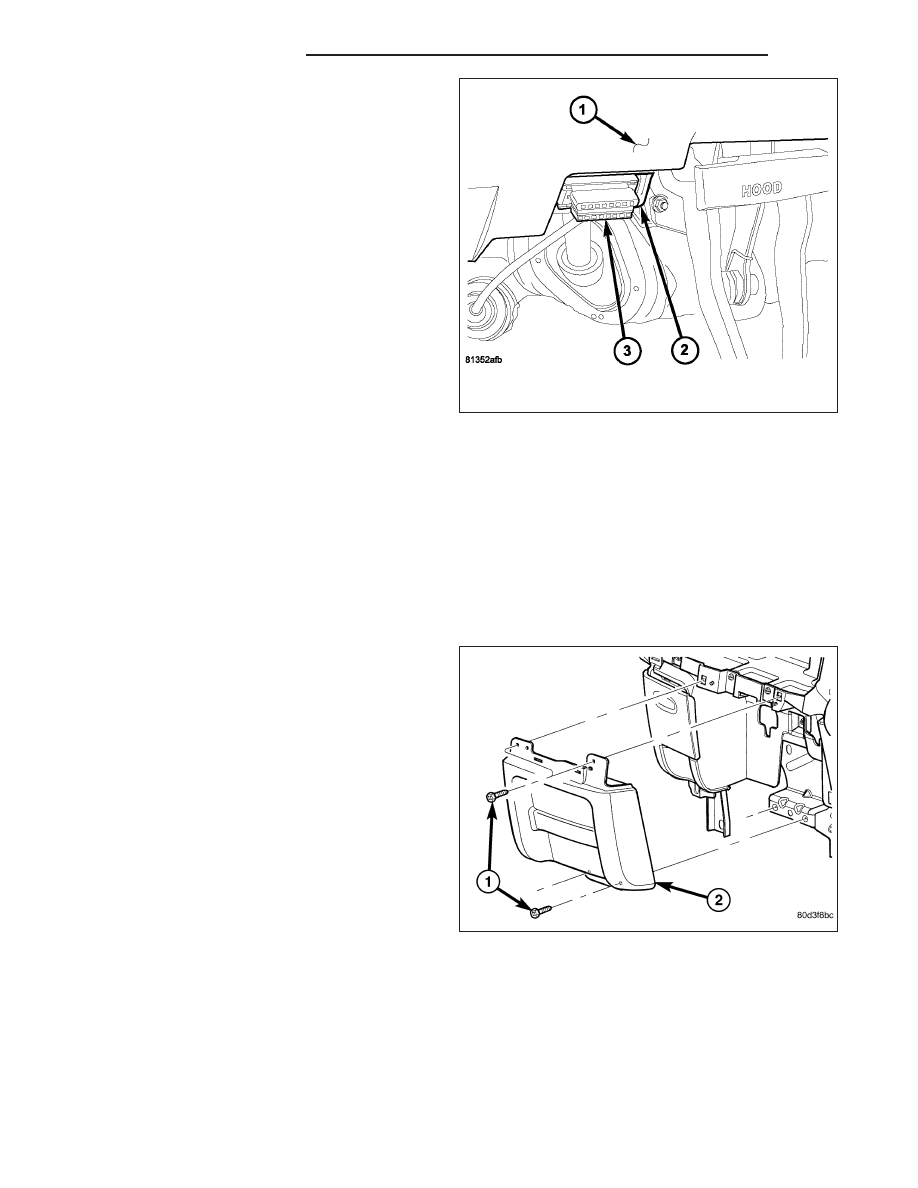

3. Position the data link connector (3) into the open-

ing in the steering column opening bracket (2) and
fully engage the retaining tabs that secure the con-
nector to the bracket.

4. Install the hood release handle (Refer to 23 -

BODY/HOOD/LATCH RELEASE CABLE - INSTAL-
LATION).

5. Install the steering column opening cover onto the

instrument panel (1) (Refer to 23 - BODY/INSTRU-
MENT

PANEL/STEERING

COLUMN

OPENING

COVER - INSTALLATION).

STORAGE BIN

REMOVAL

WARNING: On vehicles equipped with airbags, disable the airbag system before attempting any steering
wheel, steering column, seat belt tensioner, or instrument panel component diagnosis or service. Discon-
nect and isolate the battery negative (ground) cable, then wait two minutes for the airbag system capacitor
to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag
system. Failure to take the proper precautions could result in accidental airbag deployment and possible
personal injury or death.

NOTE: A storage bin replaces the cup holder in
the instrument panel when the vehicle is equipped
with a floor console.

1. Remove the instrument panel center bezel (Refer

to

23

-

BODY/INSTRUMENT PANEL/INSTRU-

MENT PANEL CENTER BEZEL - REMOVAL).

2. Remove the floor console (Refer to 23 - BODY/IN-

TERIOR/FLOOR CONSOLE - REMOVAL).

3. Remove the four screws (1) that secure the stor-

age bin (2) to the instrument panel and remove the
bin.

23 - 146

INSTRUMENT PANEL

DR/DH

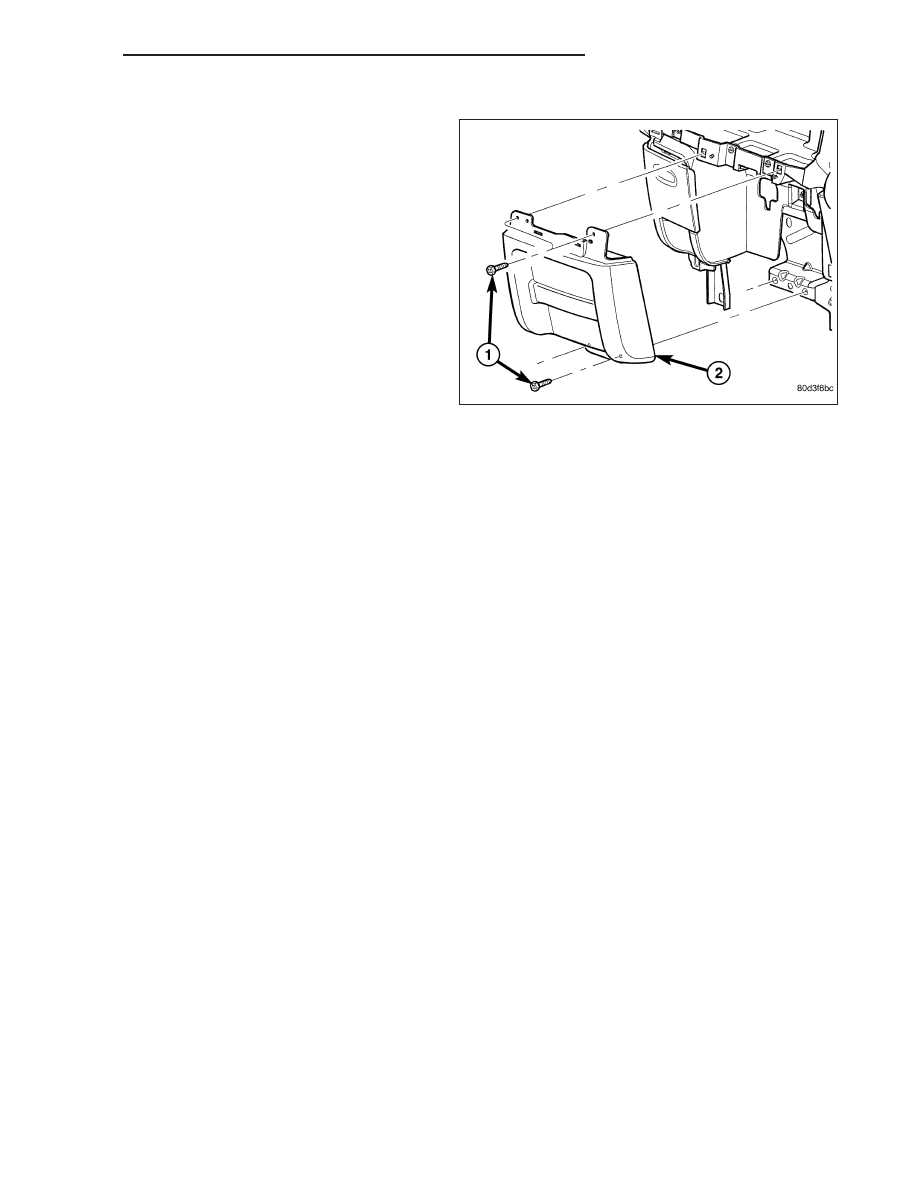

INSTALLATION

NOTE: A storage bin replaces the cup holder in
the instrument panel when the vehicle is equipped
with a floor console.

1. Position the storage bin (2) into the instrument

panel.

2. Install the four screws (1) that secure the storage

bin to the instrument panel. Tighten the screws to
2.2 N·m (20 in. lbs.).

3. Install the floor console (Refer to 23 - BODY/INTE-

RIOR/FLOOR CONSOLE - INSTALLATION).

4. Install the instrument panel center bezel (Refer to

23 - BODY/INSTRUMENT PANEL/INSTRUMENT
PANEL CENTER BEZEL - INSTALLATION).

DR/DH

INSTRUMENT PANEL

23 - 147

INTERIOR

TABLE OF CONTENTS

page

page

INTERIOR

CAUTION

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

4WD FLOOR SHIFT BOOT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 149

A-PILLAR TRIM/GRAB HANDLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 151

B-PILLAR GRAB HANDLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 152

B-PILLAR LOWER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 153

B-PILLAR UPPER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 156

C-PILLAR LOWER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 158

C-PILLAR UPPER TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 159

CARPETS AND FLOOR MATS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 161

COAT HOOK

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 163

COWL TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 164

FLOOR CONSOLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 164

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 165

HEADLINER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 167

LOAD FLOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 167

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 168

LOAD FLOOR SUPPORT CYLINDER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 170

REAR CAB BACK PANEL TRIM

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 172

REAR DOOR SILL TRIM COVER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 173

REAR VIEW MIRROR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

INSTALLATION

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . 174

REAR VIEW MIRROR MOUNTING

BRACKET . . . . . . . . . . . . . . . . . . . . . . . . . . 174

SUN VISOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 175

SUN VISOR SUPPORT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 176

BODY VENT

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 177

INTERIOR

CAUTION

CAUTION:: Do not attempt to remove interior trim panels or moldings without first removing the necessary
adjacent trim panels or moldings. To avoid damaging the trim panels, ensure that all the fasteners are
removed or disengaged before attempting to remove interior trim panels or moldings. Trim panels are
somewhat flexible but can be damaged if handled improperly.

23 - 148

INTERIOR

DR/DH

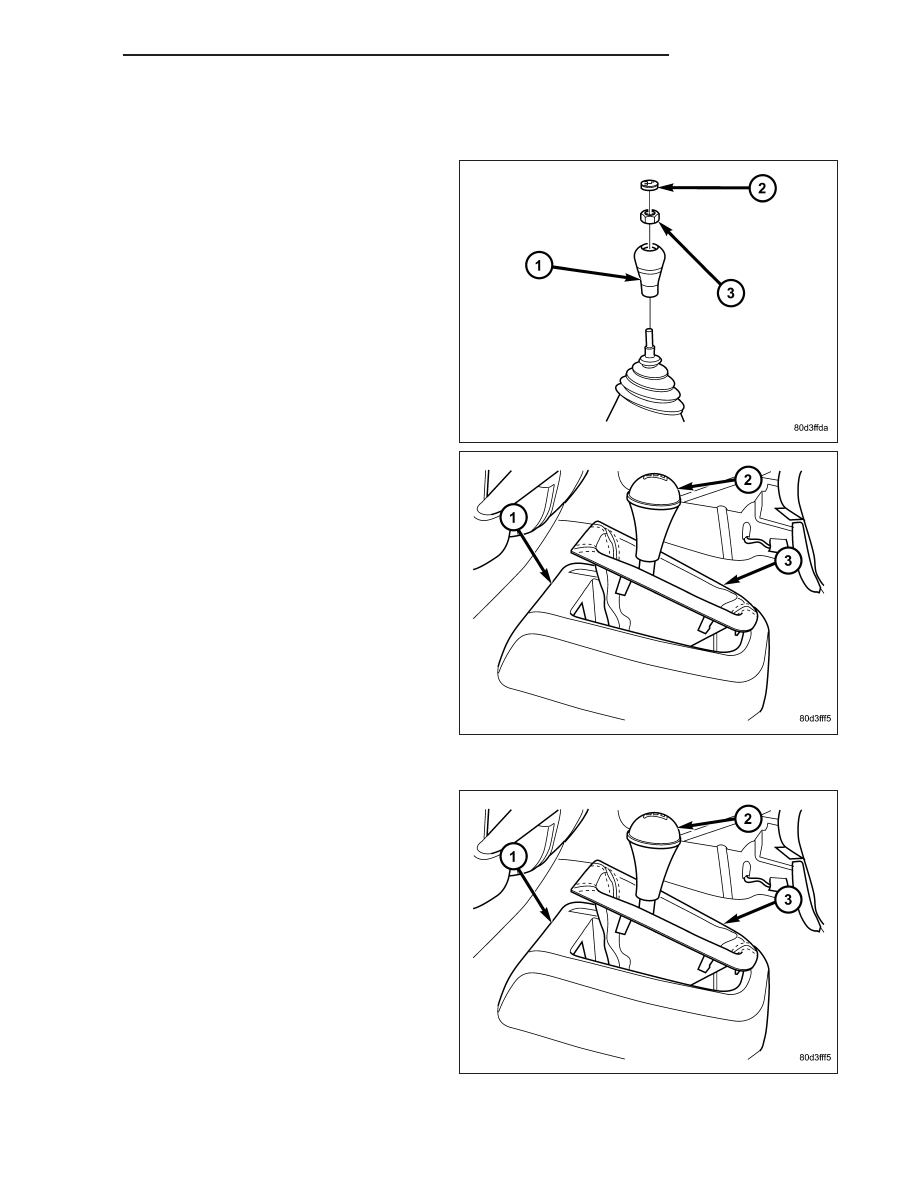

4WD FLOOR SHIFT BOOT

REMOVAL

1. Using a small flat-bladed tool, remove the insert (2)

from the top of the shift knob (1).

2. Remove the nut (3) that secures the shift knob to

the gear shift lever.

3. Remove the gear shift knob (2).

4. Using a trim stick C-4755 or equivalent, disengage

the retaining tabs that secure the gear shift boot (3)
to the floor console (1) and remove the boot.

INSTALLATION

1. Position the gear shift boot (3) over the gear shift

lever.

2. Engage the retaining tabs that secure the gear shift

boot to the floor console (1).

3. Install the shift knob (2) over the gear shift lever.

DR/DH

INTERIOR

23 - 149
