Dodge Neon / Neon SRT-4. Manual - part 329





STANDARD PROCEDURE - FLUID DRAIN AND
FILL

NOTE: For proper fluid change intervals, (Refer to
LUBRICATION

&

MAINTENANCE/MAINTENANCE

SCHEDULES - DESCRIPTION)

The fluid required in this transaxle is Mopar

t

ATF+4 along with 0.12L (4 oz.) Mopar Limited Slip
Additive/Friction Modifier (P/N 04318060AB). Use of
substitute fluids may result in improper transaxle
operation, noise and/or failure.

FLUID DRAIN

(1) Raise vehicle on hoist.
(2) Remove transaxle drain plug (Fig. 110) and

drain fluid into suitable container.

(3) Install drain plug and torque to 23 N·m (17 ft.

lbs.).

FLUID FILL

(1) Remove transaxle fill plug (Fig. 111).
(2) Add 0.12L (4 oz.) Mopar

t Limited Slip Addi-

tive/Fricion Modifier (P/N 04318060AB) and up to
2.3-2.5L (2.4-2.6 qts.) of Mopar

t ATF+4 until fluid is

within 3/16” below fill hole.

(3) Install fill plug, ensuring it is properly seated.
(4) Lower vehicle.

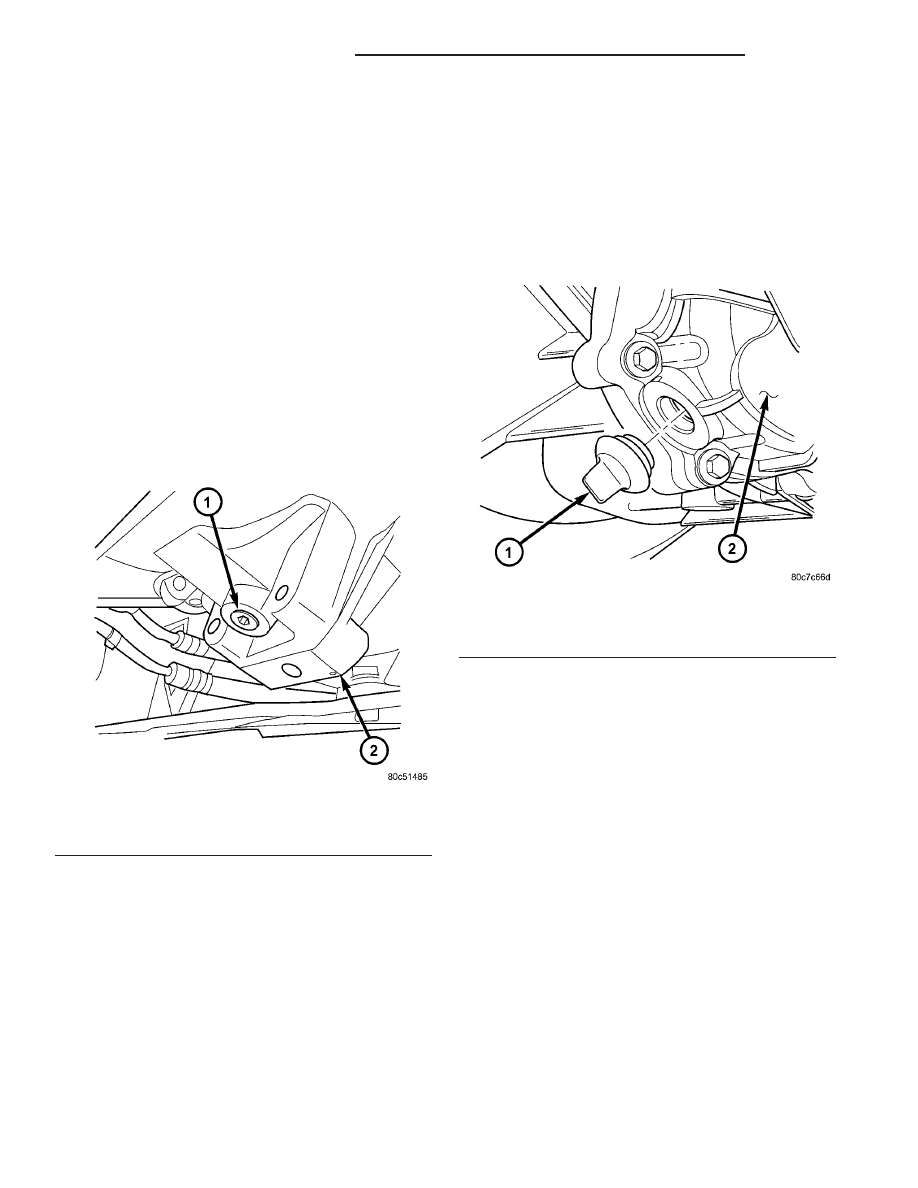

Fig. 110 Transaxle Drain Plug

1 - TRANSAXLE DRAIN PLUG
2 - DIFFERENTIAL COVER

Fig. 111 Transaxle Fill Plug

1 - FILL PLUG
2 - END COVER

21 - 100

T850 MANUAL TRANSAXLE

PL/SRT-4

FLUID (Continued)

GEAR SHIFT CABLE

REMOVAL

NOTE: The crossover and selector cables are man-
ufactured as a cable “assembly” and cannot be ser-
viced individually.

(1) Raise hood and disconnect battery negative

cable.

(2) Disengage gearshift boot from center console.
(3) Pull up on gearshift knob with moderate force

to remove from gearshift mechanism (Fig. 112).

(4) Remove gearshift boot from console.
(5) Remove the center console assembly as shown

in (Fig. 113).

(6) Remove crossover cable retaining clip and dis-

connect from shift lever (Fig. 114).

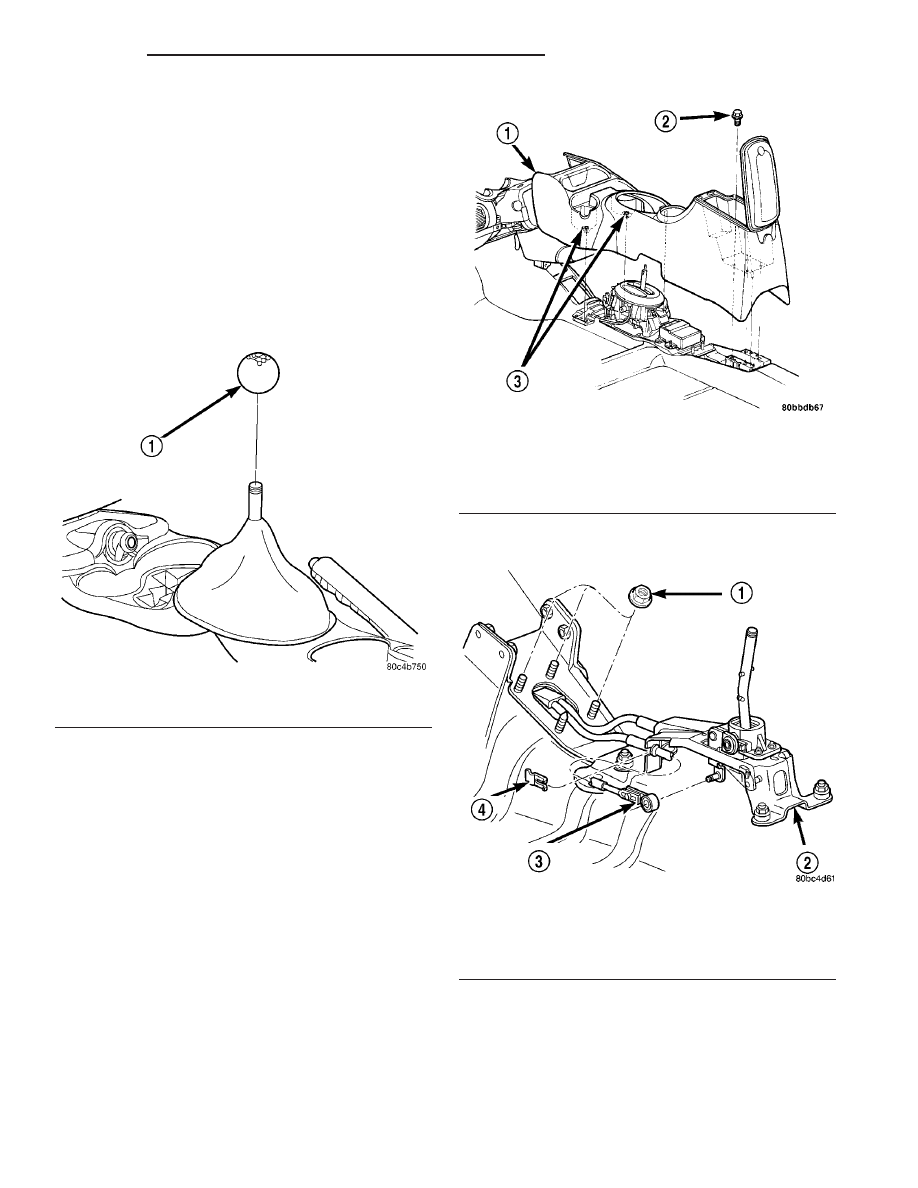

Fig. 112 Gearshift Knob Removal/Installation

1 - GEARSHIFT KNOB

Fig. 113 Center Console Removal/Installation—

Typical

1 - CONSOLE
2 - SCREW (4)
3 - SCREW (2)

Fig. 114 Crossover Cable at Shifter Assembly

1 - GROMMET PLATE NUT
2 - SHIFTER
3 - CROSSOVER CABLE
4 - CLIP

PL/SRT-4

T850 MANUAL TRANSAXLE

21 - 101

(7) Remove selector cable retaining clip and dis-

connect from shift lever (Fig. 115).

(8) Remove

three

grommet

plate-to-floor

pan

attaching nuts (Fig. 114).

(9) Remove air cleaner assembly.
(10) Disconnect cables from the shift levers at the

transaxle (Fig. 116).

CAUTION: Pry up with equal force on both sides of
shifter cable isolator bushings to avoid damaging
cable isolator bushings.

Remove cable retaining clips and remove cables

from bracket (Fig. 116).

(11) Raise vehicle on hoist.
(12) Remove converter heat shield (Fig. 117).

(13) Remove remaining grommet plate-to-floor pan

screw (Fig. 118).

(14) Remove cable assembly from vehicle.

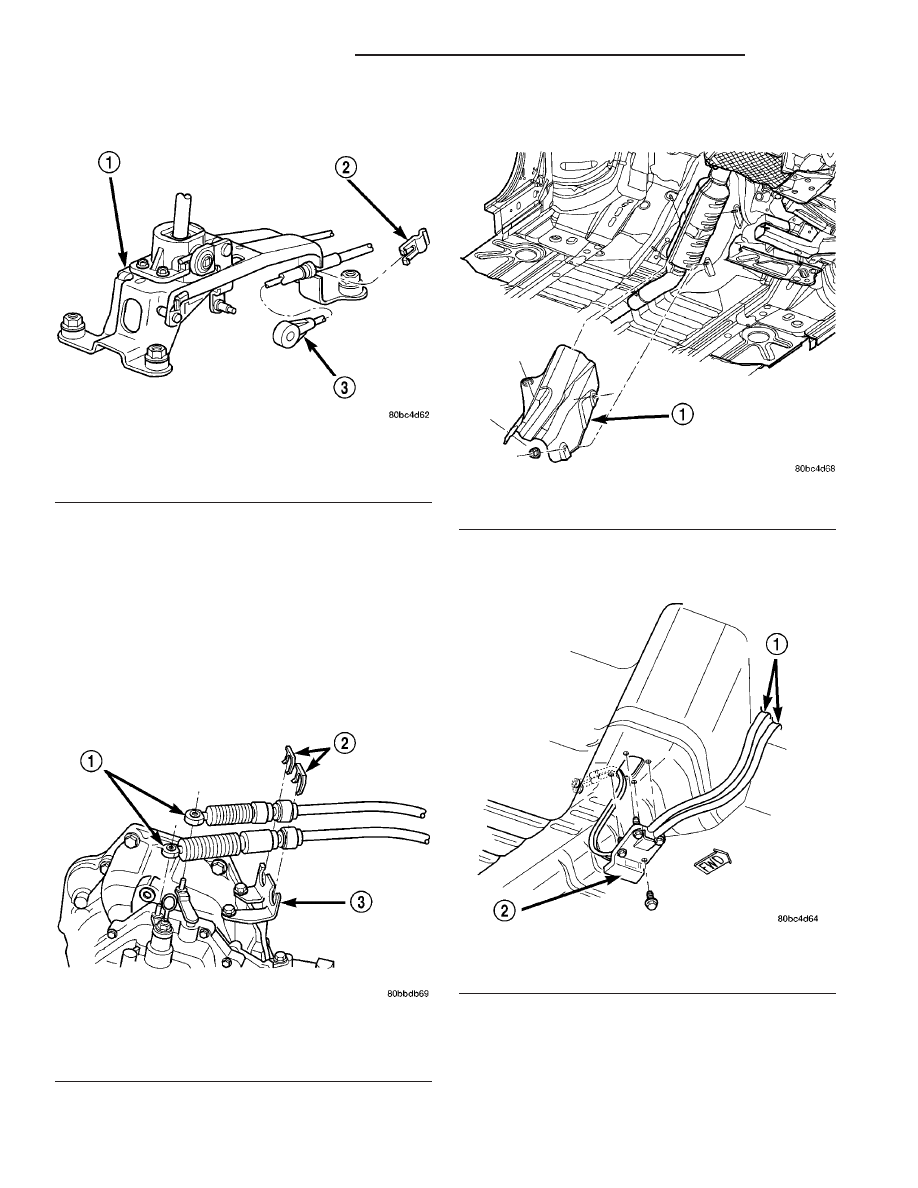

Fig. 115 Selector Cable at Shifter Assembly

1 - SHIFTER
2 - CLIP
3 - SELECTOR CABLE

Fig. 116 Shift Cables at Transaxle

1 - SHIFT CABLES
2 - CLIPS
3 - BRACKET

Fig. 117 Converter Heat Shield Removal/Installation

1 - CONVERTER HEAT SHIELD

Fig. 118 Shift Cable Assembly at Floor Pan

1 - CABLE ASSEMBLY
2 - GROMMET PLATE

21 - 102

T850 MANUAL TRANSAXLE

PL/SRT-4

GEAR SHIFT CABLE (Continued)

INSTALLATION

NOTE: The crossover and selector cables are man-
ufactured as a cable “assembly” and cannot be ser-
viced individually.

CAUTION: Gearshift cable bushings must not be
lubricated or the bushings will swell and split.

(1) Raise vehicle on hoist.
(2) Install cable assembly through floor pan open-

ing and secure to floor pan with grommet plate and
one screw (Fig. 118). Make sure the three grommet
plate studs protrude through cable assembly and
floor pan and tighten screw to 7 N·m (60 in. lbs.).

(3) Route transaxle end of cable assembly into

engine compartment and over transaxle assembly.

(4) Install converter heat shield (Fig. 117).
(5) Lower vehicle.
(6) Install gearshift cables to mounting bracket

and fasten with NEW clips (Fig. 116). Make sure
clips are installed flush to bracket.

(7) Connect gearshift selector and crossover cable

to shift levers at transaxle (Fig. 116).

(8) Install and tighten the three grommet plate-to-

floor pan nuts to 6 N·m (50 in. lbs.) torque.

(9) Install selector cable to shifter lever and secure

cable to shifter bracket. Install clip (Fig. 115).

(10) Install crossover cable to shifter lever and

secure cable to shifter bracket. Install clip (Fig. 114).

NOTE: Only the crossover cable is adjustable. The
selector cable does not have any adjustment capa-
bilities.

(11) Adjust crossover cable as follows:

(a) Loosen adjusting screw on crossover cable at

shifter (Fig. 119).

(b) The

gearshift

mechanism

and

transaxle

crossover lever are spring-loaded and self-center-
ing. Alignment pins used in the past are not
required anymore. Allow gearshift mechanism and
transaxle crossover lever to relax in their neutral
positions. To ensure the gearshift lever is in the
proper position, place the shifter in 3rd or 4th gear
if necessary. Torque adjustment screw to 8 N·m (70
in. lbs.). Care must be taken to avoid moving the
shift mechanism off-center during screw tighten-
ing.

(c) Perform functional check by shifting trans-

axle into all gears.
(12) Install center console assembly (Fig. 113).
(13) Install gearshift boot to console. Locate boot to

console at forward tab and secure with retaining
tabs.

(14) Position knob hole over the gearshift mecha-

nism and align the shift pattern (Fig. 112). Strike
knob with rubber mallet to engage knob to mecha-
nism.

(15) Install the air cleaner assembly.
(16) Connect battery negative cable.

ADJUSTMENTS

NOTE: Only the crossover cable is adjustable. The
selector cable does not have adjustment capabili-
ties.

Pull up on gearshift knob with moderate force to

remove from gearshift mechanism (Fig. 120).

(1) Remove the center console assembly as shown

in (Fig. 121).

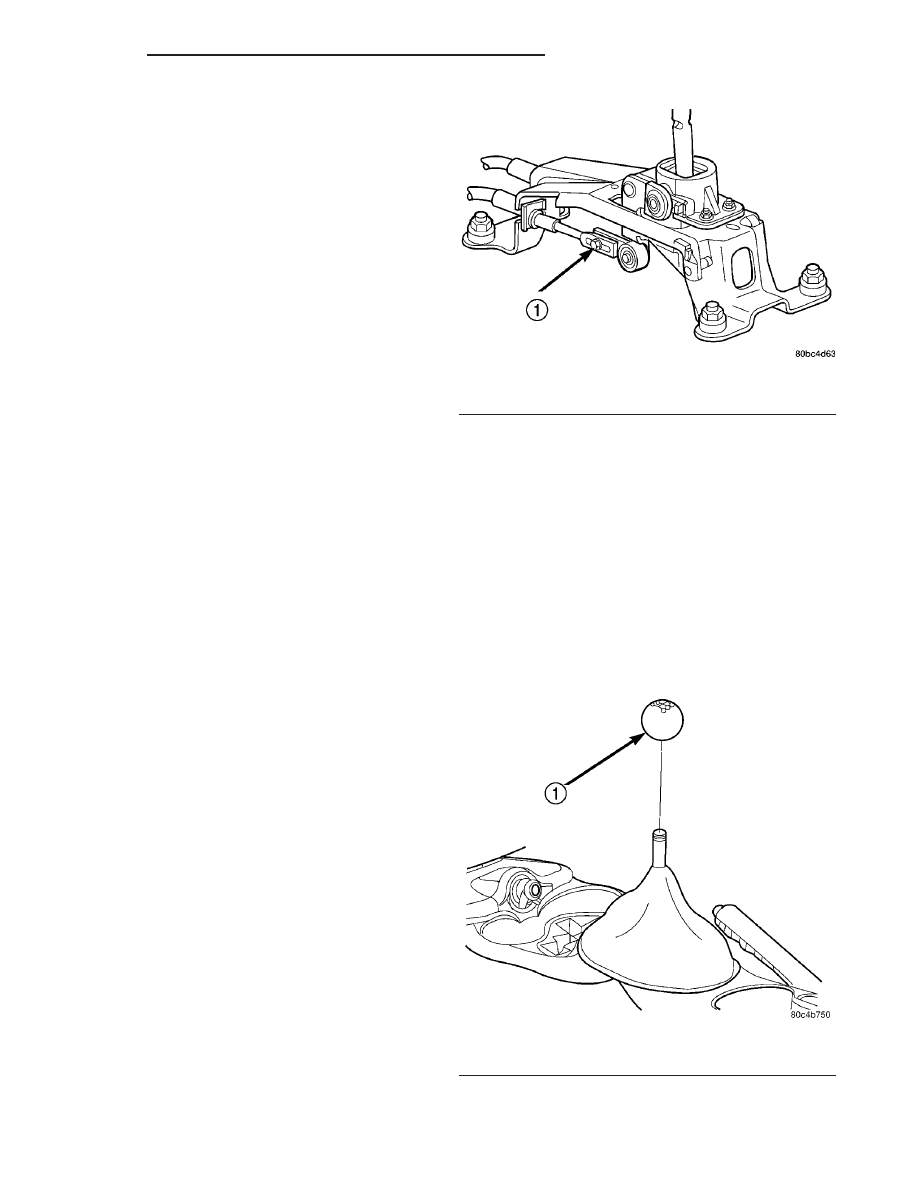

Fig. 119 Crossover Cable Adjustment Screw

1 - CROSSOVER ADJUSTMENT SCREW

Fig. 120 Gearshift Knob Removal/Installation

1 - GEARSHIFT KNOB

PL/SRT-4

T850 MANUAL TRANSAXLE

21 - 103

GEAR SHIFT CABLE (Continued)
