Dodge Caliber. Manual - part 991





P062F — INTERNAL CONTROL MODULE EEPROM ERROR

For a complete wiring diagram Refer to Section 8W

When Monitored:
With the ignition on.

Set Condition:
The Engine Control Module (ECM) detects an internal failure.

Possible Causes

INTERMITTENT DTC

ENGINE CONTROL MODULE (ECM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, Clear DTCs in the Engine Control Module (ECM).

Monitor the scan tool for at least two minutes.

Cycle the ignition key off and on several times, leaving the ignition on for at least 10 seconds at a time.

Start the engine.

Perform several engine run cycles, turning the ignition off for at least 20 seconds between each engine run cycle.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

ENGINE CONTROL MODULE (ECM)

Using the wiring diagram/schematic as a guide, inspect the Engine Control Module (ECM) wiring and connectors.

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Check for proper ECM power supply from the ignition switch and the Main relay. Check the ECM for proper ground
supply.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Replace the Engine Control Module (ECM) in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1251

P0642-SENSOR REFERENCE VOLTAGE 1 CIRCUIT LOW

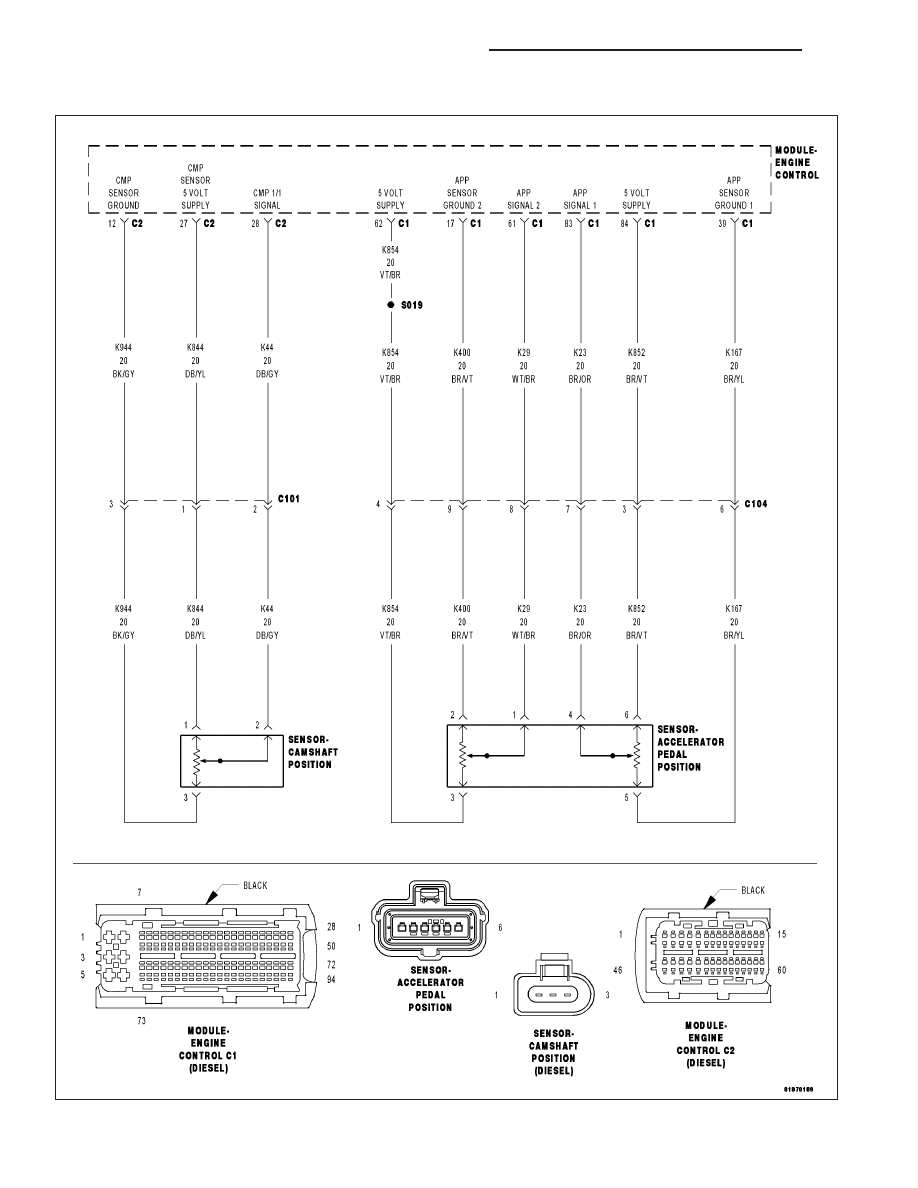

For a complete wiring diagram Refer to Section 8W

9 - 1252

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

PM

When Monitored:
With the ignition on.

Set Condition:
The ECM detects a low voltage on the Sensor Supply #1 circuit for 0.16 second

Possible Causes

INTERMITTENT DTC

5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

CAMSHAFT POSITION SENSOR

ACCELERATOR PEDAL POSITION SENSOR

ENGINE CONTROL MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Theory of Operation

The ECM contains 3 internal 5–Volt Sensor Supply sources. Each 5–Volt Supply source is split into parallel circuits
to provide 5 volts to multiple sensors. Sensor Supply 1 provides 5 volts to the Camshaft Position Sensor and the
Accelerator Pedal Position Sensor No. 1.

Diagnostic Test

1.

CHECK FOR ACTIVE DTC

Turn the ignition on.

With the scan tool, erase ECM DTCs.

Turn the ignition off for 10 seconds.

Turn the ignition on.

With the scan tool, View DTCs.

Is the status Active for this DTC?

Yes

>> Go To 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

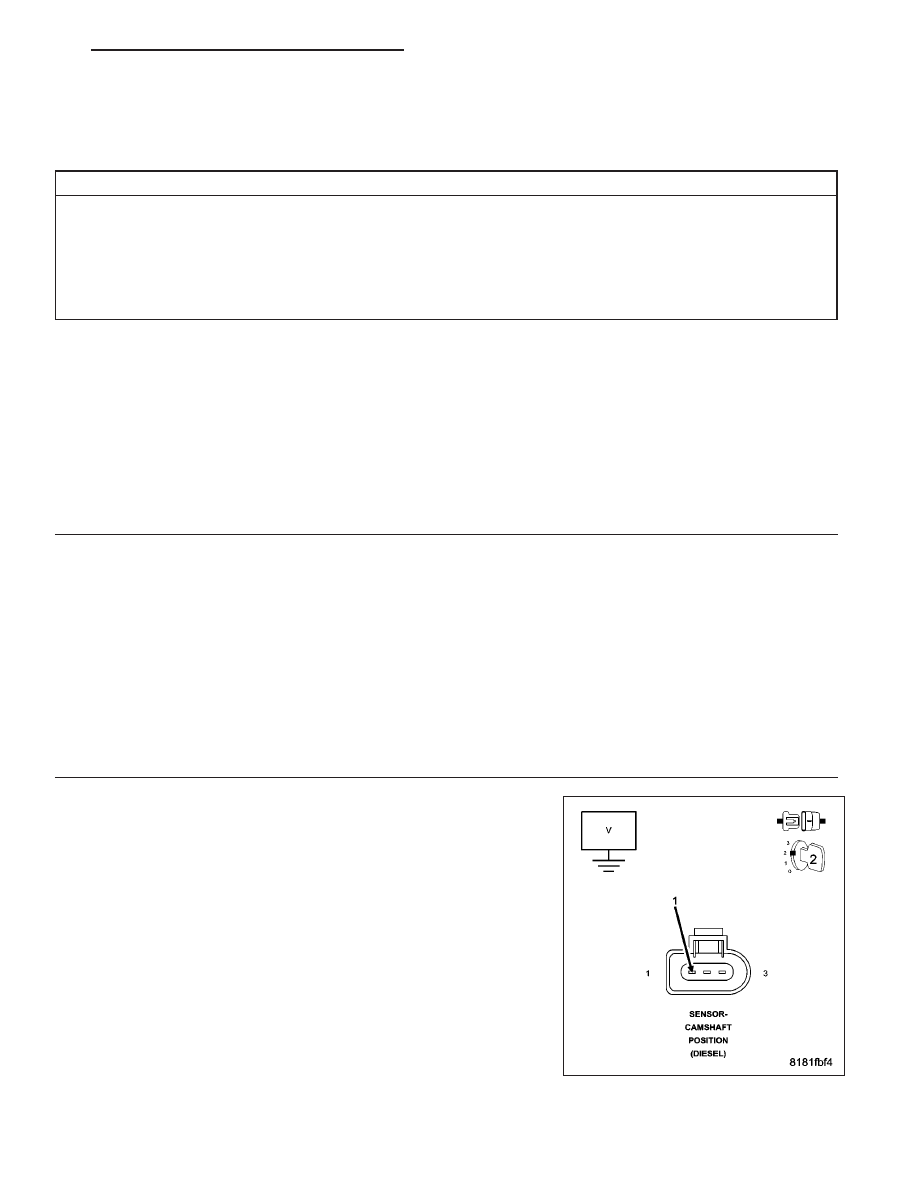

CAMSHAFT POSITION SENSOR

Turn the ignition off.

Disconnect the Camshaft Position Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (K844) Camshaft Position Sensor 5 Volt
Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Camshaft Position Sensor.

Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 3

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1253

3.

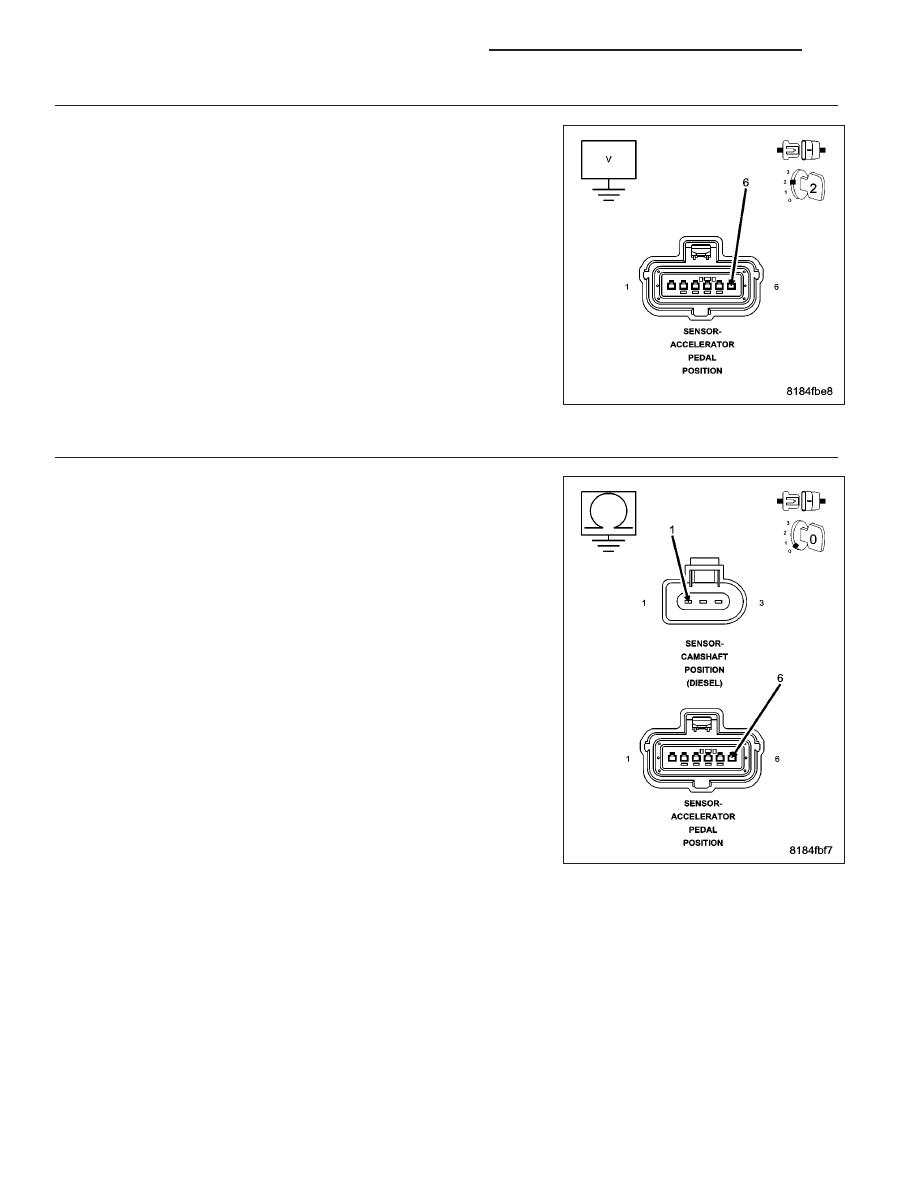

ACCELERATOR PEDAL POSITION SENSOR NO. 1

Turn the ignition off.

Disconnect the Accelerator Pedal Position Sensor harness connector.

Turn the ignition on.

Measure the voltage of the (K852) Accelerator Pedal Position Sensor
No. 1 5 Volt Supply circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Accelerator Pedal Position Sensor.

Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 4

4.

5-VOLT SUPPLY CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the (K844) Camshaft Posi-
tion Sensor 5 Volt Supply circuit.

Measure the resistance between ground and the (K852) Accelerator
Pedal Position Sensor No. 1 5 Volt Supply circuit.

Is the resistance above 1000 ohms for each circuit?

Yes

>> Go To 5

No

>> Repair the 5-Volt Supply circuit that measures below 1000

ohms for a short to ground.

Perform the ECM VERIFICATION TEST. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

9 - 1254

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

PM
