When Monitored:
With the ignition on.

Set Condition:
The PCM detects that the Knock Sensor circuit voltage is implausible.

Possible Causes

INTERMITTENT DTC

(K42) KS SIGNAL CIRCUIT SHORTED TO VOLTAGE

(K42) KS SIGNAL CIRCUIT SHORTED TO GROUND

(K42) KS SIGNAL CIRCUIT SHORTED TO (K942) KS RETURN

(K42) KS SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(K942) KS RETURN CIRCUIT OPEN OR HIGH RESISTANCE

KNOCK SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands
near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in
personal injury or death.
With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(K42) KS SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Knock Sensor connector.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

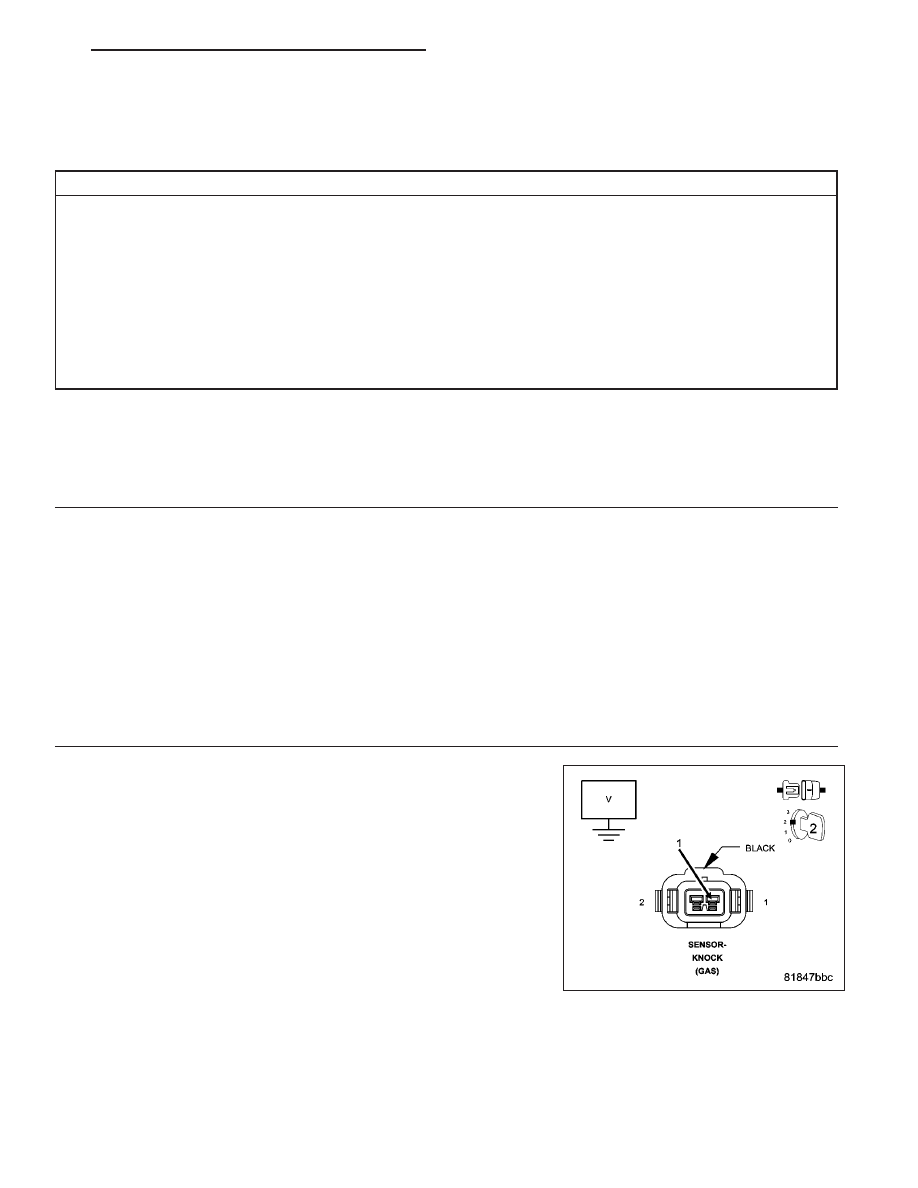

Measure the voltage of the (K42) KS Signal circuit in the Knock Sensor
harness connector.

Is there any voltage present?

Yes

>> Repair the (K42) KS Signal circuit for a short to voltage.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 3

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 291

3.

(K42) KS SIGNAL CIRCUIT SHORTED TO GROUND

Turn the ignition off.

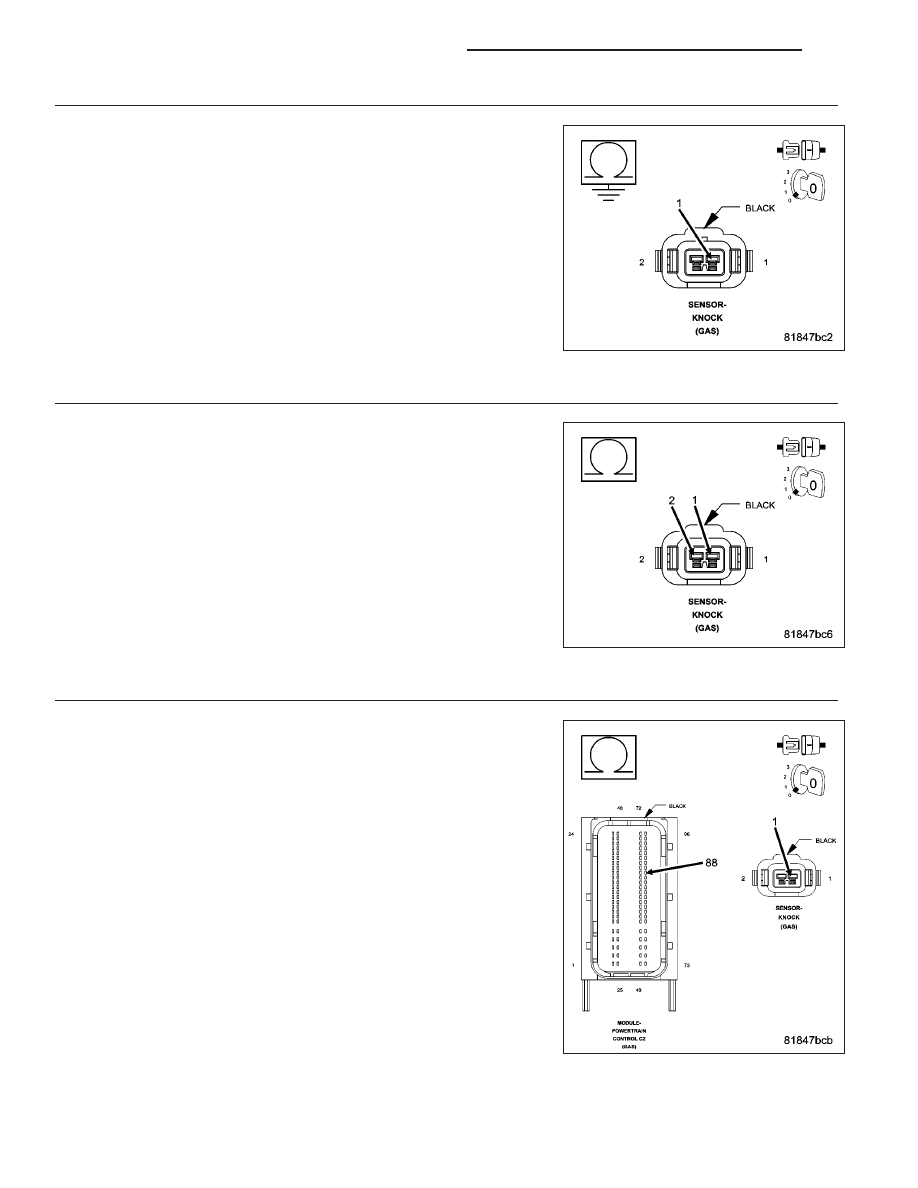

Measure the resistance between ground and the (K42) KS Signal circuit
in the Knock Sensor harness connector.

Is the resistance above 100 ohms?

Yes

>> Go to 4

No

>> Repair the (K42) KS Signal circuit for a short to ground.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

(K42) KS SIGNAL CIRCUIT SHORTED TO (K942) KS RETURN CIRCUIT

Measure the resistance between the (K42) KS Signal circuit and the
(K942) KS Return circuit in the Knock Sensor harness connector.

Is the resistance above 100 ohms?

Yes

>> Go to 5

No

>> Repair the (K42) KS Signal circuit for a short to the (K942)

KS Return circuit.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

5.

(K42) KS SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

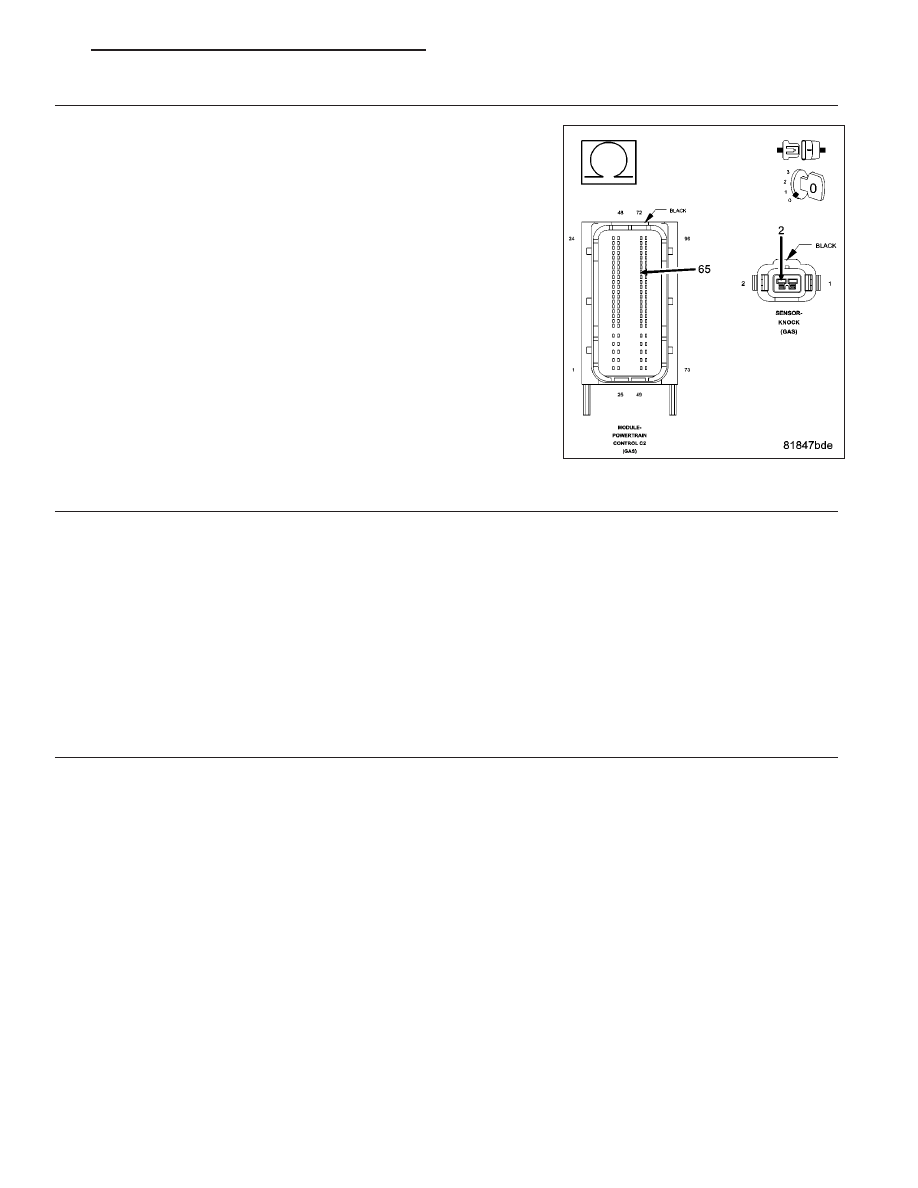

Measure the resistance of the (K42) KS Signal circuit between the
Knock Sensor harness connector and the Powertrain Control Module
(PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 6

No

>> Repair the (K42) KS Signal circuit for an open circuit or high

resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

9 - 292

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

6.

(K942) KS RETURN CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (K942) KS Return circuit between the
Knock Sensor harness connector and the Powertrain Control Module
(PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 7

No

>> Repair the (K942) KS Return for an open circuit or high

resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

7.

KNOCK SENSOR

Turn the ignition off.

Connect the Powertrain Control Module (PCM) connector.

Replace the Knock Sensor in accordance with the Service Information.

Start the engine and allow it to reach normal operating temperature.

With the scan tool, select View DTCs.

Is status Active for this DTC?

Yes

>> Go to 8

No

>> Test Complete.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

8.

POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Knock Sensor and
the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 293

P0335-CRANKSHAFT POSITION SENSOR CIRCUIT

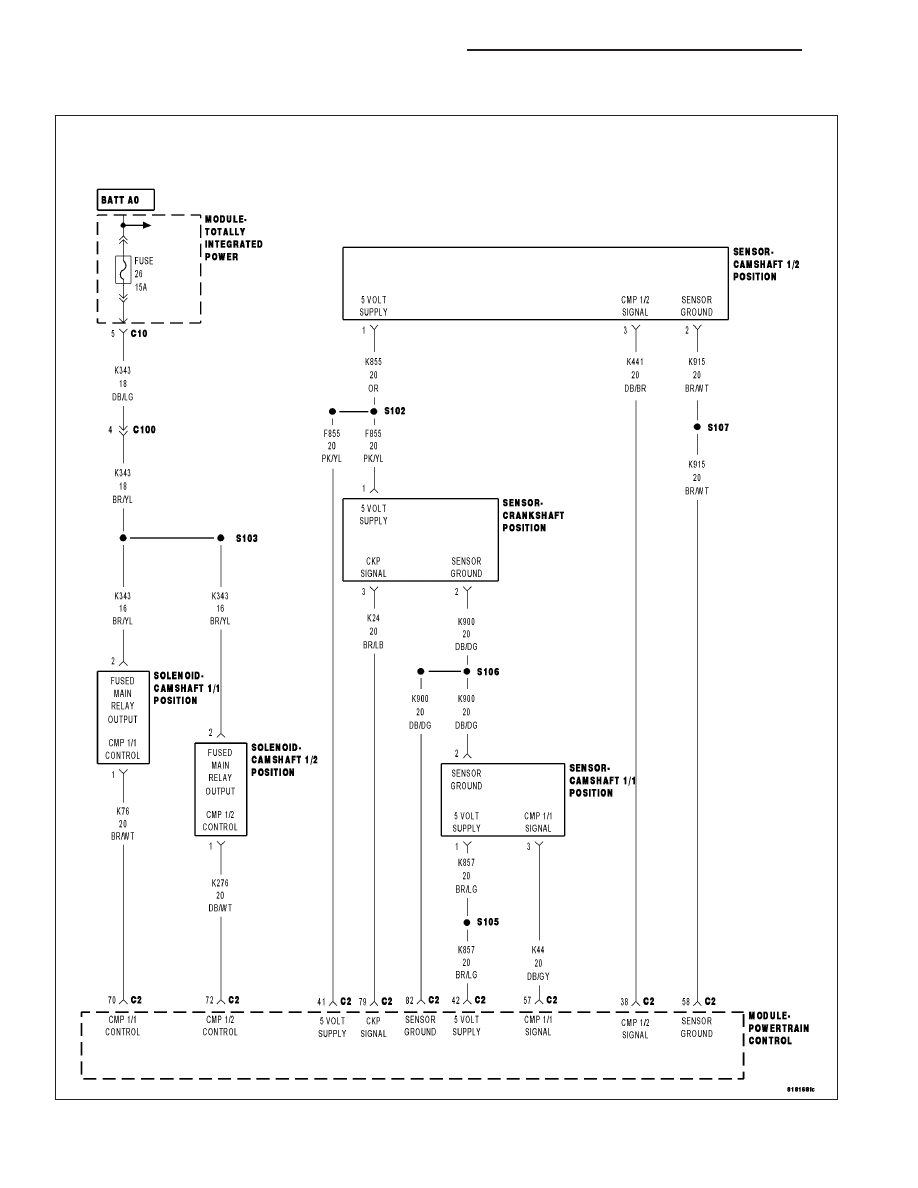

For a complete wiring diagram Refer to Section 8W
