P0073-AMBIENT AIR TEMPERATURE SENSOR CIRCUIT HIGH

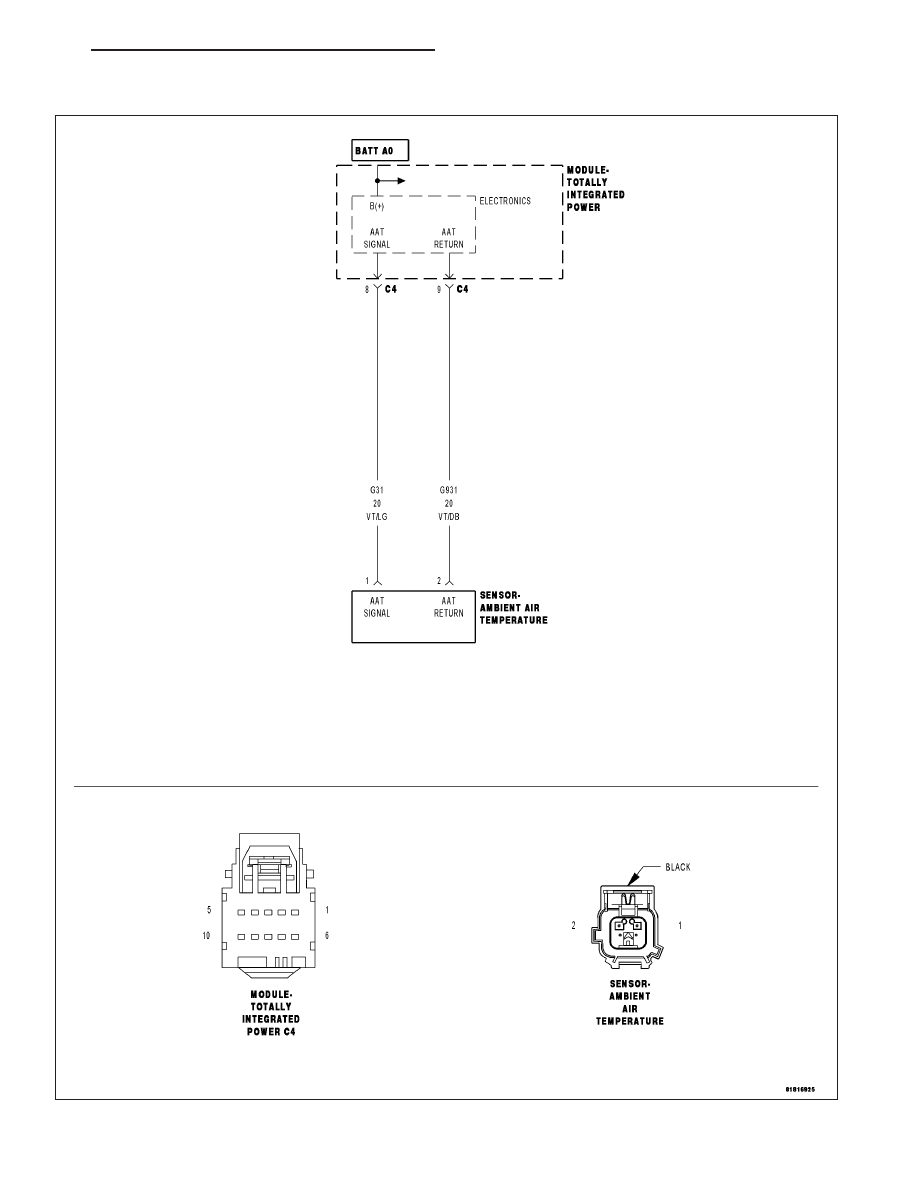

For a complete wiring diagram Refer to Section 8W

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 59

When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.

Set Condition:
The PCM detects that the (G31) AAT Signal circuit shorted high.

Possible Causes

INTERMITTENT DTC

(G31) AAT SIGNAL CIRCUIT SHORTED TO VOLTAGE

(G31) AAT SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE

(G931) AAT SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

AMBIENT AIR TEMPERATURE SENSOR

POWERTRAIN CONTROL MODULE (PCM)

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE -
DIAGNOSIS AND TESTING)

Diagnostic Test

1.

DTC IS ACTIVE

Ignition on, engine not running.

With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes

>> Go to 2

No

>> Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE -

DIAGNOSIS AND TESTING)

2.

(G31) AAT SIGNAL CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the Ambient Air Temperature Sensor connector.

Disconnect the Powertrain Control Module (PCM) connector.

Turn the ignition on.

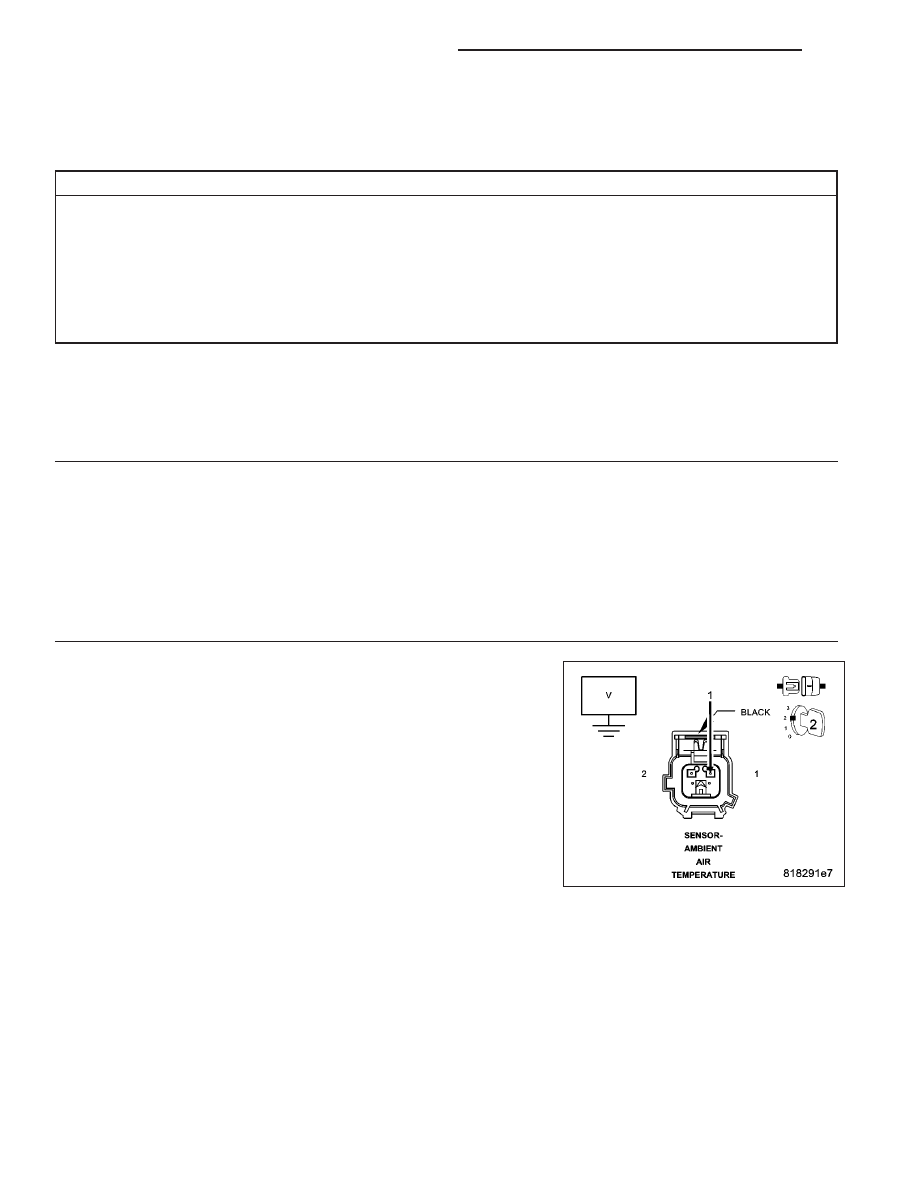

Measure the voltage of the (G31) AAT Signal circuit in the Ambient Air
Temperature Sensor harness connector.

Is there any voltage present?

Yes

>> Repair the (G31) AAT Signal circuit for a short to voltage.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 3

9 - 60

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

PM

3.

(G31) AAT SIGNAL OPEN OR HIGH RESISTANCE

Turn the ignition off.

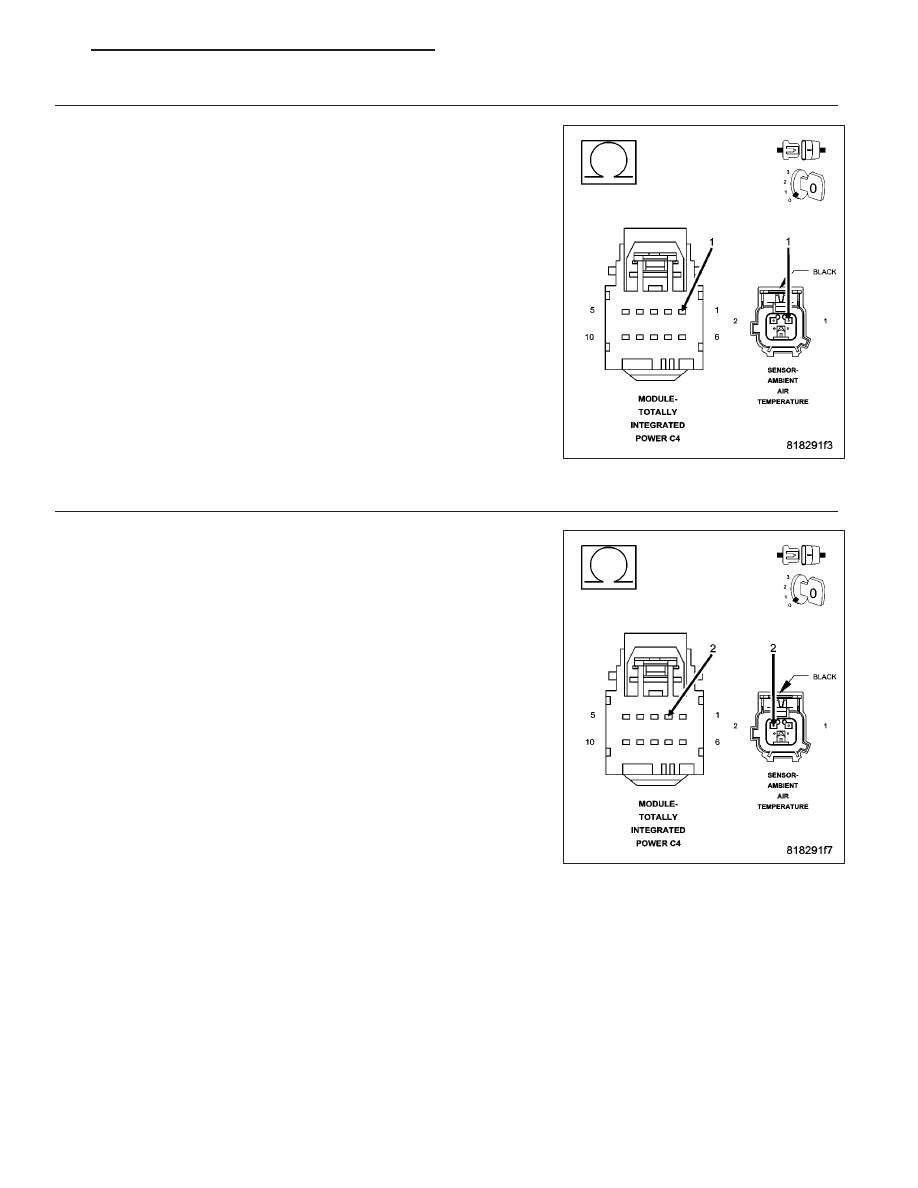

Measure the resistance of the (G31) AAT Signal circuit between the
Ambient Air Temperature Sensor harness connector and the Powertrain
Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 4

No

>> Repair the (G31) AAT Signal circuit for an open circuit or

high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

4.

(G931) AAT SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

Measure the resistance of the (G931) AAT Sensor Ground circuit
between the Ambient Air Temperature Sensor harness connector and
the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes

>> Go to 5

No

>> Repair the (G931) AAT Sensor Ground circuit for an open

circuit or high resistance.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

PM

ENGINE ELECTRICAL DIAGNOSTICS - GPEC

9 - 61

5.

AMBIENT AIR TEMPERATURE SENSOR

Turn the ignition off.

Connect the Powertrain Control Module (PCM) connector.

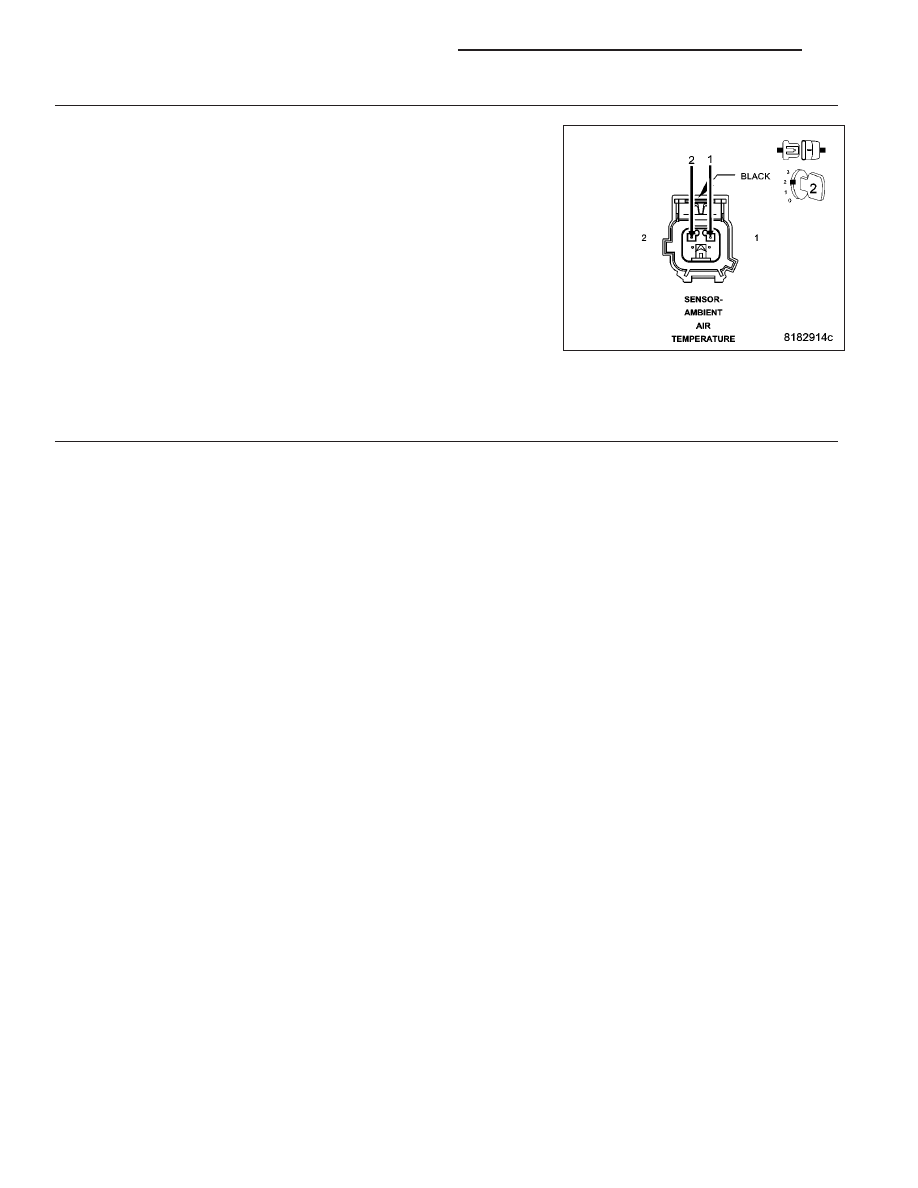

Connect a jumper wire between the (G31) AAT Signal circuit and the
(G931) AAT Sensor Ground in the Ambient Air Temperature Sensor har-
ness connector.

Turn the ignition on.

With the scan tool, read the Ambient Air Temperature Sensor signal
voltage.

Is the voltage below 1.0 volt with the jumper wire in place?

Yes

>> Replace the Ambient Air Temperature Sensor in accordance

with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING).

No

>> Go to 6

6.

POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Ambient Air Tem-
perature Sensor and the Powertrain Control Module (PCM).

Look for any chafed, pierced, pinched, or partially broken wires.

Look for broken, bent, pushed out or corroded terminals.

Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.

Look for the data to change or for the DTC to reset during the wiggle test.

Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes

>> Repair as necessary.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).

No

>> Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.

Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
