Dodge Caliber. Manual - part 672

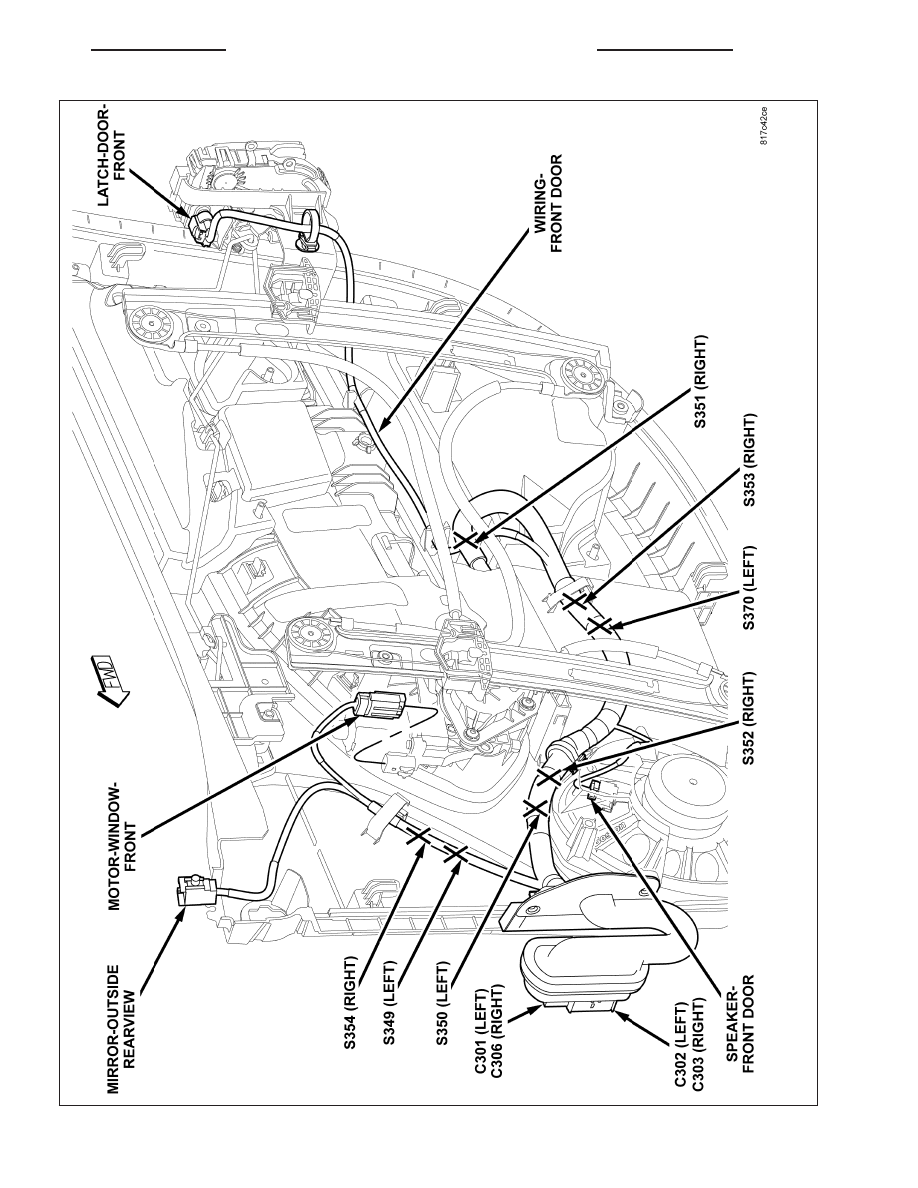

Fig.

53

FRONT

DOOR

(RIGHT

SHOWN,

LEFT

SIMILAR)

PM

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 59

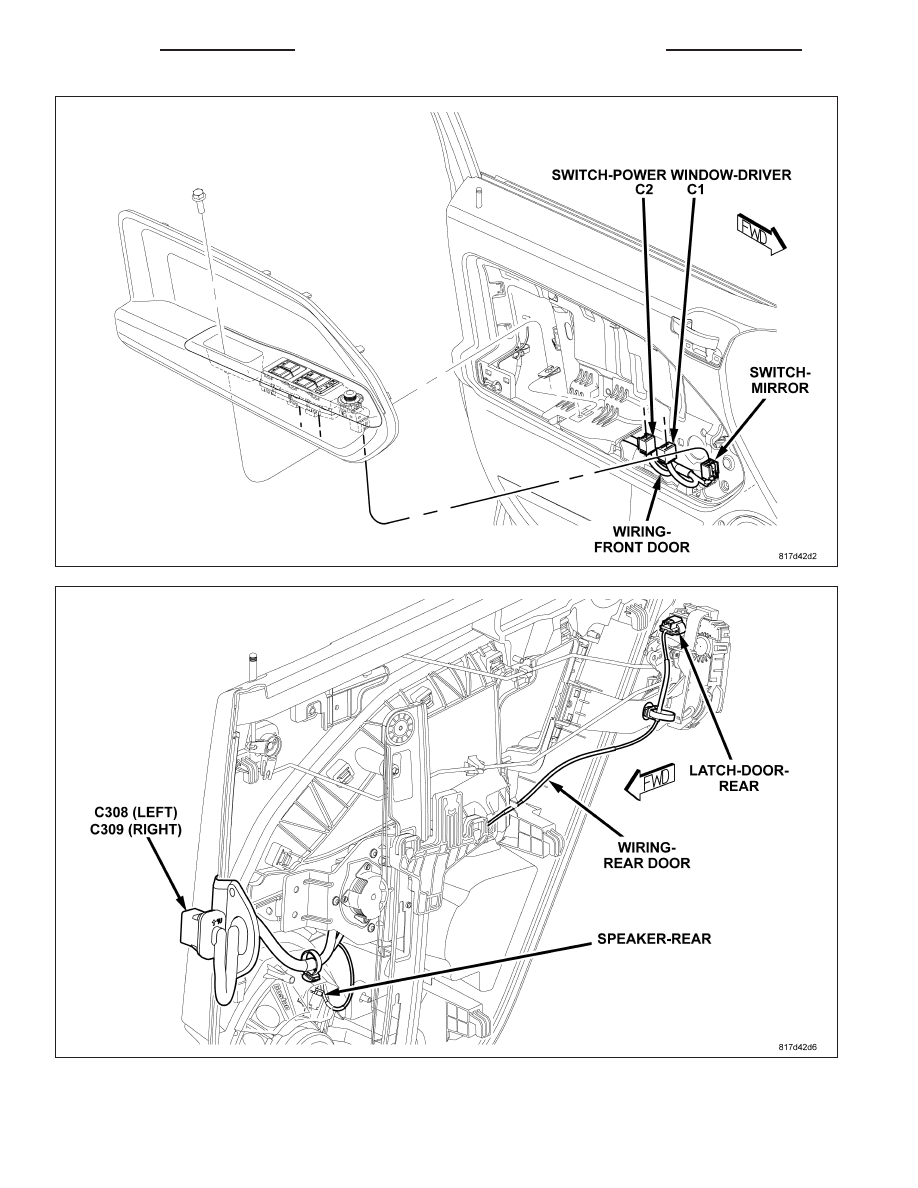

Fig. 54 FRONT DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)

Fig. 55 REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)

8W - 91 - 60

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PM

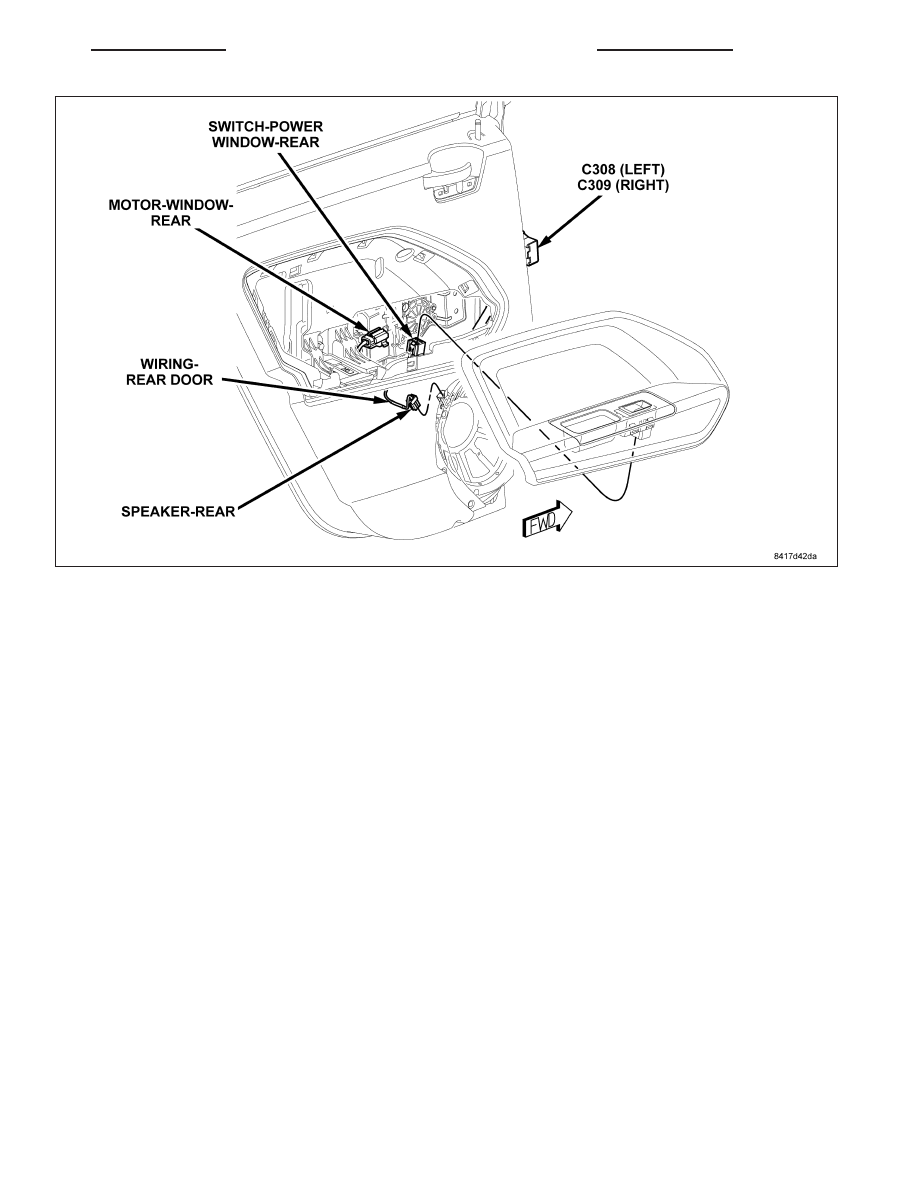

Fig. 56 REAR DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)

PM

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

8W - 91 - 61

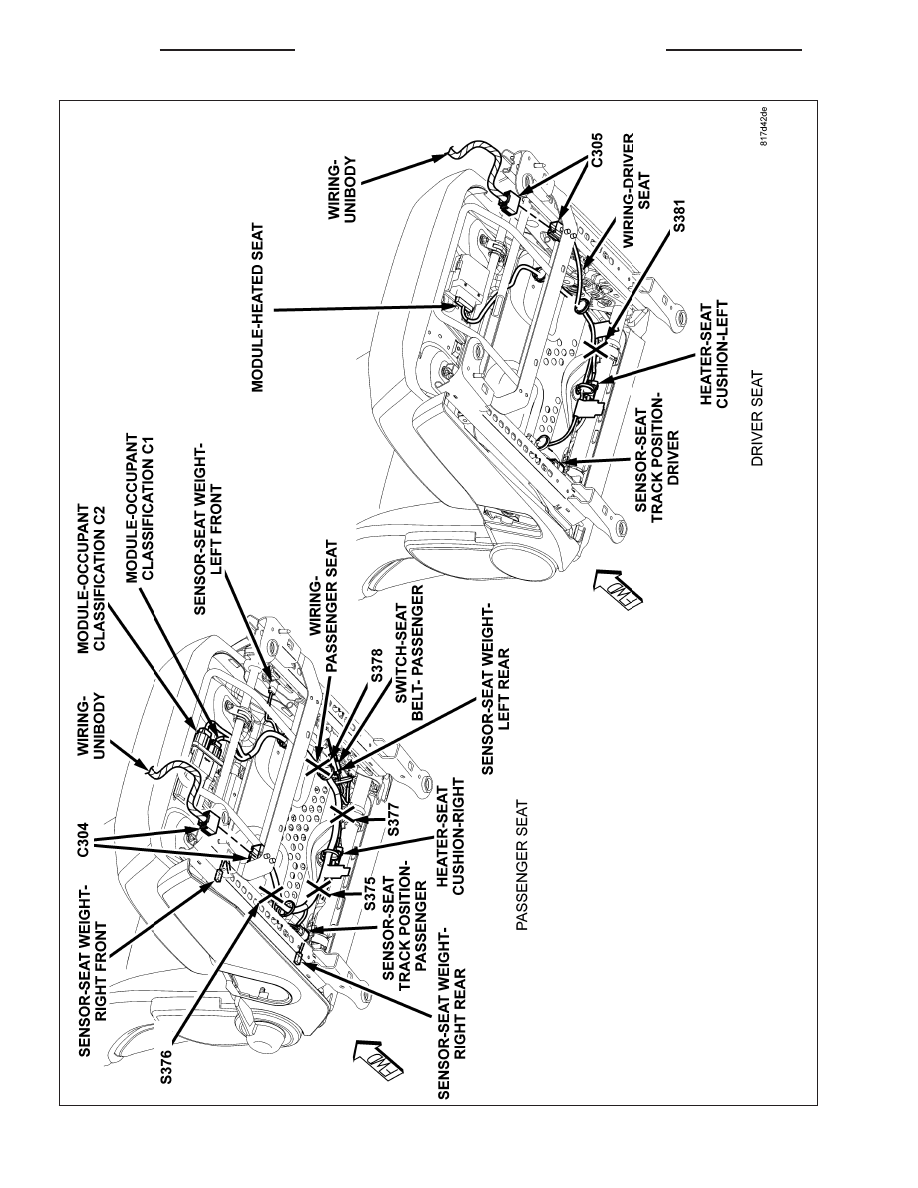

Fig.

57

SEA

TS

-

FRONT

8W - 91 - 62

8W-91 CONNECTOR/GROUND/SPLICE LOCATION

PM
