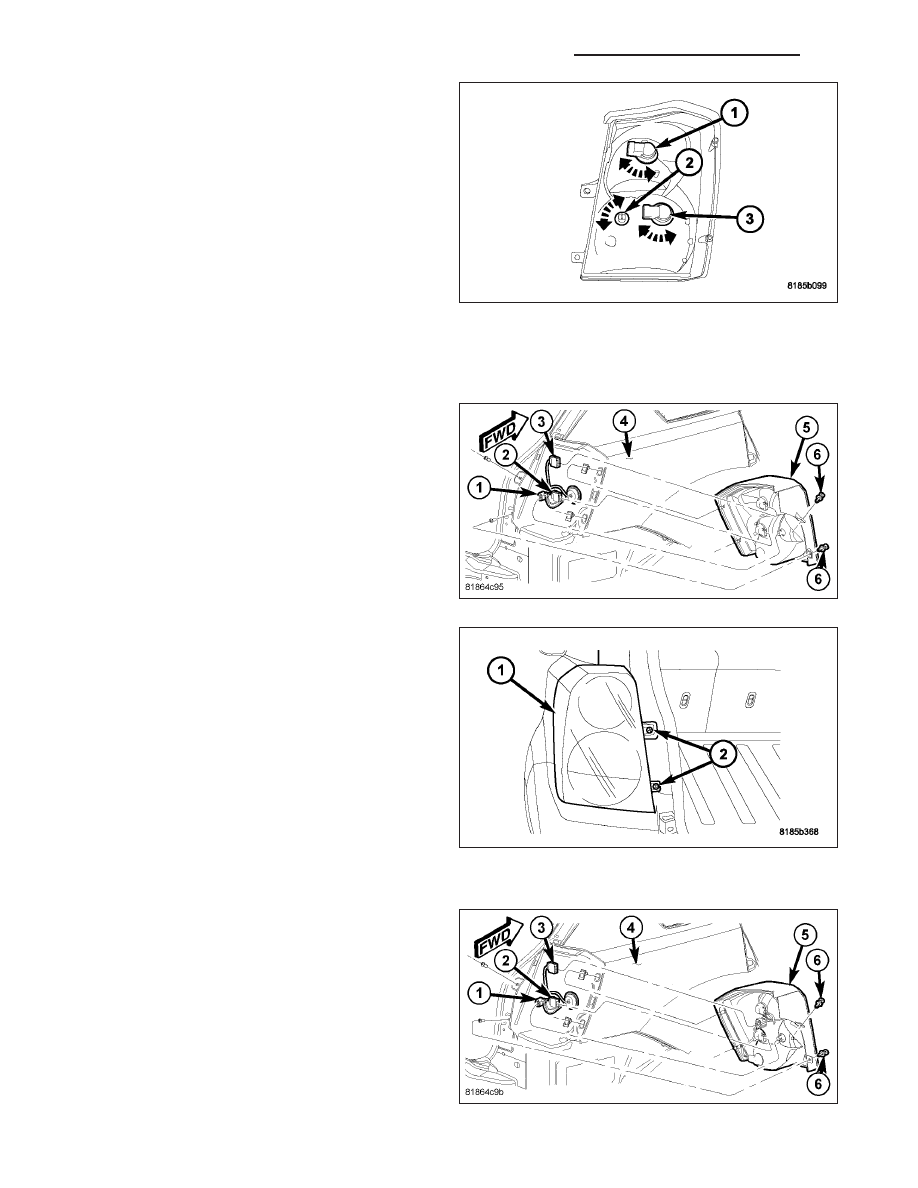

3. Pull straight back on the tail lamp unit (5) to
release it from the quarter panel (4).
4. Disconnect the three electrical connectors (1, 2,
and 3) to the tail lamp unit (5).
5. Remove the tail lamp unit (5) from the vehicle.
6. Remove the bulb sockets from the lamp unit by
rotating the sockets counterclockwise, and then pull
straight out of the unit.
EXPORT
The BUX tail lamp unit comes out the same way as
the domestic, with the difference being the location of
the electrical connectors (1, 2, and 3). They incorpo-
rate a rear fog lamp in the tail lamp assembly.
INSTALLATION
BULBS

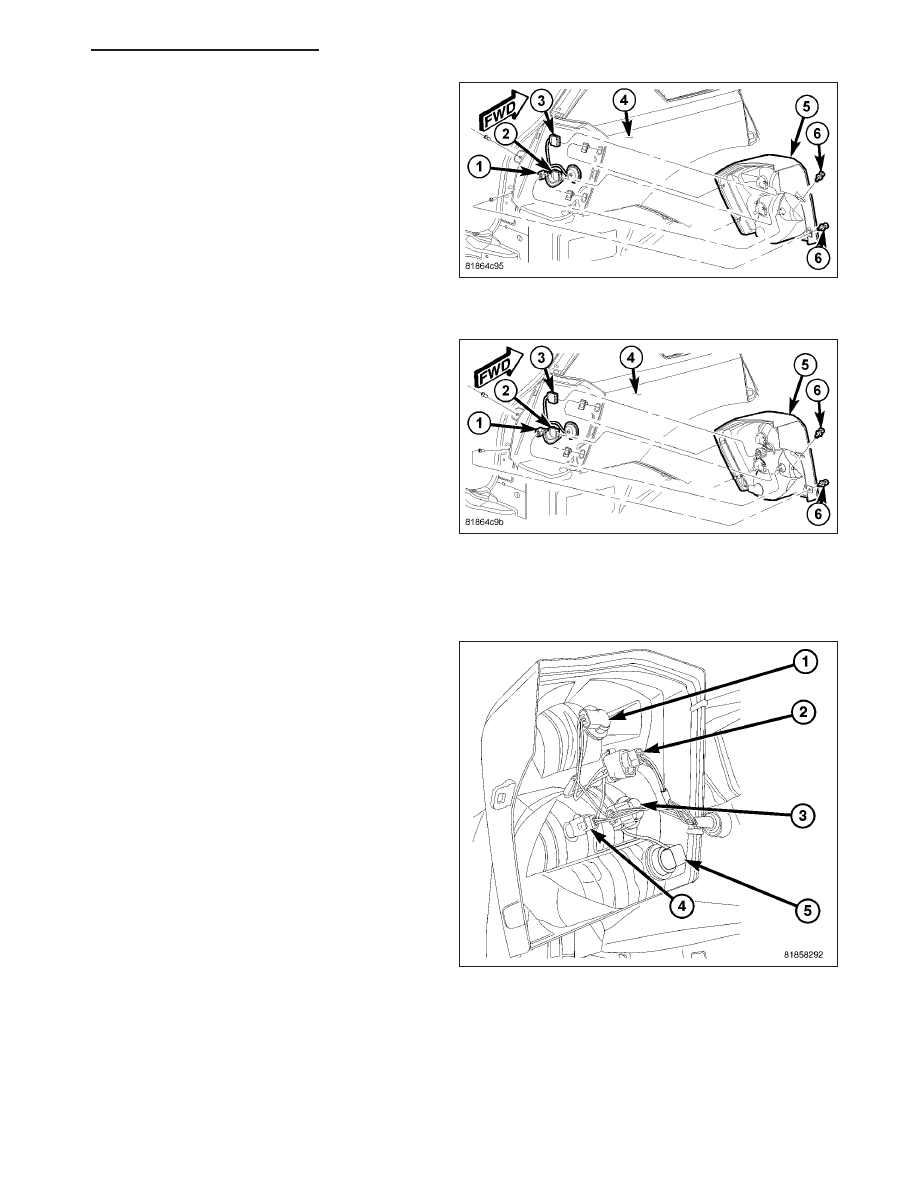

There are a total of four possible bulbs in the tail lamp
unit:
•
Back-Up Lamp (4)
•
Park/Brake Lamp (1)
•
Rear Fog Lamp (5) - Export Only
•
Turn Signal (3)
