Dodge Caliber. Manual - part 300





When Monitored:
During heated seat operation.

Set Condition:
This code is set immediately if the Heated Seat Module detects voltage under 10 volts on the (F937) Fused
Ignition Switch Output (Run) circuit.

Possible Causes

(F937) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT HIGH RESISTANCE

HEATED SEAT MODULE

Diagnostic Test

1.

CHECK PCM FOR CHARGING SYSTEM DTC

With the scan tool, read Powertrain Control Module DTC’s.

Are there any Charging System DTC’s set in the Powertrain Control Module?

Yes

>> (Refer to 8 - ELECTRICAL/CHARGING - DIAGNOSIS AND TESTING) for Charging System diagnostic

procedures.

No

>> Go To 2

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

2.

VERIFY THAT DTC B2181 - HEATED SEAT MODULE POWER SUPPLY LOW IS ACTIVE

With the scan tool, record and erase DTC’s.

Turn the ignition switch to the Off position then start the engine and operate the heated seats for one minute.

With the scan tool, read DTC’s.

Does the DTC B2181 - HEATED SEAT MODULE POWER SUPPLY LOW reset?

Yes

>> Go To 3

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

3.

(F937) FUSED IGNITION SWITCH OUTPUT (RUN) CIRCUIT HIGH RESISTANCE

Disconnect the Heated Seat Module connector.

NOTE: Check connectors - Clean and repair as necessary.
Start the engine and let idle.

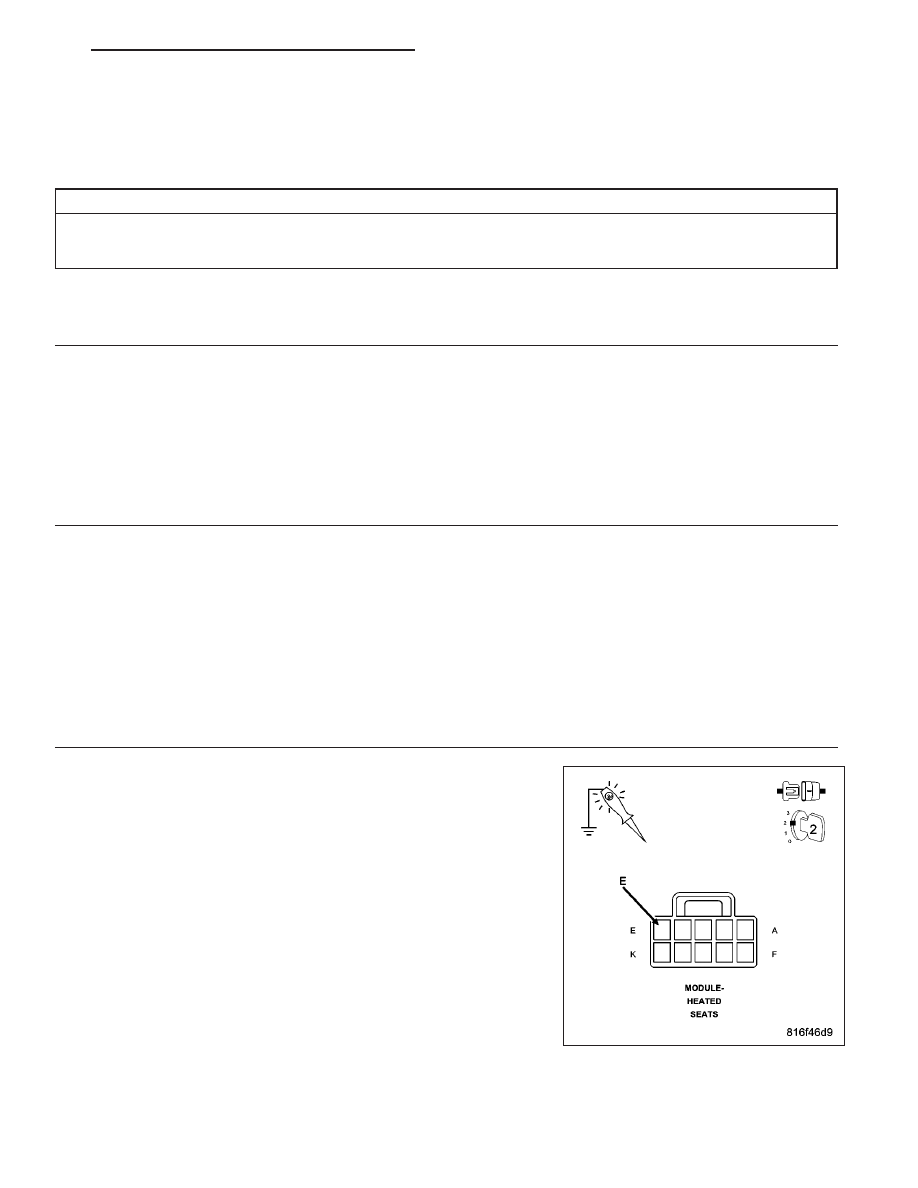

Using a 12-volt test light connected to ground, check the (F937) Fused
Ignition Switch Output (Run) circuit at the HSM connector.

NOTE: The test light must illuminate brightly. Compare the bright-
ness to that of a direct connection to the battery.

Does the test light illuminate brightly?

Yes

>> Replace the Heated Seat Module in accordance with the

Service Information.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Repair the (F937) Fused Ignition Switch Output (Run) circuit

as necessary.

Perform BODY VERIFICATION TEST – VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

PM

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 55

B2182- HEATED SEAT MODULE POWER SUPPLY HIGH

For a complete wiring diagram Refer to Section 8W.

When Monitored:
During heated seat operation.

Set Condition:
This code is set immediately if the Heated Seat Module detects voltage over 16.0 volts on the (F937) Fused
Ignition Switch Output (Run) circuit.

Possible Causes

TROUBLE CODE PRESENT

CHARGING SYSTEM HIGH

Diagnostic Test

1.

CHECK PCM FOR CHARGING SYSTEM DTC

With the scan tool, record and erase DTC’s.

Cycle the ignition switch from On to Off.

Start the engine.

Run the engine at approximately 1500 RPM for 1 minute.

With the scan tool, read DTCs.

With the scan tool, read Powertrain Control Module DTC’s.

Are there any Charging System DTC’s set in the Powertrain Control Module?

Yes

>> (Refer to 8 - ELECTRICAL/CHARGING - DIAGNOSIS AND TESTING) for Charging System diagnostic

procedures.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> The conditions that caused this code to set are not present at this time. Using Service Information,

check the charging system.

Perform BODY VERIFICATION TEST – VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

8G - 56

HEATED SEATS - ELECTRICAL DIAGNOSTICS

PM

B221A-HEATED SEAT MODULE INTERNAL

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Ignition on.

Set Condition:
This code is set immediately if the Heated Seat Module internal self test fails.

Possible Causes

HEATED SEAT MODULE

Diagnostic Test

1.

VERIFY THAT DTC B221A-HEATED SEAT MODULE INTERNAL IS ACTIVE

With the scan tool, record and erase DTC’s.

Cycle the ignition switch off then back on.

With the scan tool, read DTC’s.

Does the DTC B221A-HEATED SEAT MODULE INTERNAL reset?

Yes

>> Replace the Heated Seat Module.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL
MODULES - STANDARD PROCEDURE)

PM

HEATED SEATS - ELECTRICAL DIAGNOSTICS

8G - 57
